Sale!

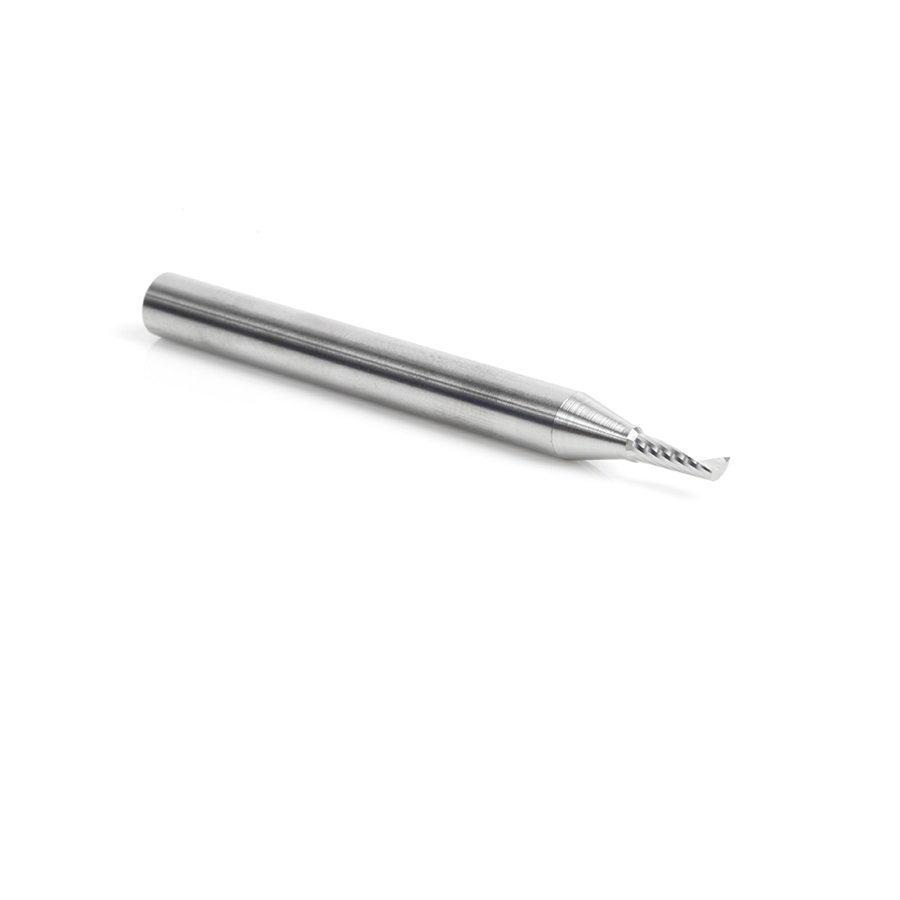

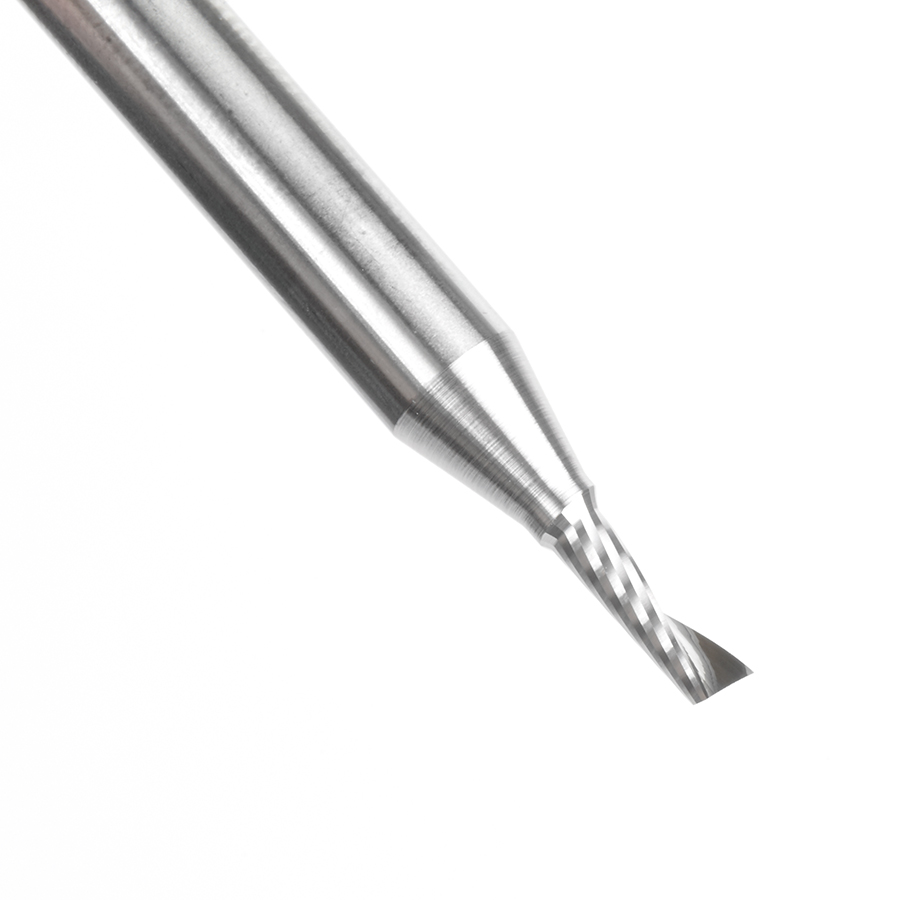

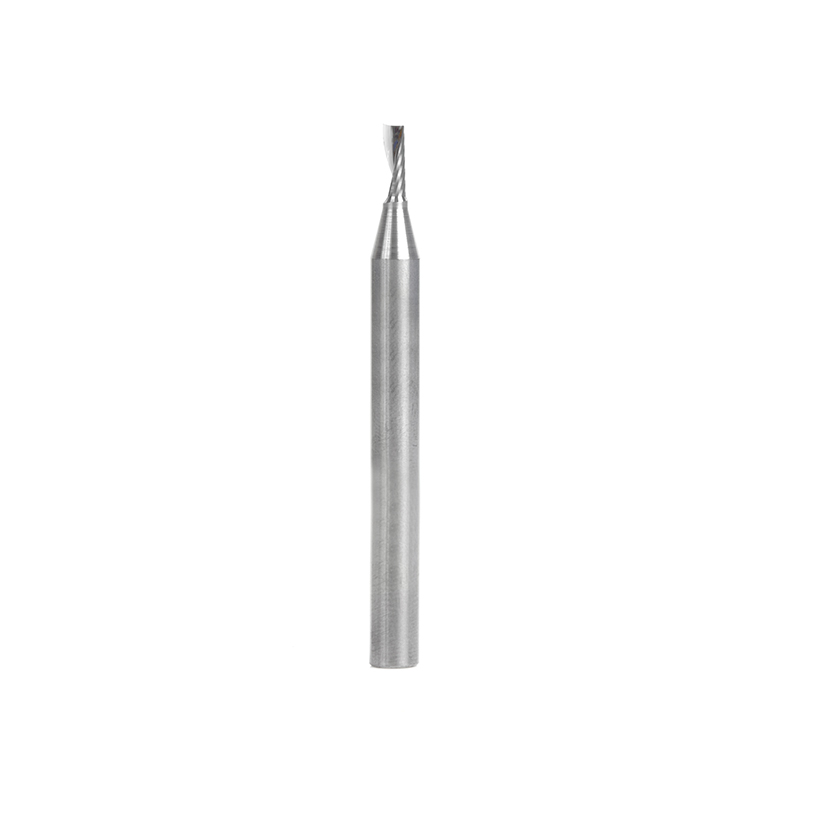

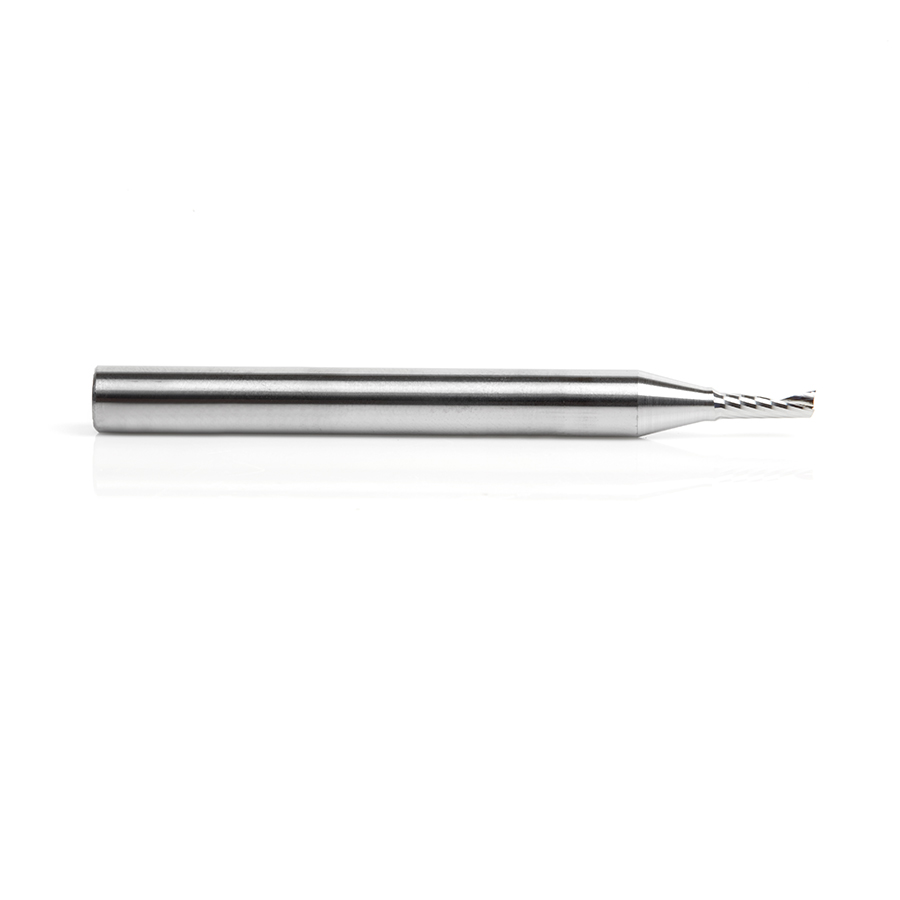

Amana 57315 Metric Solid Carbide CNC Spiral ‘O’ Single Flute, Plastic Cutting 3mm Dia x 8mm x 6mm Shank x 64mm Long Up-Cut Router Bit
Original price was: $71.85.$53.89Current price is: $53.89.
3mmx6mmSHANK SPIRAL O PLASTIC
Item Description
To be used only on CNC machines and routers with automatic feeding.
Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.
Excellent for cutting:
- Plastic/Acrylic
- Acetal and Nylon
- Acrylic Stone
- Acrylonitrile Butadiene Styrene (ABS)
- Aluminum Composite Material (ACM)
- Alupanel®
- Corian
- Coroplast®**
- Corrugated Plastics* such as Correx Boards and Polypropylene
- Crosslinked Polyethylene (XPE, PEX, XLPE)
- Delrin
- Dibond®
- Epoxy
- Expanded PVC
- Extruded Acrylic
- Foam Board
- Fomex®
- Gatorfoam®***
- Hard Plastic
- High Density Polyethylene (HDPE)
- High Density Urethane (HDU Board)
- High Impact Polystyrene (HIPS)
- High Impact Polystyrene (HIPS) for digital printing
- High Pressure Laminates (HPL)
- Hydroxy-Terminated Polyether (HTPE)
- King ColorCore® The Multi-Color Engravable Polymer Sheet.
- Laminate
- Low Density Polyethylene (LDPE)
- LubX®
- Lucite®
- Mechanical/Engineered Plastics
- Perspex® Cast Acrylic Sheet
- Plexiglas®
- Poly (methyl methacrylate) (PMMA)
- Polycarbonate (Lexan™)†
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
- Polystyrene (PS)
- PVC
- Sign Foam
- Sintra PVC
- Solid Surface
- StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
- Teflon®
- Thermoplastic Polyolefin (TPO)
- Trespa® Meteon®****
- Ultra High Molecular Weight Polyethylene (UHMWPE)
- Urethane
- Vinyl Flooring
- Wood
Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.
A soft plastic cardboard made with super soft super flexible PVC.
Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.
Decorative high-pressure compact laminate (HPL) with an integral surface.
†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
Benefits of Mirror-Finish:
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
- Dissipates heat well and
prevents melting
Maximum RPM:**35,000
Specifications
| Direction | Up-Cut |
|---|---|
| (D) Diameter | 3mm |
| (B) Cutting Height | 8mm |
| (d) Shank | 6mm |
| Overall Length (L) | 64mm |
| Flutes | 1 |
Other Sizes Available
| (D) Diameter | (B) Cutting Height | (d) Shank | Overall Length (L) | Flutes | Direction | Description | Tool No. |
|---|---|---|---|---|---|---|---|
| 1/16 (1.59mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51415 |
| 1/16 (1.59mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51441 |
| 1/16 (1.59mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51515 |
| 2mm | 6mm | 3mm | 50mm | 1 | Up-Cut | – | 51634 |
| 2mm | 8mm | 2mm | 50mm | 1 | Up-Cut | – | 57310 |
| 2mm | 8mm | 6mm | 64mm | 1 | Up-Cut | – | 57311 |
| 3/32 (2.38mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51647 |
| 3mm | 12mm | 3mm | 64mm | 1 | Up-Cut | – | 51491 |
| 3mm | 12mm | 6mm | 50mm | 1 | Down-Cut | – | 51526 |
| 3mm | 8mm | 3mm | 50mm | 1 | Up-Cut | – | 57314 |
| 3mm | 12mm | 6mm | 64mm | 1 | Up-Cut | – | 57316 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51410 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Up-Cut | 5 | 51410-5 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51411 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | 5 | 51411-5 |
| 1/8 (3.18mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51416 |
| 1/8 (3.18mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | 5 | 51416-5 |
| 1/8 (3.18mm) | 3/4 (19.05mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51437 |
| 1/8 (3.18mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51443 |
| 1/8 (3.18mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51445 |
| 1/8 (3.18mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | 5 | 51446-5 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51510 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51511 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Down-Cut | 5 | 51511-5 |
| 1/8 (3.18mm) | 5/16 (7.94mm) | 1/4 (6.35mm) | 1-1/2 | 1 | Down-Cut | – | 51523 |
| 5/32 (3.97mm) | 9/16 (14.29mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51447 |
| 5/32 (3.97mm) | 9/16 (14.29mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51516 |
| 4mm | 12mm | 4mm | 64mm | 1 | Up-Cut | – | 51636 |
| 4mm | 20mm | 4mm | 64mm | 1 | Up-Cut | – | 57318 |
| 4mm | 20mm | 6mm | 64mm | 1 | Up-Cut | – | 57319 |
| 4mm | 30mm | 4mm | 64mm | 1 | Up-Cut | – | 57320 |
| 4mm | 20mm | 6mm | 64mm | 1 | Down-Cut | – | 57331 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 3/16 (4.76mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51412 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51417 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | 5 | 51417-5 |
| 3/16 (4.76mm) | 1-1/4 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51418 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51423 |
| 3/16 (4.76mm) | 7/8 (22.23mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51442 |
| 3/16 (4.76mm) | 3/8 (9.53mm) | 3/16 (4.76mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51448 |
| 3/16 (4.76mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51449 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 3/16 (4.76mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51512 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51517 |
| 3/16 (4.76mm) | 3/8 (9.53mm) | 3/16 (4.76mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51518 |
| 5mm | 16mm | 6mm | 64mm | 1 | Up-Cut | – | 57321 |
| 5mm | 30mm | 5mm | 64mm | 1 | Up-Cut | – | 57322 |
| 7/32 (5.56mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51424 |
| 6mm | 20mm | 6mm | 64mm | 1 | Up-Cut | – | 51495 |
| 6mm | 30mm | 6mm | 75mm | 1 | Up-Cut | – | 51497 |
| 6mm | 38mm | 6mm | 75mm | 1 | Up-Cut | – | 51499 |
| 6mm | 16mm | 6mm | 63mm | 1 | Up-Cut | – | 51638 |
| 6mm | 12mm | 6mm | 64mm | 1 | Up-Cut | – | 57324 |
| 6mm | 30mm | 6mm | 76mm | 1 | Down-Cut | – | 57333 |
| 1/4 (6.35mm) | 1-3/8 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51403 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51404 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | 5 | 51404-5 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51405 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | 5 | 51405-5 |
| 1/4 (6.35mm) | 1-1/4 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51407 |
| 1/4 (6.35mm) | 1-1/16 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51409 |
| 1/4 (6.35mm) | 1-1/2 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51413 |
| 1/4 (6.35mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51419 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51421 |
| 1/4 (6.35mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Up-Cut | – | 51425 |
| 1/4 (6.35mm) | 7/8 (22.23mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Up-Cut | – | 51444 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51504 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2 (50.80mm) | 1 | Down-Cut | 5 | 51504-5 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Down-Cut | – | 51505 |
| 1/4 (6.35mm) | 1-1/4 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Down-Cut | – | 51507 |
| 1/4 (6.35mm) | 1-1/4 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Down-Cut | 5 | 51507-5 |
| 1/4 (6.35mm) | 1-1/2 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Down-Cut | – | 51513 |
| 1/4 (6.35mm) | 1-1/2 | 1/4 (6.35mm) | 3 (76.20mm) | 1 | Down-Cut | 5 | 51513-5 |
| 1/4 (6.35mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1 | Down-Cut | – | 51519 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 1 | Down-Cut | – | 51524 |
| 1/4 (6.35mm) | 2-1/4 | 1/4 (6.35mm) | 3-3/4 | 1 | Up-Cut | – | 51646 |
| 8mm | 25mm | 8mm | 64mm | 1 | Up-Cut | – | 57325 |
| 3/8 (9.53mm) | 1-1/8 | 3/8 (9.53mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51414 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 3/8 (9.53mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51426 |
| 3/8 (9.53mm) | 1-5/8 | 3/8 (9.53mm) | 3-1/2 | 1 | Up-Cut | – | 51427 |
| 3/8 (9.53mm) | 5/8 (15.88mm) | 3/8 (9.53mm) | 2-1/2 | 1 | Up-Cut | – | 51429 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 3/8 (9.53mm) | 3 (76.20mm) | 1 | Down-Cut | – | 51509 |
| 3/8 (9.53mm) | 1-1/8 | 3/8 (9.53mm) | 3 (76.20mm) | 1 | Down-Cut | – | 51514 |
| 10mm | 30mm | 10mm | 76mm | 1 | Up-Cut | – | 57327 |
| 10mm | 35mm | 10mm | 76mm | —- | Up-Cut | – | 57328 |
| 12mm | 38mm | 12mm | 76mm | 1 | Up-Cut | – | 57329 |
| 1/2 (12.70mm) | 1-5/8 | 1/2 (12.70mm) | 3-1/2 | 1 | Up-Cut | – | 51428 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 1 | Down-Cut | – | 51529 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 1 | Up-Cut | – | 51645 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 1 | Up-Cut | – | 51648 |
| – | – | 1/4 (6.35mm) | – | —- | – | – | AMS-165 |
| – | – | 1/4 (6.35mm) | – | —- | – | – | AMS-167 |
| Weight | 0.06 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
Need This Tool Customized?
Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.
We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.
Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
