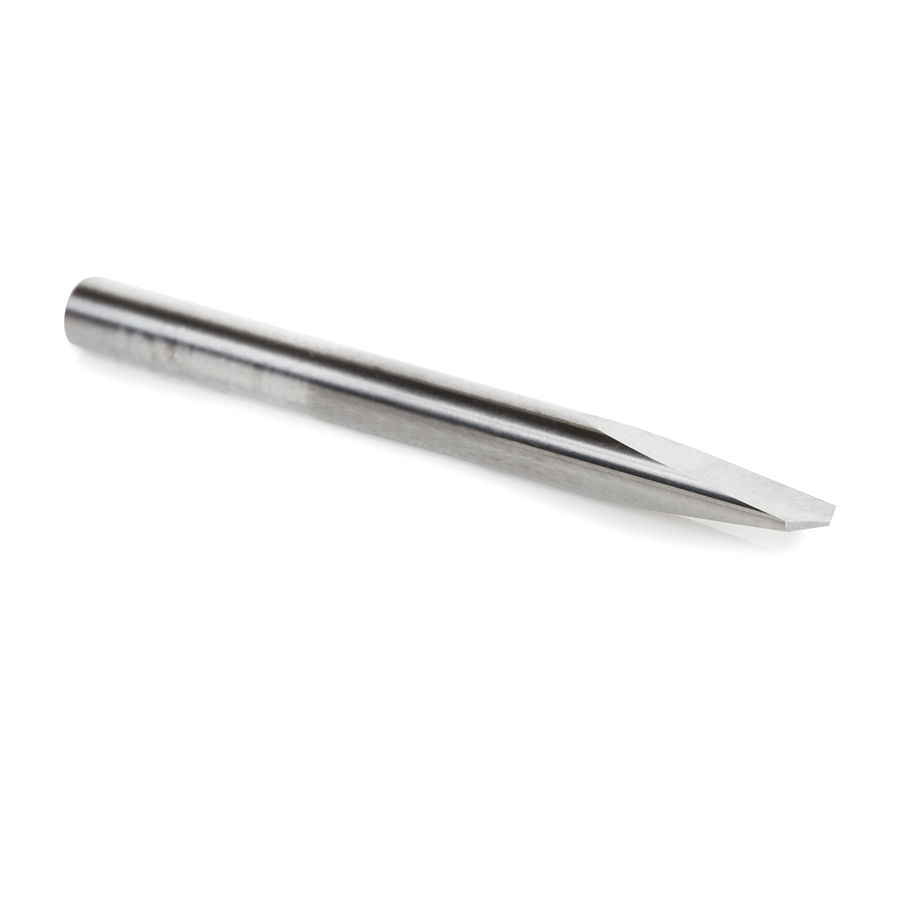

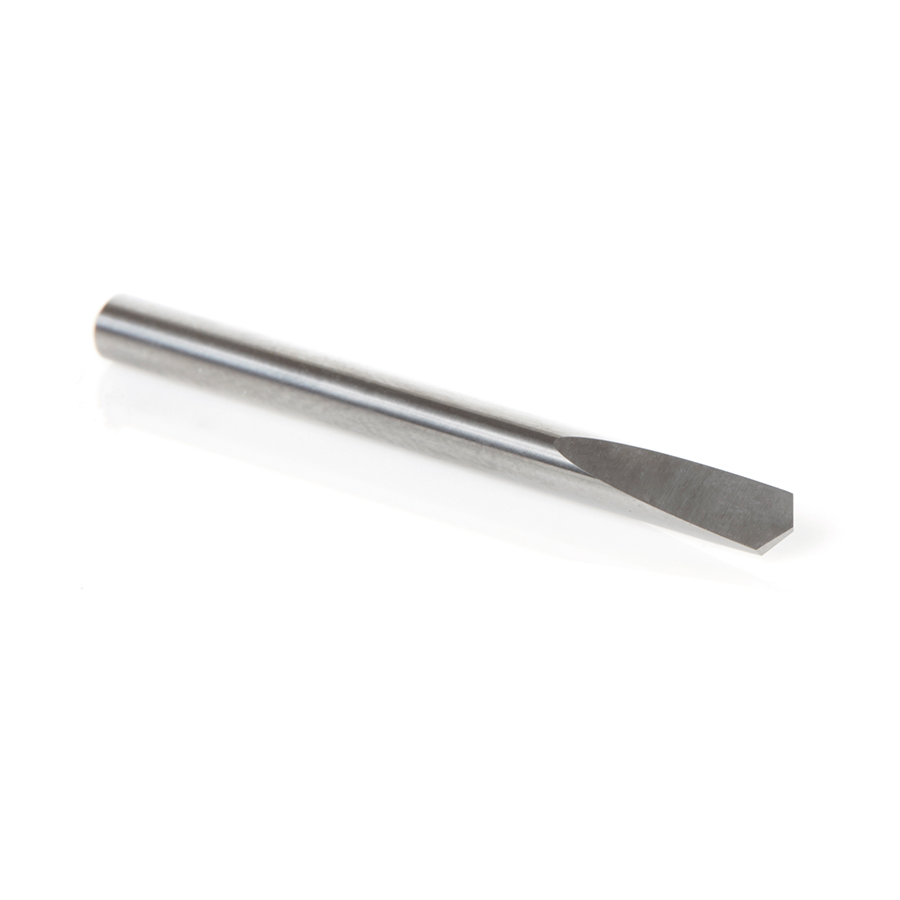

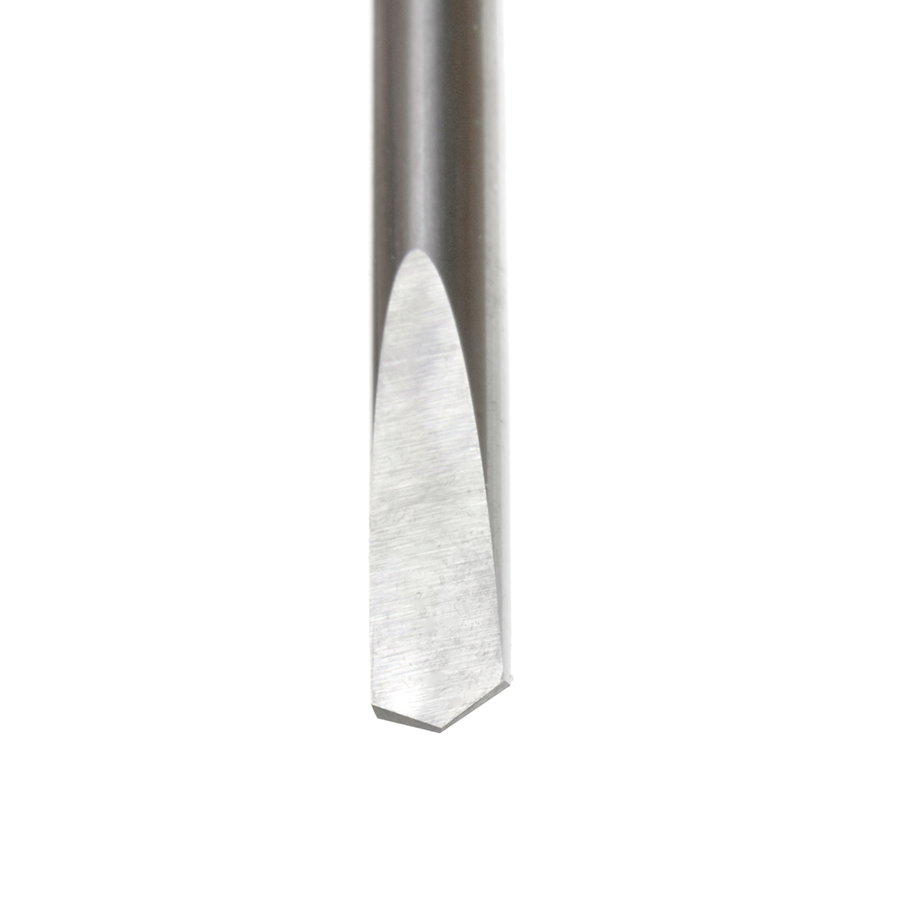

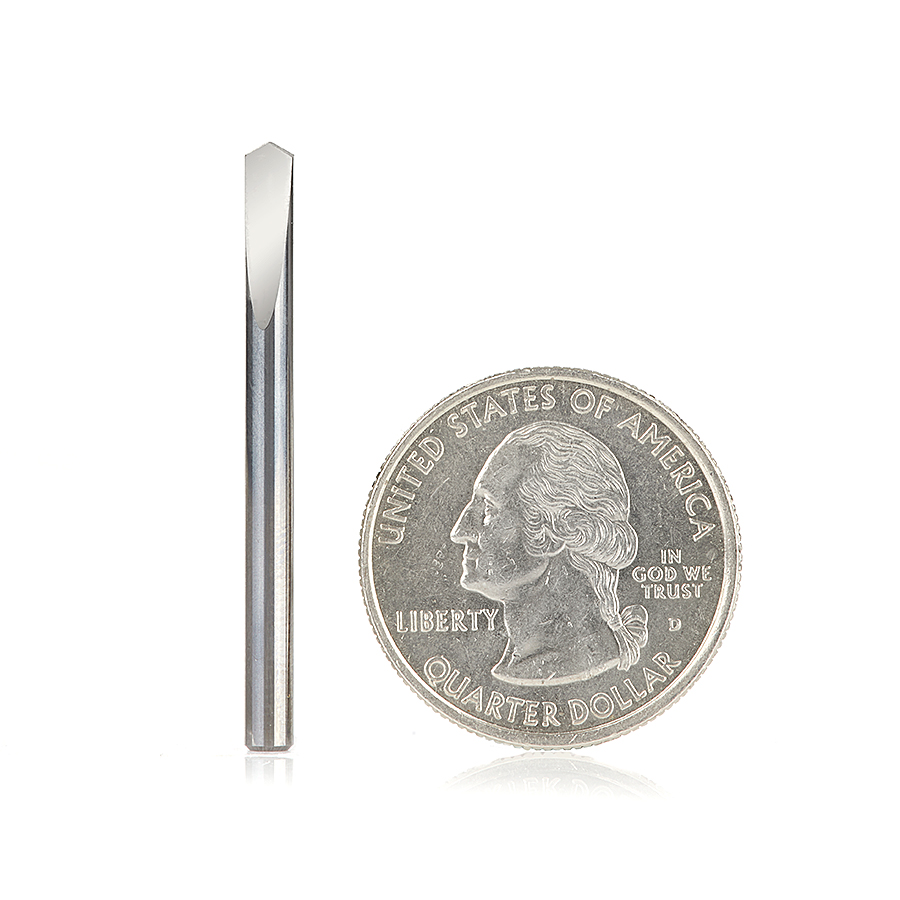

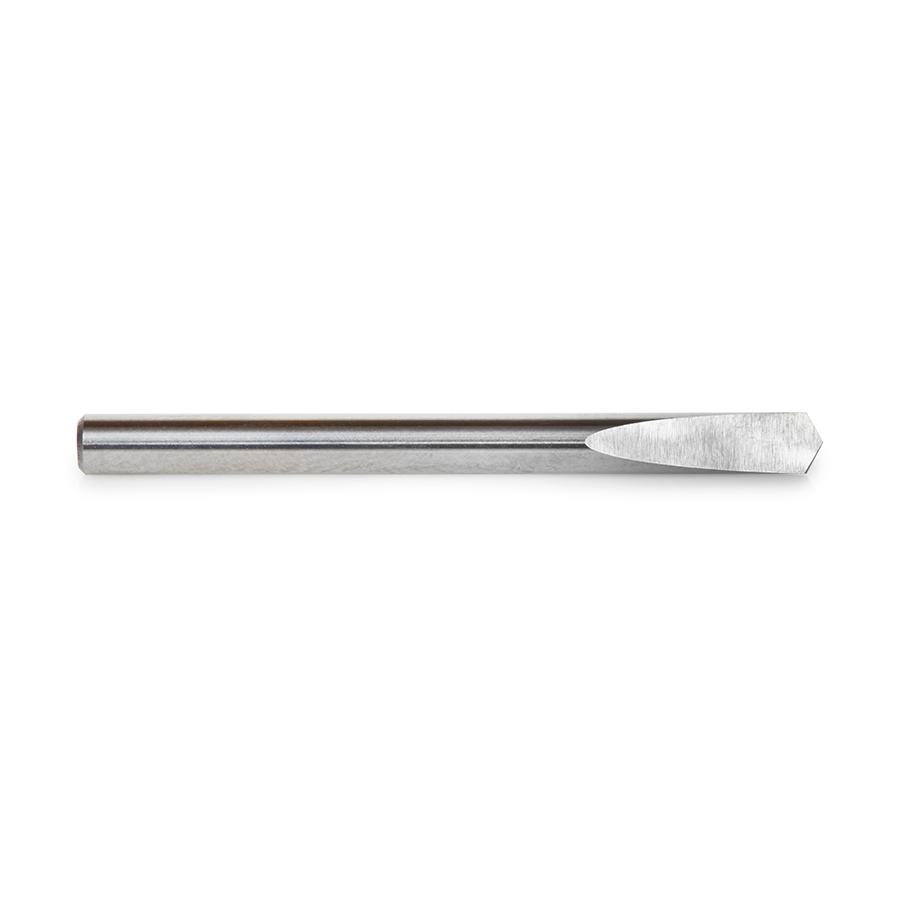

51682 CNC Solid Carbide 118 Degree Point Spade Drill 1/8 Dia x 7/16 x 1/8 Shank Router Bit

Amana 51682 CNC Solid Carbide 118 Degree Point Spade Drill 1/8 Dia x 7/16 x 1/8 Shank Router Bit

Name: Amana 51682 CNC Solid Carbide 118 Degree Point Spade Drill 1/8 Dia x 7/16 x 1/8 Shank Router Bit
SKU: Amana 51682
Availability: InStock

Original price was: $20.00.Current price is: $15.00.

1/8″D SC 118DPOINT SPADE DRILL

UPC: 738685516829 SKU: Amana 51682 Categories: Amana Tool, CNC Router Bits, Solid Carbide CNC 118 Degree Spade Drill Router Bits, Steel Cutting CNC Router Bits

Item Description

Used to drill very short, shallow holes in hard (or hardened) steel.

They can be used either in CNC or drill presses.

Note:** Make sure your drill press runs fast and has a tight spindle.

Excellent for Drilling:

Stainless Steel
Steel
Cast Iron

Titanium
Non-Ferrous
Cermet*

Cermets are composites in which ceramic materials and metals join together.

Warning:**Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note:** For optimal results and extended tool life use mist lubricant system or air cooling.

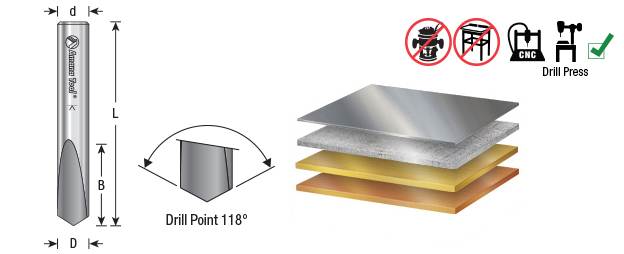

Specifications

(D) Diameter	1/8
(B) Cutting Height	7/16
(d) Shank	1/8
Overall Length (L)	1-1/2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
3/16 (4.76mm)	9/16 (14.29mm)	3/16 (4.76mm)	2 (50.80mm)	2	51684
1/4 (6.35mm)	11/16 (17.46mm)	1/4 (6.35mm)	2 (50.80mm)	2	51686
5/16 (7.94mm)	7/8 (22.23mm)	5/16 (7.94mm)	2-1/2	2	51688
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	2	51689

Weight	0.04 lbs
