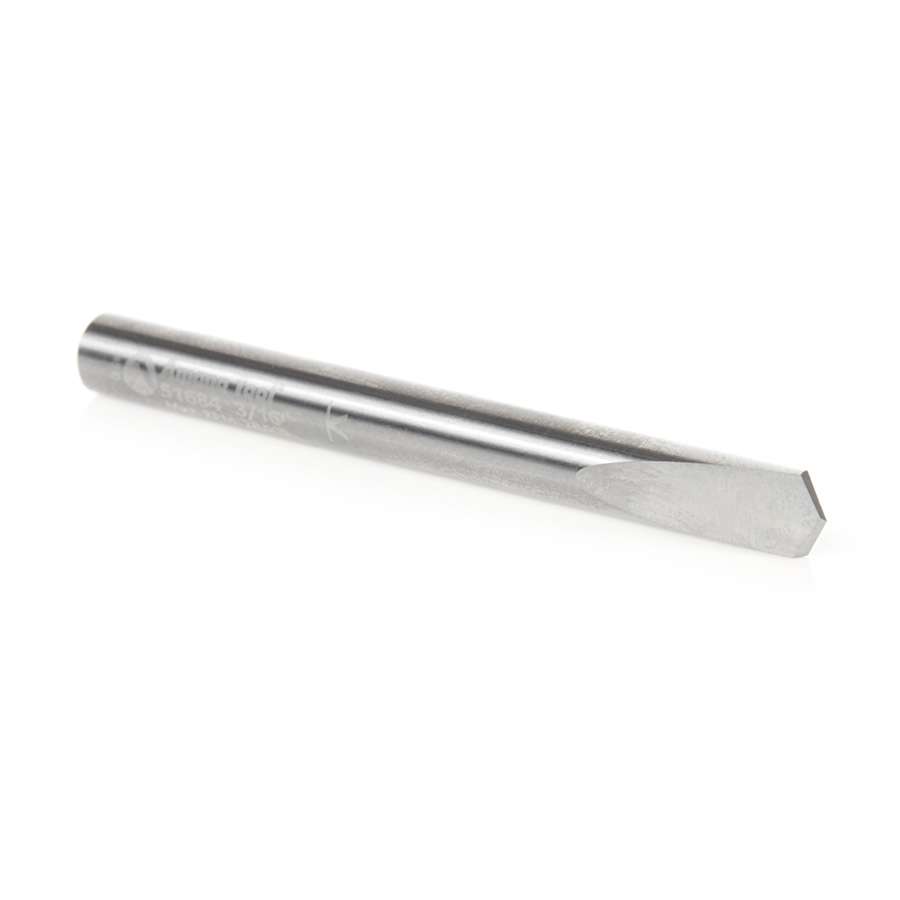

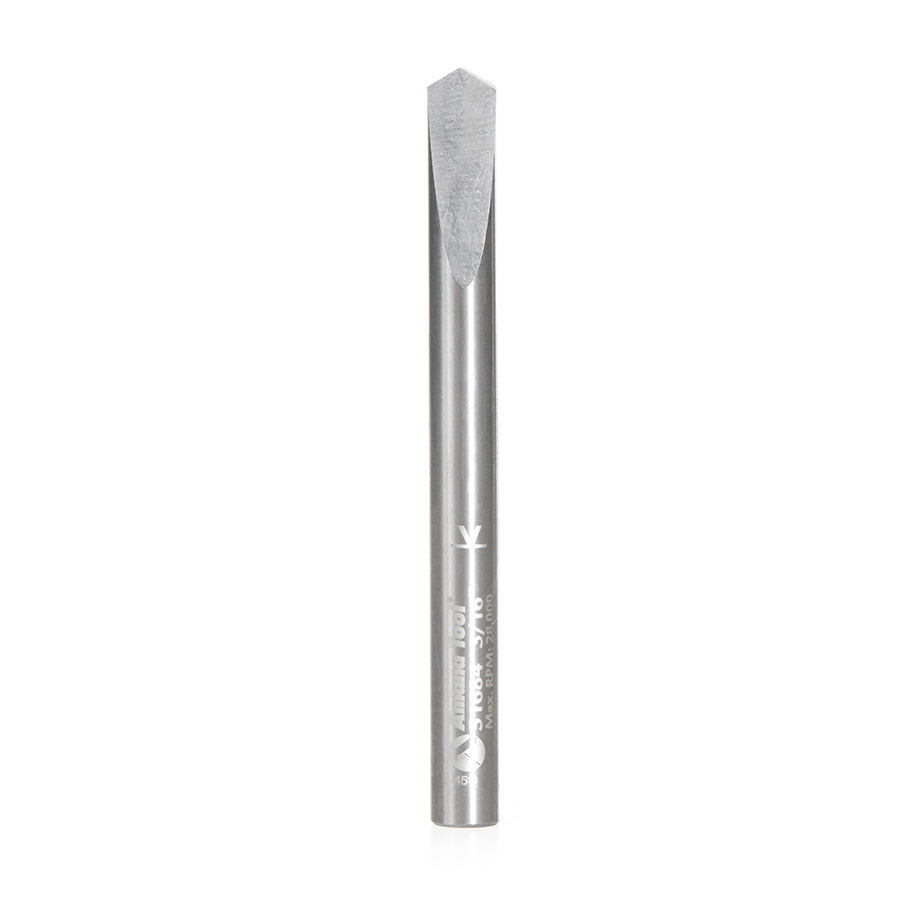

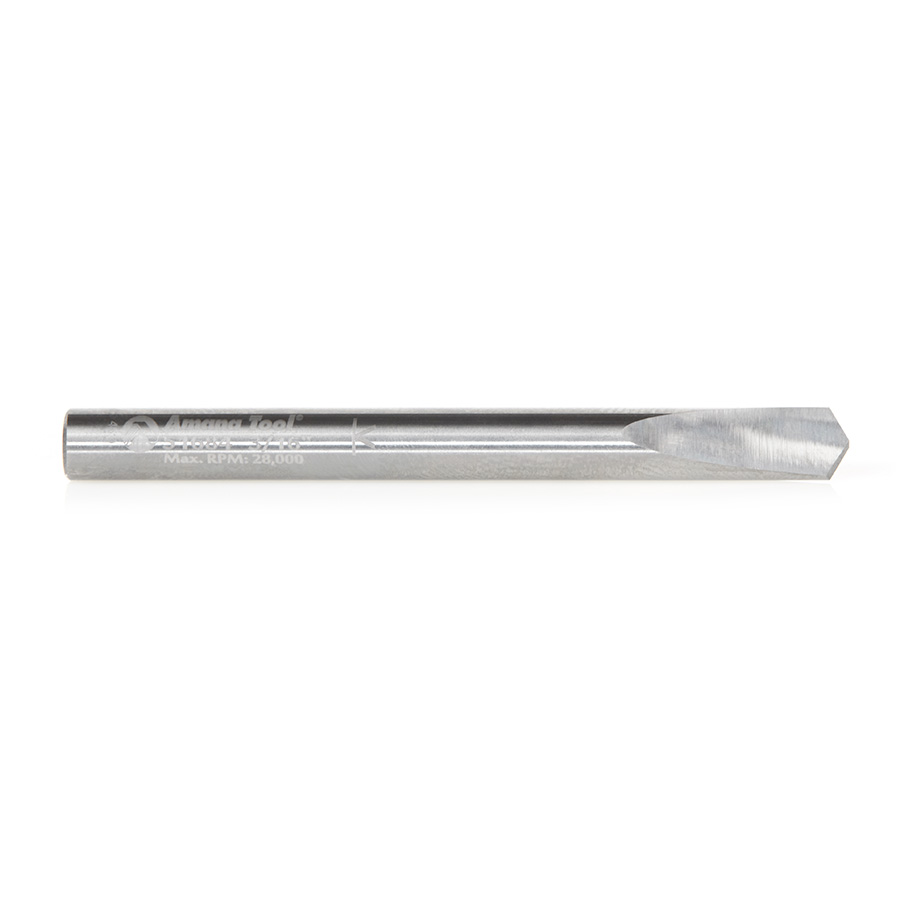

51684 CNC Solid Carbide 118 Degree Point Spade Drill 3/16 Dia x 9/16 x 3/16 Shank Router Bit

Amana 51684 CNC Solid Carbide 118 Degree Point Spade Drill 3/16 Dia x 9/16 x 3/16 Shank Router Bit

Name: Amana 51684 CNC Solid Carbide 118 Degree Point Spade Drill 3/16 Dia x 9/16 x 3/16 Shank Router Bit
SKU: Amana 51684
Availability: InStock

Original price was: $22.30.Current price is: $16.73.

3/16D SC 118DPOINT SPADE DRILL

UPC: 738685516843 SKU: Amana 51684 Categories: Amana Tool, CNC Router Bits, Solid Carbide CNC 118 Degree Spade Drill Router Bits, Steel Cutting CNC Router Bits

Item Description

Used to drill very short, shallow holes in hard (or hardened) steel.

They can be used either in CNC or drill presses.

Note:** Make sure your drill press runs fast and has a tight spindle.

Excellent for Drilling:

Stainless Steel
Steel
Cast Iron

Titanium
Non-Ferrous
Cermet*

Cermets are composites in which ceramic materials and metals join together.

Warning:**Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note:** For optimal results and extended tool life use mist lubricant system or air cooling.

Specifications

(D) Diameter	3/16
(B) Cutting Height	9/16
(d) Shank	3/16
Overall Length (L)	2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
1/8 (3.18mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-1/2	2	51682
1/4 (6.35mm)	11/16 (17.46mm)	1/4 (6.35mm)	2 (50.80mm)	2	51686
5/16 (7.94mm)	7/8 (22.23mm)	5/16 (7.94mm)	2-1/2	2	51688
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	2	51689

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
