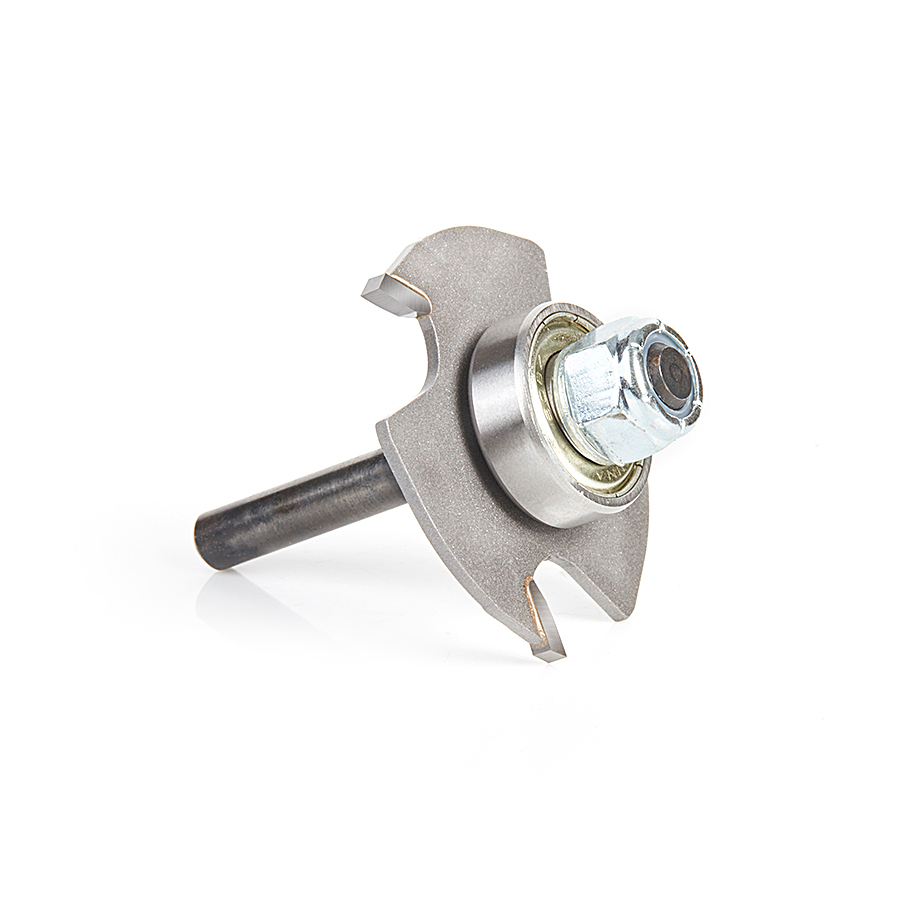

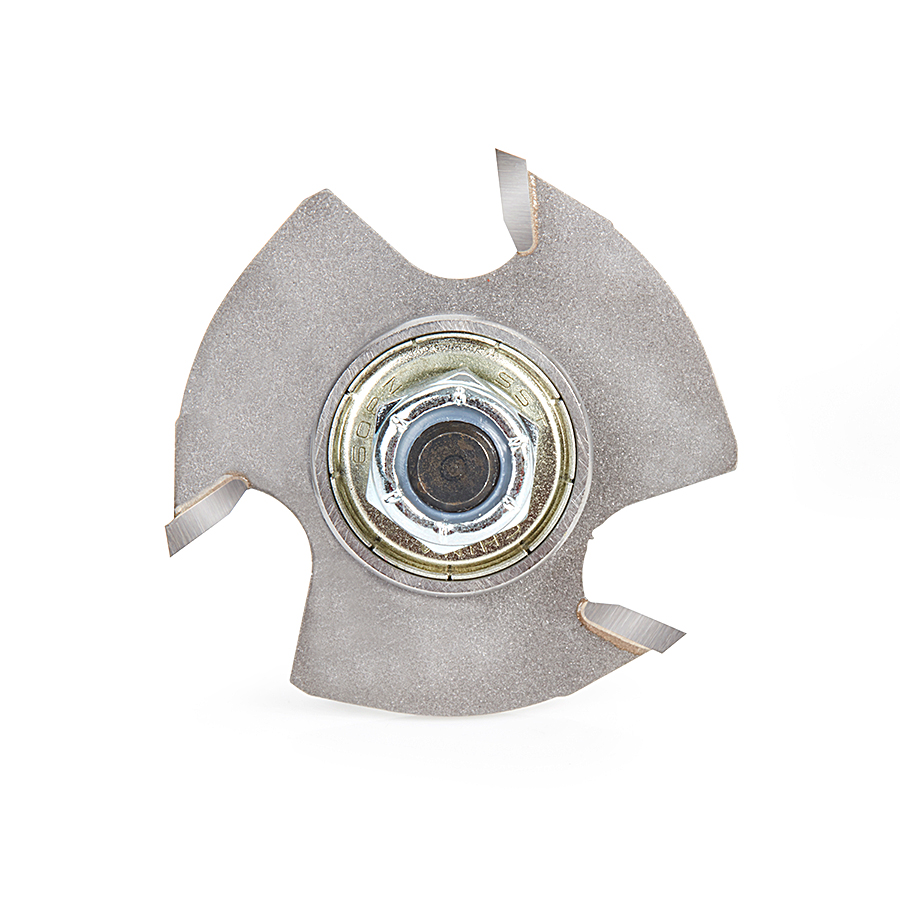

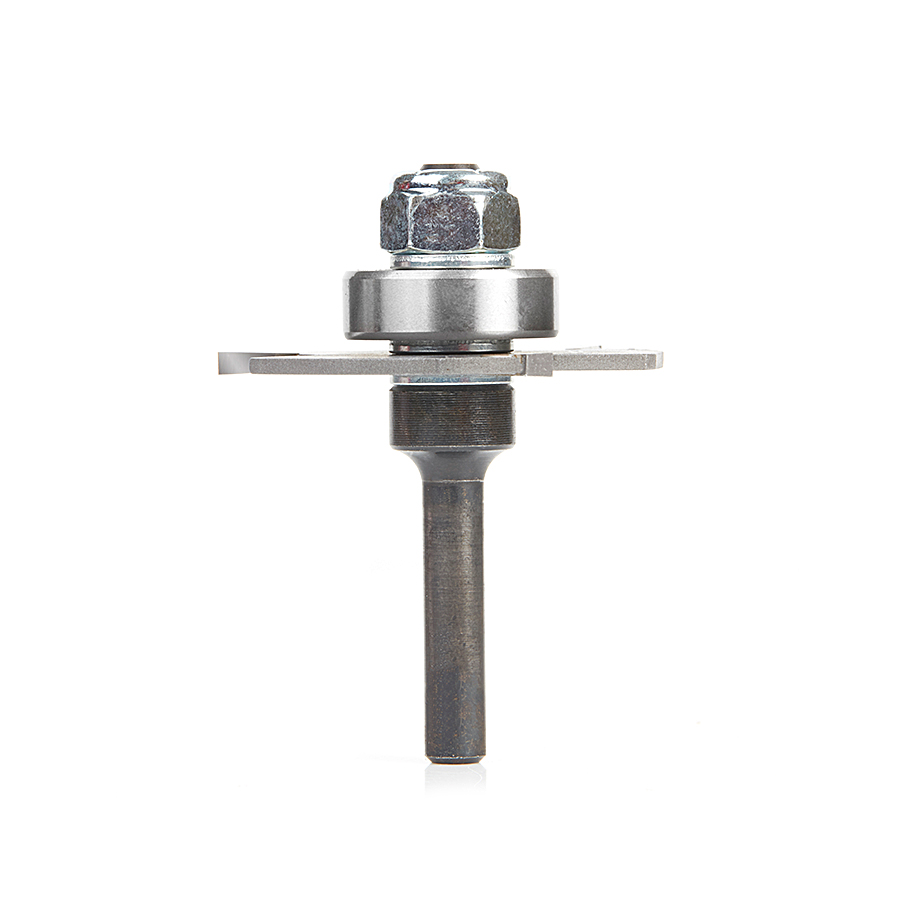

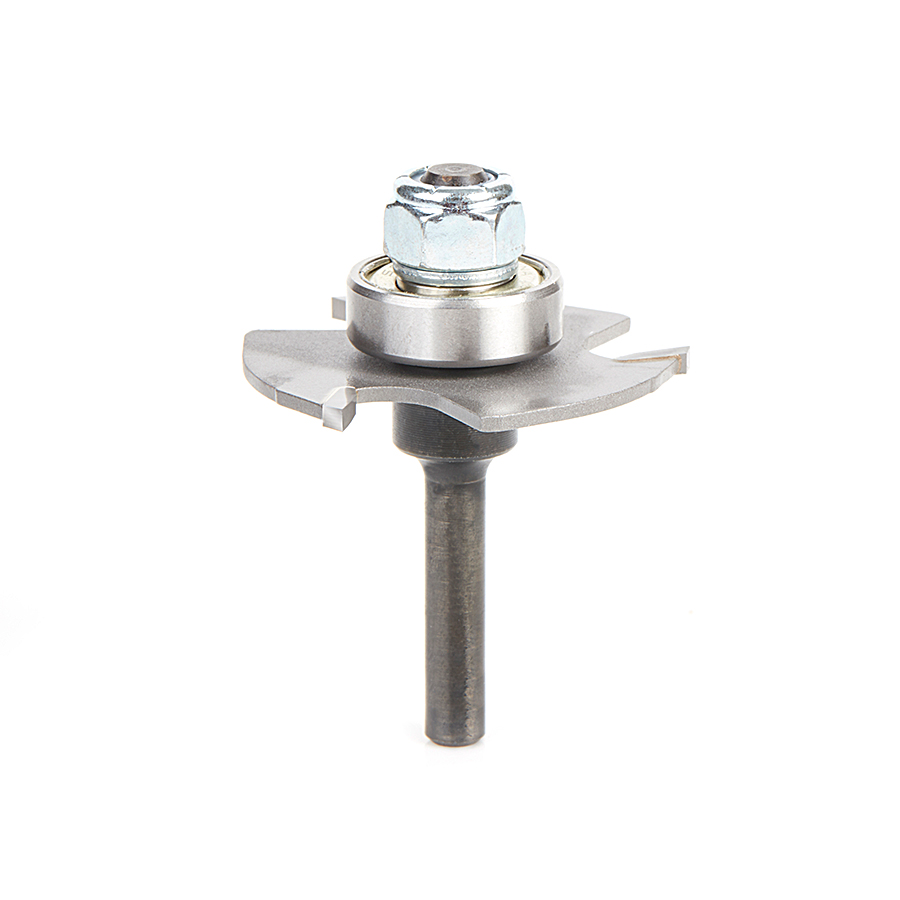

53404 Slotting Cutter Assembly 3 Wing x 1-7/8 Dia x 3/32 x 1/4 Inch Shank

Amana 53404 Slotting Cutter Assembly 3 Wing x 1-7/8 Dia x 3/32 x 1/4 Inch Shank

Name: Amana 53404 Slotting Cutter Assembly 3 Wing x 1-7/8 Dia x 3/32 x 1/4 Inch Shank
SKU: Amana 53404
Availability: InStock

Original price was: $52.65.Current price is: $39.49.

3/32 KERF 3 WING ASSEMBLY

UPC: 738685934043 SKU: Amana 53404 Categories: 3 Wing Slotting Cutter Assemblies, Amana Tool, Jointing Router Bits, Router Bits

Item Description

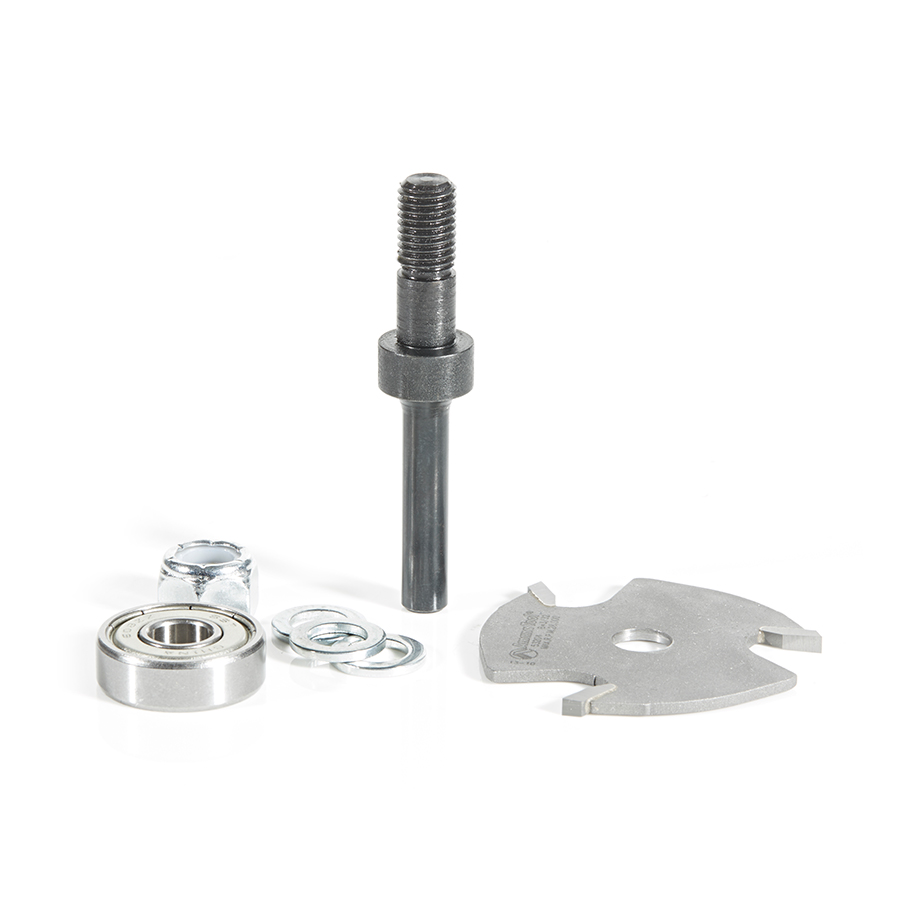

Groove edges for T-moldings, splines or biscuits, and other purposes. Rout tongue-and-groove joinery. Slotting cutters are available with either 2-wing or 3-wing cutters. Each assembly includes a cutter, bearing for a 1/2″ deep cut, and either a 1/4″-, 3/8″-, or 1/2″-shank arbor. Use in a handheld or table-mounted router. All assemblies include cutter, arbor and ball bearing.

Product Information

![Image 18: Plate Thickness Chart for Slotting Cutters](http://www.amanatool.com/media/wysiwyg/Slotting-Cutters-Chart.jpg)

Specifications

Diameter (D)	1-7/8
Cutting Height (B)	3/32
Shank (d)	1/4
Overall Length (L)	2-3/8
C	1/2
# Wings	3

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	C	# Wings	Tool No.
1-7/8	1/16 (1.59mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53400
1-7/8	5/64 (1.98mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53402
1-7/8	1/8 (3.18mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53406
1-7/8	5/32 (3.97mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53407
1-7/8	3/16 (4.76mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53408
1-7/8	7/32 (5.56mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53409
1-7/8	1/4 (6.35mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53410

Weight	0.16 lbs
