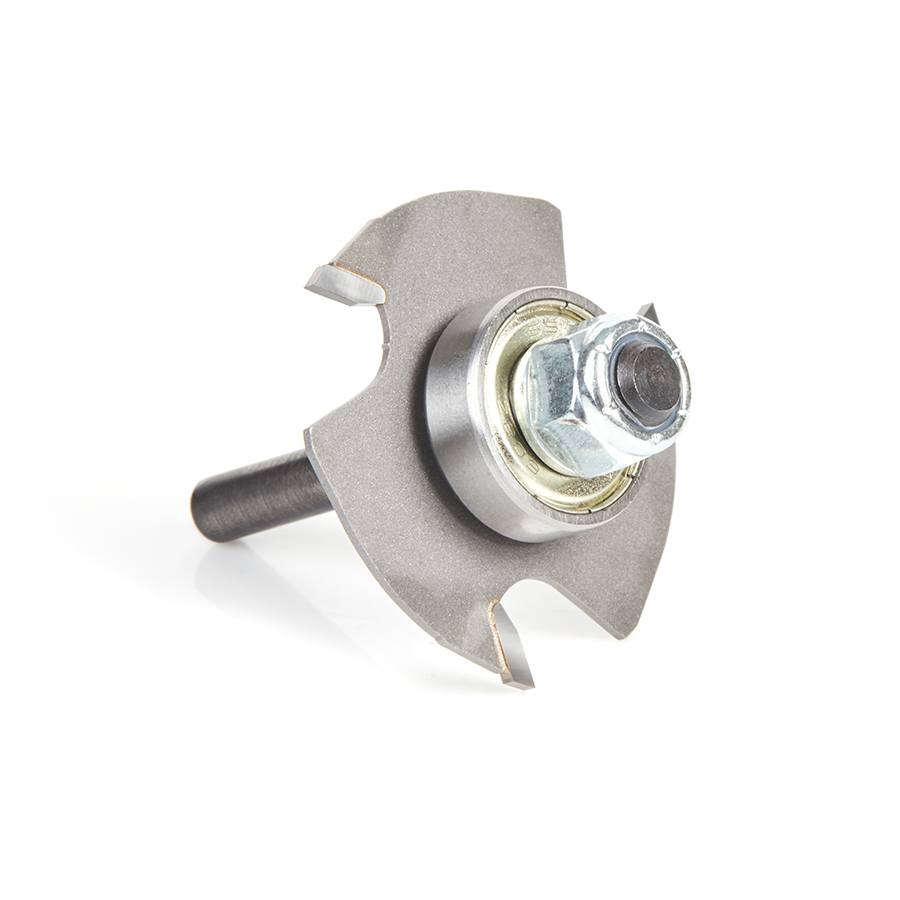

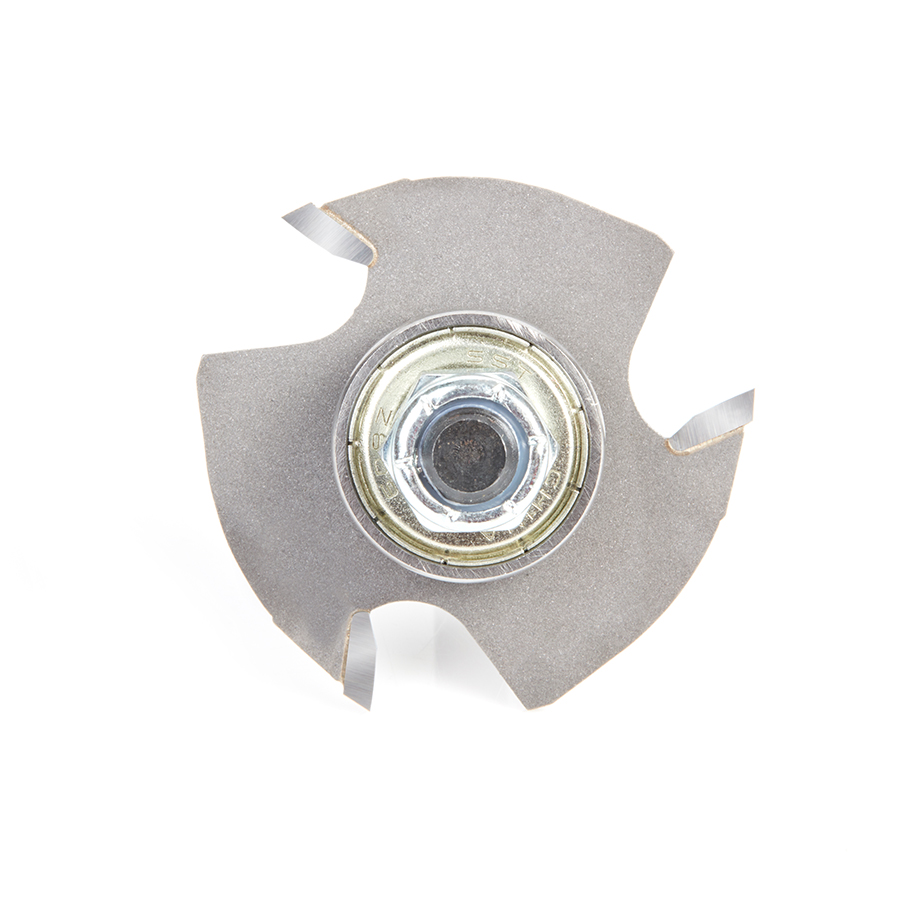

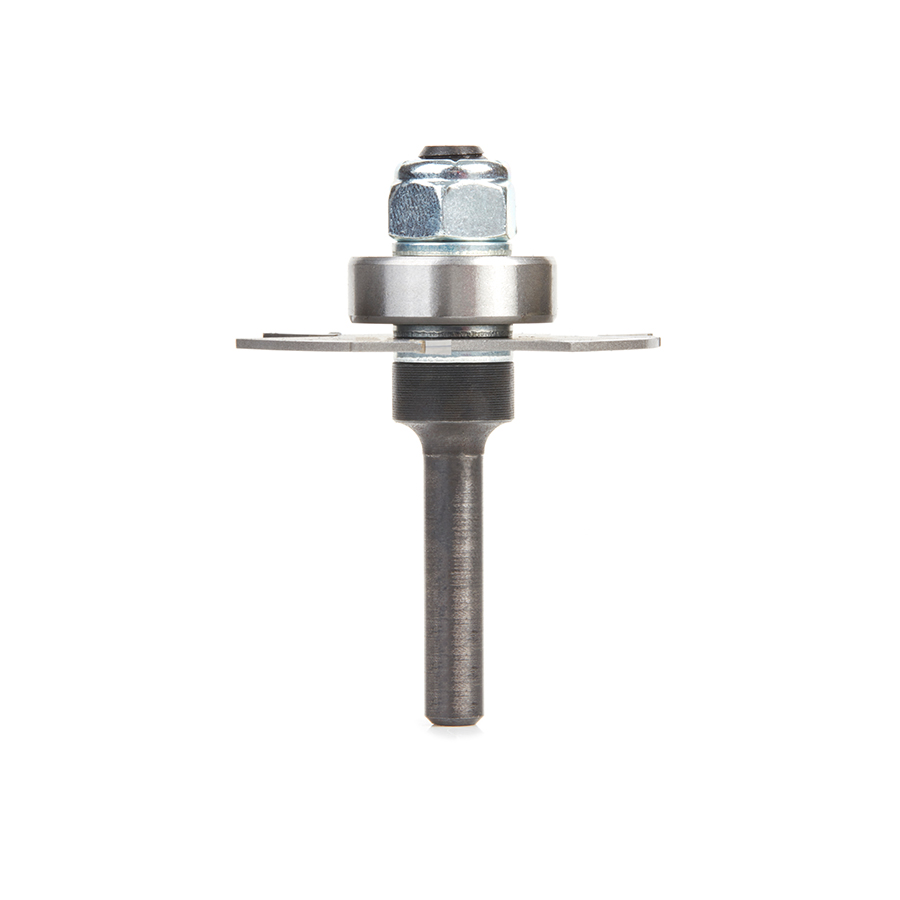

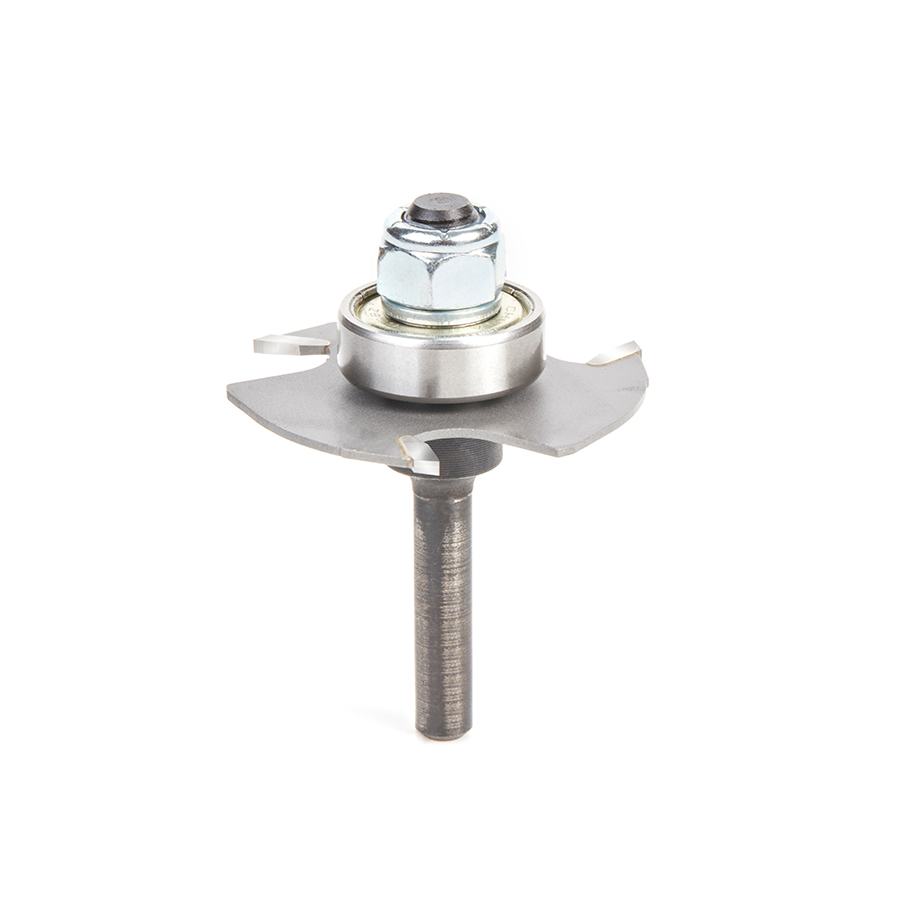

53400 Slotting Cutter Assembly 3 Wing x 1-7/8 Dia x 1/16 x 1/4 Inch Shank

Amana 53400 Slotting Cutter Assembly 3 Wing x 1-7/8 Dia x 1/16 x 1/4 Inch Shank

Name: Amana 53400 Slotting Cutter Assembly 3 Wing x 1-7/8 Dia x 1/16 x 1/4 Inch Shank
SKU: Amana 53400
Availability: InStock

Original price was: $51.55.Current price is: $38.67.

1/16 KERF 3 WING ASSEMBLY

UPC: 738685934005 SKU: Amana 53400 Categories: 3 Wing Slotting Cutter Assemblies, Amana Tool, Jointing Router Bits, Router Bits

Item Description

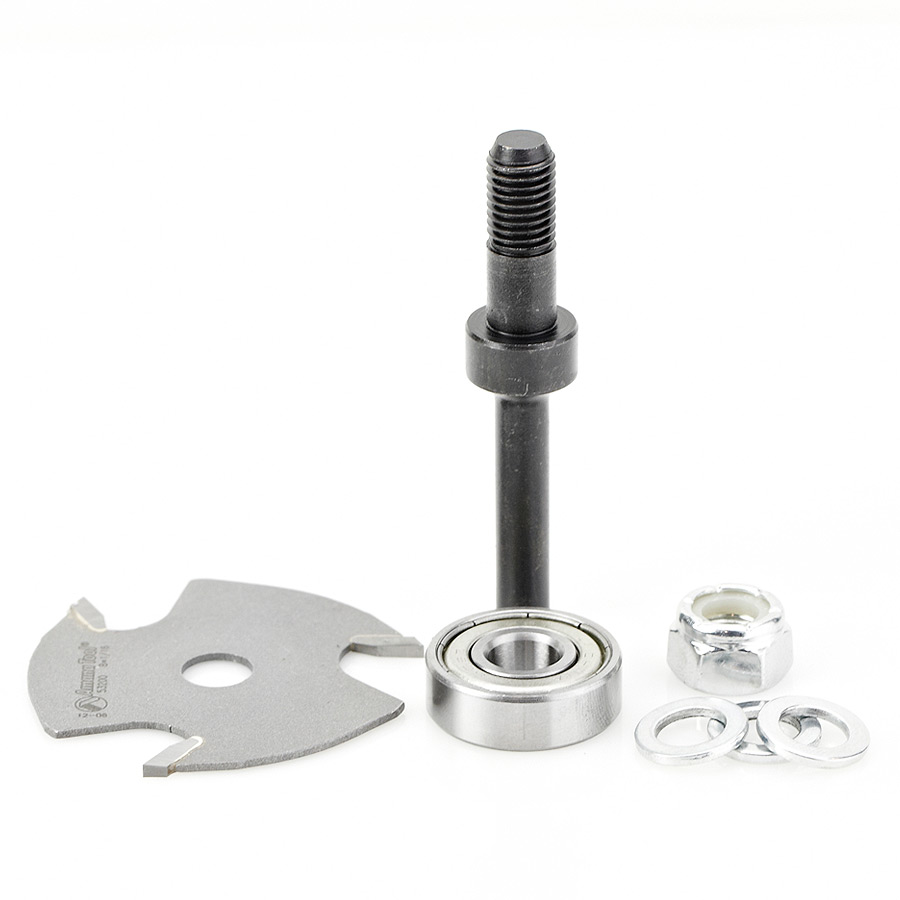

Groove edges for T-moldings, splines or biscuits, and other purposes. Rout tongue-and-groove joinery. Slotting cutters are available with either 2-wing or 3-wing cutters. Each assembly includes a cutter, bearing for a 1/2″ deep cut, and either a 1/4″-, 3/8″-, or 1/2″-shank arbor. Use in a handheld or table-mounted router. All assemblies include cutter, arbor and ball bearing.

Product Information

![Image 18: Plate Thickness Chart for Slotting Cutters](http://www.amanatool.com/media/wysiwyg/Slotting-Cutters-Chart.jpg)

Specifications

Diameter (D)	1-7/8
Cutting Height (B)	1/16
Shank (d)	1/4
Overall Length (L)	2-3/8
C	1/2
# Wings	3

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	C	# Wings	Tool No.
1-7/8	5/64 (1.98mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53402
1-7/8	3/32 (2.38mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53404
1-7/8	1/8 (3.18mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53406
1-7/8	5/32 (3.97mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53407
1-7/8	3/16 (4.76mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53408
1-7/8	7/32 (5.56mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53409
1-7/8	1/4 (6.35mm)	1/4 (6.35mm)	2-3/8	1/2 (12.70mm)	3 (76.20mm)	53410

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
