53610 Carbide Tipped Box Joint 1-7/8 Dia x 1-3/8 x 1/2 Inch Shank with Upper BB 3-Flute Set

Amana 53610 Carbide Tipped Box Joint 1-7/8 Dia x 1-3/8 x 1/2 Inch Shank with Upper BB 3-Flute Set

Name: Amana 53610 Carbide Tipped Box Joint 1-7/8 Dia x 1-3/8 x 1/2 Inch Shank with Upper BB 3-Flute Set
SKU: Amana 53610
Availability: InStock

Original price was: $205.00.Current price is: $153.75.

BOX JOINT SET 1/2 SHANK

UPC: 738685536100 SKU: Amana 53610 Categories: Amana Tool, Box Joint Router Bit Sets, Jointing Router Bits, Router Bits

Item Description

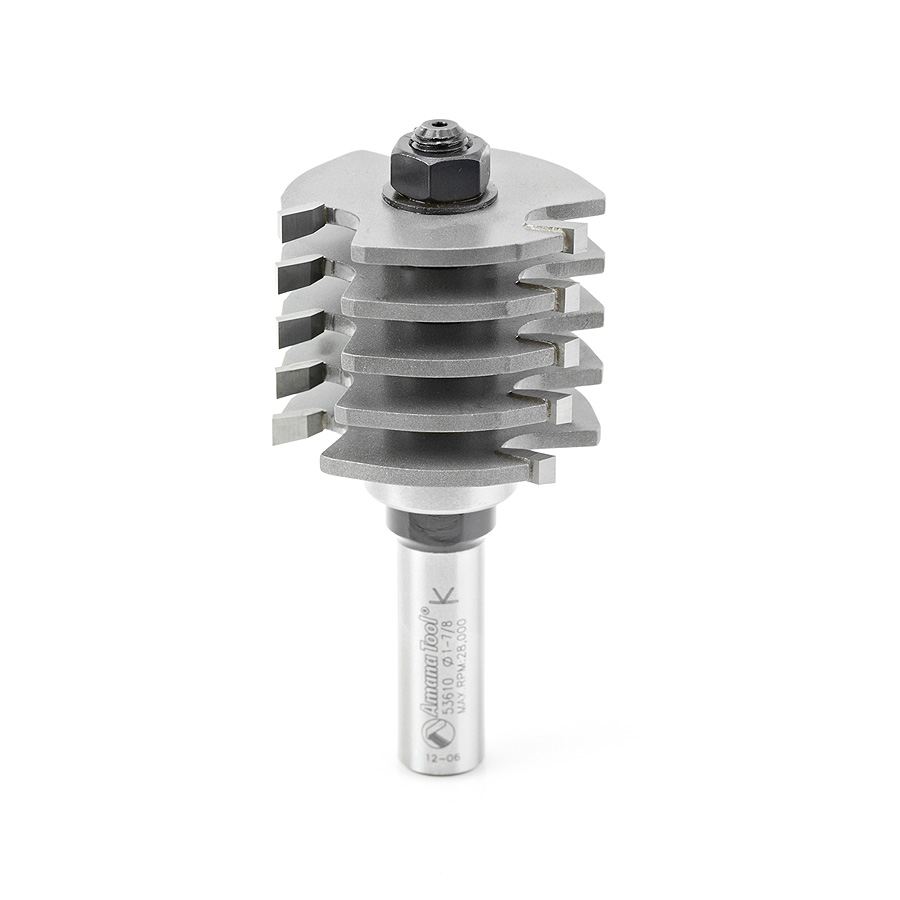

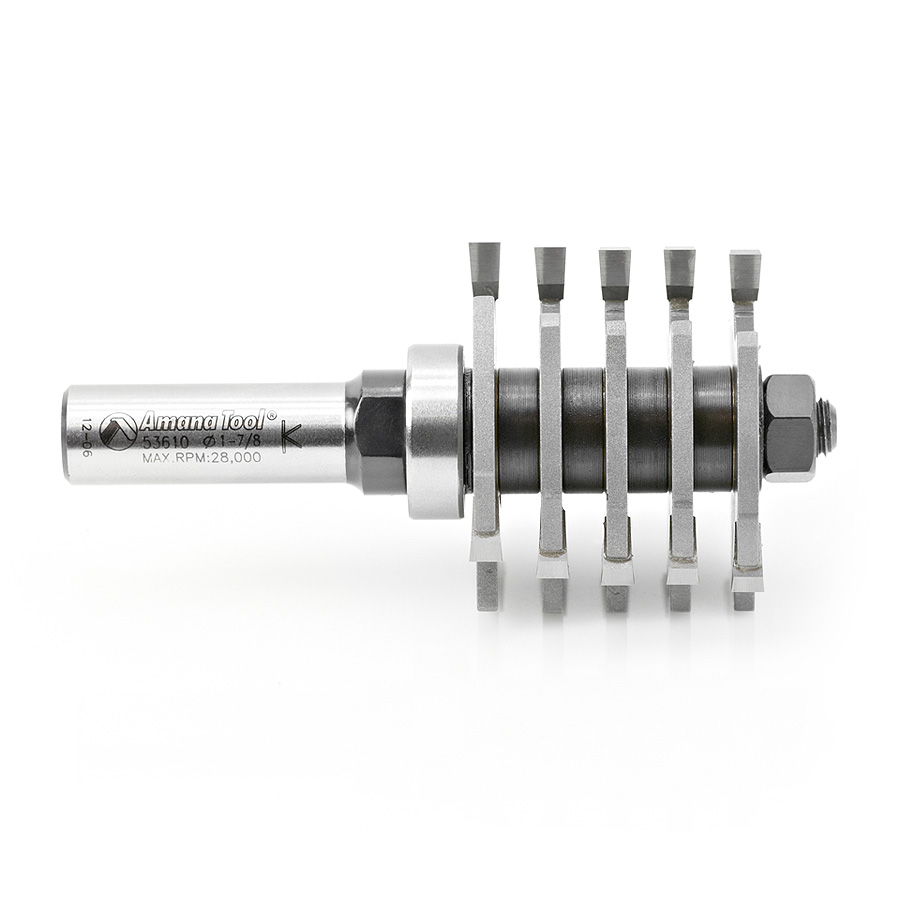

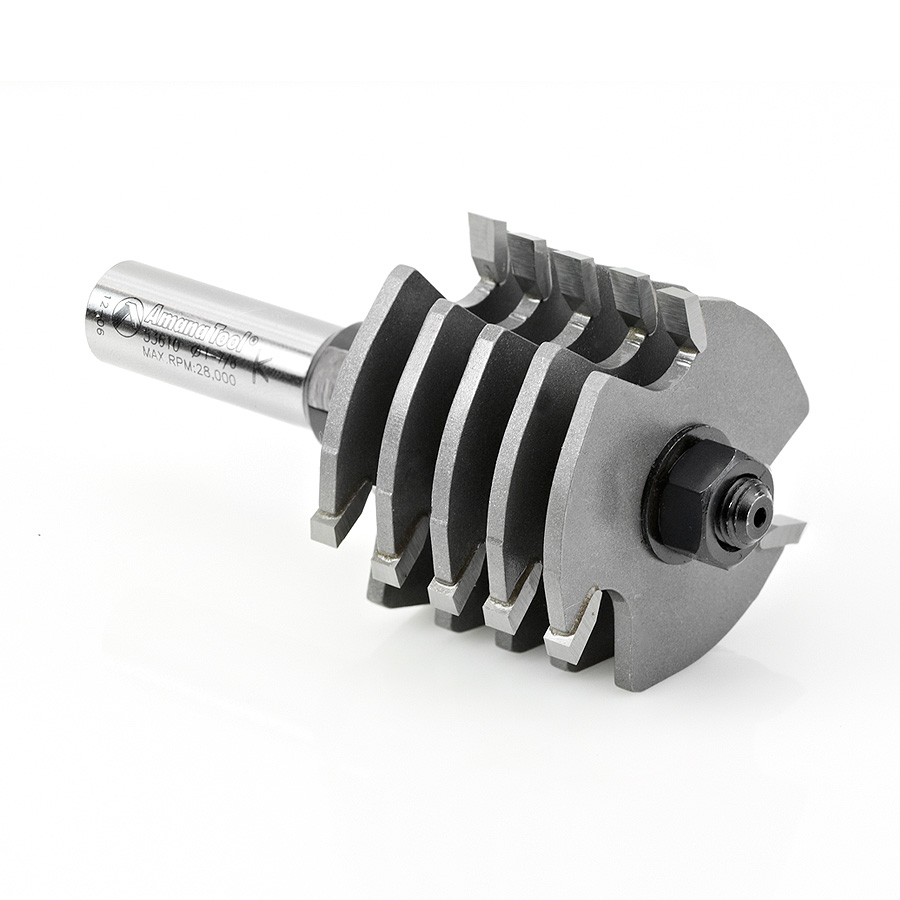

Cut strong, attractive box joints for small boxes, shallow drawers and trays with this bit. By taking three passes it can be used with stock up to 1/2″ thick and 4″ wide. The most accurate way to adjust the height of the bit while ensuring a good fit when taking multiple passes is to align a cutter on the bit with one of the previous cuts. The bit has five uniformly spaced 3-wing slotting cutters and a ball-bearing guide on a 1/2″ shank arbor. Use in a table-mounted router for best results.

Maximum RPM 13,000.

Replacement Parts

Tool No.	Bearing(s)	Hex Nut
53610	47708	67088

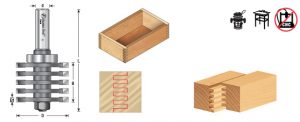

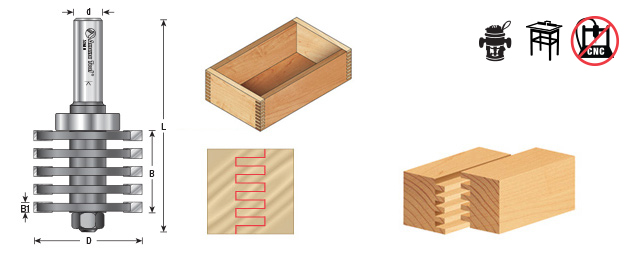

Specifications

Diameter (D)	1-7/8
Cutting Height (B)	1-3/8
B1	5/32
Shank (d)	1/2
Overall Length (L)	3-3/4
# Wings	3

Weight	0.56 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
