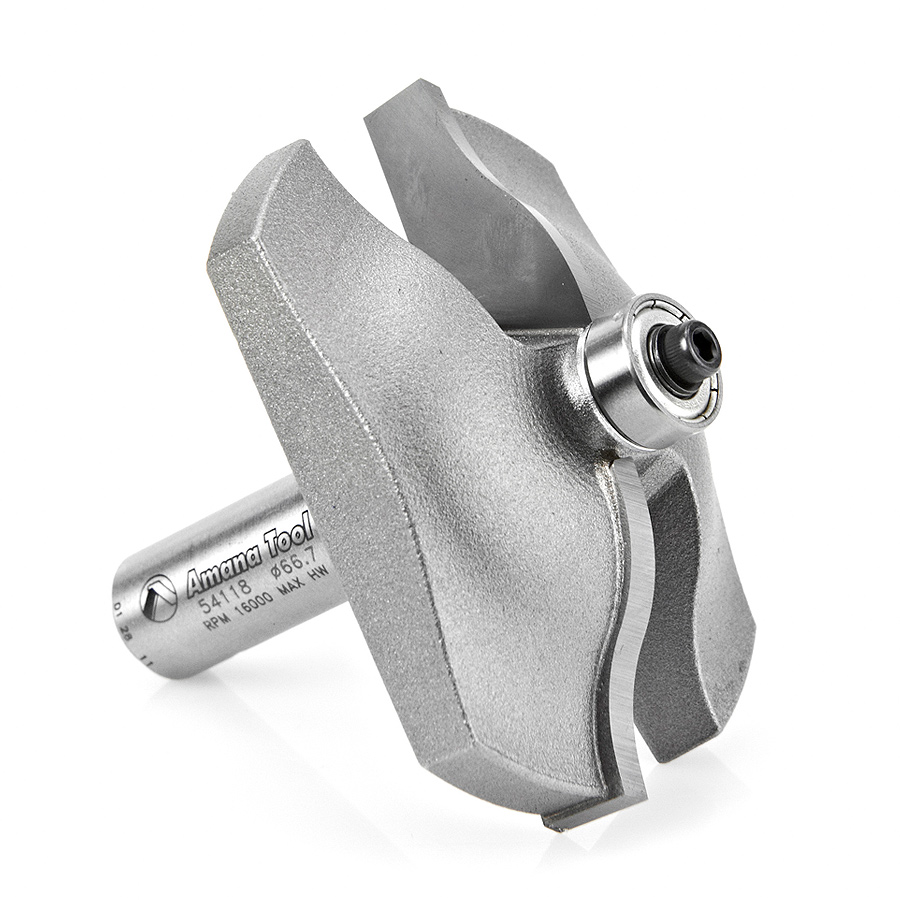

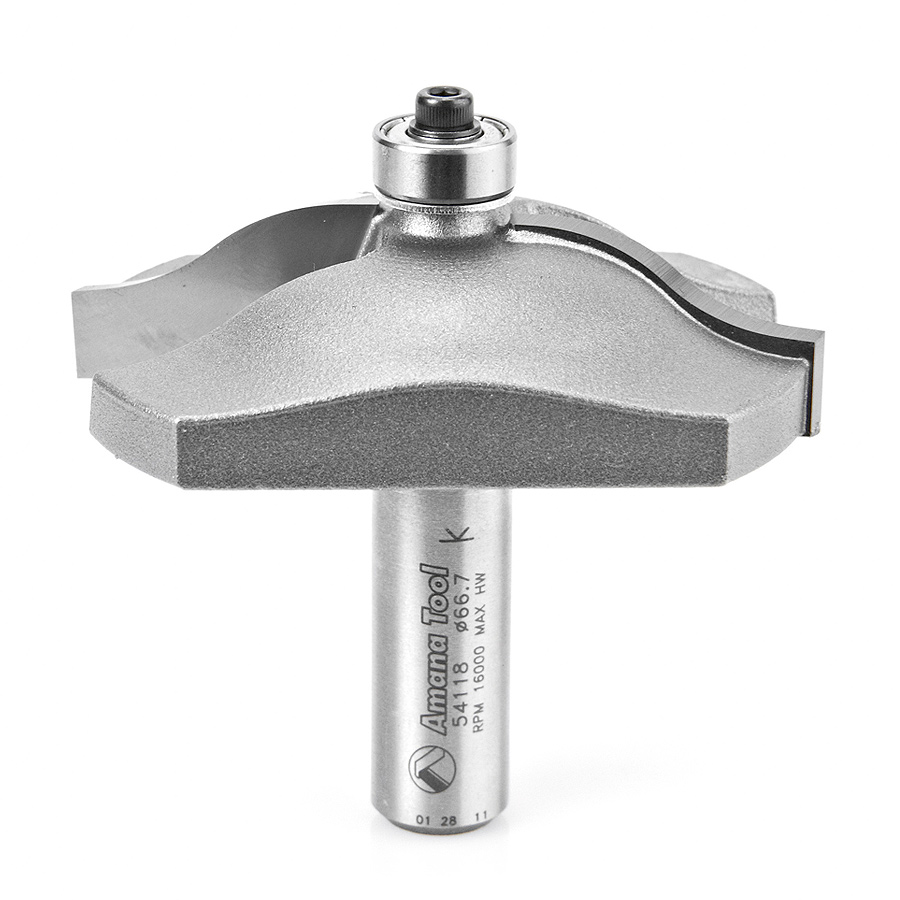

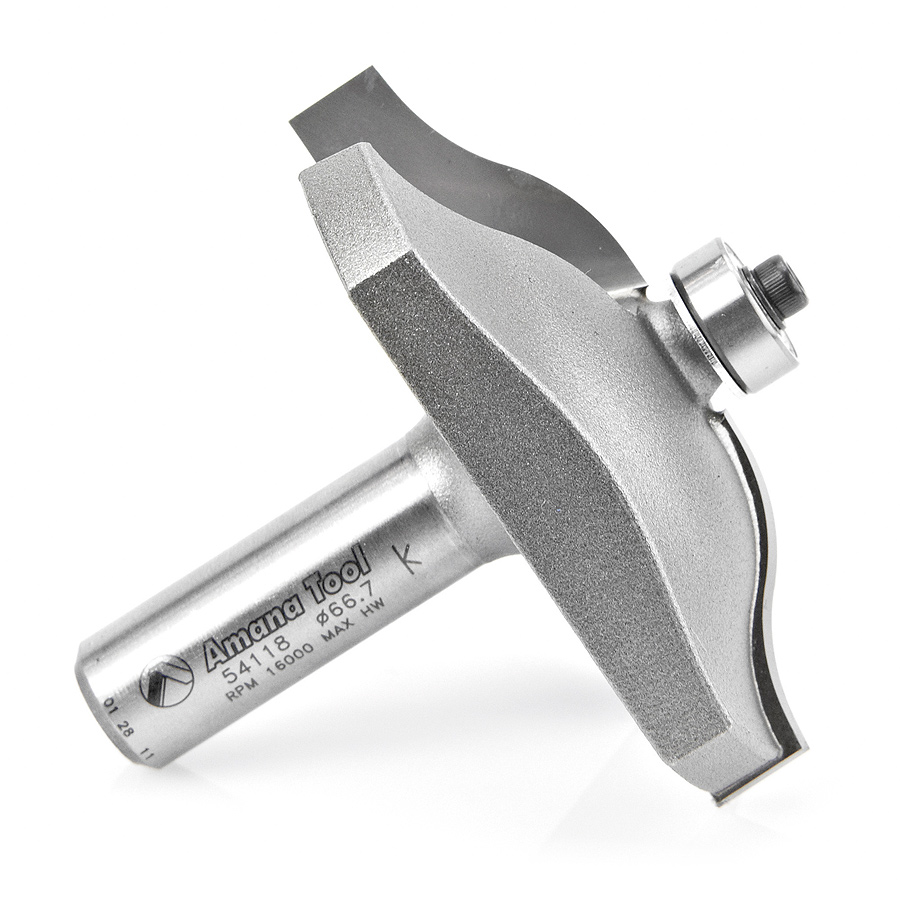

54118 Carbide Tipped Ogee Raised Panel 3/4 Radius x 2-5/8 Dia x 5/8 x 1/2 Inch Shank

Amana 54118 Carbide Tipped Ogee Raised Panel 3/4 Radius x 2-5/8 Dia x 5/8 x 1/2 Inch Shank

Name: Amana 54118 Carbide Tipped Ogee Raised Panel 3/4 Radius x 2-5/8 Dia x 5/8 x 1/2 Inch Shank
SKU: Amana 54118
Availability: InStock

Original price was: $169.25.Current price is: $126.94.

OGEE RAISED PANEL 1/2 SHANK

UPC: 738685941188 SKU: Amana 54118 Categories: Amana Tool, Door Making Router Bits, Raised Panel Router Bits, Router Bits

Item Description

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 20,000.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54118	47706	67096	67098	67202

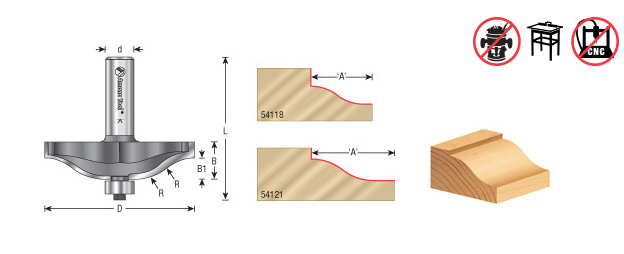

Specifications

Cut Depth (A)	1-1/16
Diameter (D)	2-5/8
Radius (R)	3/4
Cutting Height (B)	5/8
B1	5/16
Shank (d)	1/2
Overall Length (L)	2-1/2
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Cut Depth (A)	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
3-3/8	1-7/16	7/8 (22.23mm)	5/8 (15.88mm)	3/8 (9.53mm)	1/2 (12.70mm)	3 (76.20mm)	54121

Weight	0.56 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
