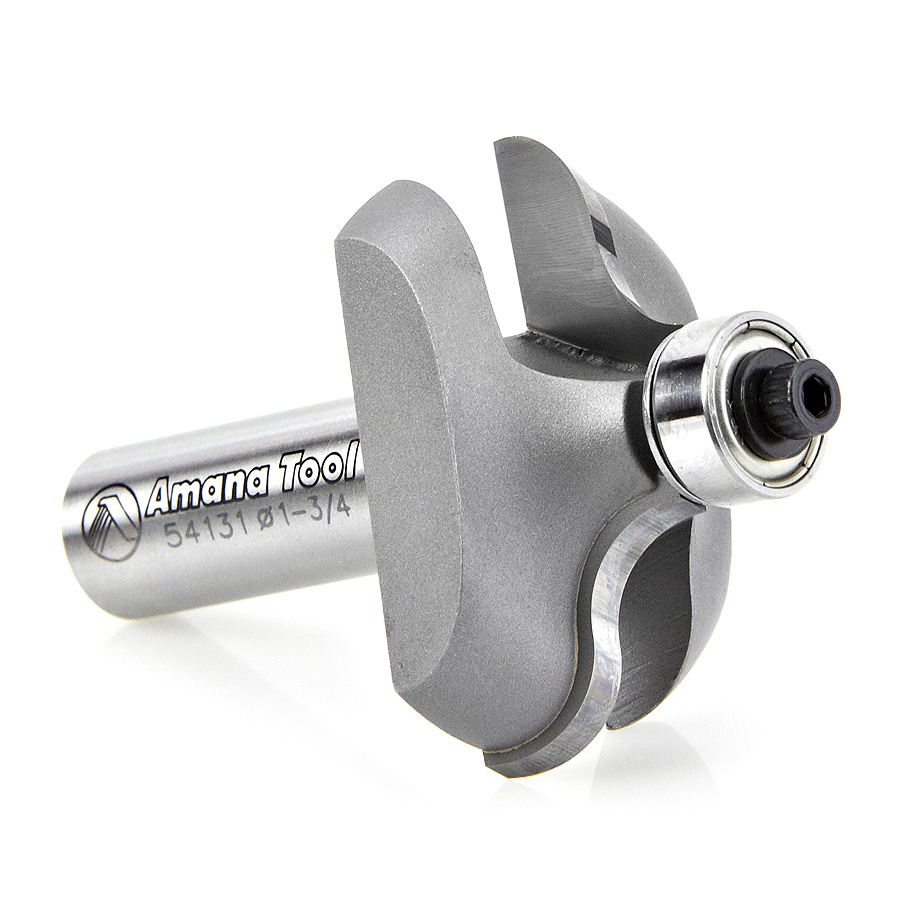

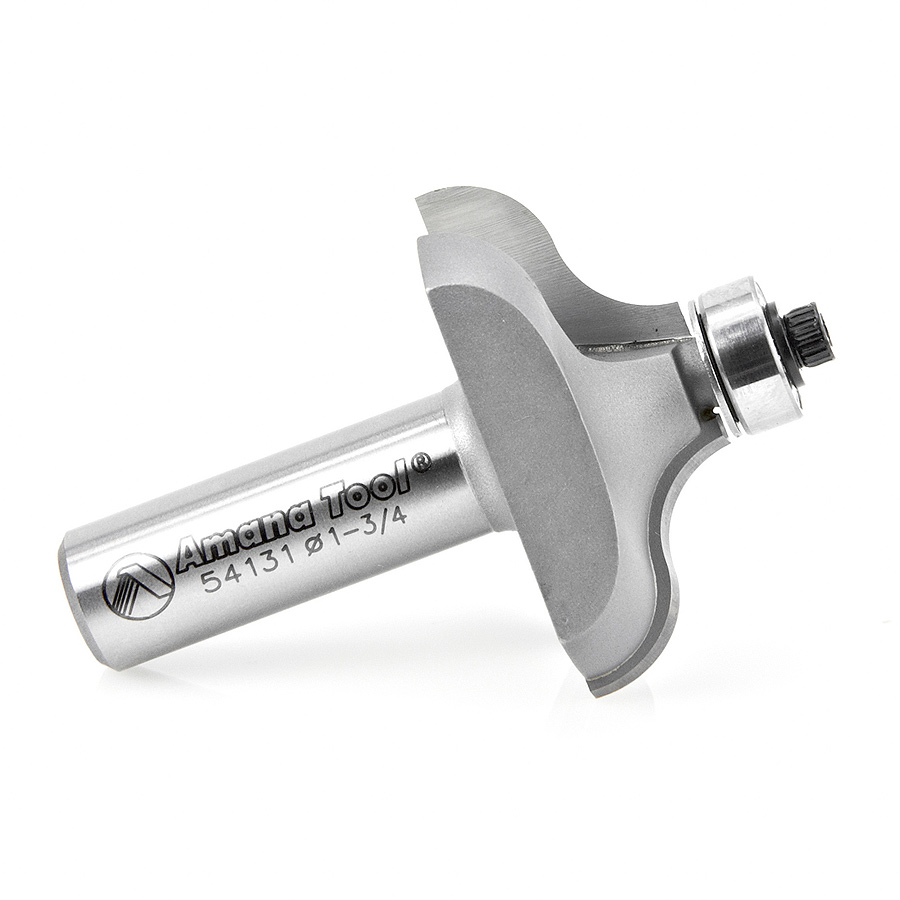

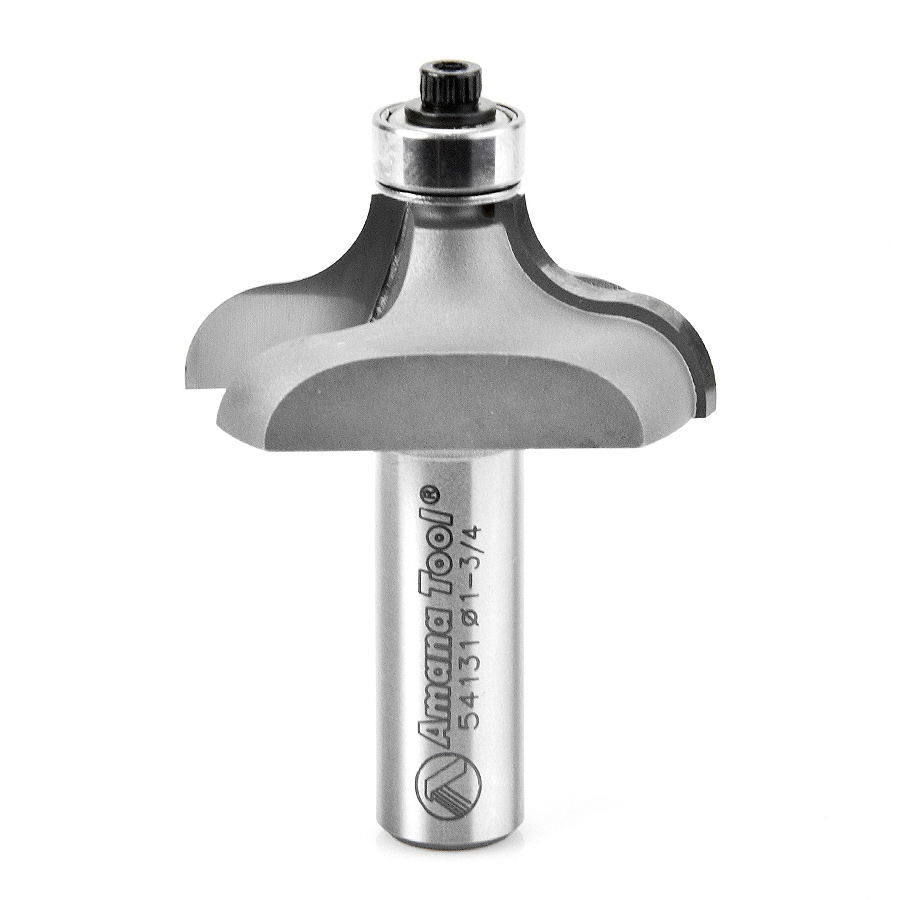

54131 Carbide Tipped Ogee 11/32 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank for 1-3/4 Material

Amana 54131 Carbide Tipped Ogee 11/32 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank for 1-3/4 Material

Name: Amana 54131 Carbide Tipped Ogee 11/32 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank for 1-3/4 Material
SKU: Amana 54131
Availability: InStock

Original price was: $84.55.Current price is: $63.42.

OGEE 1-3/4 DIAMETER 1/2 SHANK

UPC: 738685541319 SKU: Amana 54131 Categories: Amana Tool, Door Making Router Bits, Entry Door Making Router Bits, Router Bits

Item Description

Want the beauty of traditional cope and stick doors with the strength and longevity of true mortise-and-tenon joinery? Our newest design allows you to make beautiful doors with tenons of any length you choose.

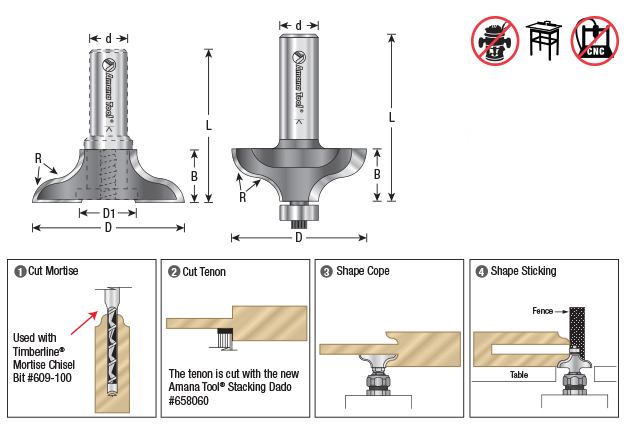

This unique door-making system utilizes a “stub” spindle & cope cutter arrangement. The counterbored cope cutter is secured to the spindle with a cap screw. A matching profile bit is used to shape the decorative ogee a€œstickinga€ along the edges of the stiles and rails. As the cope is cut on the ends of the rails, the tenon passes over the top of the bit unobstructed.

This set is for making 1-3/4″ thick entry doors with an ogee sticking.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54131	47706	67096	67098	67101

Specifications

Diameter (D)	1-3/4
Radius (R)	11/32
Cutting Height (B)	11/16
Shank (d)	1/2
Overall Length (L)	2-3/16
Type	Ogee Bit
Material size	1-3/4"
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Tool No.
1-1/32	–	3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	Ogee Filet	RC-54111
1-1/8	–	5/32 (3.97mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	–	54120
1-1/8	–	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	–	54124
1-3/8	–	1/4 (6.35mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/16	–	54122
1-3/8	–	1/4 (6.35mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-5/8	–	54126
1-3/8	–	1/4 (6.35mm)	3/8 (9.53mm)	1/2 (12.70mm)	1-31/32	Ogee Bit	54175
1-1/4	–	7/32 (5.56mm)	7/16 (11.11mm)	1/2 (12.70mm)	1-15/16	Ogee Bit	54173

Weight	0.28 lbs
