54188 Carbide Tipped Matched Bead 1/4 Radius x 2 Inch Dia x 1-1/4 x 1/2 Shank

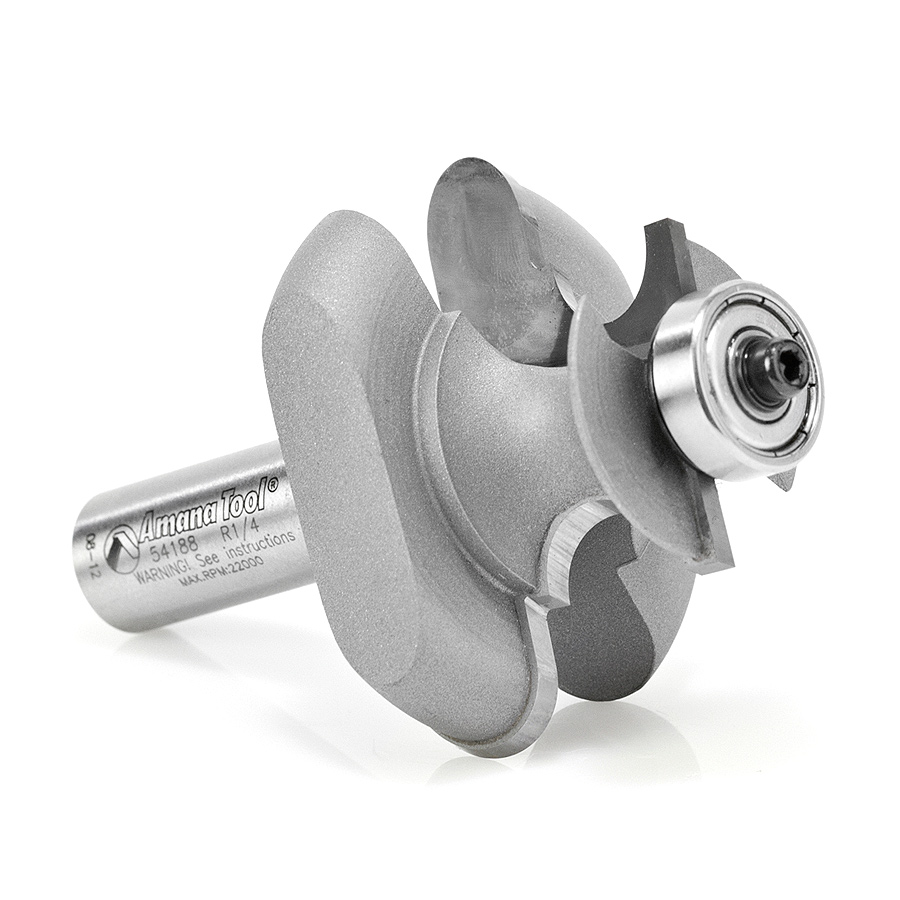

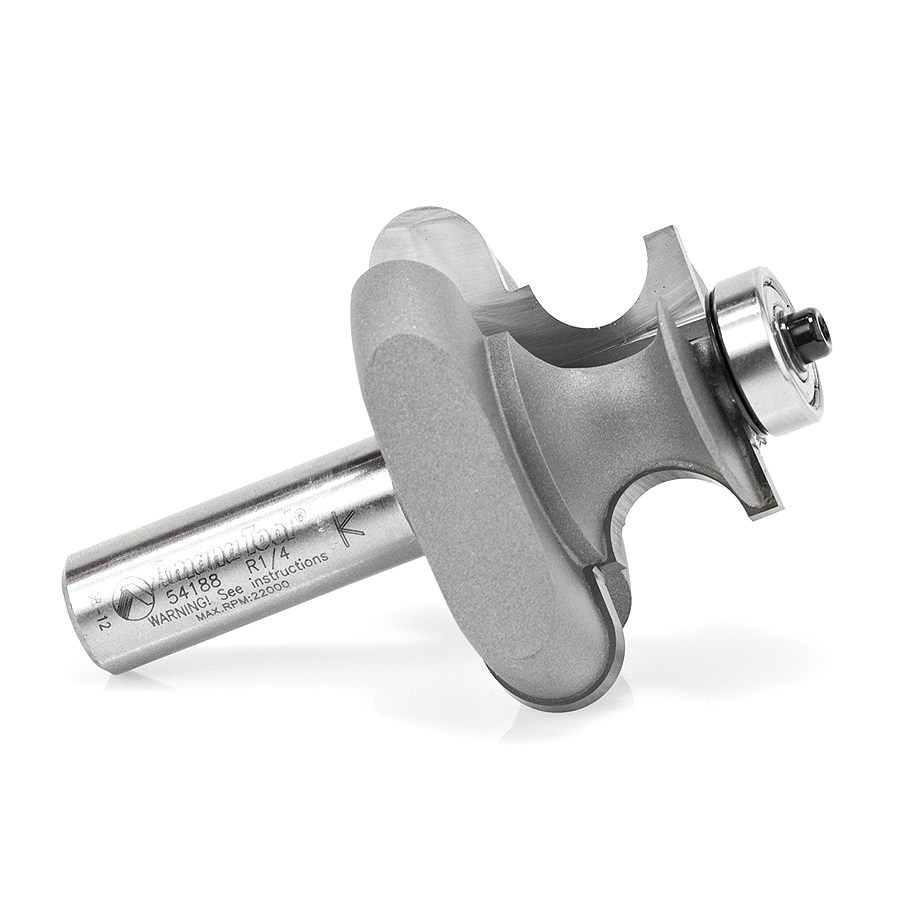

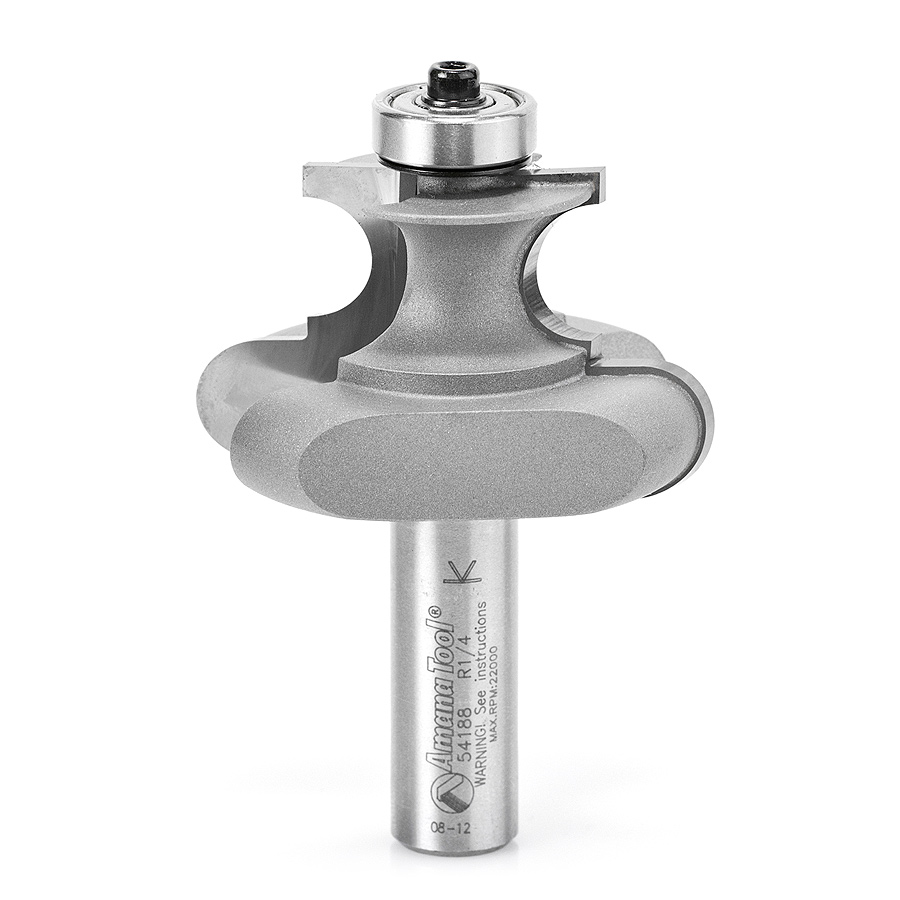

Amana 54188 Carbide Tipped Matched Bead 1/4 Radius x 2 Inch Dia x 1-1/4 x 1/2 Shank

Original price was: $153.75.Current price is: $115.32.

EDGE FORMING BIT 1/2 SHANK

Item Description

This dual purpose bit produces both moldings and joints. Use in place of matched flute-and-bead bit sets to mill the edges of strips used in various stave constructions like planters, canoes and hot tubs. Switch from fluting to beading by raising or lowering the bit. Pilot bearing allows use for template-guided cuts. Recommended for router table use; smaller sizes can be used with an edge-guide equipped portable router.

Maximum RPM 18,000.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54188	47716	67096	67098	67082

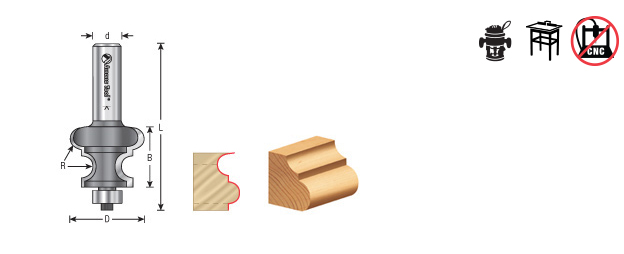

Specifications

Diameter (D)	2
Radius (R)	1/4
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	3
Max RPM	18,000
Replacement Bearing	47716
Flutes	2

Weight	0.4 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
