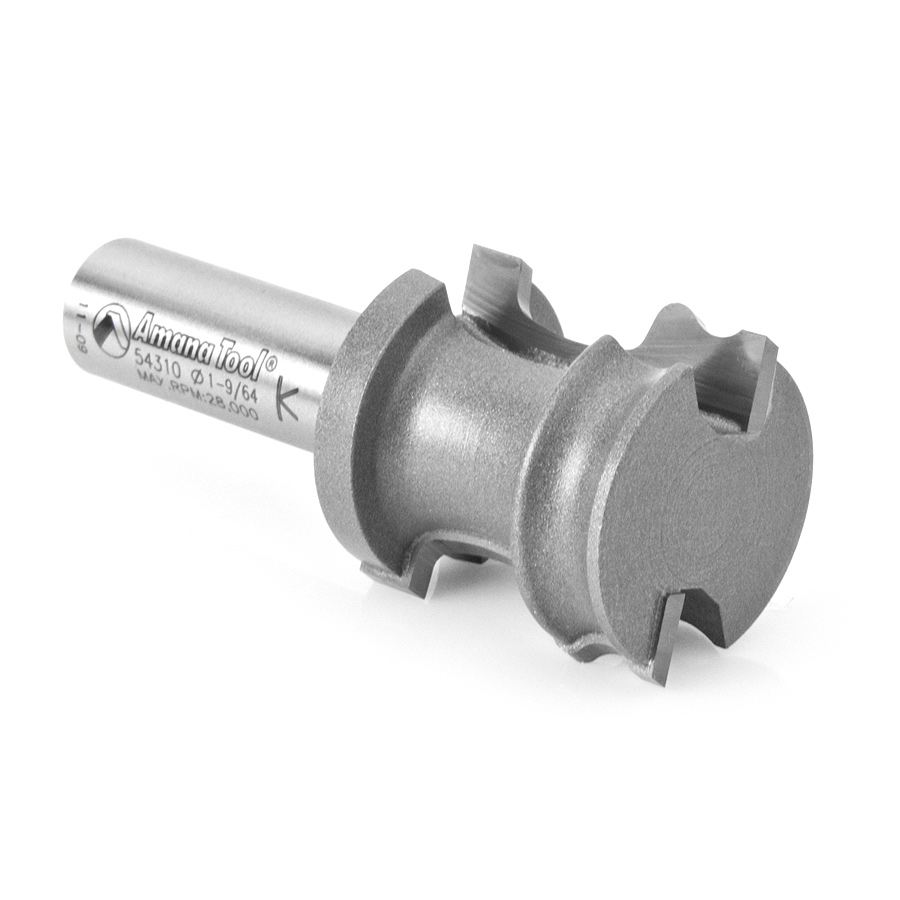

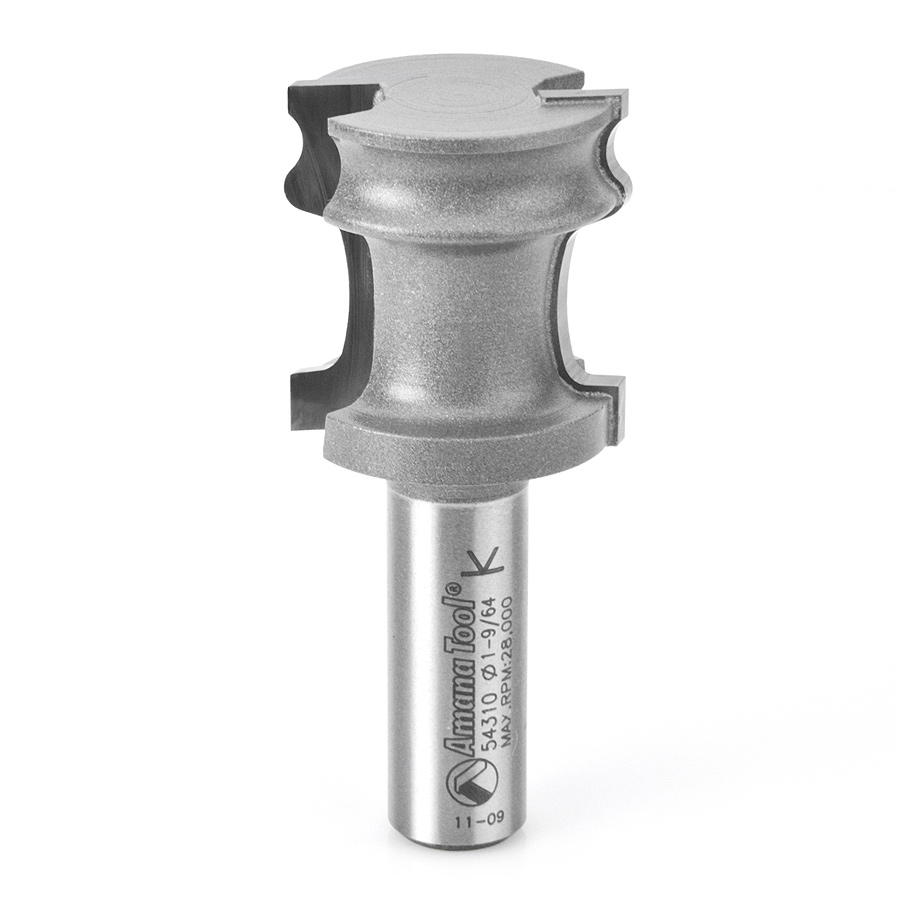

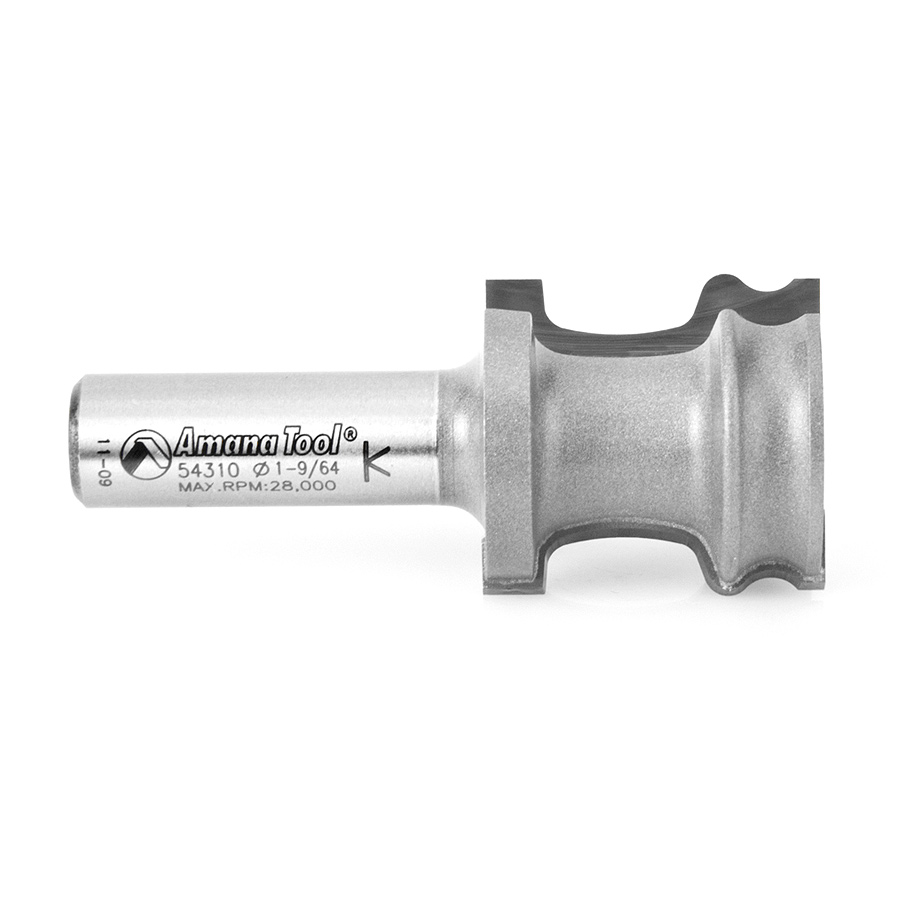

54310 Carbide Tipped Tambour #1 - 5/64 Radius x 1-3/16 Dia x 1/2 Inch Shank Part of Set #54314 (U.S. Patent No. 7 810 532)

Amana 54310 Carbide Tipped Tambour #1 – 5/64 Radius x 1-3/16 Dia x 1/2 Inch Shank Part of Set #54314 (U.S. Patent No. 7 810 532)

Name: Amana 54310 Carbide Tipped Tambour #1 - 5/64 Radius x 1-3/16 Dia x 1/2 Inch Shank Part of Set #54314 (U.S. Patent No. 7 810 532)
SKU: Amana 54310
Availability: InStock

Original price was: $172.00.Current price is: $129.00.

TAMBOUR BIT # 1

UPC: 738685543108 SKU: Amana 54310 Categories: Amana Tool, Door Making Router Bits, Router Bits, Tambour Door/Appliance Garage Router Bit Sets

Item Description

**Unique 3-piece router bit set with antique solid brass knob**
**Shapes tambours that interlock with a ball-and-socket joint**
**Unlike ordinary tambours, there is no need for cloth, glue or wires**
**Each slat measures approximately 1/2″ x 1″**
**Minimum radius for the tambour door is 3-1/2″**

The set is easy to set up and use. The first bit (#54310) shapes the face of the stock; cutting from each face completes the contour of the ball. Afterwards, a second bit (#54312) is used to shape the socket. A third bit in the set (#49498) is used to shape the end of the tambour which provides a place to mount a pull for opening the completed tambour.

And, assembly is easy. Simply slide the slats together to create a beautiful flexible tambour that’s perfect for creating your own roll top desk, breadbox, kitchen countertop storage areas and more.

Recommended Maximum Width for Tambour Strips:

Do not exceed 5ft or 60in in length, otherwise they may sag under their own weight.

Specifications

Diameter (D)	1-3/16
Radius (R)	1/8
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	2-3/4
R1	5/64

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Max RPM	Tool No.
1/2 (12.70mm)	–	5/64 (1.98mm)	3/8 (9.53mm)	1/2 (12.70mm)	3 (76.20mm)	–	—-	—-	54312
3/4 (19.05mm)	1/2 (12.70mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	47706	2	—-	49498
–	–	–	–	–	–	–	—-	28,000	54314

Weight	0.3 lbs
