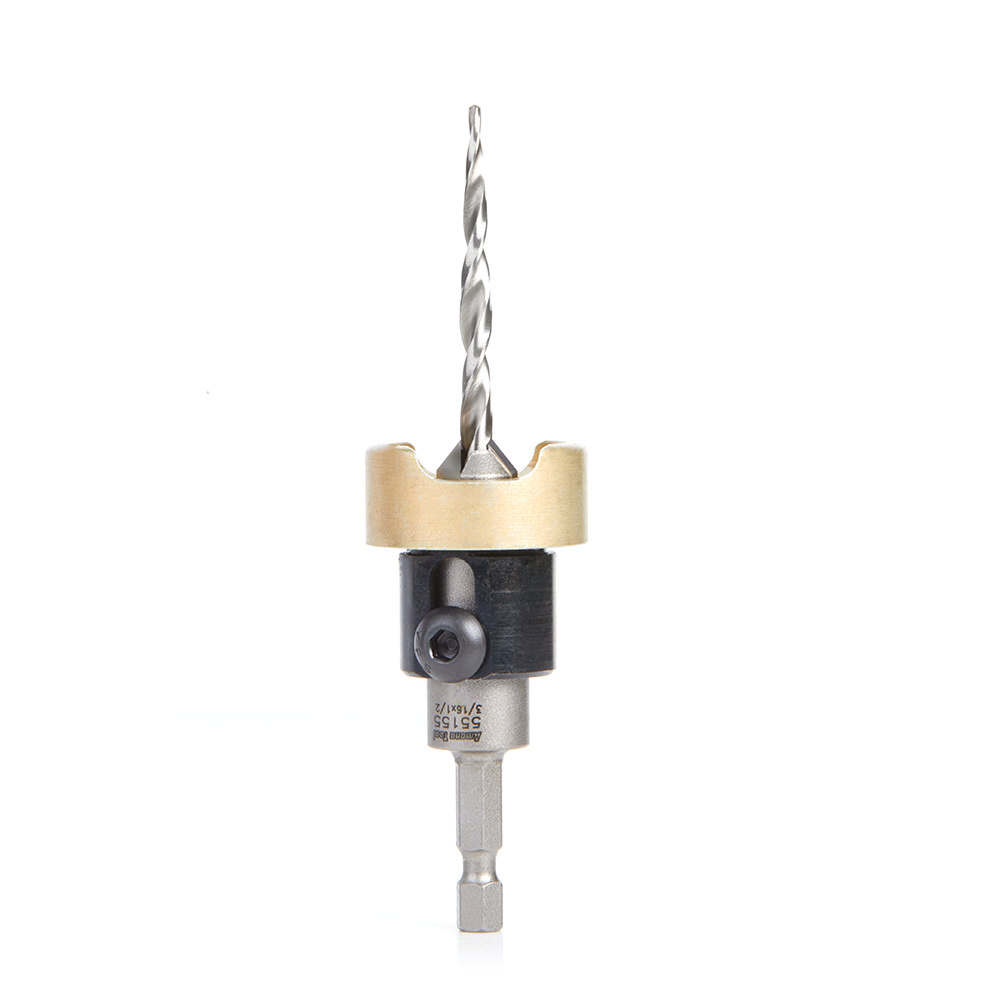

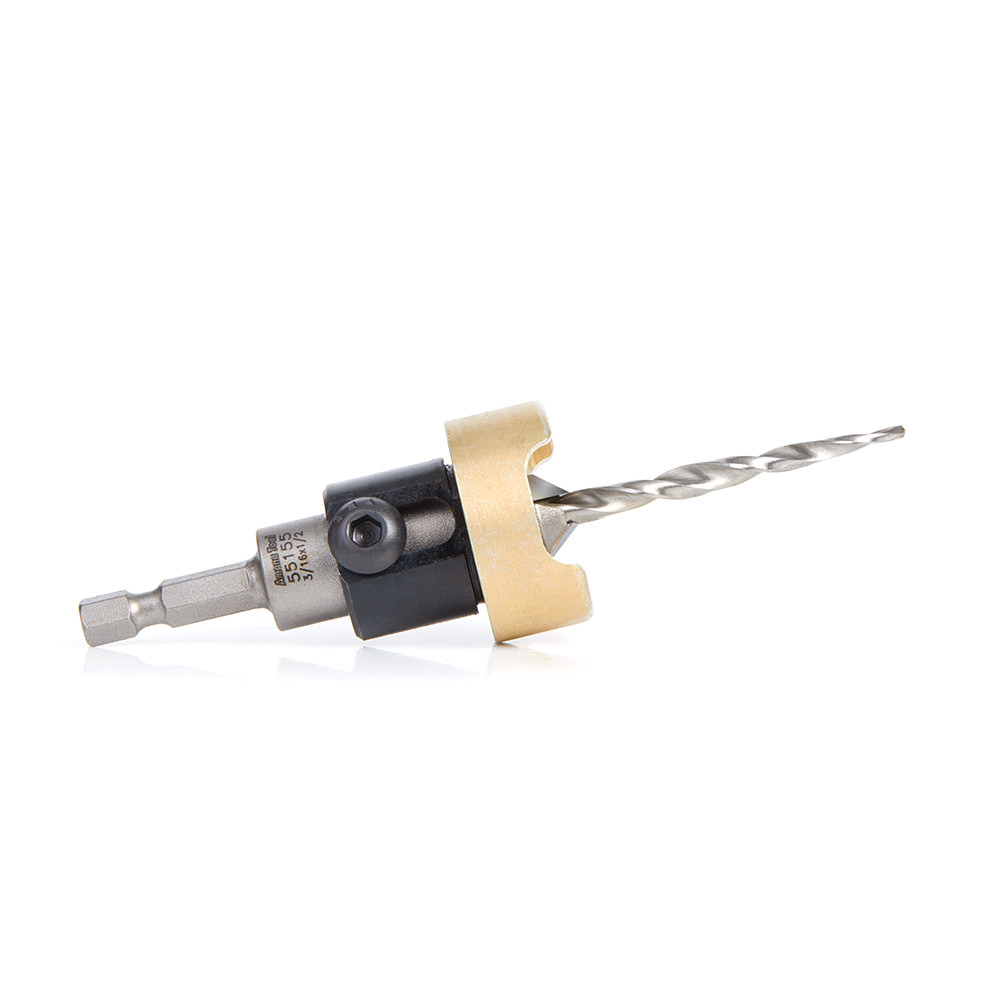

55155 Carbide Tipped 82 Degree Countersink with Tapered Drill and Adjustable Depth Stop with No-Thrust Ball Bearing, 1/2 Dia x 3/16 Drill Dia x 1/4 Inch Quick Release Hex Shank

Amana 55155 Carbide Tipped 82 Degree Countersink with Tapered Drill and Adjustable Depth Stop with No-Thrust Ball Bearing, 1/2 Dia x 3/16 Drill Dia x 1/4 Inch Quick Release Hex Shank

Name: Amana 55155 Carbide Tipped 82 Degree Countersink with Tapered Drill and Adjustable Depth Stop with No-Thrust Ball Bearing, 1/2 Dia x 3/16 Drill Dia x 1/4 Inch Quick Release Hex Shank
SKU: Amana 55155
Availability: InStock

Original price was: $79.75.Current price is: $59.82.

COUNTERSINK/STOP 3/16″TAPERDRI

UPC: 738685001554 SKU: Amana 55155 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

A must have tool for every woodworker!

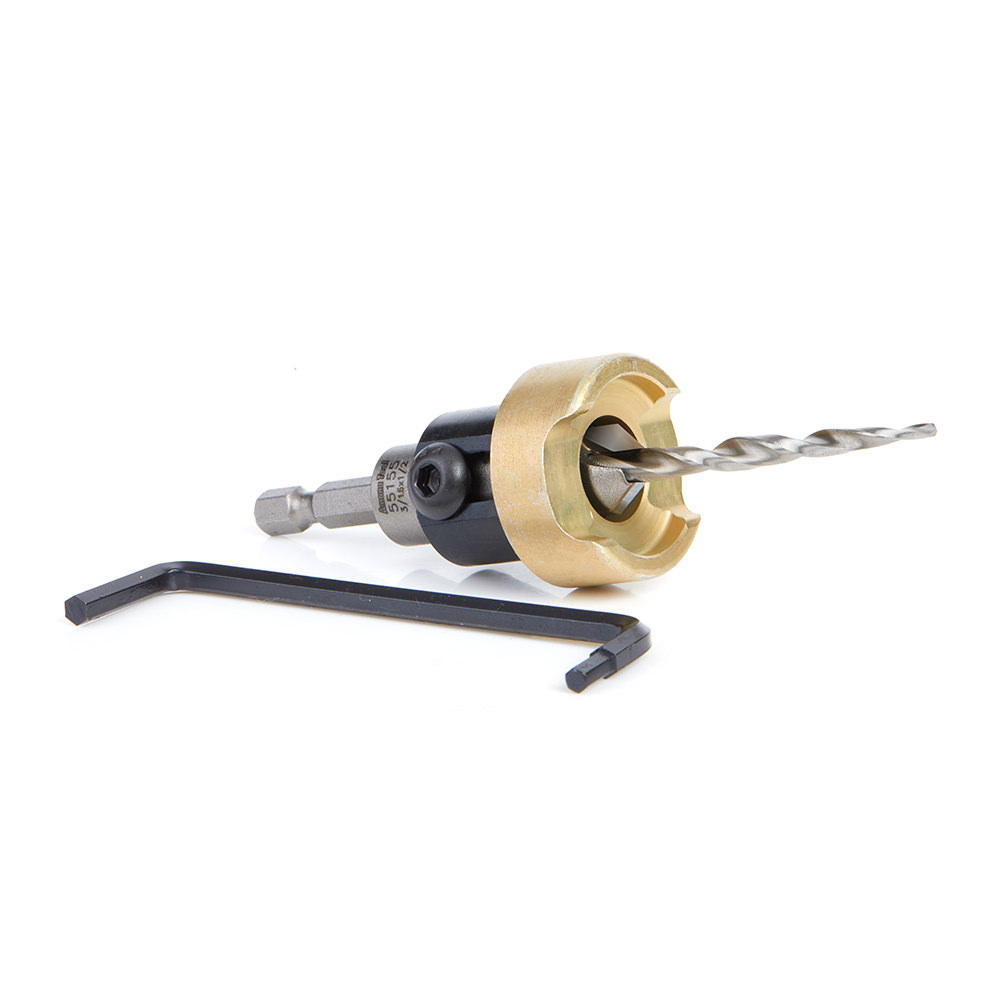

_Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit)._

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.

It also has an open space to allow for chip evacuation.

The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.

Enables users to drill a pilot hole and tapered countersink in one step.

The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.

2-Wing
Quick release 1/4″ hex shank
Slow spiral, HSS M2 fully ground tapered drill bit included

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous*****
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.

Replacement Parts

Replacement Drill (Included)	NF1/4 x 1/4 Set Screw for Tightening Depth Stop	NF1/4-28 x 3/16 Set Screw for Drill Tightening	1/8 x 5/32 Double-Sided Hex Key (Included)
630-274	67070	67083	5019

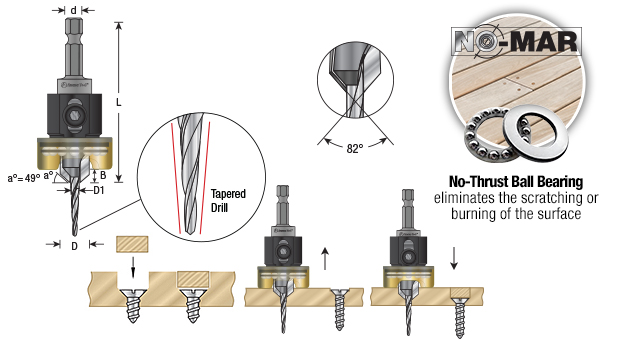

Specifications

(a°) Angle	49°
(D) Diameter	1/2
(B) Cutting Height	3/64-3/8
(d) Shank	1/4
Overall Length (L)	2-3/4
Drill Din	1897
Wood Screw Size	10
D1	3/16
Replacement Drill	630-274
Use with Plug Cutter (Optional)	55222

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(B) Cutting Height	(a°) Angle	(d) Shank	Overall Length (L)	Drill Din	Use with Plug Cutter (Optional)	Replacement Drill	Tool No.
4 4.00 101.60mm 4.00	3/8 (9.53mm)	3/32 (2.38mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	338 (8585.22mm)	55220	630-262	55150
6 6.00 152.40mm 6.00	3/8 (9.53mm)	1/8 (3.18mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-266	55151
6 6.00 152.40mm 6.00	3/8 (9.53mm)	9/64 (3.57mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55222	630-268	55152
8 8.00 203.20mm 8.00	3/8 (9.53mm)	5/32 (3.97mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-270	55153
4 4.00 101.60mm 4.00	3/8 (9.53mm)	5/64 (1.98mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	338 (8585.22mm)	55220	630-260	55156
8 8.00 203.20mm 8.00	1/2 (12.70mm)	11/64 (4.37mm)	3/64-3/8	49°	1/4 (6.35mm)	2-3/4	1897	55222	630-272	55154

Weight	0.32 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
