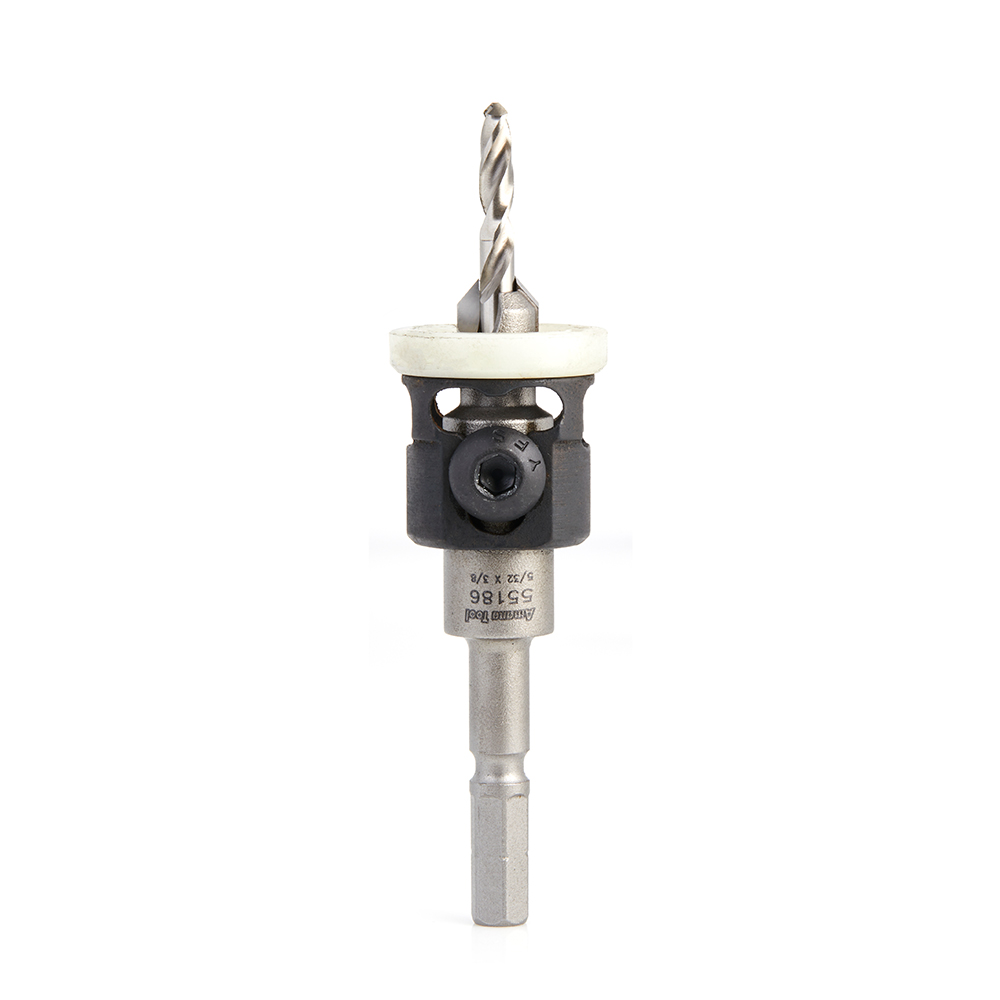

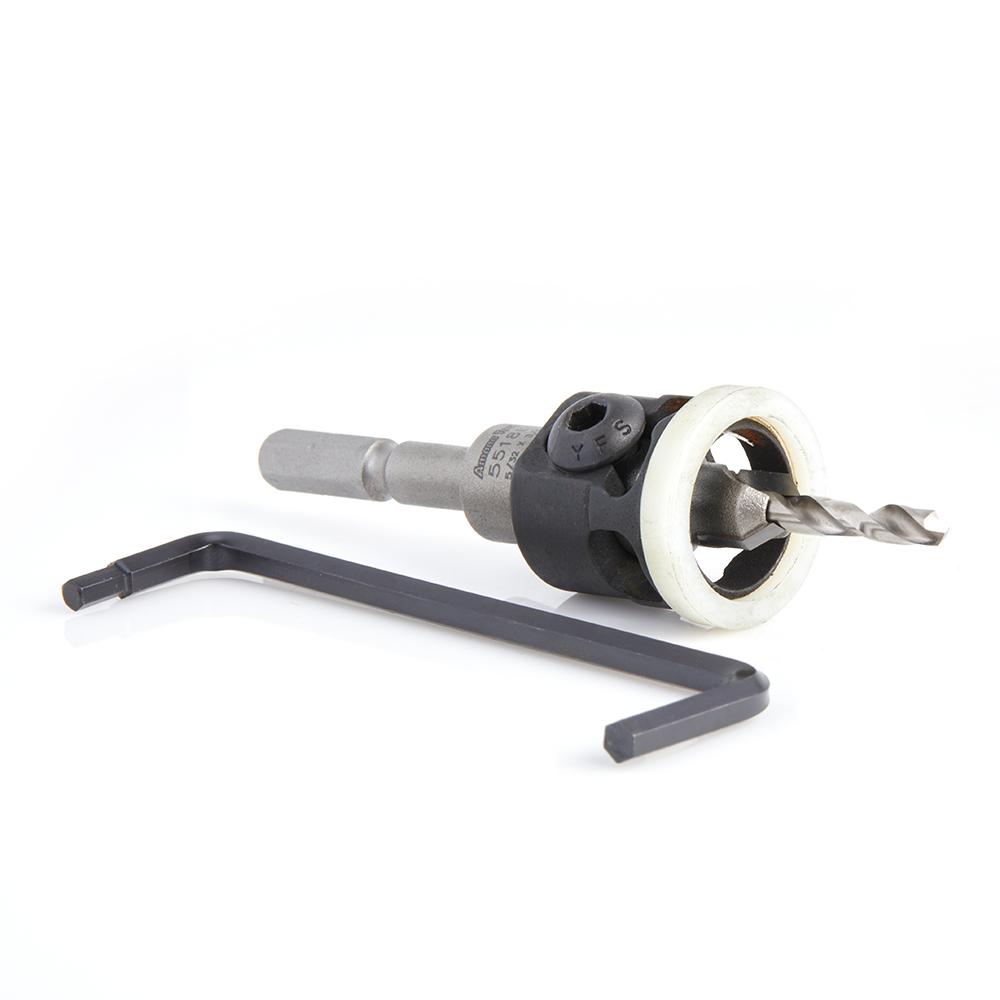

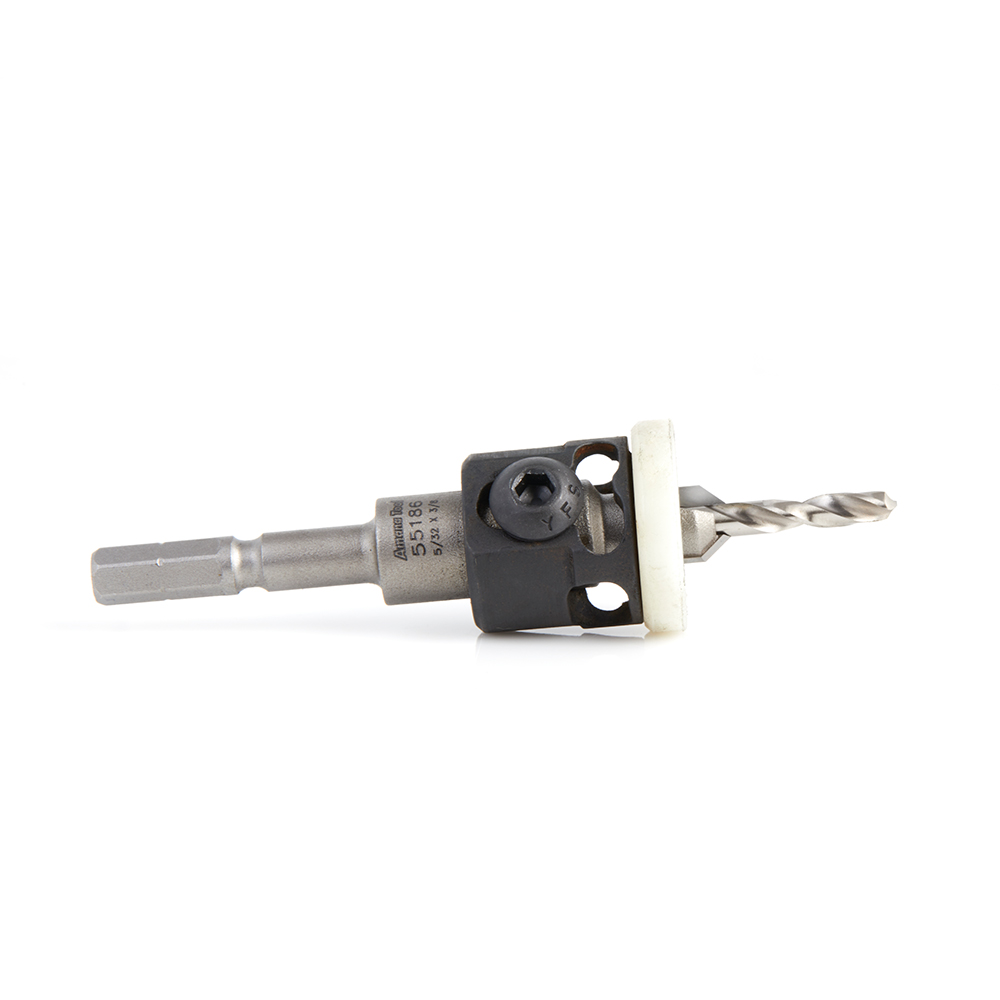

55186 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, For Festool® CENTROTEC® System 3/8 Dia x 5/32 Drill Dia for Wood Screw #12-14

Amana 55186 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, For Festool® CENTROTEC® System 3/8 Dia x 5/32 Drill Dia for Wood Screw #12-14

Original price was: $59.95.Current price is: $44.97.

LOW FRICTION COUNTERSINK 5/32″

UPC: 738685551868 SKU: Amana 55186 Categories: 82 Degree Countersinks for Festool CENTROTEC System, Amana Tool, Countersinks

Item Description

A must have tool for every woodworker!

_Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit)._

Tools design with a unique shank with hex part and round part.

It fits Festool® CENTROTEC® drill machines or with any three-jaw keyless chuck system.

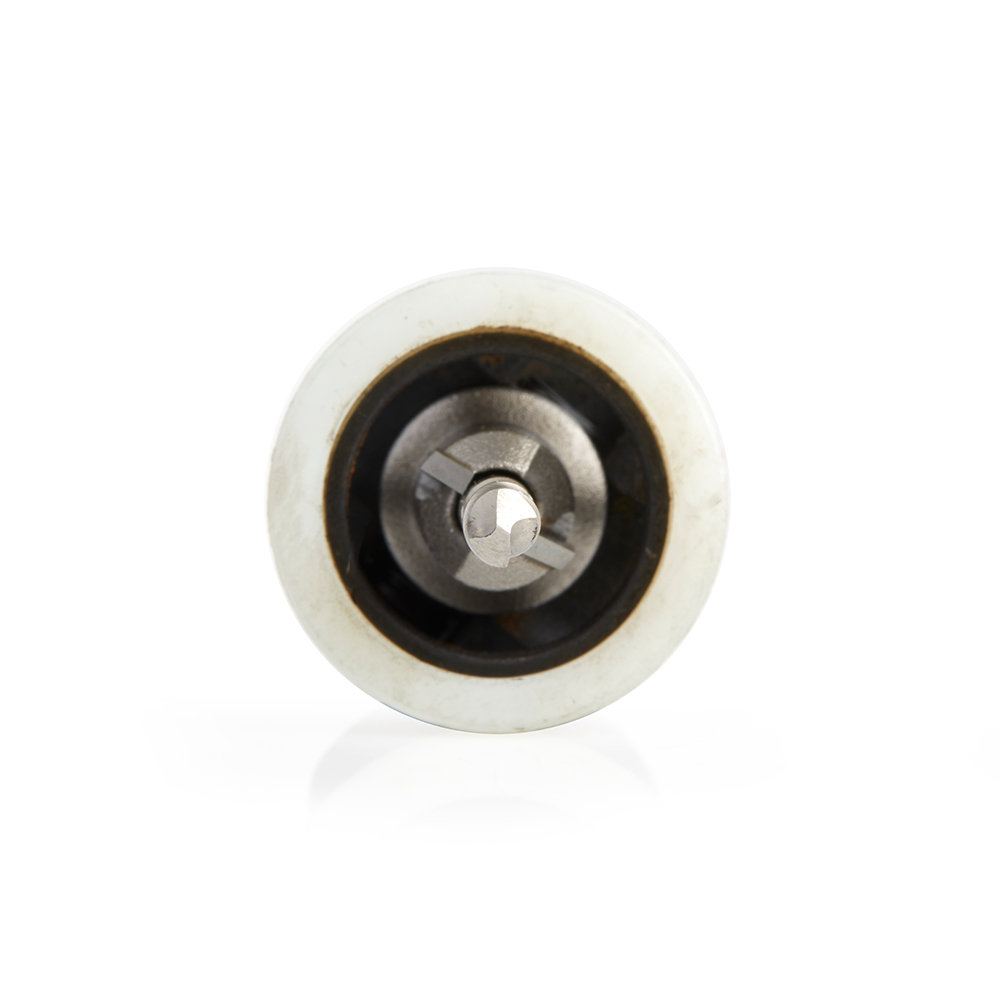

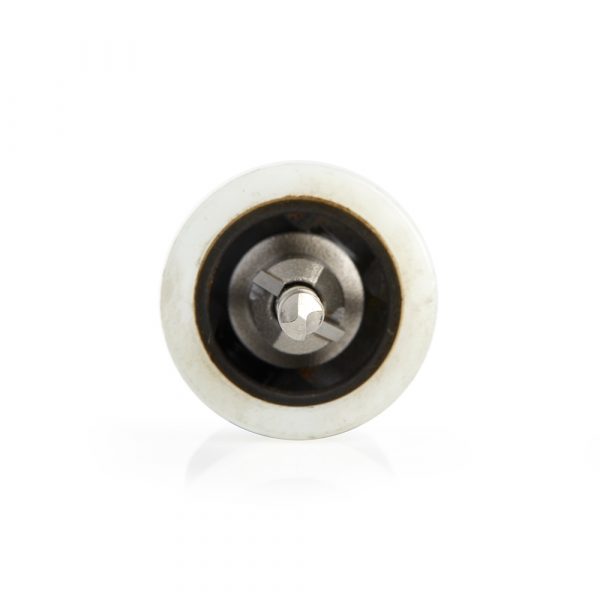

Low friction polymer collar. No surface scratches or burn marks!

These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.

2-Wing
Centrotec® shank
Slow spiral, HSS M2 fully ground drill bit included

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.

Replacement Parts

Replacement Drill (Included)	NF1/4 x 1/4 Set Screw for Tightening Depth Stop	NF1/4-28 x 3/16 Set Screw for Drill Tightening	1/8 x 5/32 Double-Sided Hex Key (Included)
630-230	67070	67083	5019

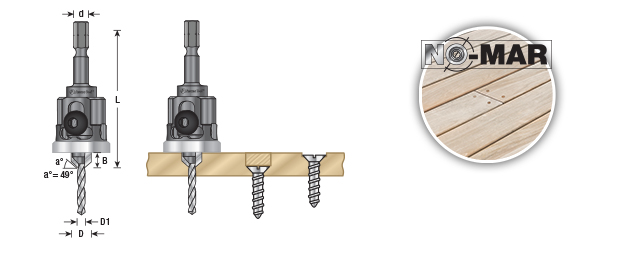

Specifications

(a°) Angle	49°
(D) Diameter	3/8
(B) Cutting Height	5/64-11/32
(d) Shank	CENTROTEC®
Overall Length (L)	2-7/8
Drill Din	1897
Wood Screw Size	#12-14
D1	5/32
Replacement Drill	630-230
Use with Plug Cutter (Optional)	55220

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(B) Cutting Height	(a°) Angle	(d) Shank	Overall Length (L)	Replacement Drill	Tool No.
#8#8#8#8	3/8 (9.53mm)	7/64 (2.78mm)	5/64-11/32	49°	CENTROTEC®	2-7/8	630-224	55180
6 6.00 152.40mm 6.00	3/8 (9.53mm)	1/8 (3.18mm)	5/64-11/32	49°	CENTROTEC®	2-7/8	630-226	55182
