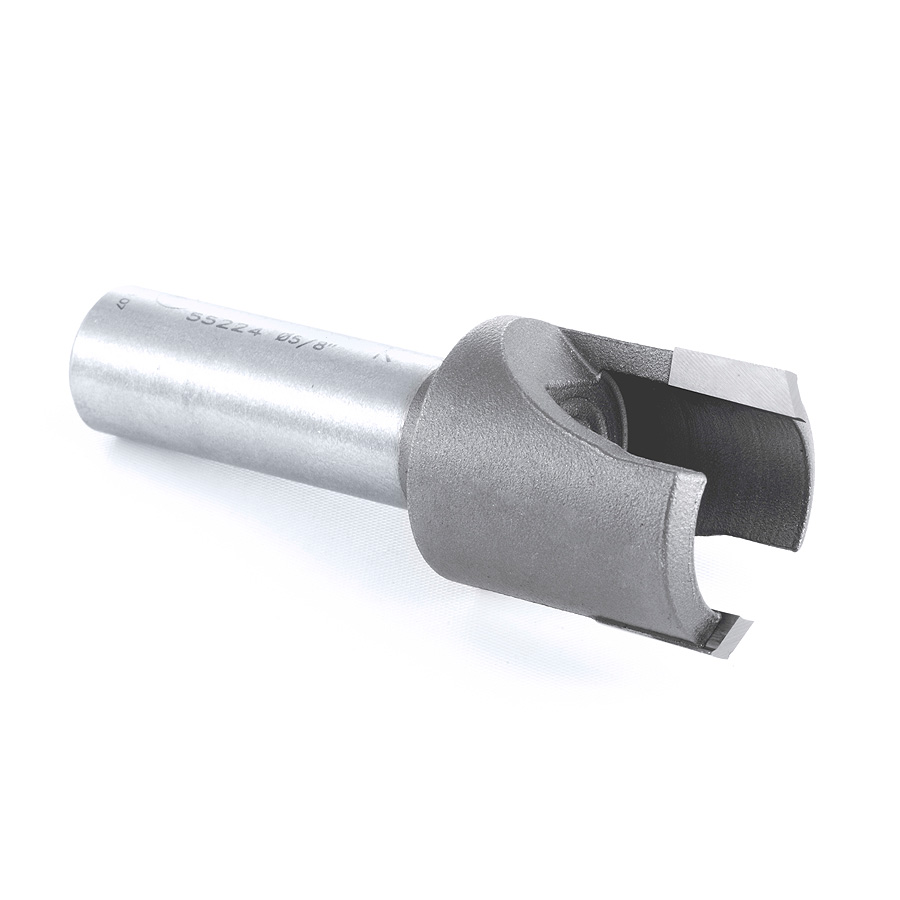

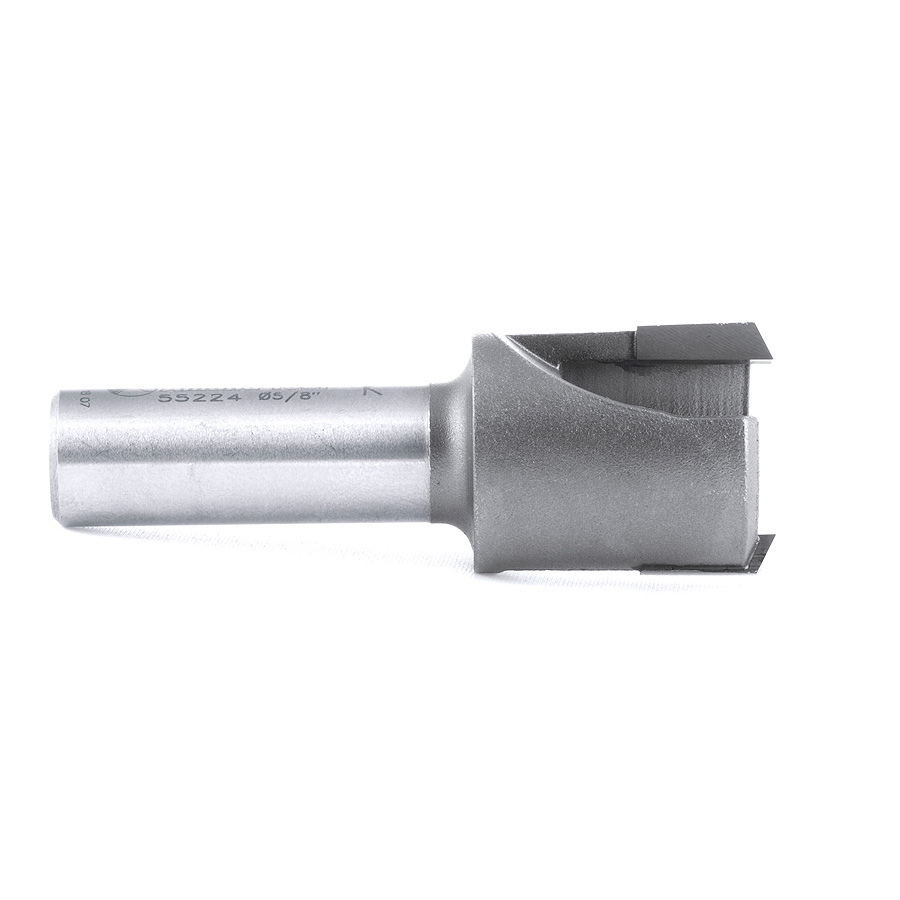

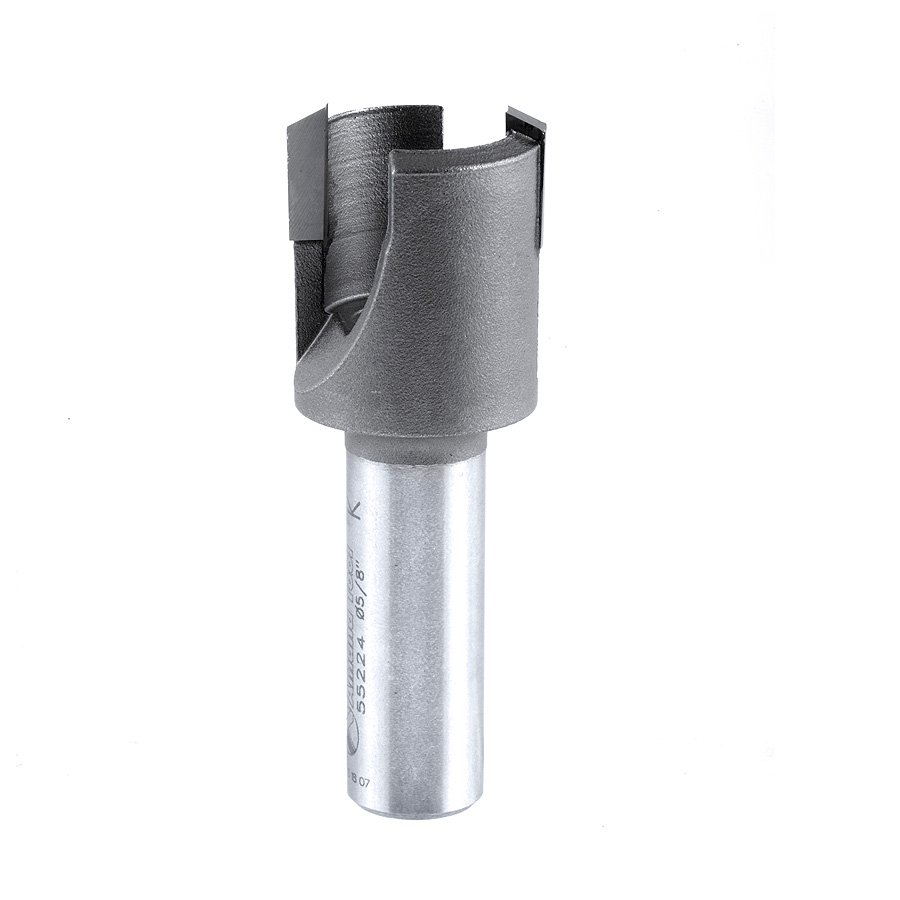

55224 Carbide Tipped Plug Cutter for Drill Press 29/32 Dia x 1/2 x 1/2 Inch Shank

Amana 55224 Carbide Tipped Plug Cutter for Drill Press 29/32 Dia x 1/2 x 1/2 Inch Shank

Name: Amana 55224 Carbide Tipped Plug Cutter for Drill Press 29/32 Dia x 1/2 x 1/2 Inch Shank
SKU: Amana 55224
Availability: InStock

Original price was: $101.85.Current price is: $76.39.

PLUG CUTTER 5/8 DIA. 1/2 SHANK

UPC: 738685552247 SKU: Amana 55224 Categories: Amana Tool, Boring & Drilling Bits, Plug Cutters

Item Description

Must clamp work piece firmly to drill press table.

Specifications

(D) Diameter	29/32
(B) Cutting Height	1/2
(d) Shank	1/2
Flutes	2
Overall Length (L)	2-1/2
D1	5/8

Other Sizes Available

(D) Diameter	D1	(B) Cutting Height	(d) Shank	Overall Length (L)	Tool No.
1-1/32	3/4 (19.05mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	55223
5/8 (15.88mm)	.335"0.34	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	55217
5/8 (15.88mm)	3/8 (9.53mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	55220
25/32 (19.84mm)	1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	55222

Weight	0.18 lbs
