Item Description

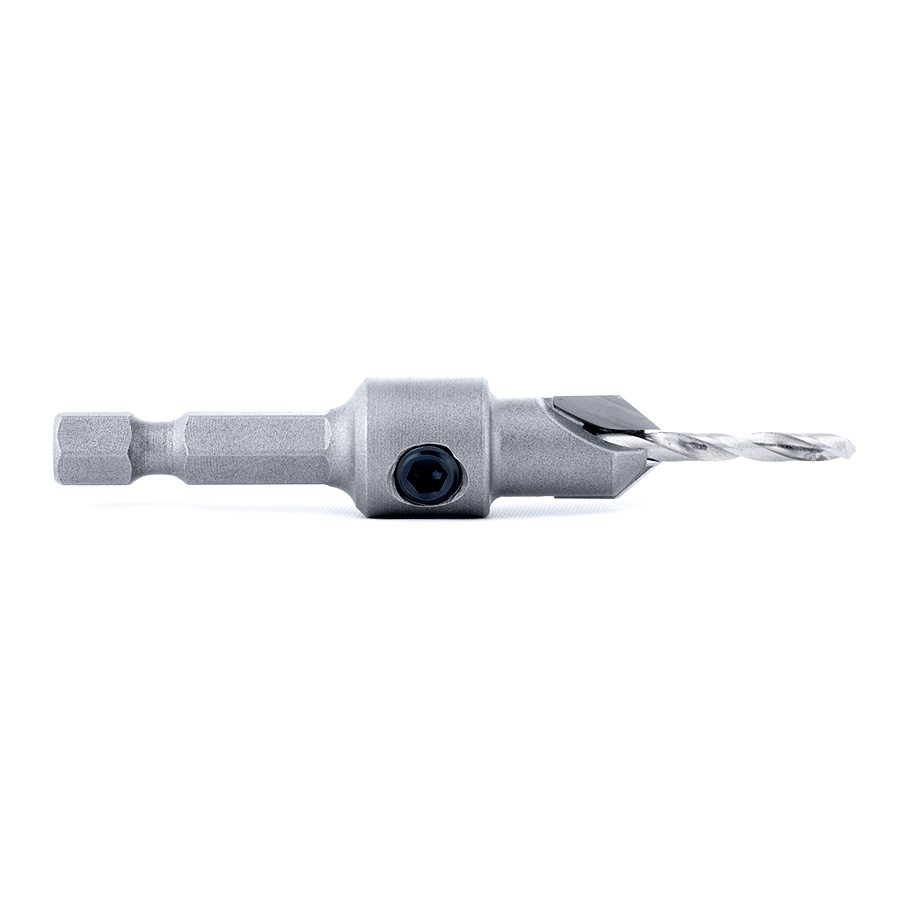

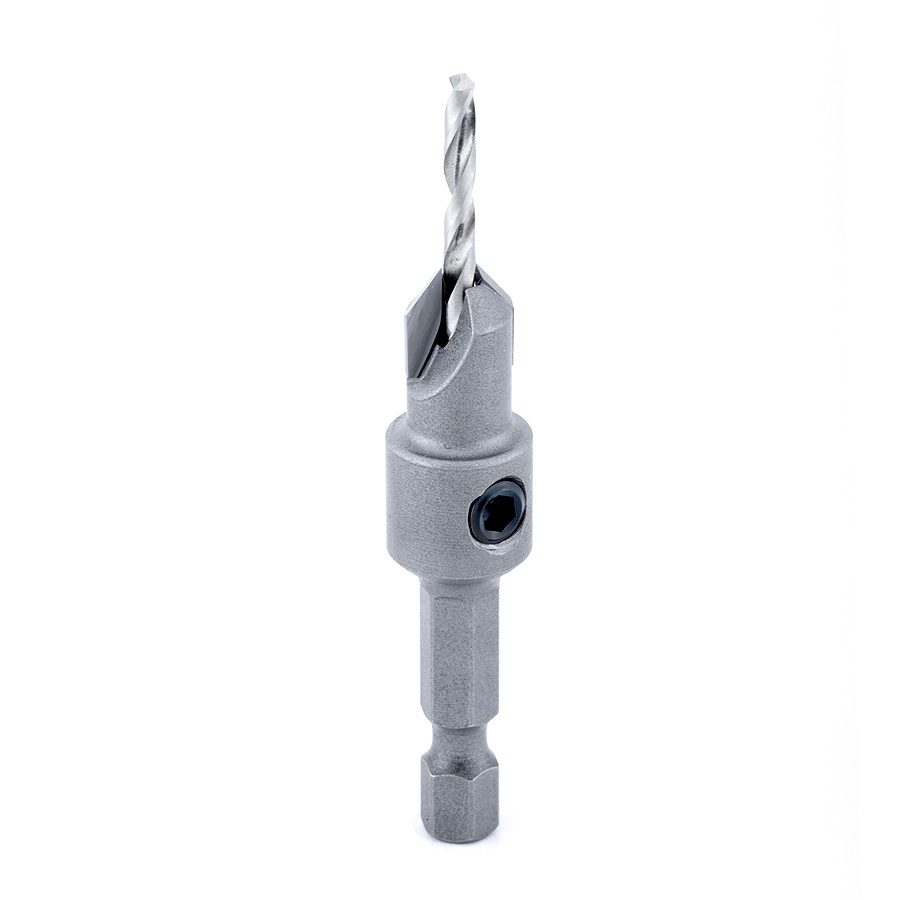

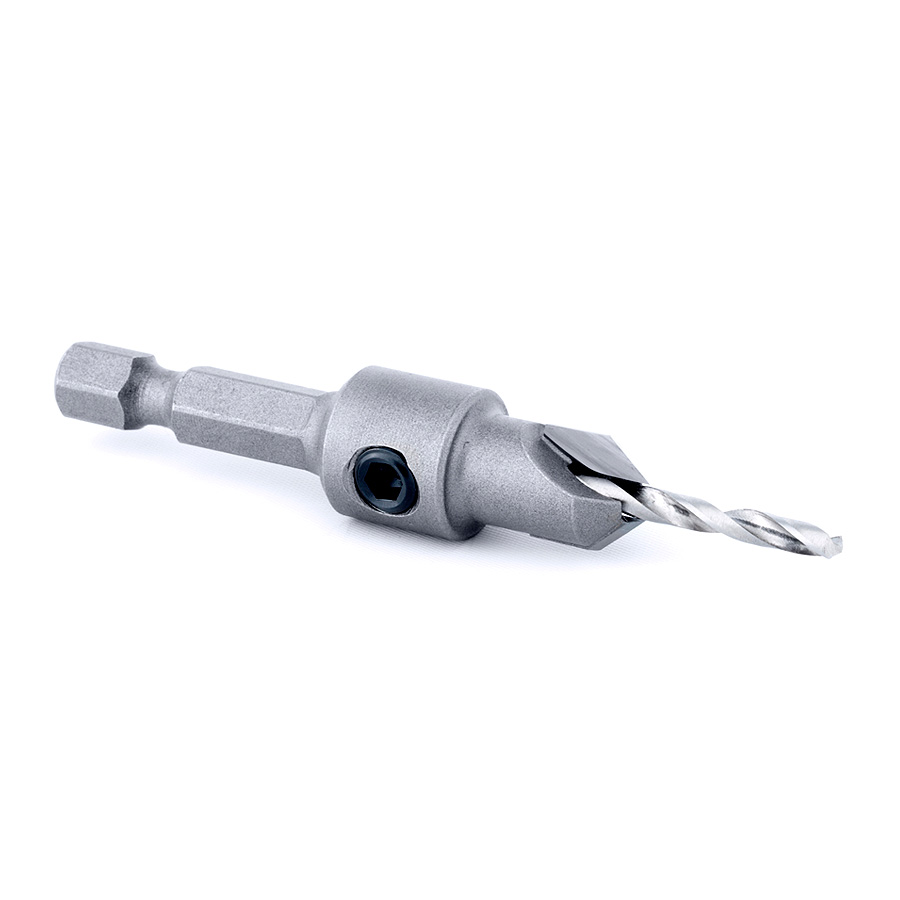

Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- High Density Polyethylene (HDPE)
- Acrylic
Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.
Replacement Parts
| Tool No. | Set Screw | Hex key | Drill Bit |
|---|---|---|---|
| 55264 | 67083 | 5009 | 630-098 |

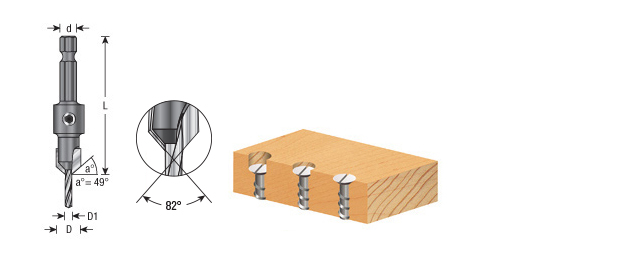

Specifications
| (a°) Angle | 49° |
|---|---|
| (D) Diameter | 3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/8 |
| Wood Screw Size | #8 |
| D1 | 7/64 |
| Replacement Drill | 630-098 |
| Optional Depth-Stop | 608-120 |
Other Sizes Available
| Wood Screw Size | (D) Diameter | D1 | (a°) Angle | (d) Shank | Overall Length (L) | Optional Depth-Stop | Replacement Drill | Tool No. |
|---|---|---|---|---|---|---|---|---|
| #4#4#4#4 | 3/8 (9.53mm) | 5/64 (1.98mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 608-120 | 630-001 | 55260 |
| #6#6#6#6 | 3/8 (9.53mm) | 3/32 (2.38mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 608-120 | 630-002 | 55262 |
| #10#10#10#10 | 3/8 (9.53mm) | 1/8 (3.18mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 608-120 | 630-102 | 55266 |
| 12-14, 1214 | 3/8 (9.53mm) | 5/32 (3.97mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 608-120 | 630-202 | 55269 |
| #12#12#12#12 | 1/2 (12.70mm) | 9/64 (3.57mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 608-122 | 630-802 | 55268 |
