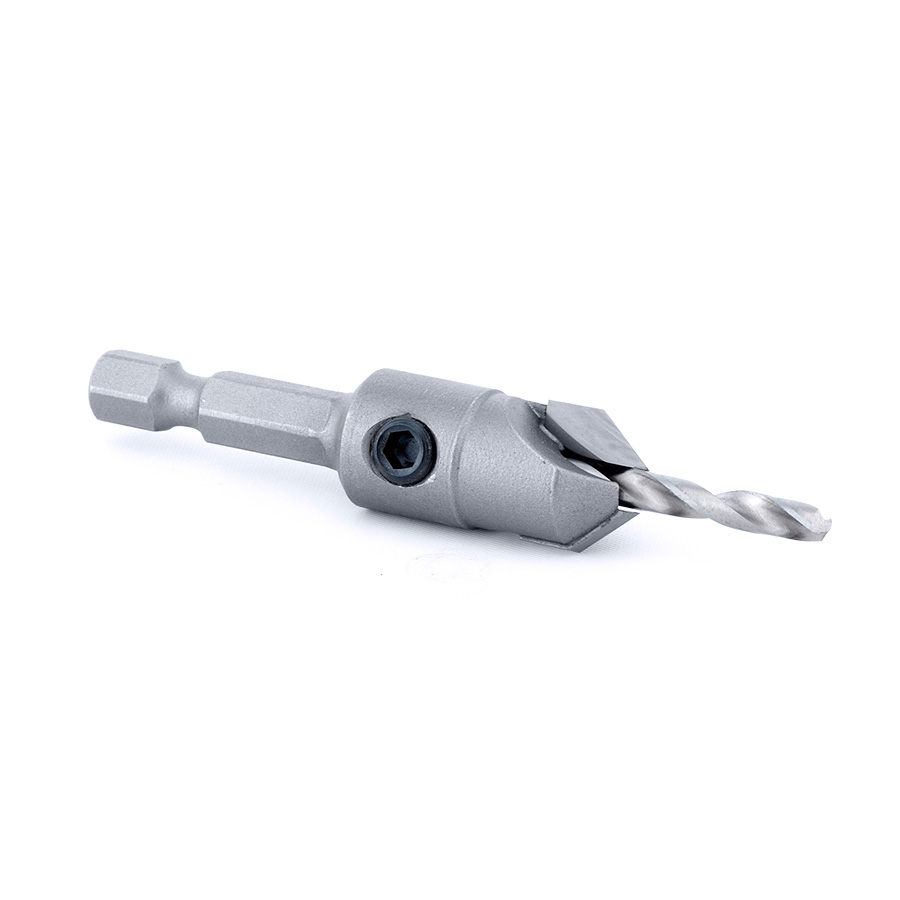

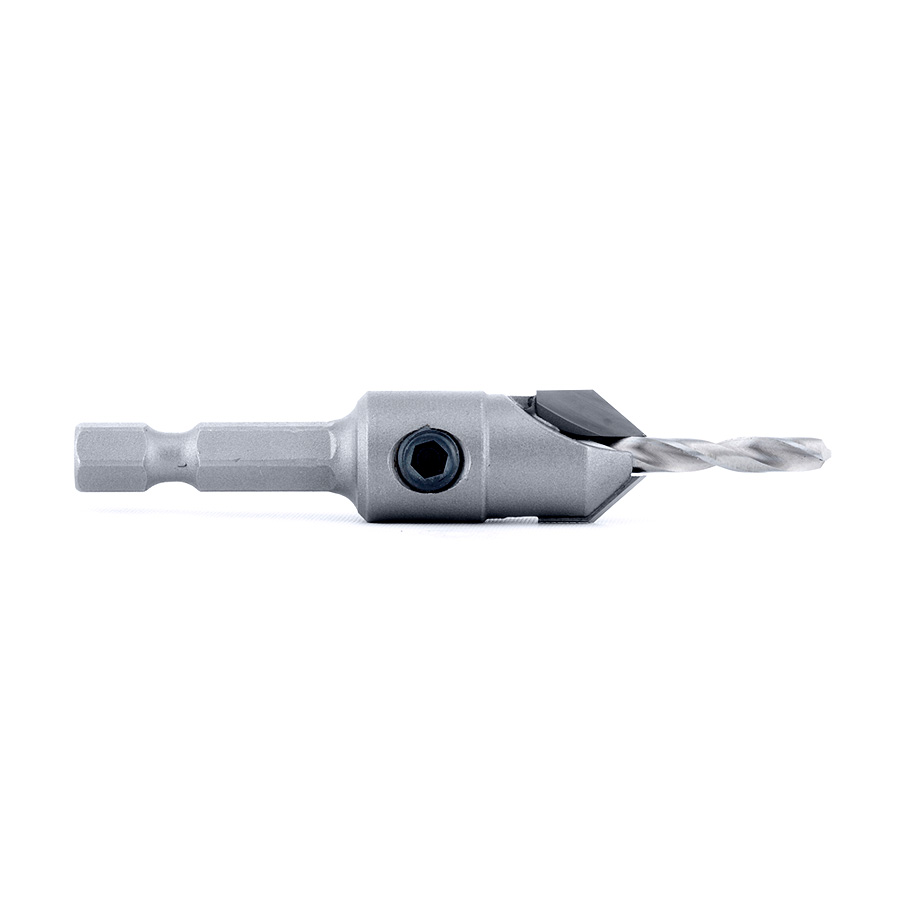

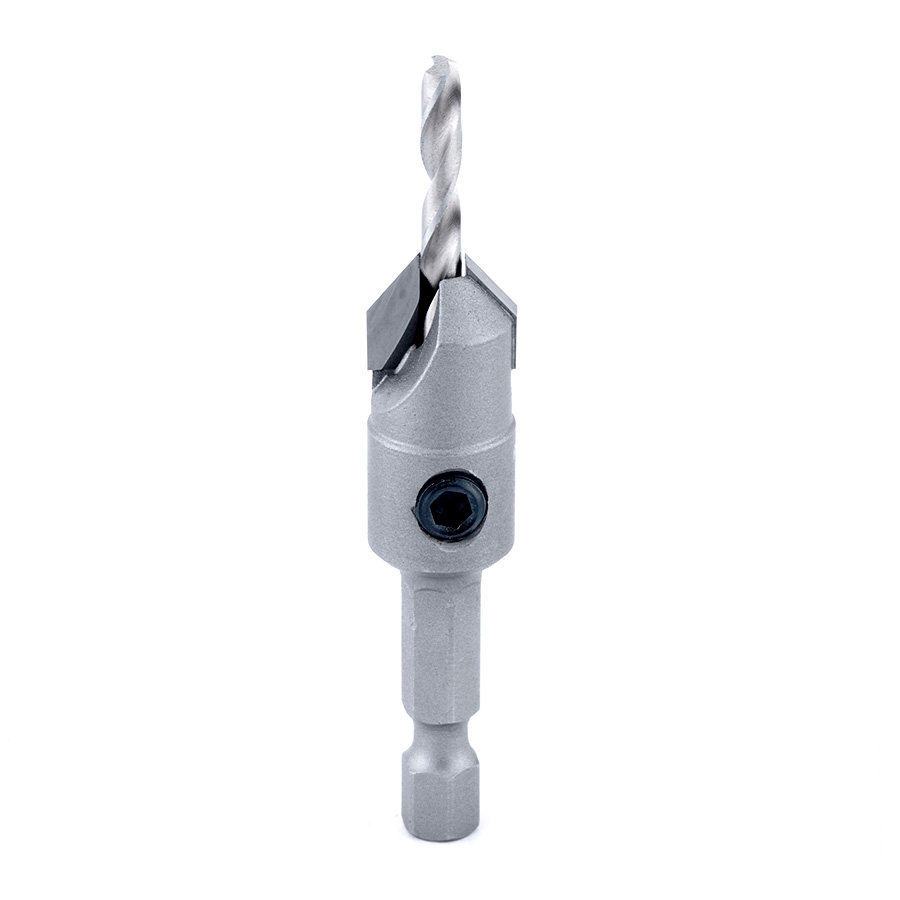

55268 Carbide Tipped 82 Degree Countersink 1/2 Dia x 49 Deg x 1/4 Quick Release Hex Shank for Wood Screw #12

Amana 55268 Carbide Tipped 82 Degree Countersink 1/2 Dia x 49 Deg x 1/4 Quick Release Hex Shank for Wood Screw #12

Name: Amana 55268 Carbide Tipped 82 Degree Countersink 1/2 Dia x 49 Deg x 1/4 Quick Release Hex Shank for Wood Screw #12
SKU: Amana 55268
Availability: InStock

Original price was: $46.30.Current price is: $34.73.

QUICK COUNTERSINK 1/2″ DIAM

UPC: 738685552681 SKU: Amana 55268 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Quick Release Drill Bit Accessories

Item Description

Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.

Replacement Parts

Tool No.	Set Screw	Hex key	Drill Bit
55268	67083	5009	630-802

Specifications

(a°) Angle	49°
(D) Diameter	1/2
(d) Shank	1/4
Overall Length (L)	2-1/8
Wood Screw Size	#12
D1	9/64
Replacement Drill	630-802
Optional Depth-Stop	608-122

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(a°) Angle	(d) Shank	Overall Length (L)	Optional Depth-Stop	Replacement Drill	Tool No.
#4#4#4#4	3/8 (9.53mm)	5/64 (1.98mm)	49°	1/4 (6.35mm)	2-1/8	608-120	630-001	55260
#6#6#6#6	3/8 (9.53mm)	3/32 (2.38mm)	49°	1/4 (6.35mm)	2-1/8	608-120	630-002	55262
#8#8#8#8	3/8 (9.53mm)	7/64 (2.78mm)	49°	1/4 (6.35mm)	2-1/8	608-120	630-098	55264
#10#10#10#10	3/8 (9.53mm)	1/8 (3.18mm)	49°	1/4 (6.35mm)	2-1/8	608-120	630-102	55266
12-14, 1214	3/8 (9.53mm)	5/32 (3.97mm)	49°	1/4 (6.35mm)	2-1/8	608-120	630-202	55269

Weight	0.05 lbs
