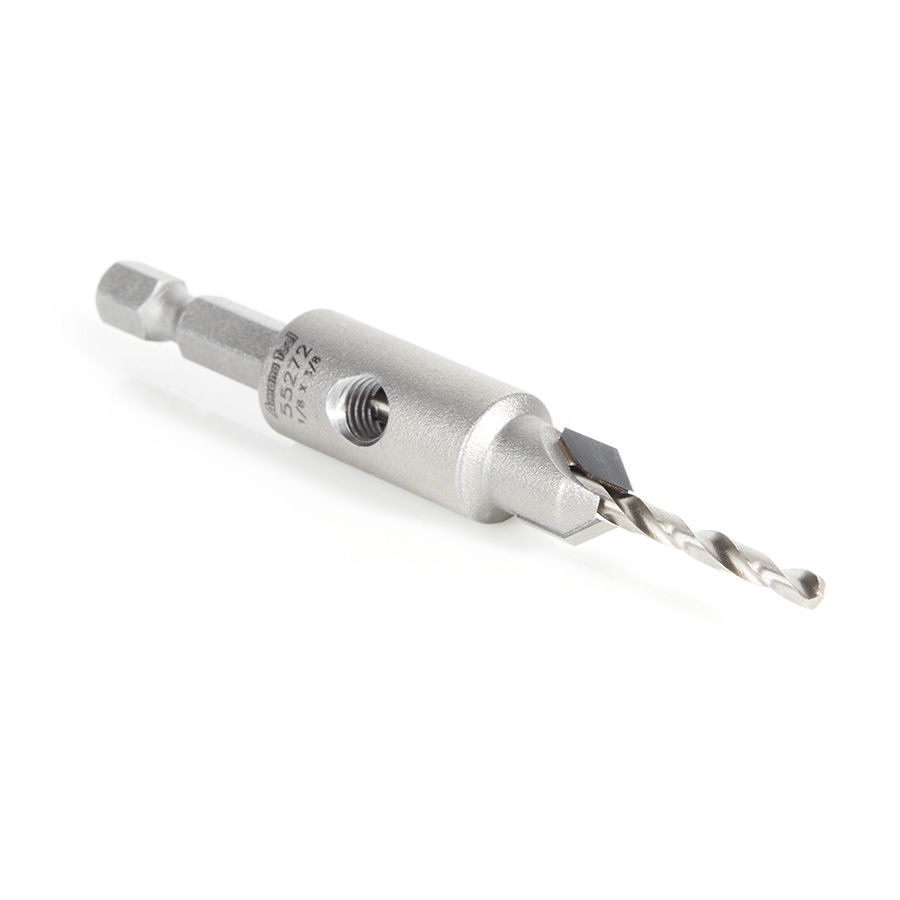

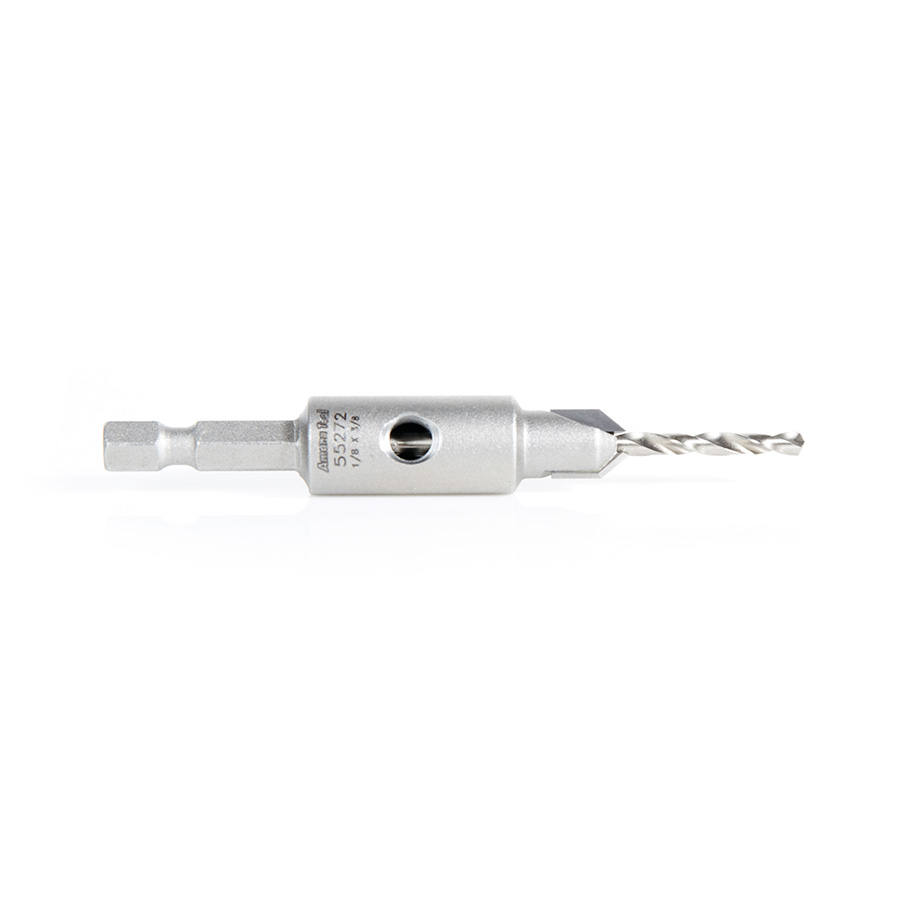

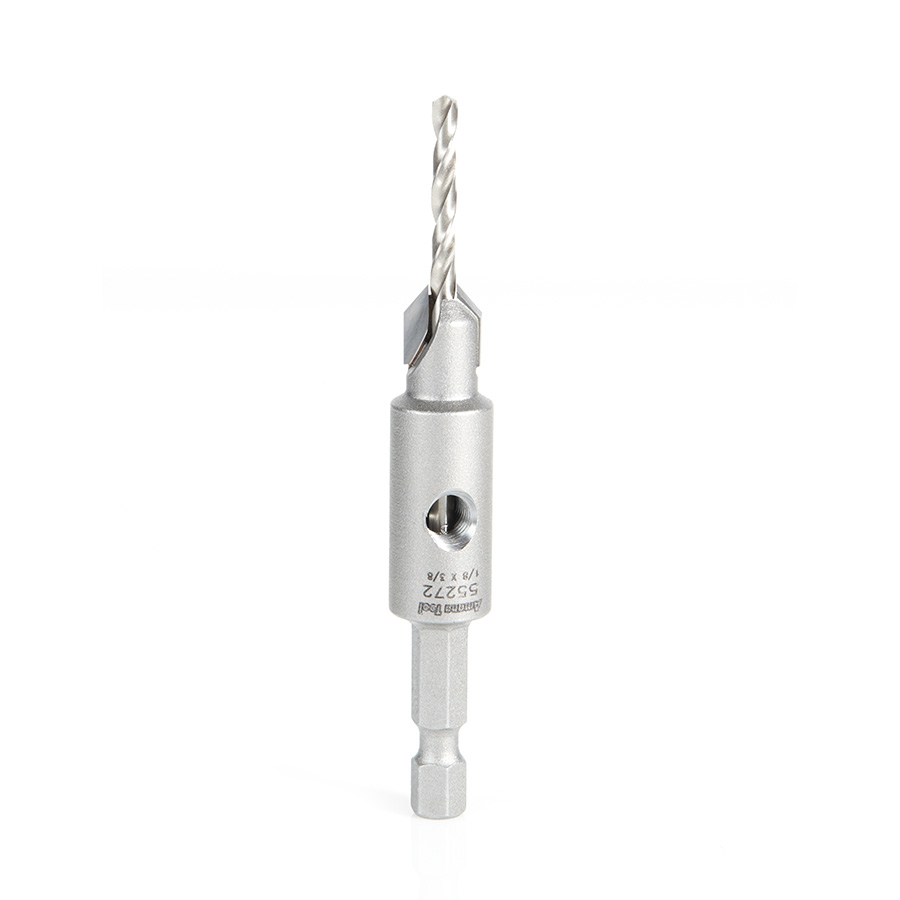

55272 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #6 Size Screw 3/8 Drill Dia x 1/4 Hex Shank for #55227 Adjustable No-Thrust Countersink

Amana 55272 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #6 Size Screw 3/8 Drill Dia x 1/4 Hex Shank for #55227 Adjustable No-Thrust Countersink

Original price was: $46.40.Current price is: $34.80.

AB COUNTERSINK W/DRILL X 55227

UPC: 738685552728 SKU: Amana 55272 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Quick Release Drill Bit Accessories

Item Description

Drill pilot hole and tapered countersink for wood screws. Carbide tipped for long lasting results in hard wood, plywood, plastics, etc.

Replacement Parts

Replacement Drill (Included)
630-226

Specifications

(D) Diameter	3/8
(d) Hex Shank	1/4
Use with Tool #	55227
D1	1/2
D2	1/8
For Wood Screw Size	#6
Replacement HSS M2 Drill (Included)	630-226

Other Sizes Available

For Wood Screw Size	(D) Diameter	D1	D2	(d) Hex Shank	Use with Tool #	Replacement HSS M2 Drill (Included)	Tool No.
#4#4#4#4	3/8 (9.53mm)	1/2 (12.70mm)	3/32 (2.38mm)	1/4 (6.35mm)	55225	630-222	55271
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	9/64 (3.57mm)	1/4 (6.35mm)	55228	630-228	55273
#4#4#4#4	3/8 (9.53mm)	1/2 (12.70mm)	5/64 (1.98mm)	1/4 (6.35mm)	55226	630-220	57270
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	7/64 (2.78mm)	1/4 (6.35mm)	55241	630-224	57272
#8#8#8#8	1/2 (12.70mm)	37/64 (14.68mm)	11/64 (4.37mm)	1/4 (6.35mm)	55240	630-234	55275
#10#10#10#10	1/2 (12.70mm)	37/64 (14.68mm)	3/16 (4.76mm)	1/4 (6.35mm)	55242	630-236	55276
#14#14#14#14	1/2 (12.70mm)	37/64 (14.68mm)	1/4 (6.35mm)	–	55244	630-702	57274

Weight	0.1 lbs
