Sale!

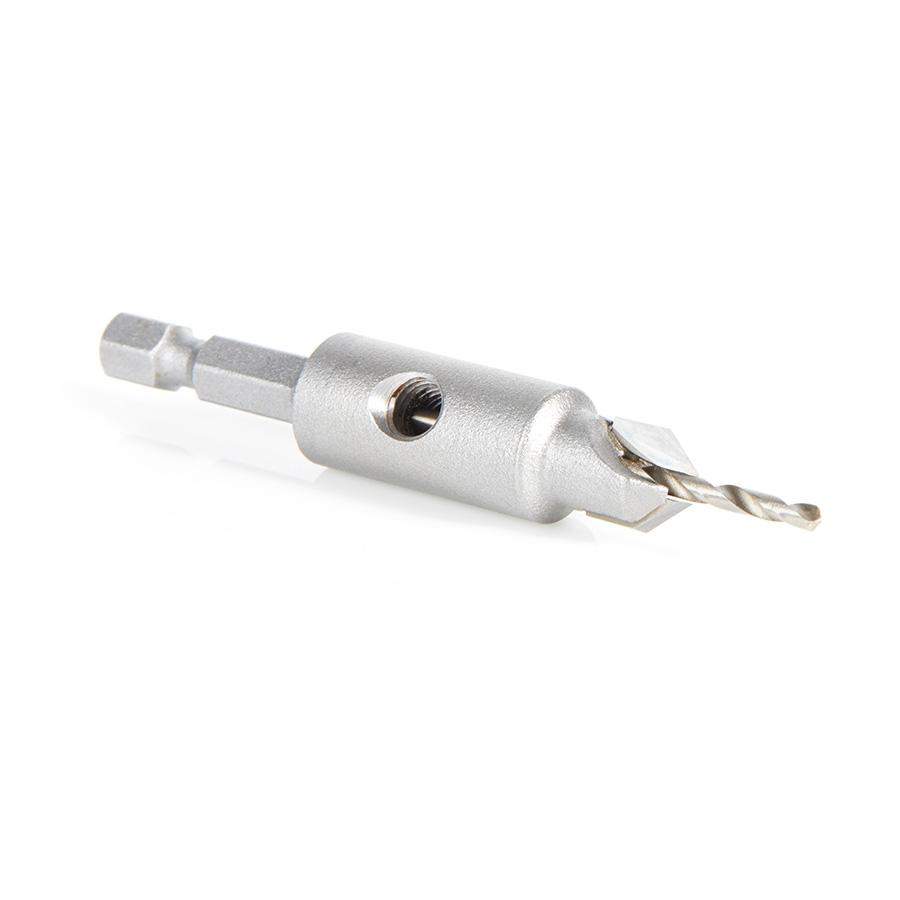

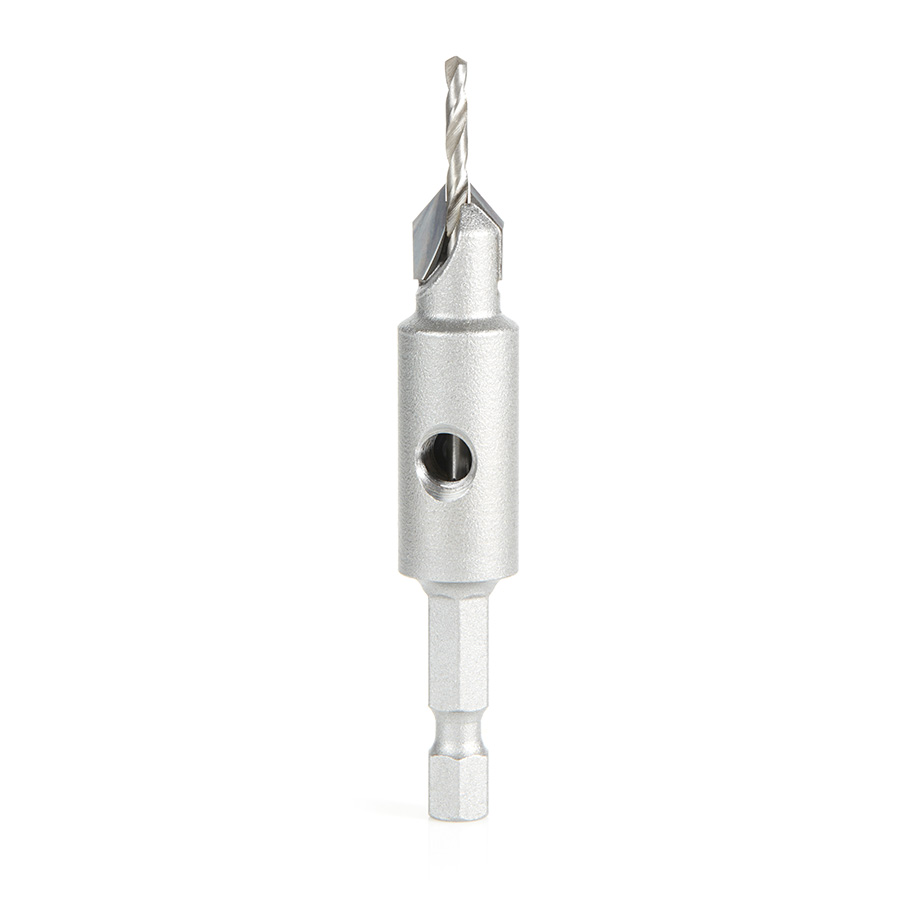

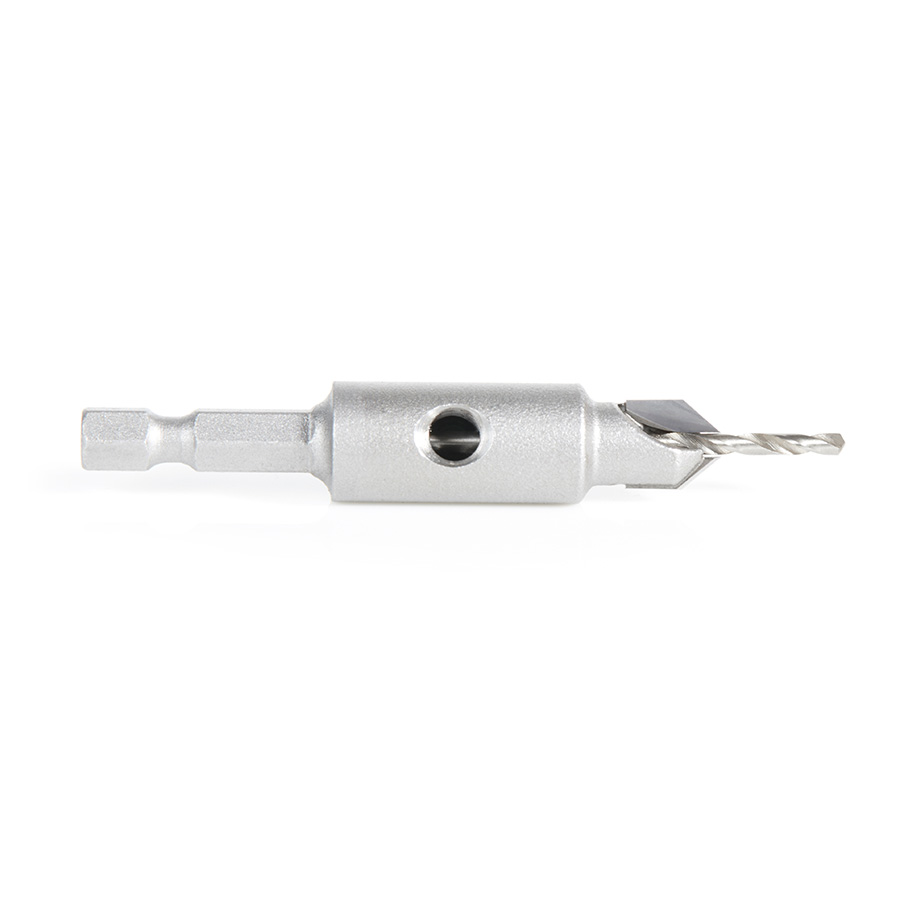

55271 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #4 Size Screw 3/32 Drill Dia x 1/4 Hex Shank for #55225 Adjustable No-Thrust Countersink

Amana 55271 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #4 Size Screw 3/32 Drill Dia x 1/4 Hex Shank for #55225 Adjustable No-Thrust Countersink

Name: Amana 55271 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #4 Size Screw 3/32 Drill Dia x 1/4 Hex Shank for #55225 Adjustable No-Thrust Countersink
SKU: Amana 55271
Availability: InStock

Original price was: $46.40.Current price is: $34.80.

AB COUNTERSINK W/DRILL X 55225

UPC: 738685552711 SKU: Amana 55271 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Quick Release Drill Bit Accessories

Item Description

Drill pilot hole and tapered countersink for wood screws. Carbide tipped for long lasting results in hard wood, plywood, plastics, etc.

Replacement Parts

Replacement Drill (Included)	Replacement Screw	Double-Sided Hex Key
630-222	67083	5019

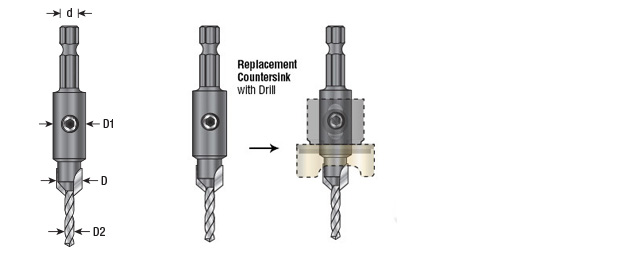

Specifications

(D) Diameter	3/8
(d) Hex Shank	1/4
Use with Tool #	55225
D1	1/2
D2	3/32
For Wood Screw Size	#4
Replacement HSS M2 Drill (Included)	630-222

Other Sizes Available

For Wood Screw Size	(D) Diameter	D1	D2	(d) Hex Shank	Use with Tool #	Replacement HSS M2 Drill (Included)	Tool No.
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	1/8 (3.18mm)	1/4 (6.35mm)	55227	630-226	55272
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	9/64 (3.57mm)	1/4 (6.35mm)	55228	630-228	55273
#8#8#8#8	3/8 (9.53mm)	1/2 (12.70mm)	5/32 (3.97mm)	1/4 (6.35mm)	55229	630-230	55274
#4#4#4#4	3/8 (9.53mm)	1/2 (12.70mm)	5/64 (1.98mm)	1/4 (6.35mm)	55226	630-220	57270
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	7/64 (2.78mm)	1/4 (6.35mm)	55241	630-224	57272
#8#8#8#8	1/2 (12.70mm)	37/64 (14.68mm)	11/64 (4.37mm)	1/4 (6.35mm)	55240	630-234	55275
#10#10#10#10	1/2 (12.70mm)	37/64 (14.68mm)	3/16 (4.76mm)	1/4 (6.35mm)	55242	630-236	55276
#14#14#14#14	1/2 (12.70mm)	37/64 (14.68mm)	1/4 (6.35mm)	–	55244	630-702	57274

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
