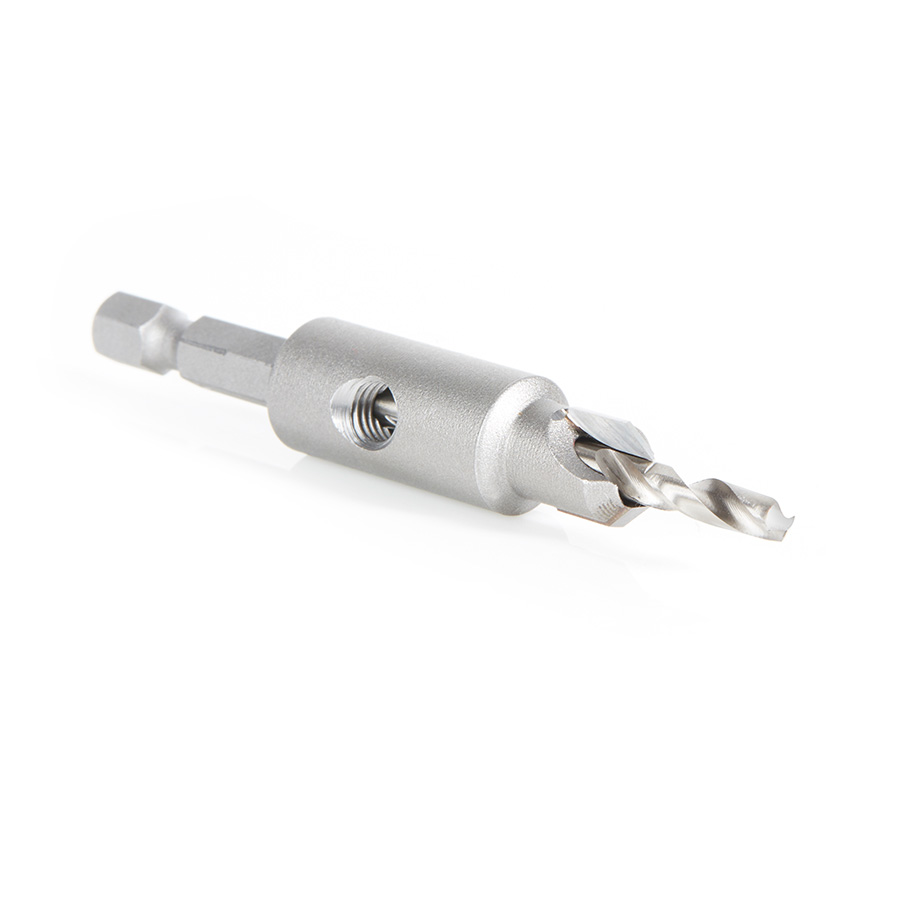

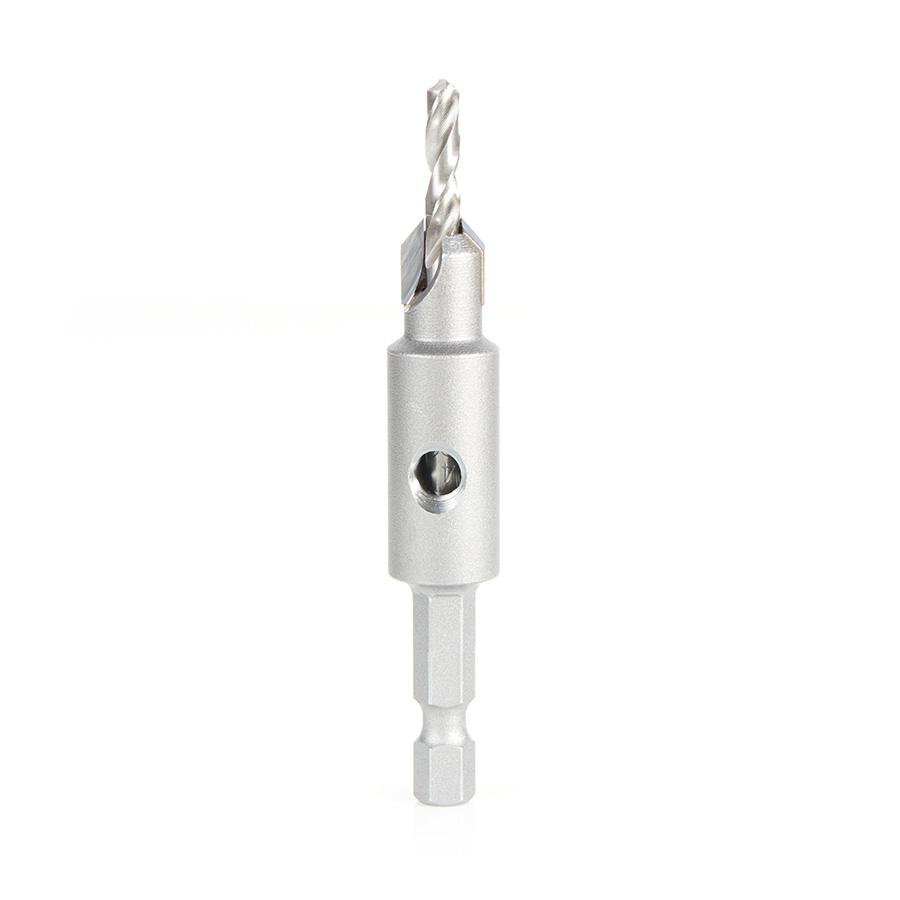

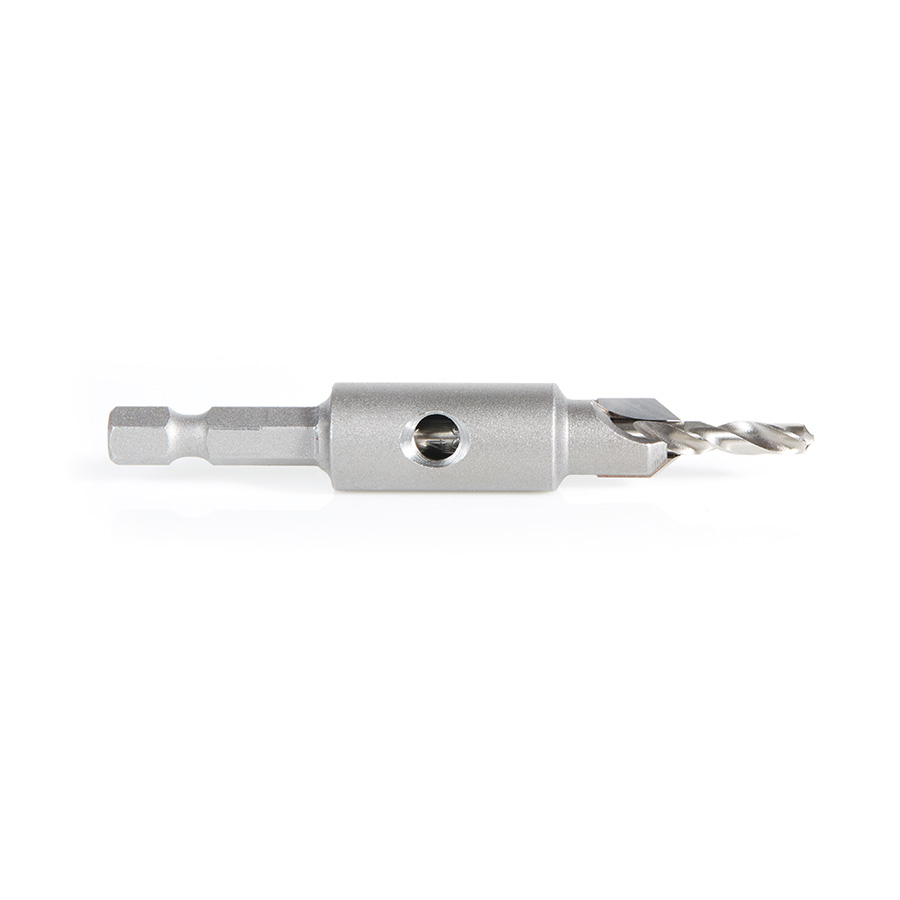

55274 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #8 Size Screw 5/32 Drill Dia x 1/4 Hex Shank for #55229 Adjustable No-Thrust Countersink

Amana 55274 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #8 Size Screw 5/32 Drill Dia x 1/4 Hex Shank for #55229 Adjustable No-Thrust Countersink

Name: Amana 55274 Replacement Carbide Tipped Countersink with Slow Spiral HSS M2 Drill for #8 Size Screw 5/32 Drill Dia x 1/4 Hex Shank for #55229 Adjustable No-Thrust Countersink
SKU: Amana 55274
Availability: InStock

Original price was: $48.75.Current price is: $36.57.

AB COUNTERSINK W/DRILL X 55229

UPC: 738685552742 SKU: Amana 55274 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Quick Release Drill Bit Accessories

Item Description

Drill pilot hole and tapered countersink for wood screws. Carbide tipped for long lasting results in hard wood, plywood, plastics, etc.

Replacement Parts

Replacement Drill (Included)	Replacement Screw	Double-Sided Hex Key
630-230	67083	5019

Specifications

(D) Diameter	3/8
(d) Hex Shank	1/4
Use with Tool #	55229
D1	1/2
D2	5/32
For Wood Screw Size	#8
Replacement HSS M2 Drill (Included)	630-230

Other Sizes Available

For Wood Screw Size	(D) Diameter	D1	D2	(d) Hex Shank	Use with Tool #	Replacement HSS M2 Drill (Included)	Tool No.
#4#4#4#4	3/8 (9.53mm)	1/2 (12.70mm)	3/32 (2.38mm)	1/4 (6.35mm)	55225	630-222	55271
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	1/8 (3.18mm)	1/4 (6.35mm)	55227	630-226	55272
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	9/64 (3.57mm)	1/4 (6.35mm)	55228	630-228	55273
#4#4#4#4	3/8 (9.53mm)	1/2 (12.70mm)	5/64 (1.98mm)	1/4 (6.35mm)	55226	630-220	57270
#6#6#6#6	3/8 (9.53mm)	1/2 (12.70mm)	7/64 (2.78mm)	1/4 (6.35mm)	55241	630-224	57272
#8#8#8#8	1/2 (12.70mm)	37/64 (14.68mm)	11/64 (4.37mm)	1/4 (6.35mm)	55240	630-234	55275
#10#10#10#10	1/2 (12.70mm)	37/64 (14.68mm)	3/16 (4.76mm)	1/4 (6.35mm)	55242	630-236	55276

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
