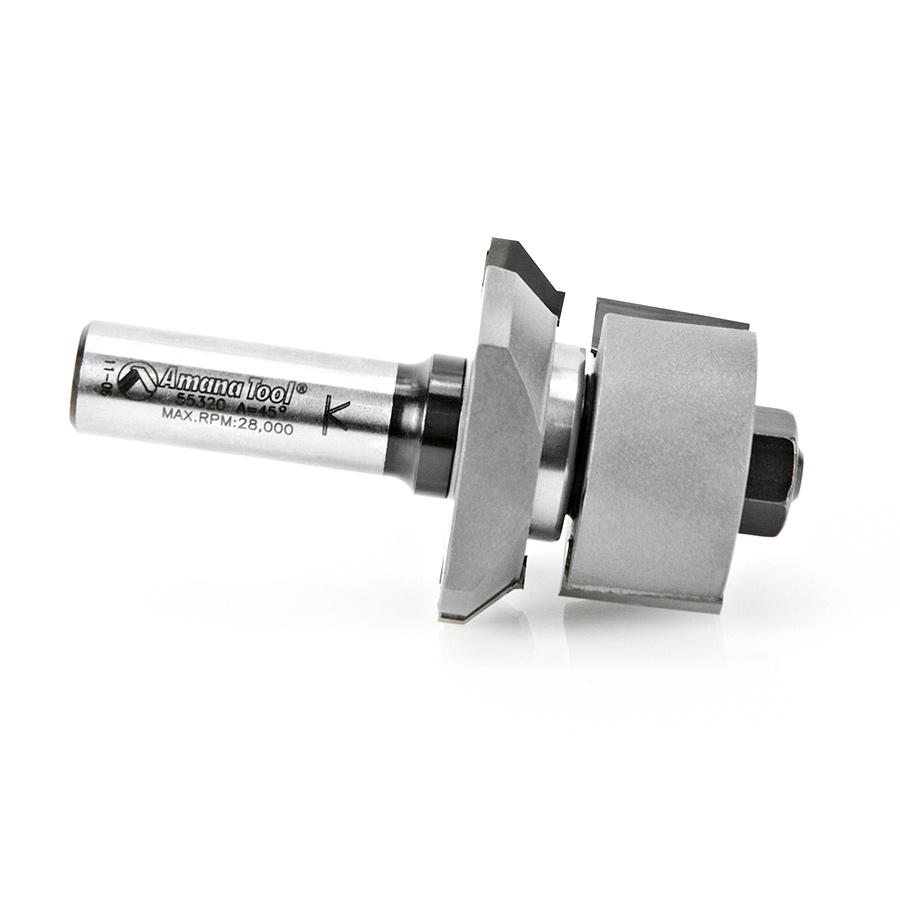

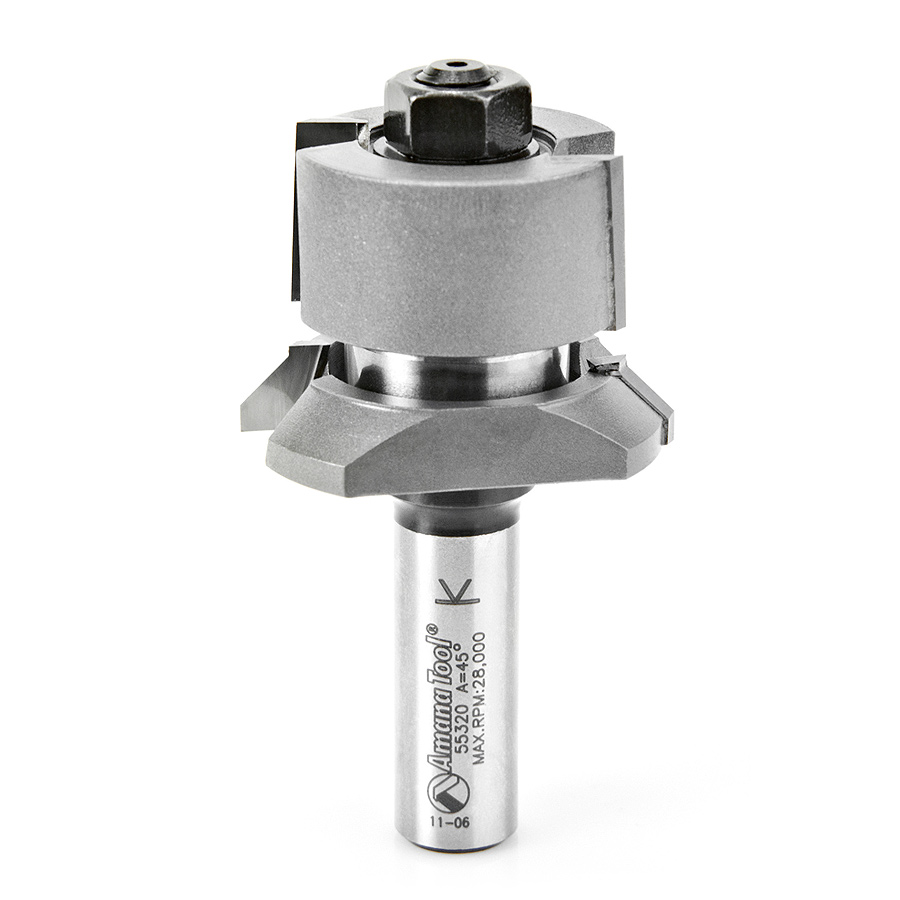

55320 Carbide Tipped V Paneling 45 Deg x 1-13/16 Dia x 1/2 to 1-3/16 x 1/2 Inch Shank with Ball Bearing Assembly

Amana 55320 Carbide Tipped V Paneling 45 Deg x 1-13/16 Dia x 1/2 to 1-3/16 x 1/2 Inch Shank with Ball Bearing Assembly

Name: Amana 55320 Carbide Tipped V Paneling 45 Deg x 1-13/16 Dia x 1/2 to 1-3/16 x 1/2 Inch Shank with Ball Bearing Assembly
SKU: Amana 55320
Availability: InStock

Original price was: $166.55.Current price is: $124.92.

V PANELING BIT SET ASSEMBLY

UPC: 738685953204 SKU: Amana 55320 Categories: Amana Tool, Jointing Router Bits, Router Bits, V Panel Router Bits

Item Description

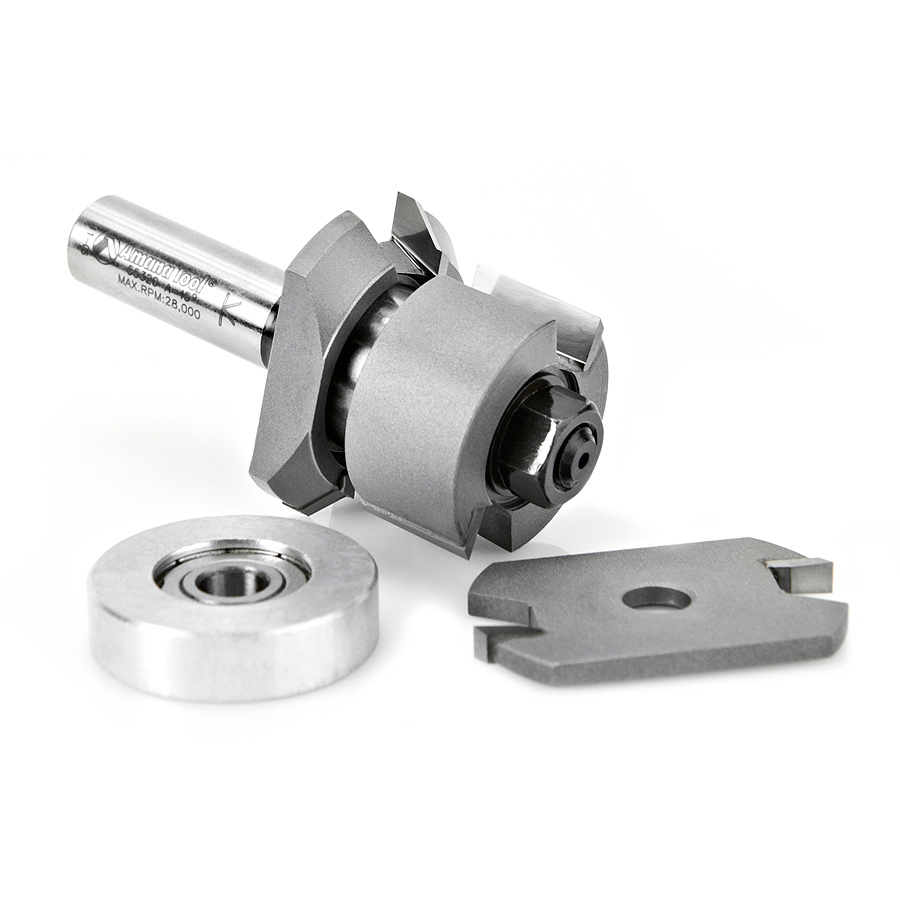

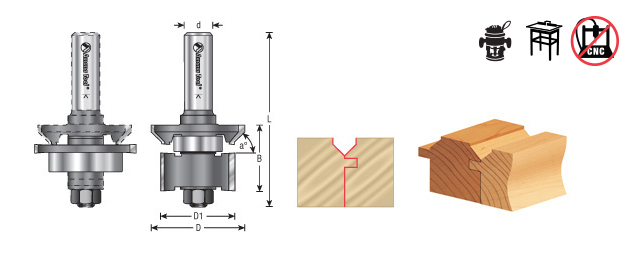

These assemblies are designed to cut tongue & groove joinery for solid wood paneling. Two patterns, a 1/4″ bead (#55330) or a 45° ‘V’ (#55320), are available individually or as a set. Each assembly comprises a profile cutter, a rabbet cutter and a groove cutter, two different-size bearings, a 1/2″ shank arbor, and a selection of washers, shims and spacers. Assemble the profile cutter, small bearing, and rabbet cutter as shown in the solid drawing to cut the tongue. To rout the groove, mount the groover and large bearing with the profiler, as shown in the ghosted drawing. The tool will work with stock from 1/2″ through 1″ thick.

Specifications

Angle (a°)	45°
Diameter (D)	1-13/16
D1	1-5/16
Cutting Height (B)	1/2 to 1-3/16
Shank (d)	1/2
Overall Length (L)	3-1/8
Type	V
# Wings	2

Weight	0.68 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
