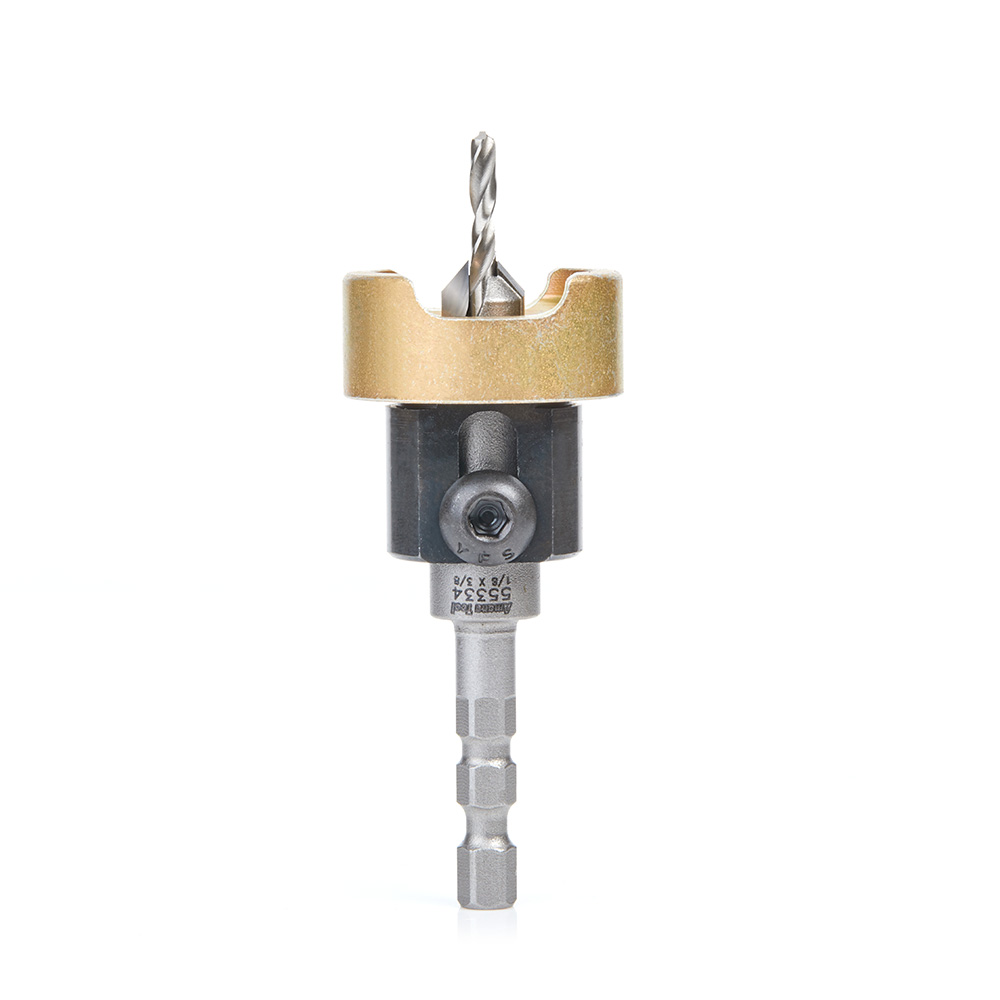

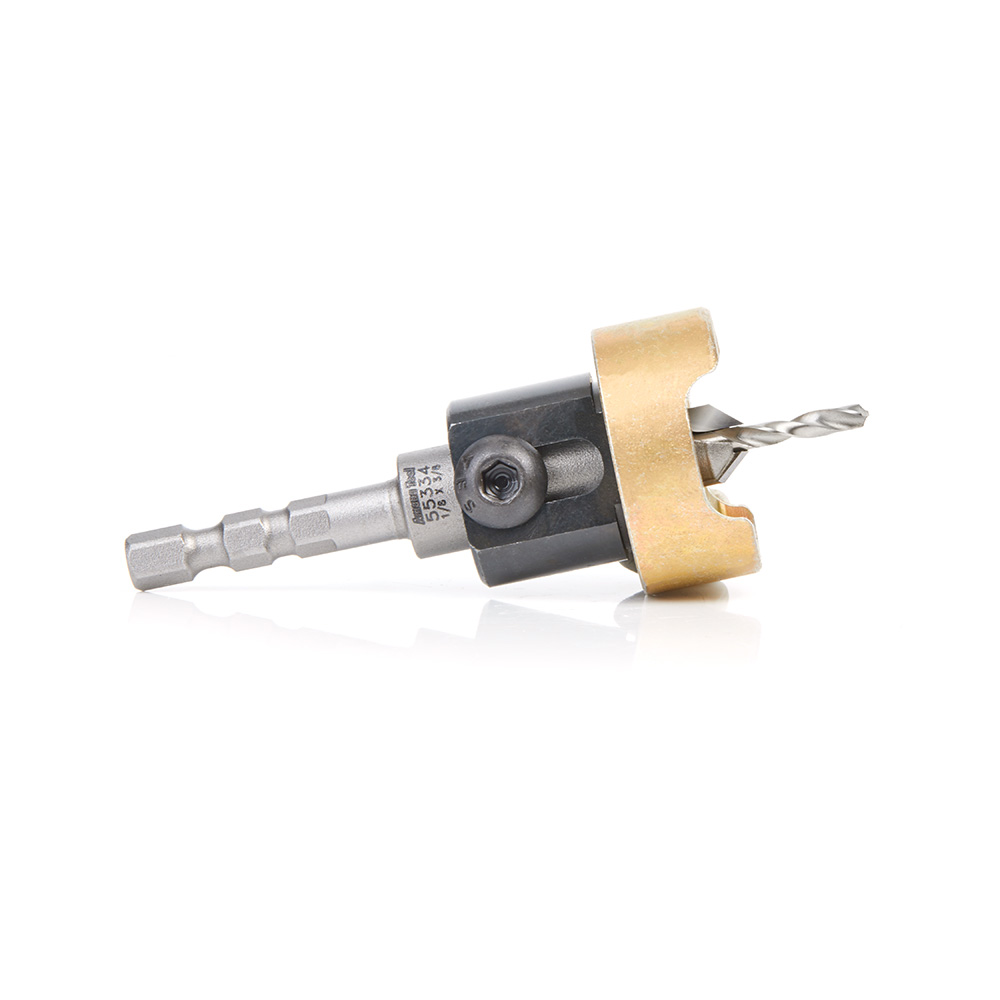

55334 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, Hybrid for Festool® CENTROTEC® System 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #10

Amana 55334 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, Hybrid for Festool® CENTROTEC® System 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #10

Name: Amana 55334 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, Hybrid for Festool® CENTROTEC® System 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #10
SKU: Amana 55334
Availability: InStock

Original price was: $89.45.Current price is: $67.09.

COUNTERSINK/STOP 1/8″ DRILL

UPC: 738685553350 SKU: Amana 55334 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

A must have tool for every woodworker!

_Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit)._

Tools design with a unique shank with hex part and round part.

It fits both Festool® CENTROTEC® drill machines and standard quick-change chucks for ¼” (6.3mm) hex shank.

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.

It also has an open space to allow for chip evacuation.

The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.

Enables users to drill a pilot hole and tapered countersink in one step.

The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.

2-Wing
Quick release 1/4″ hex shank
Slow spiral, HSS M2 fully ground drill bit included

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous*****
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.

For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.

Replacement Parts

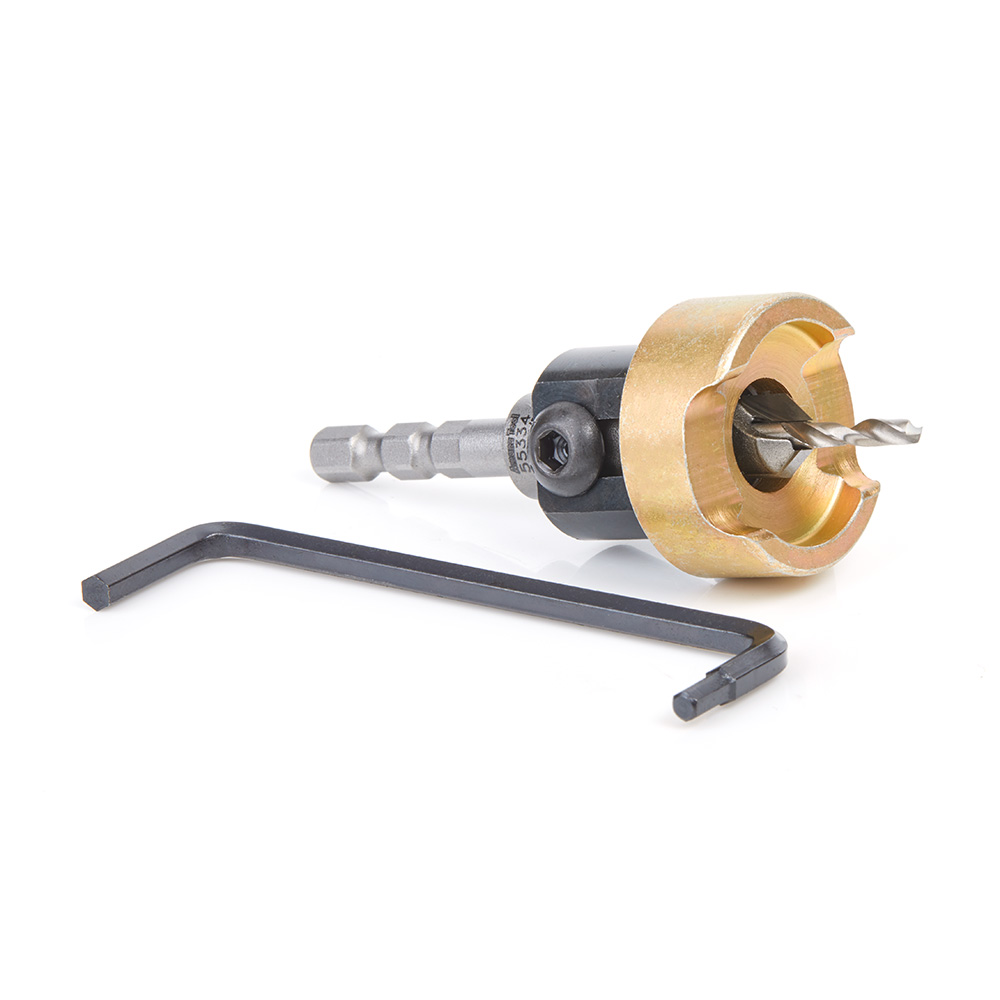

Replacement Drill (Included)	NF1/4 x 1/4 Set Screw for Tightening Depth Stop	NF1/4-28 x 3/16 Set Screw for Drill Tightening	1/8 x 5/32 Double-Sided Hex Key (Included)
630-226	67070	67083	5019

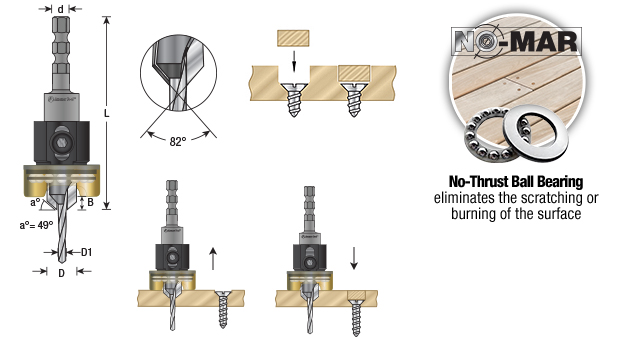

Specifications

(a°) Angle	49°
(D) Diameter	3/8
(B) Cutting Height	3/64-3/8
(d) Shank	1/4
Overall Length (L)	2-5/8
Drill Din	1897
Wood Screw Size	#10
D1	1/8
Replacement Drill	630-226
Use with Plug Cutter (Optional)	55220

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(B) Cutting Height	(a°) Angle	(d) Shank	Overall Length (L)	Drill Din	Use with Plug Cutter (Optional)	Replacement Drill	Tool No.
#6#6#6#6	3/8 (9.53mm)	3/32 (2.38mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	338 (8585.22mm)	55220	630-222	55331
12-14, 1214	3/8 (9.53mm)	5/32 (3.97mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-230	55336
#16#16#16#16	1/2 (12.70mm)	3/16 (4.76mm)	3/64-3/8	49°	1/4 (6.35mm)	2-3/4	1897	55222	630-236	55338

Weight	0.3 lbs
