55340 Carbide Tipped Reversible Ogee Window Sash & Rail 1/8 Radius x 1-9/64 Dia x 43/64 x 1/2 Inch Shank with Center Ball Bearing

Amana 55340 Carbide Tipped Reversible Ogee Window Sash & Rail 1/8 Radius x 1-9/64 Dia x 43/64 x 1/2 Inch Shank with Center Ball Bearing

Name: Amana 55340 Carbide Tipped Reversible Ogee Window Sash &amp; Rail 1/8 Radius x 1-9/64 Dia x 43/64 x 1/2 Inch Shank with Center Ball Bearing
SKU: Amana 55340
Availability: InStock

Original price was: $243.45.Current price is: $182.59.

REVERSIBLE WINDOW SASH 1/2 SHK

UPC: 738685953402 SKU: Amana 55340 Categories: Amana Tool, Jointing Router Bits, Ogee Window Sash & Rail Router Bits, Router Bits

Item Description

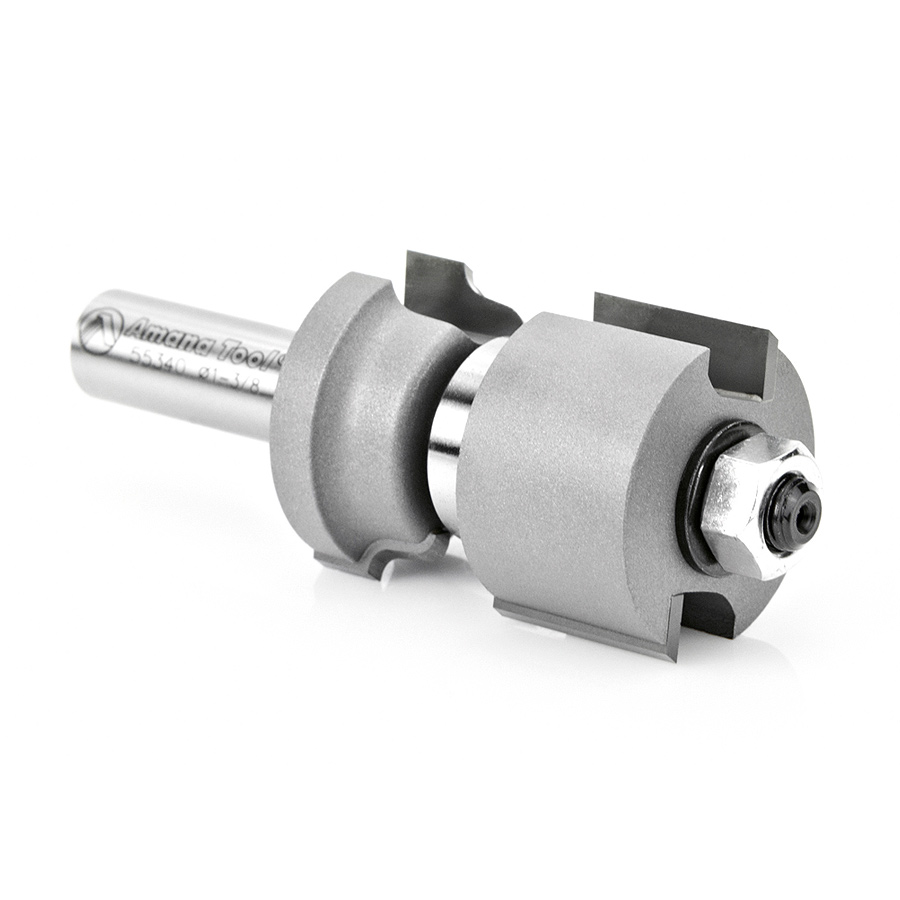

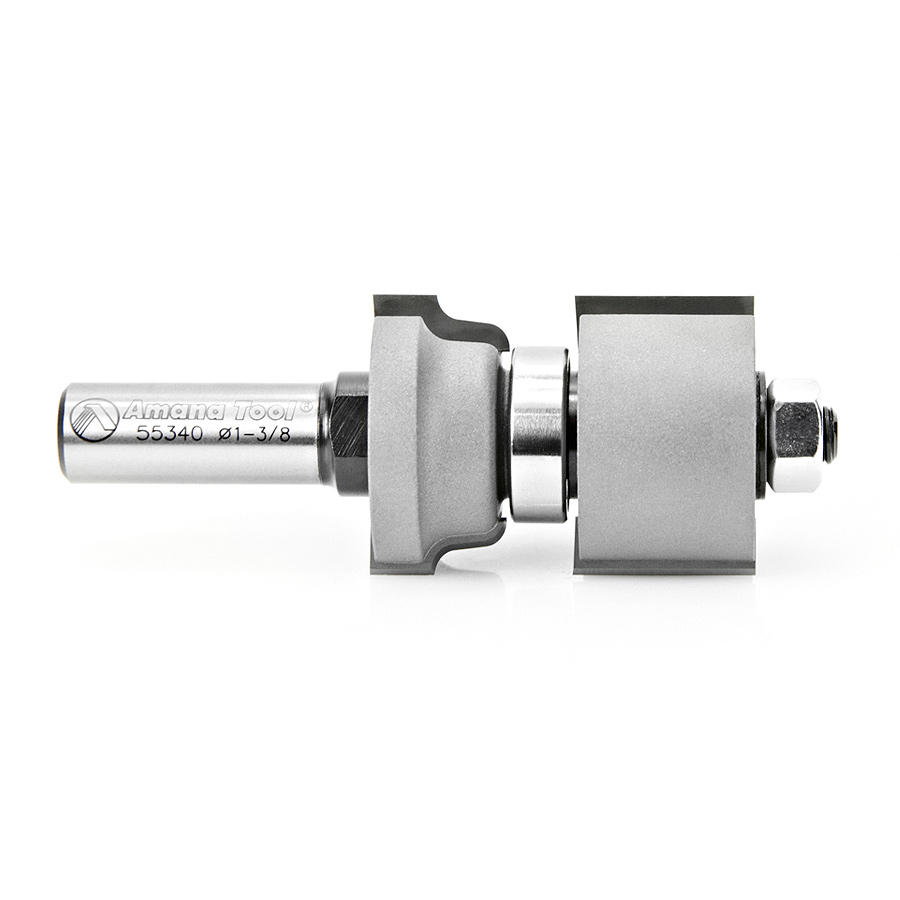

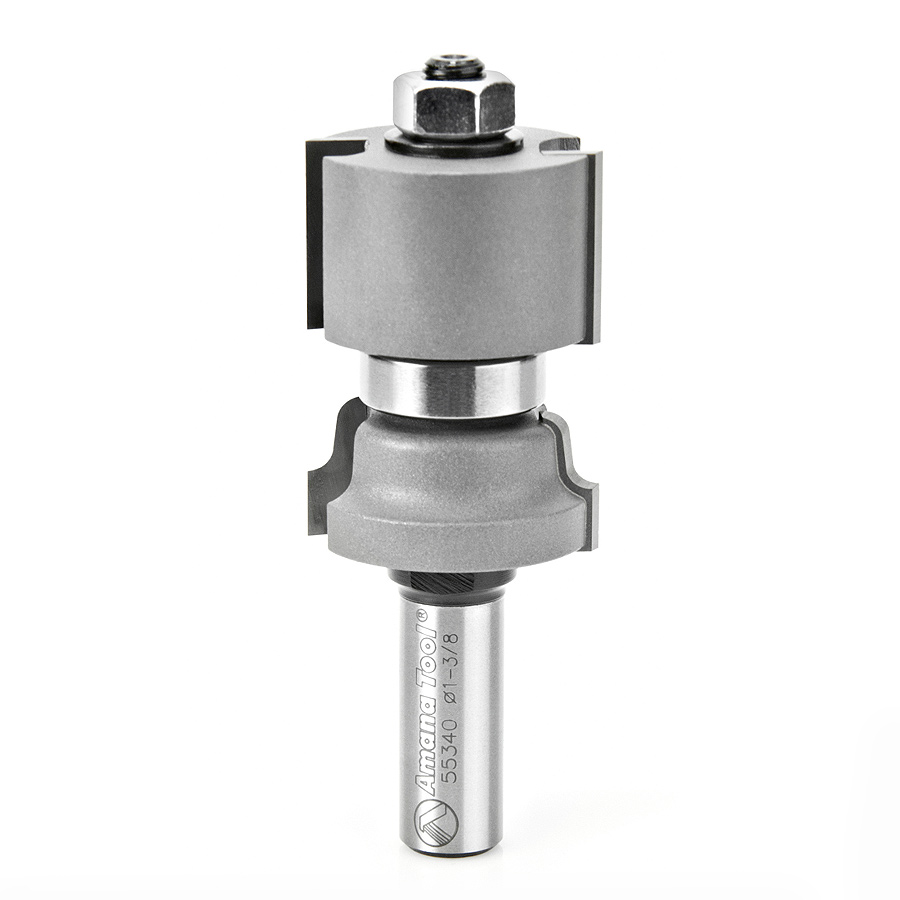

This reversible assembly is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins, on stock between 1-1/8″ and 1-3/4″ thick. Assembly includes an ogee profile cutter, a rabbet cutter, one bearing, a 1/2″ shank arbor, spacers, shims, and washers. Configure as shown in the drawing to cut profile and rabbet on all parts. Switch bearing and profile cutter and replace rabbet cutter with spacers to rout the copes. Use in a table-mounted router.

Replacement Parts

Bearing(s)	Hex Nut
47708	67088

Specifications

Cut Depth (A)	1/4
Diameter (D)	1-3/8
Radius (R)	1/8
Cutting Height (B)	1-55/64
B1	5/16
B2	43/64
Shank (d)	1/2
Overall Length (L)	3-3/4
B3	7/8

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	B1	B2	Shank (d)	Overall Length (L)	Tool No.
1-9/64	1/8 (3.18mm)	43/64 (17.07mm)	5/16 (7.94mm)	–	1/2 (12.70mm)	2-1/8	55343
1-3/8	1/8 (3.18mm)	21/32 (16.67mm)	1/16 (1.59mm)	27/64 (10.72mm)	1/2 (12.70mm)	2-1/8	55341

Weight	0.7 lbs

Brand

Amana Tool
