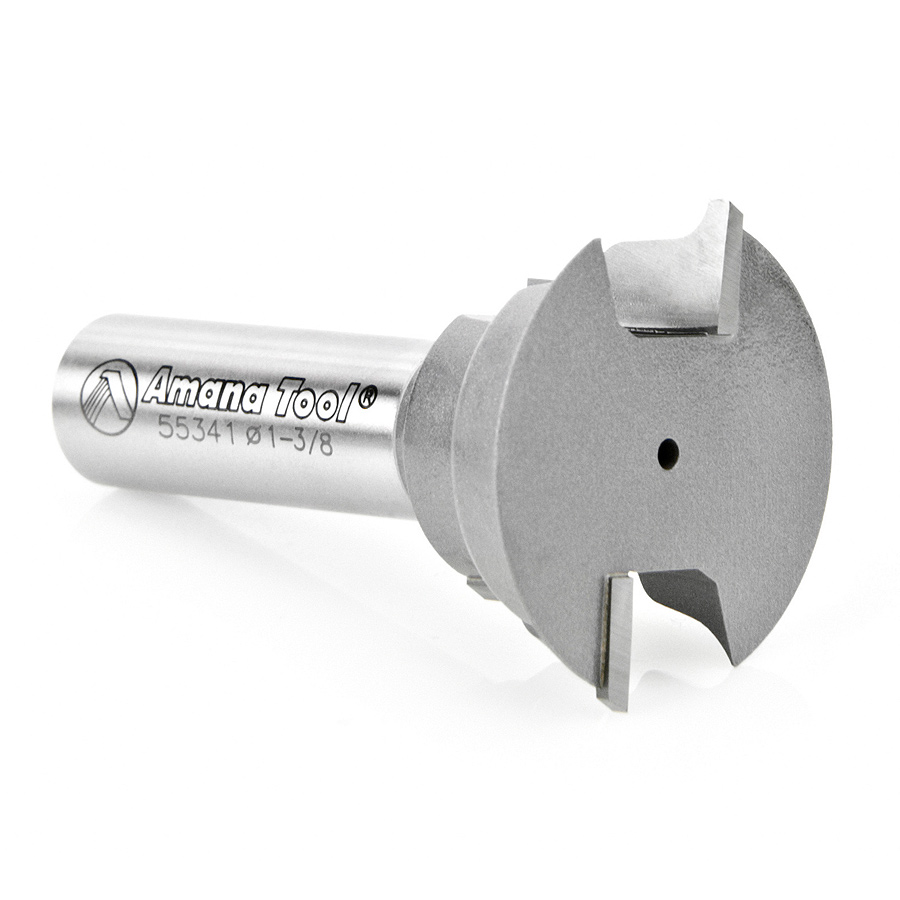

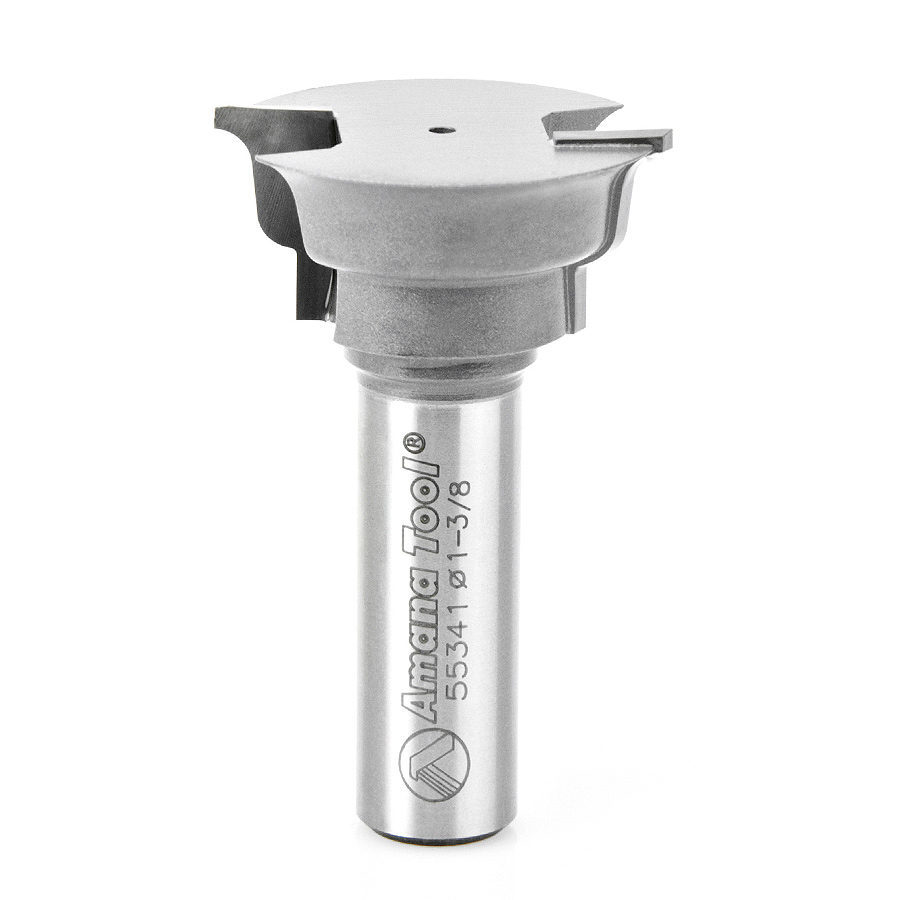

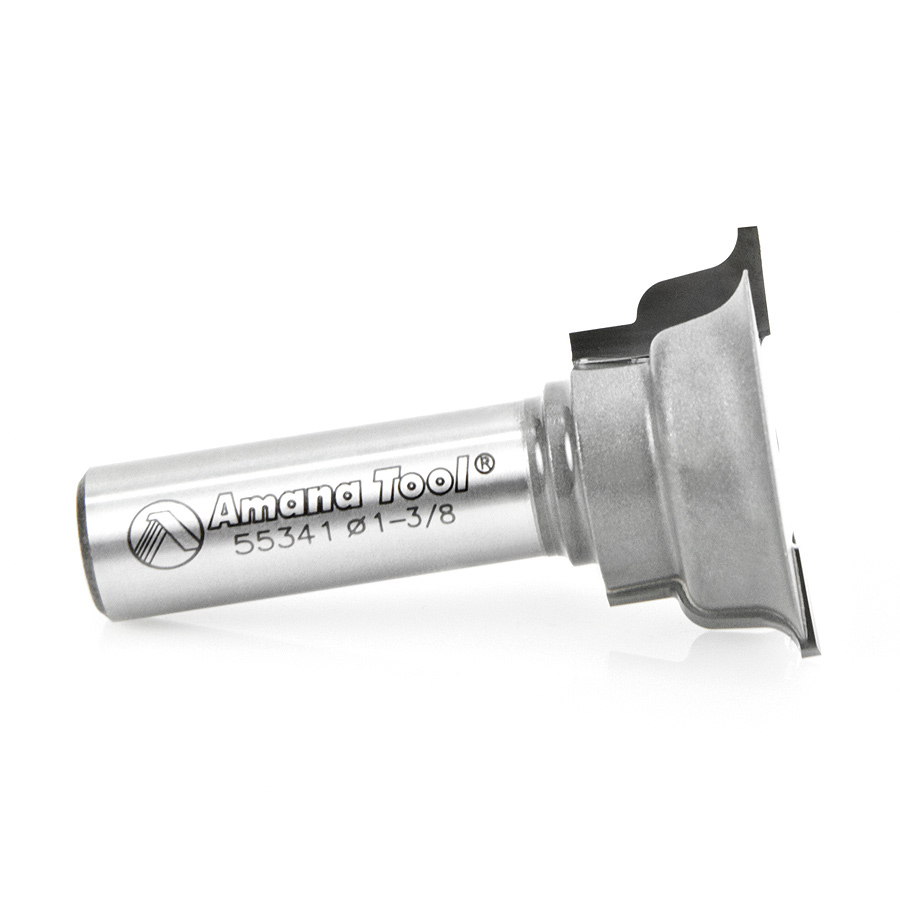

55341 Carbide Tipped Ogee Window Sash & Rail 1/8 Radius x 1-3/8 Dia x 21/32 x 1/2 Inch Shank

Amana 55341 Carbide Tipped Ogee Window Sash & Rail 1/8 Radius x 1-3/8 Dia x 21/32 x 1/2 Inch Shank

Name: Amana 55341 Carbide Tipped Ogee Window Sash &amp; Rail 1/8 Radius x 1-3/8 Dia x 21/32 x 1/2 Inch Shank
SKU: Amana 55341
Availability: InStock

Original price was: $115.35.Current price is: $86.52.

WINDOW SASH 1/2 SHK

UPC: 738685553411 SKU: Amana 55341 Categories: Amana Tool, Jointing Router Bits, Ogee Window Sash & Rail Router Bits, Router Bits

Item Description

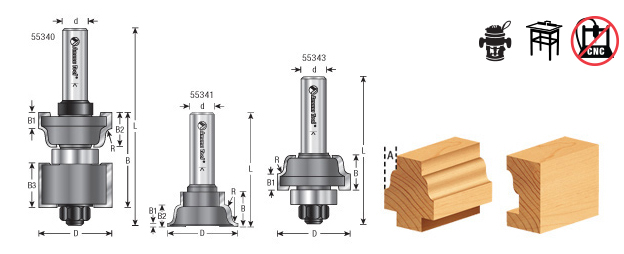

This assembly is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins, on stock between 1-1/8″ and 1-3/4″ thick. Assembly includes an ogee profile cutter. Configure as shown in the drawing to cut profile on all parts. Use in a table-mounted router.

Specifications

Diameter (D)	1-3/8
Radius (R)	1/8
Cutting Height (B)	21/32
B1	1/16
B2	27/64
Shank (d)	1/2
Overall Length (L)	2-1/8

Other Sizes Available

Diameter (D)	Radius (R)	Cut Depth (A)	Cutting Height (B)	B1	B2	B3	Shank (d)	Overall Length (L)	Tool No.
1-9/64	1/8 (3.18mm)	–	43/64 (17.07mm)	5/16 (7.94mm)	–	–	1/2 (12.70mm)	2-1/8	55343
1-3/8	1/8 (3.18mm)	1/4 (6.35mm)	1-55/64	5/16 (7.94mm)	43/64 (17.07mm)	7/8 (22.23mm)	1/2 (12.70mm)	3-3/4	55340

Weight	0.24 lbs
