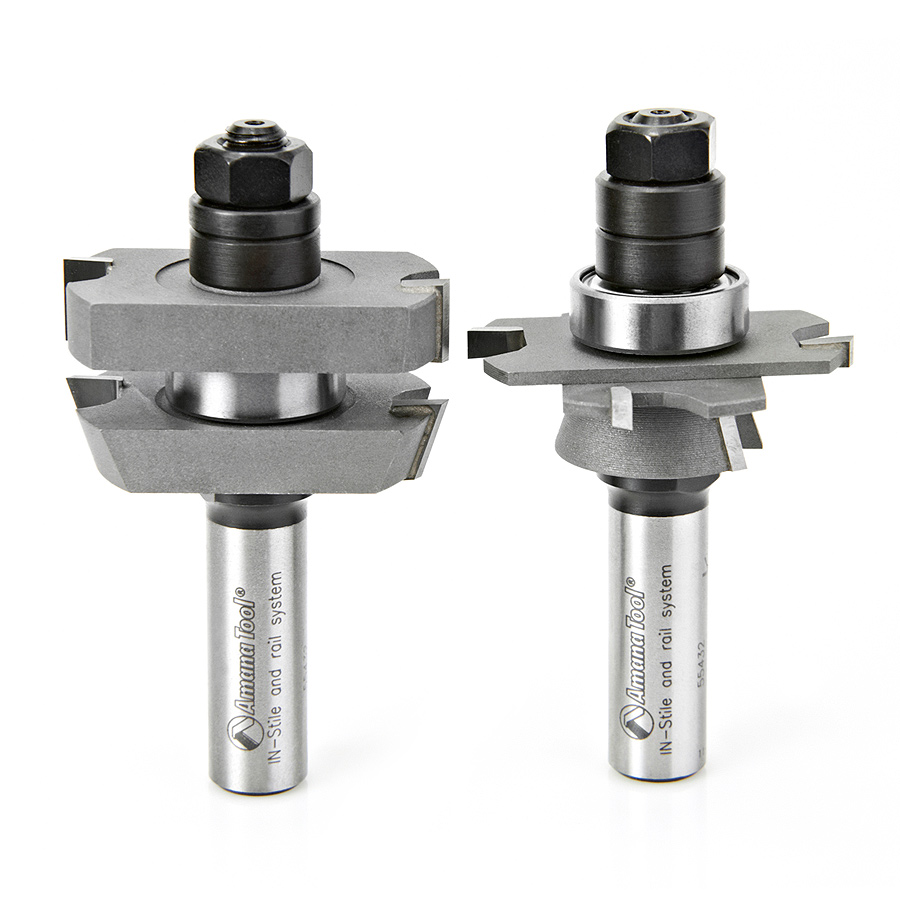

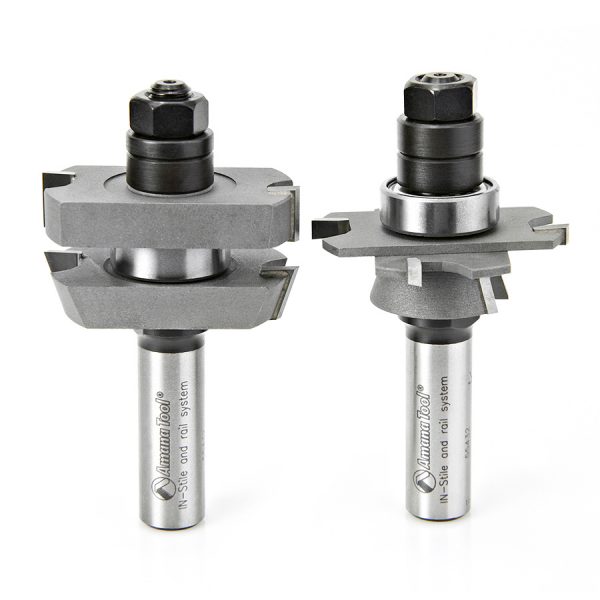

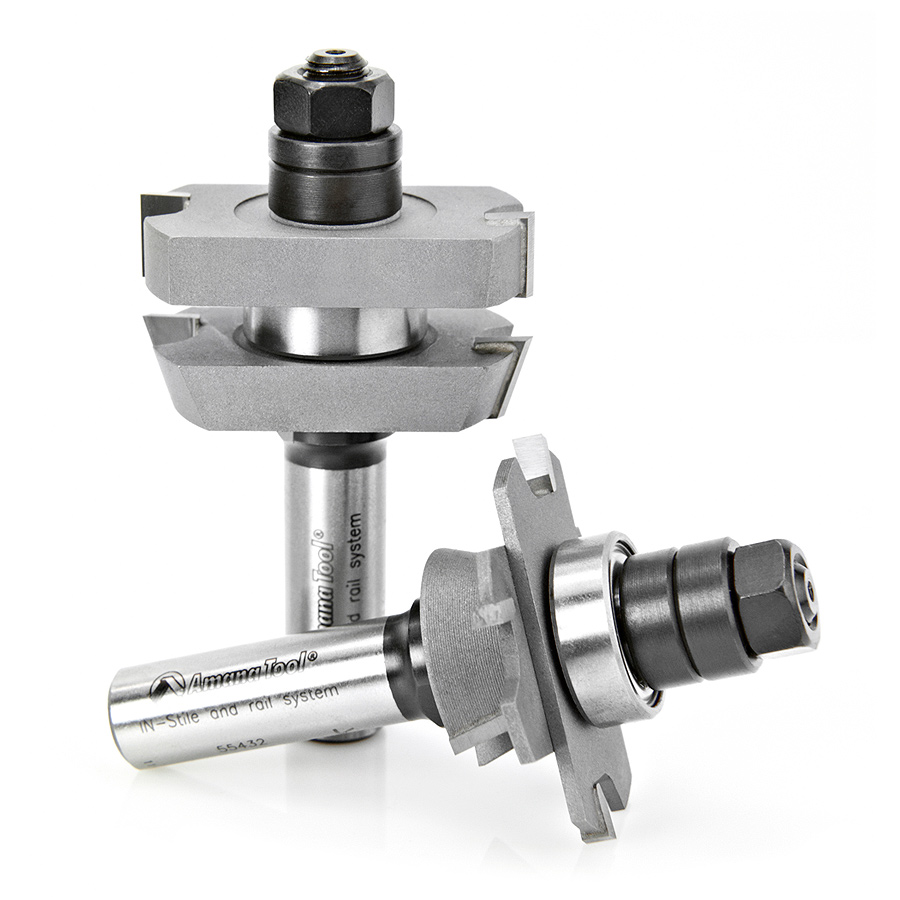

Amana 55432 Straight Bevel 2-Piece Stile & Rail Set w/Bearing 1/2″ Shank

IN-STILE/RAIL STRAIGHT W/BEVEL

55432 Carbide Tipped Adjustable Straight with Bevel Instile and Rail System 1-7/8 Dia x 5/8 to 1-1/8 x 18 Deg x 1/2 Inch Shank Set

#55432

Specification
Angle (a°) 18°
Diameter (D) 1-7/8
Cutting Height (B) 5/8 to 1-1/8
Shank (d) 1/2
Overall Length (L) 3-11/32
Type Straight with Bevel
Flutes 2
C 1/2
B1 for 1/4″ Plywood 3/16 to 9/32
B1 for 1/2″ Plywood 7/16 to 17/32

Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2″ shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
