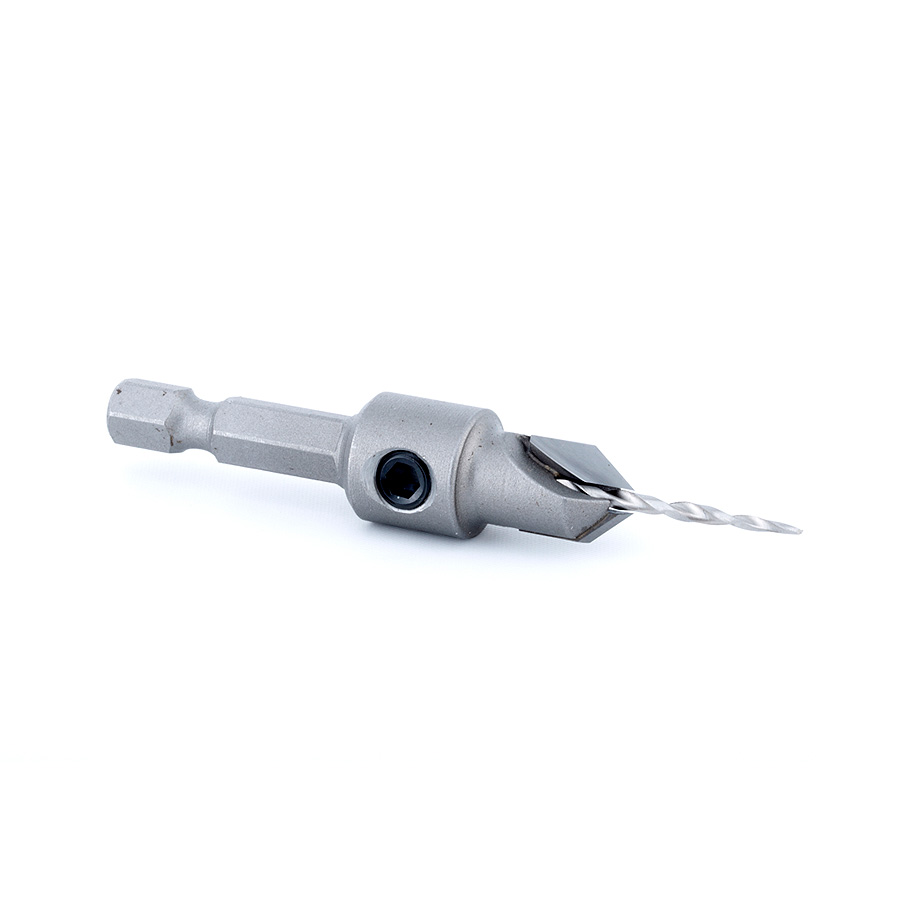

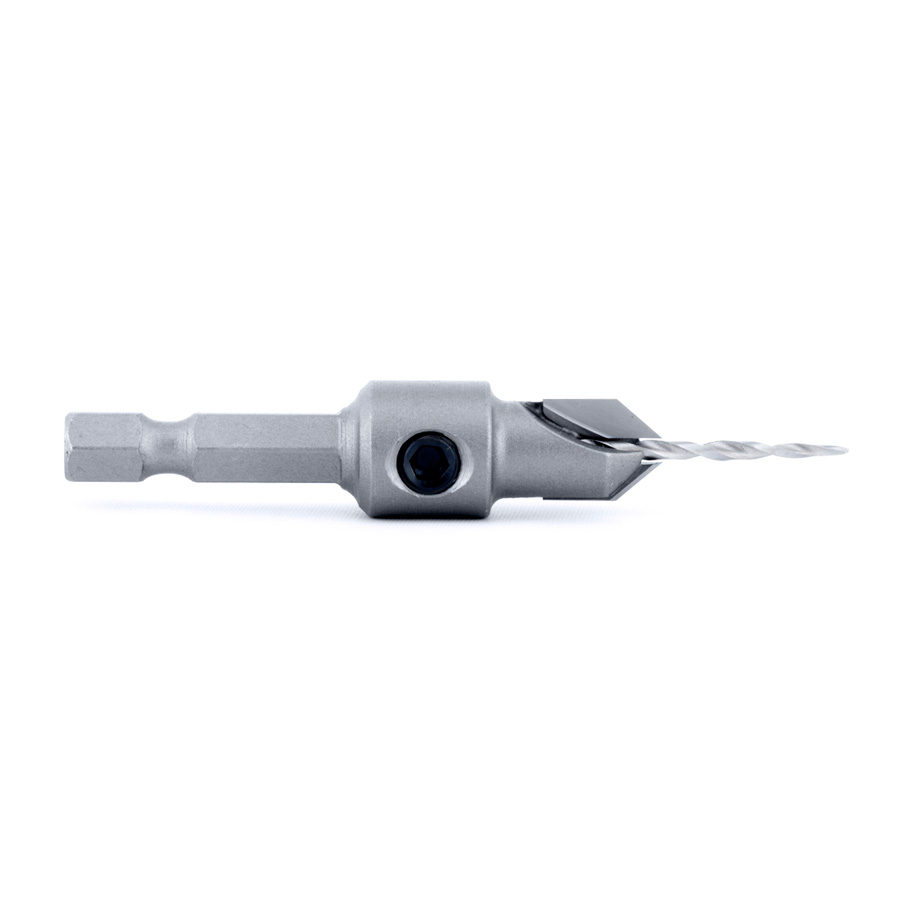

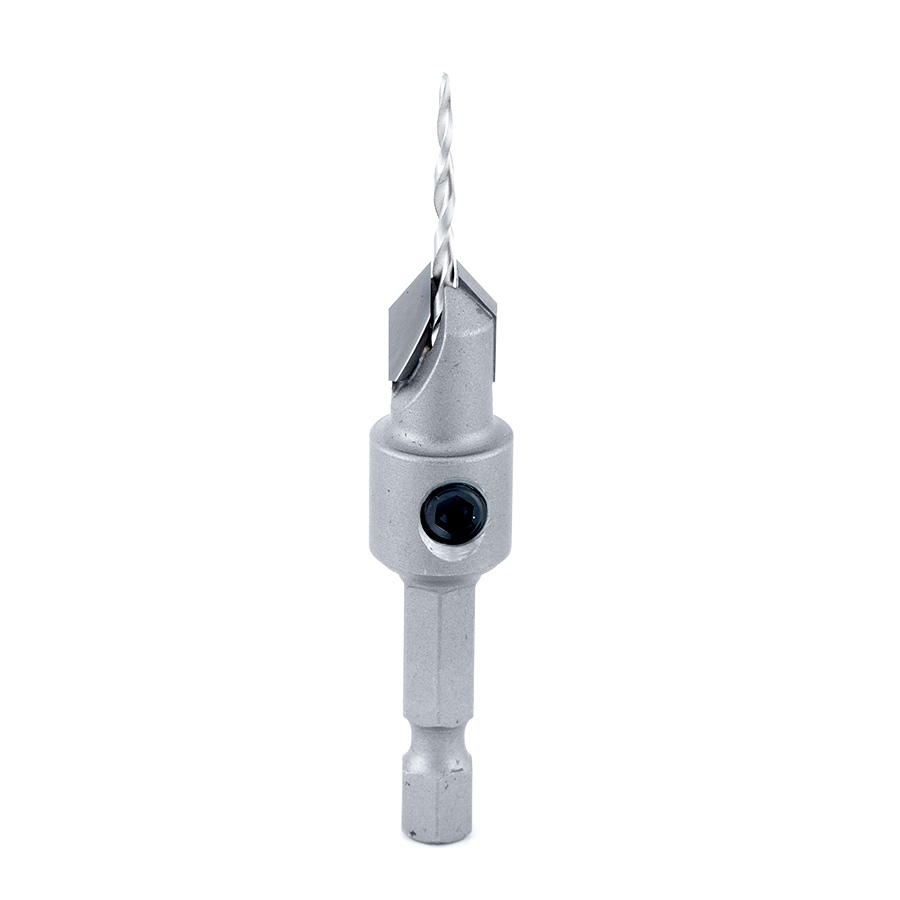

55620 Carbide Tipped 82 Degree Countersink Taper #4 Screw 3/8 Dia x 5/64 Drill Dia x 1/4 Hex Shank

Amana 55620 Carbide Tipped 82 Degree Countersink Taper #4 Screw 3/8 Dia x 5/64 Drill Dia x 1/4 Hex Shank

Name: Amana 55620 Carbide Tipped 82 Degree Countersink Taper #4 Screw 3/8 Dia x 5/64 Drill Dia x 1/4 Hex Shank
SKU: Amana 55620
Availability: InStock

Original price was: $50.90.Current price is: $38.18.

QUICK COUNTERSINK 3/8″ TAPER

UPC: 738685556207 SKU: Amana 55620 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement Parts

Tool No.	Set Screw	Hex key	Drill Bit
55620	67083	5009	630-260

Specifications

(a°) Angle	49°
(D) Diameter	3/8
(d) Shank	1/4
Overall Length (L)	2-1/8
Wood Screw Size	#4
D1	5/64
Replacement Drill	630-260

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(a°) Angle	(d) Shank	Overall Length (L)	Replacement Drill	Tool No.
#6#6#6#6	3/8 (9.53mm)	3/32 (2.38mm)	49°	1/4 (6.35mm)	2-1/8	630-262	55622
#8#8#8#8	3/8 (9.53mm)	7/64 (2.78mm)	49°	1/4 (6.35mm)	2-1/8	630-264	55624
#10#10#10#10	3/8 (9.53mm)	1/8 (3.18mm)	49°	1/4 (6.35mm)	2-1/8	630-266	55626
#12#12#12#12	1/2 (12.70mm)	9/64 (3.57mm)	49°	1/4 (6.35mm)	2-1/8	630-268	55628

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
