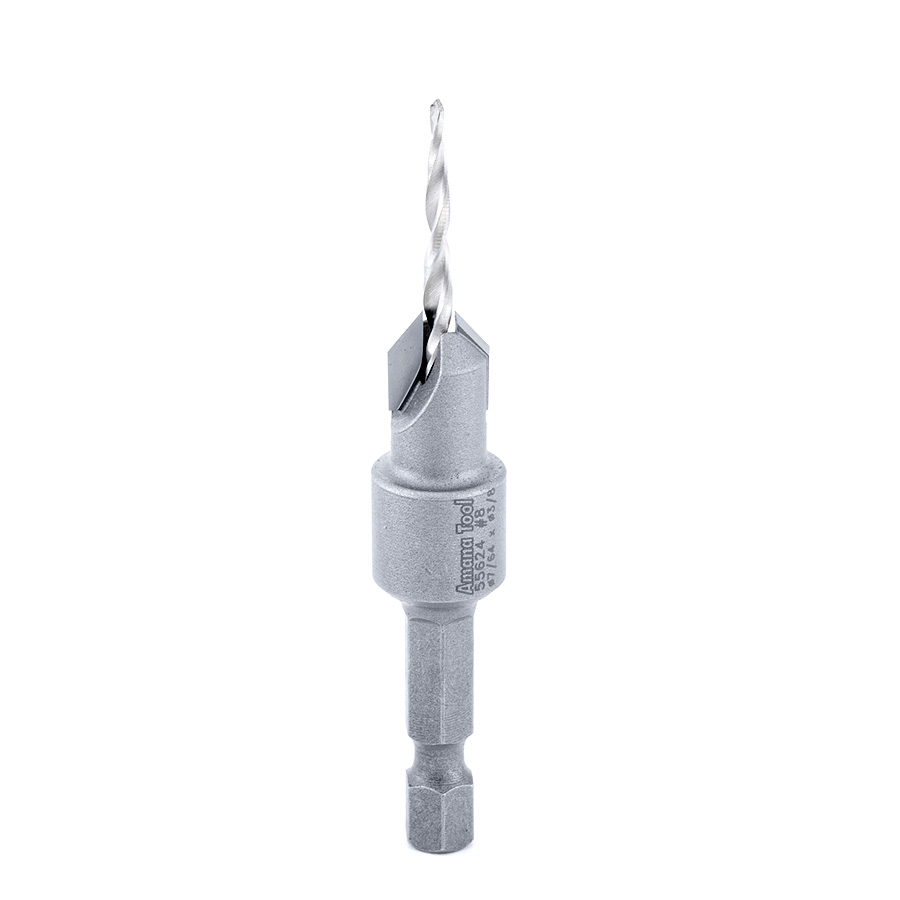

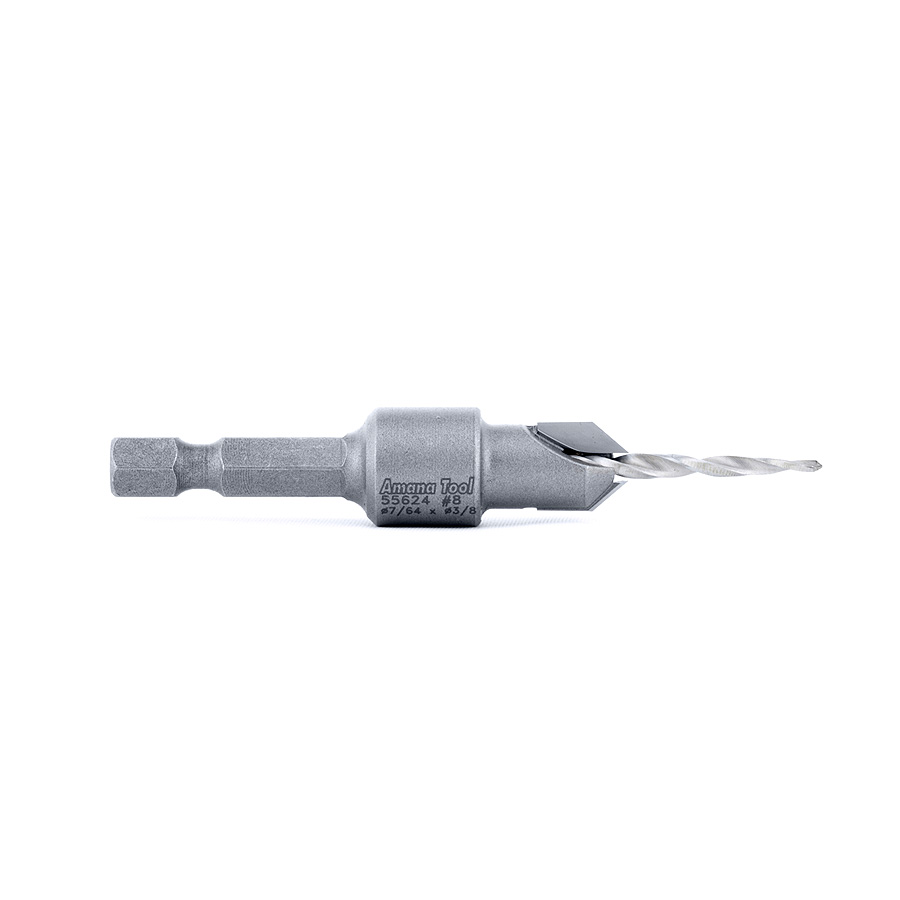

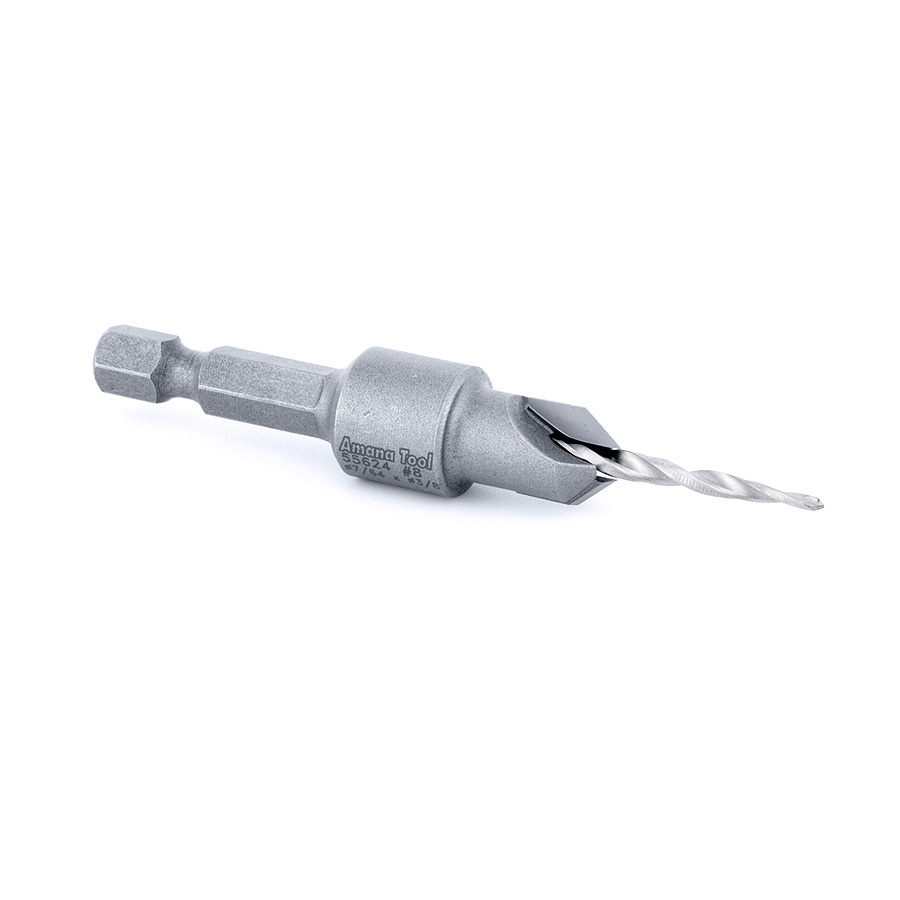

Item Description
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- High Density Polyethylene (HDPE)
- Acrylic
Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Replacement Parts
| Tool No. | Set Screw | Hex key | Drill Bit |
|---|---|---|---|
| 55624 | 67083 | 5009 | 630-264 |

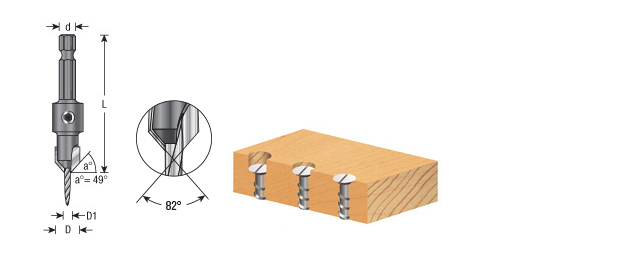

Specifications
| (a°) Angle | 49° |
|---|---|
| (D) Diameter | 3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/8 |
| Wood Screw Size | #8 |
| D1 | 7/64 |
| Replacement Drill | 630-264 |
Other Sizes Available
| Wood Screw Size | (D) Diameter | D1 | (a°) Angle | (d) Shank | Overall Length (L) | Replacement Drill | Tool No. |
|---|---|---|---|---|---|---|---|
| #4#4#4#4 | 3/8 (9.53mm) | 5/64 (1.98mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 630-260 | 55620 |
| #6#6#6#6 | 3/8 (9.53mm) | 3/32 (2.38mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 630-262 | 55622 |
| #10#10#10#10 | 3/8 (9.53mm) | 1/8 (3.18mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 630-266 | 55626 |
| #12#12#12#12 | 1/2 (12.70mm) | 9/64 (3.57mm) | 49° | 1/4 (6.35mm) | 2-1/8 | 630-268 | 55628 |
