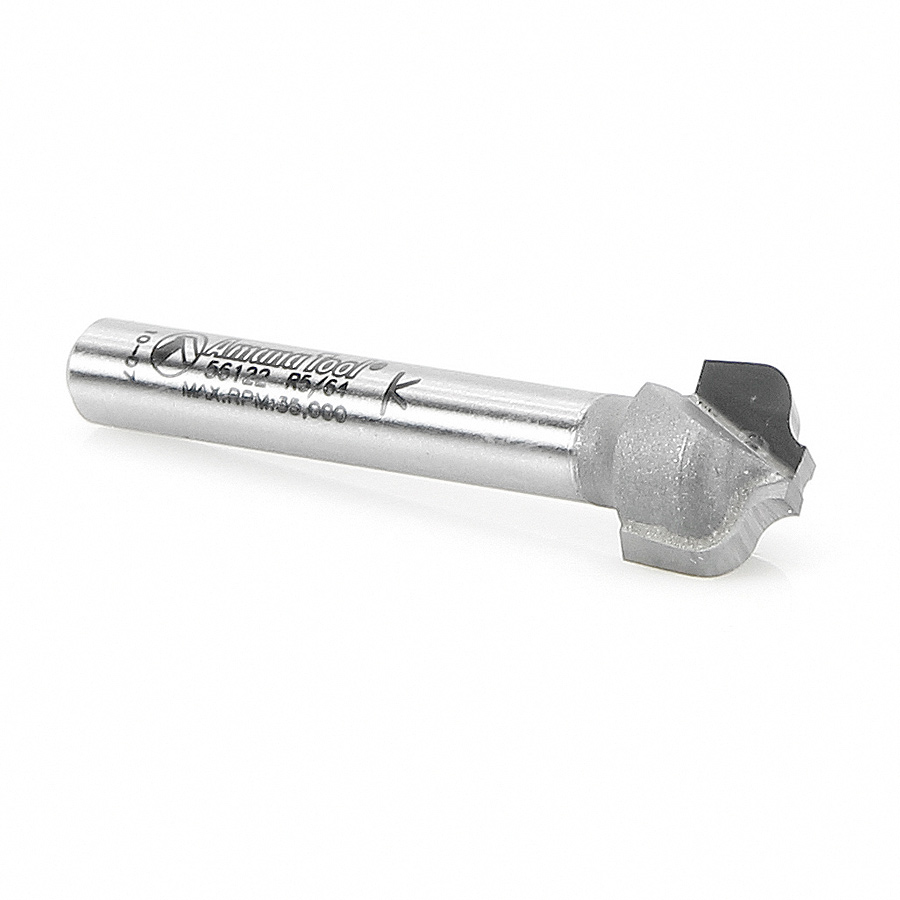

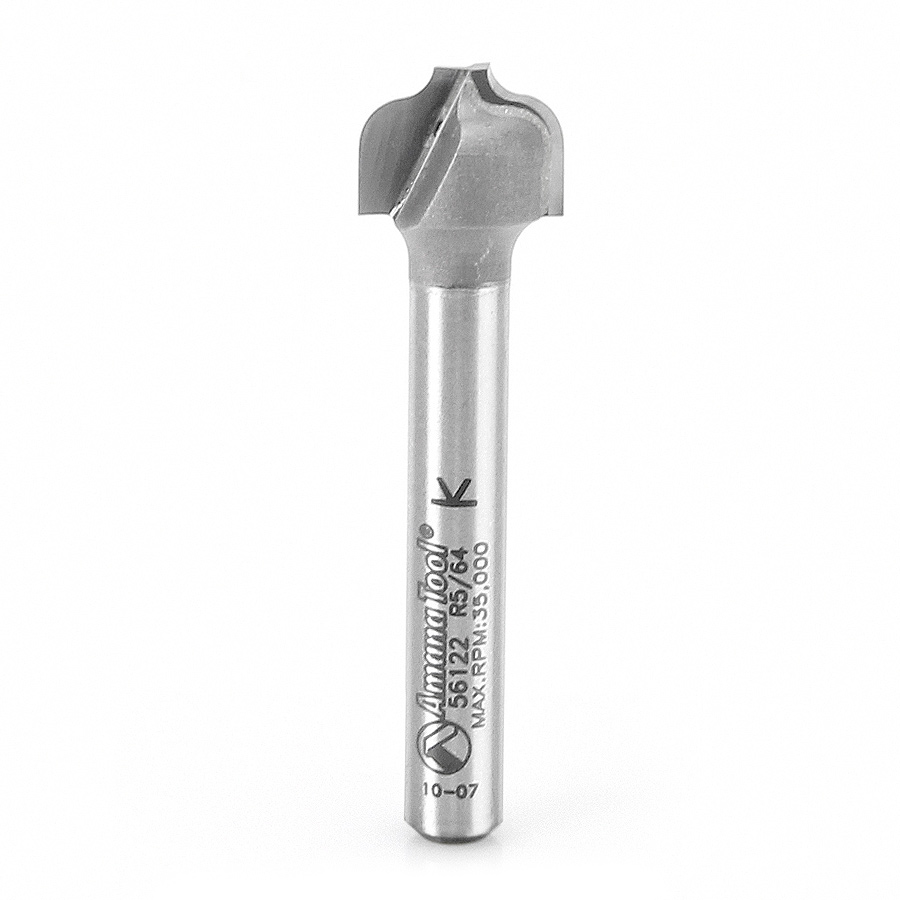

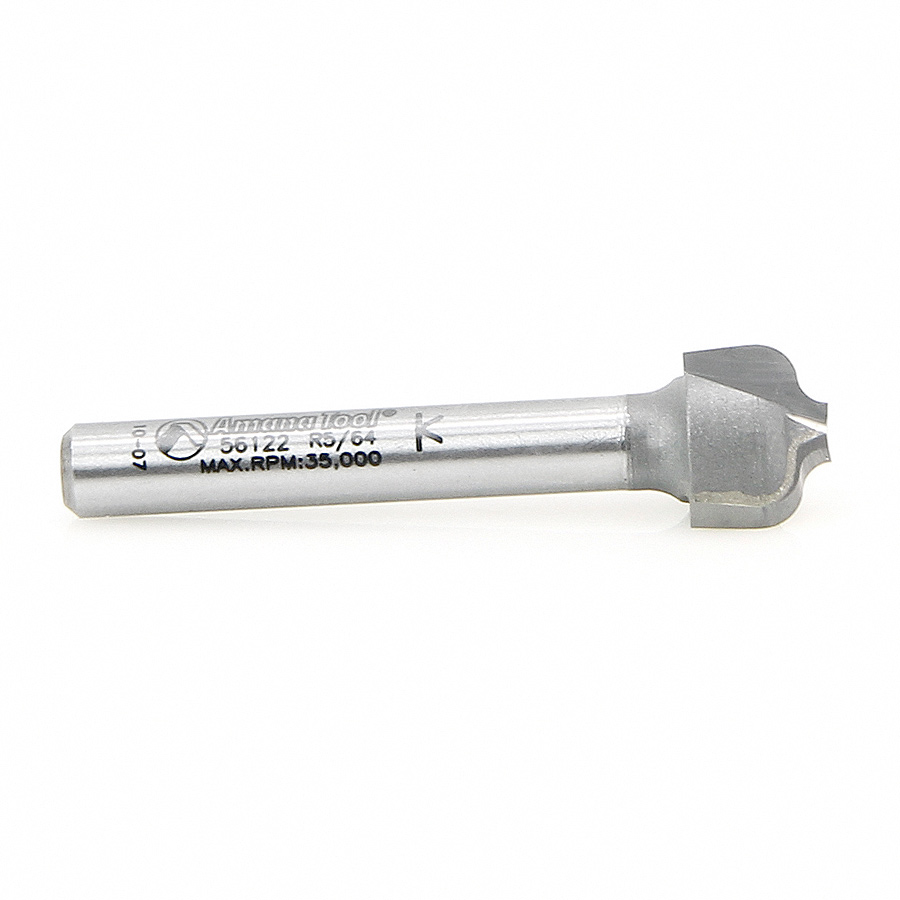

56122 Carbide Tipped Plunging Ogee Style A 5/64 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Amana 56122 Carbide Tipped Plunging Ogee Style A 5/64 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 56122 Carbide Tipped Plunging Ogee Style A 5/64 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 56122
Availability: InStock

Original price was: $70.25.Current price is: $52.69.

OGEE BIT 1/2 DIA. 1/4 SHANK

UPC: 738685961223 SKU: Amana 56122 Categories: Amana Tool, Grooving Router Bits, Ogee Groove Router Bits, Router Bits

Item Description

Rout a flat-bottom groove with ogee shoulders. Decorate any solid wood surface using a handheld or CNC router.

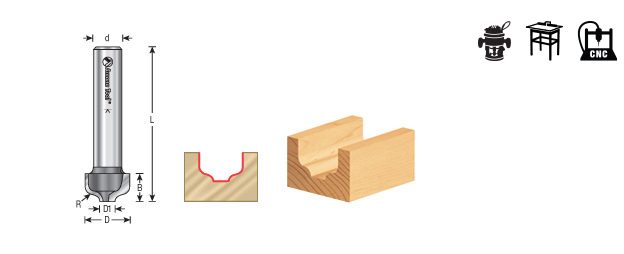

Specifications

Diameter (D)	1/2
D1	.157
Radius (R)	5/64
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	2
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
3/4 (19.05mm)	.256 (6.60mm)	9/64 (3.57mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	56118
13/16 (20.64mm)	5/16 (7.94mm)	1/8 (3.18mm)	33/64 (13.10mm)	1/4 (6.35mm)	1-49/64	56200

Weight	0.04 lbs
