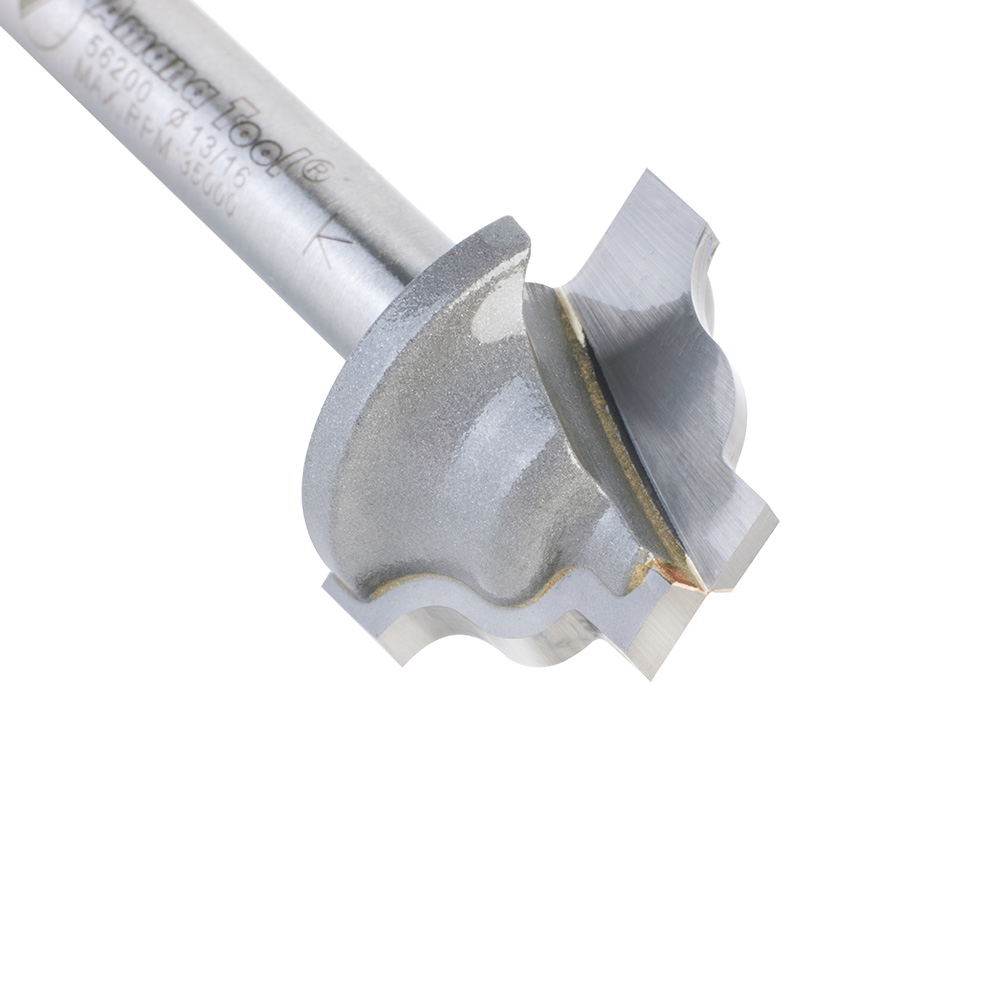

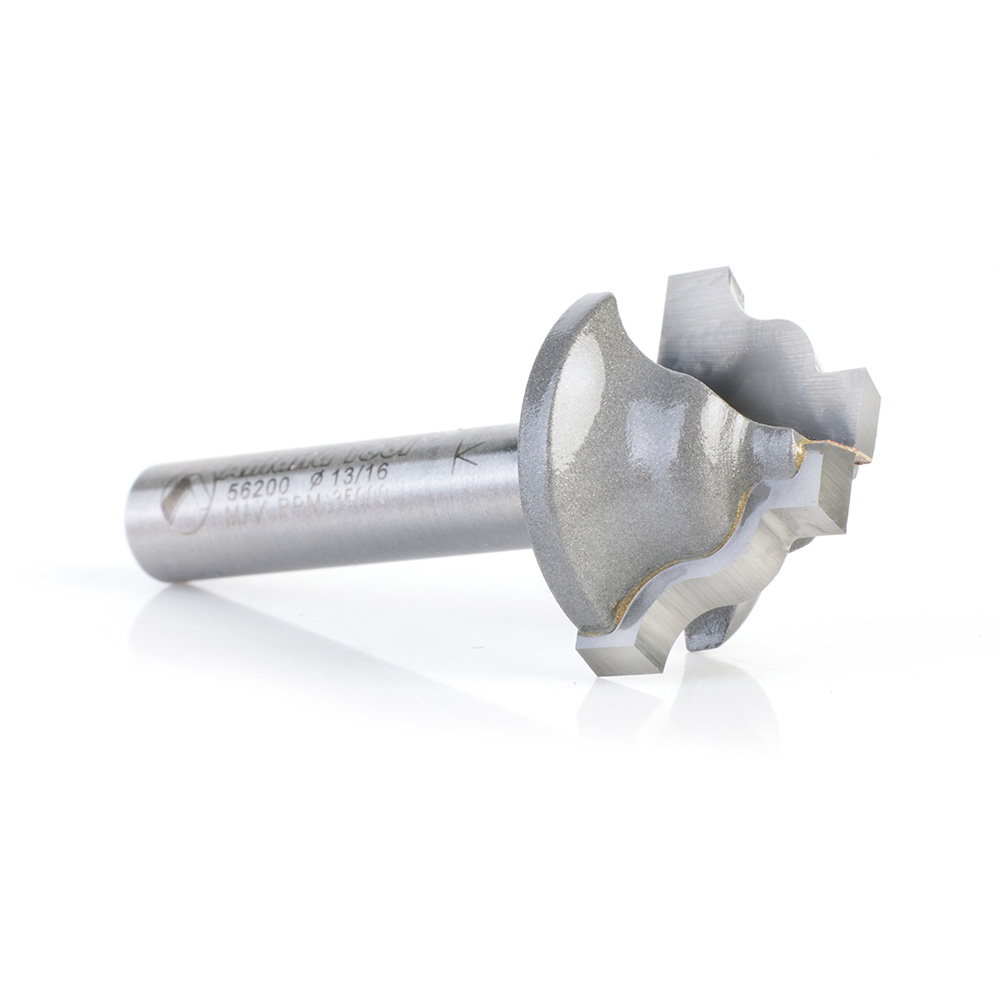

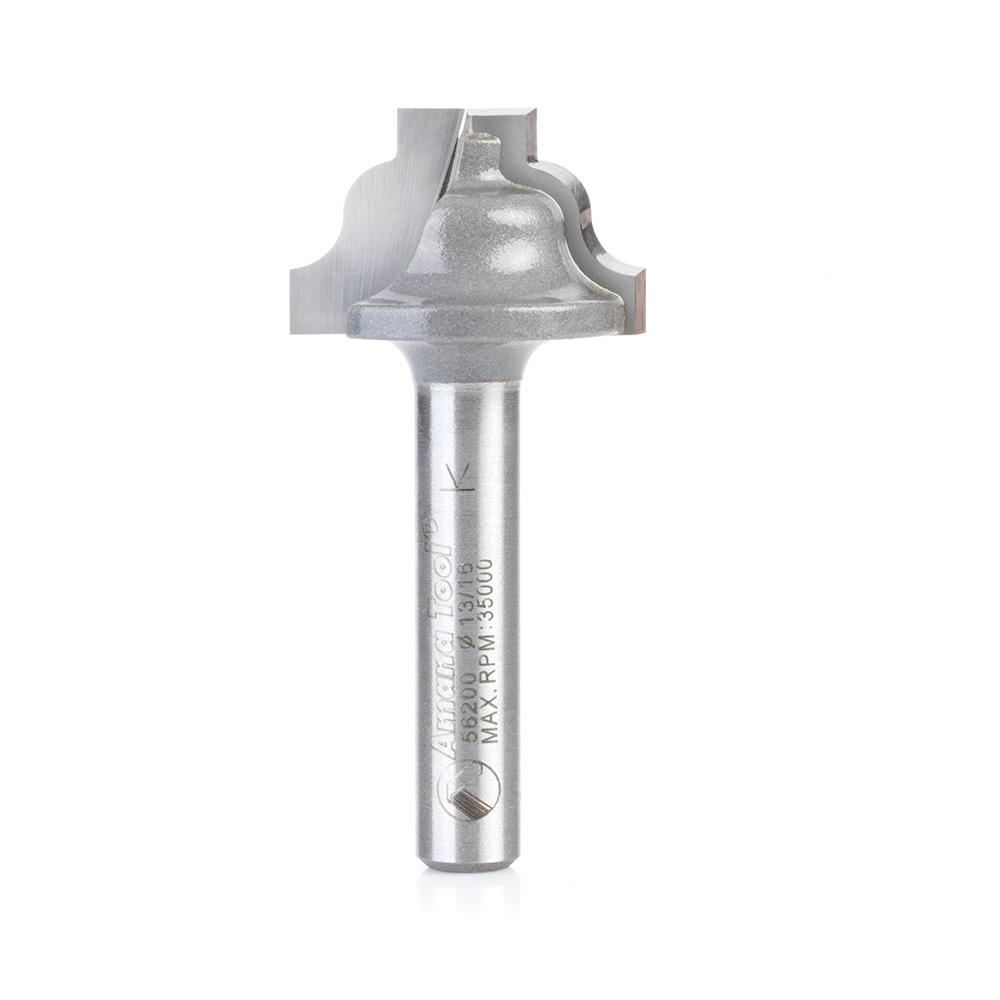

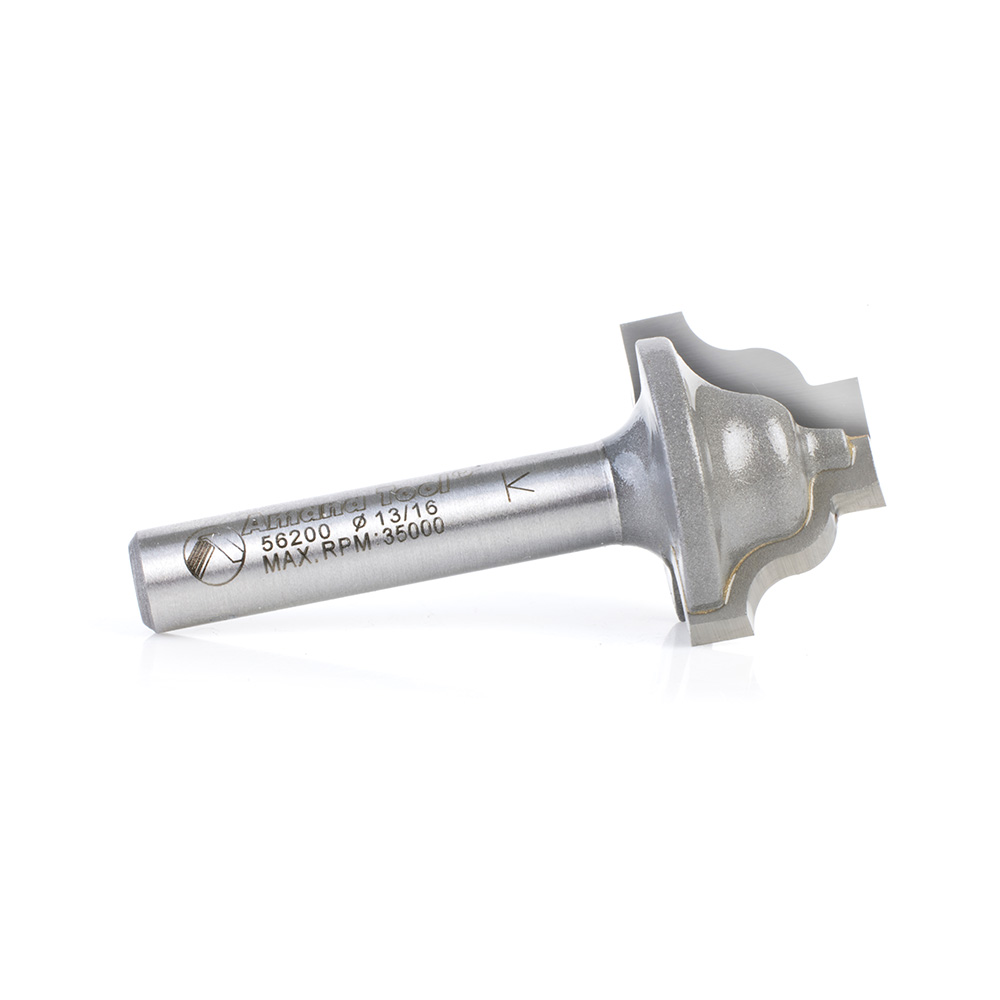

56200 Carbide Tipped Plunging Ogee Stile 1/8 Radius x 13/16 Dia x 33/64 x 1/4 Inch Shank

Amana 56200 Carbide Tipped Plunging Ogee Stile 1/8 Radius x 13/16 Dia x 33/64 x 1/4 Inch Shank

Name: Amana 56200 Carbide Tipped Plunging Ogee Stile 1/8 Radius x 13/16 Dia x 33/64 x 1/4 Inch Shank
SKU: Amana 56200
Availability: InStock

Original price was: $56.75.Current price is: $42.57.

OGEE STILE CUTTER 1/4 SHANK

UPC: 738685562024 SKU: Amana 56200 Categories: Amana Tool, Door Making Router Bits, Ogee Stile Router Bits for Plunging, Router Bits

Item Description

This bit forms a flat-bottom groove with a reverse ogee and step profile for the shoulders.

Vectric compatible tool file for 56200 available for download,click here.

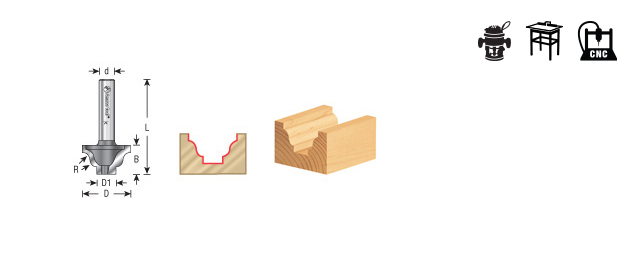

Specifications

Diameter (D)	13/16
D1	5/16
Radius (R)	1/8
Cutting Height (B)	33/64
Shank (d)	1/4
Overall Length (L)	1-49/64
Type	Ogee Stile
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/2 (12.70mm)	.157 (4.06mm)	5/64 (1.98mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	56122
3/4 (19.05mm)	.256 (6.60mm)	9/64 (3.57mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	2	56118

Weight	0.34 lbs
