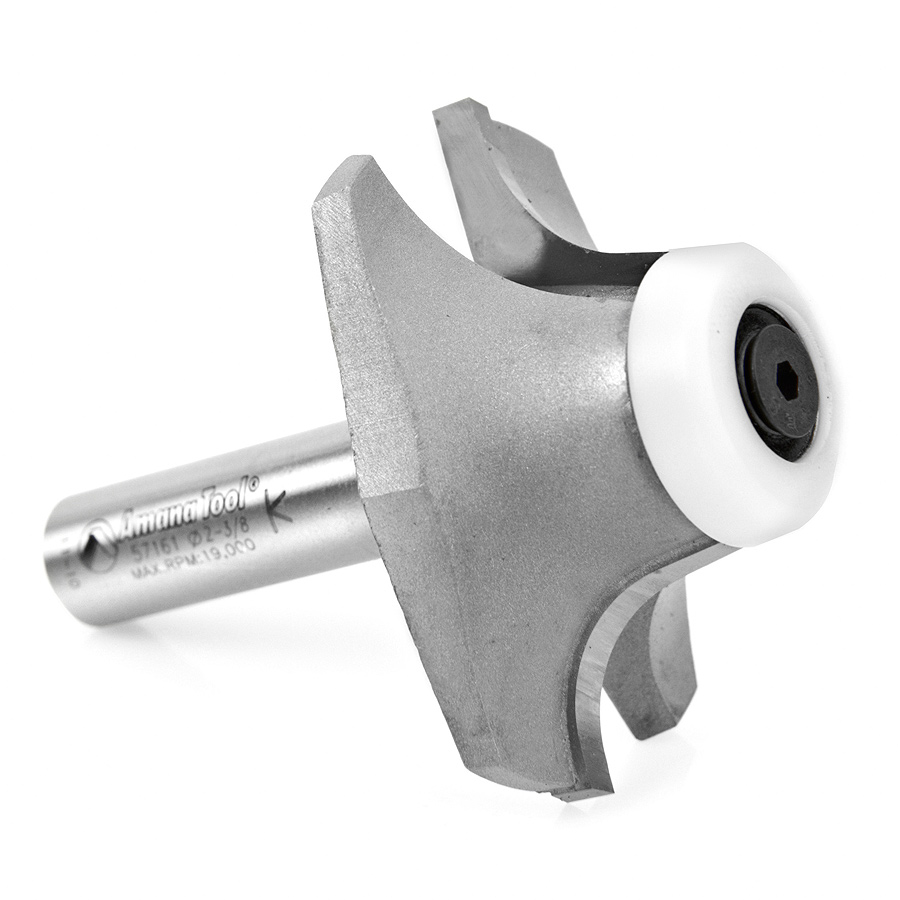

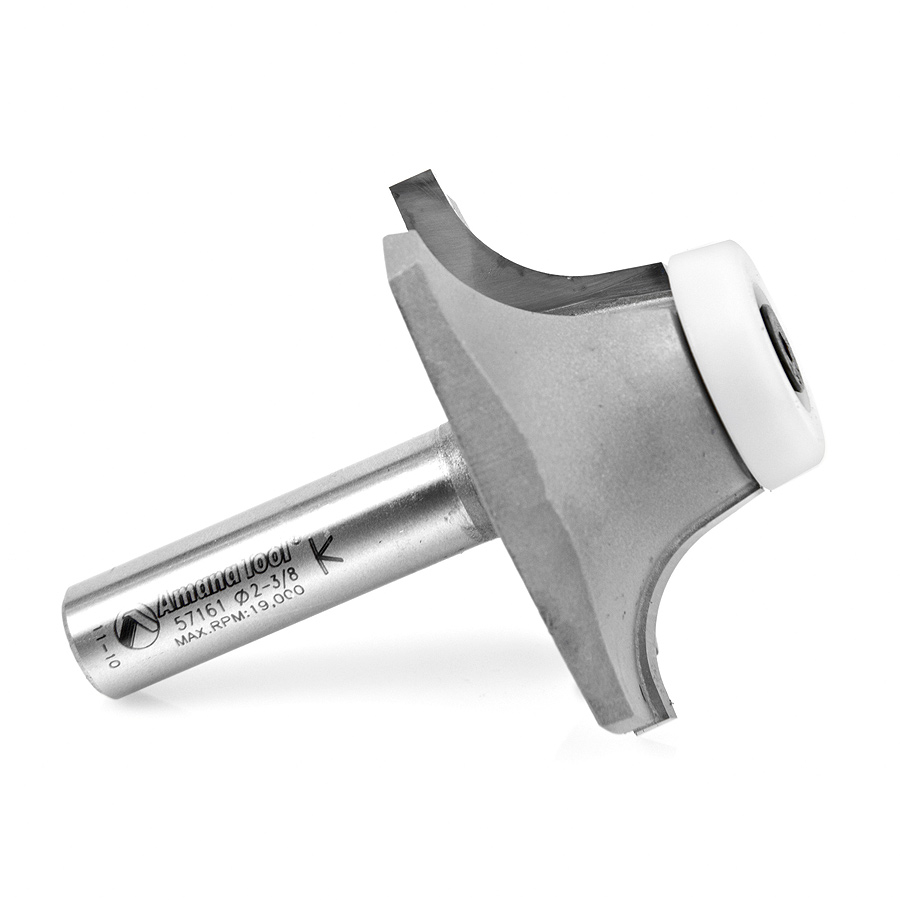

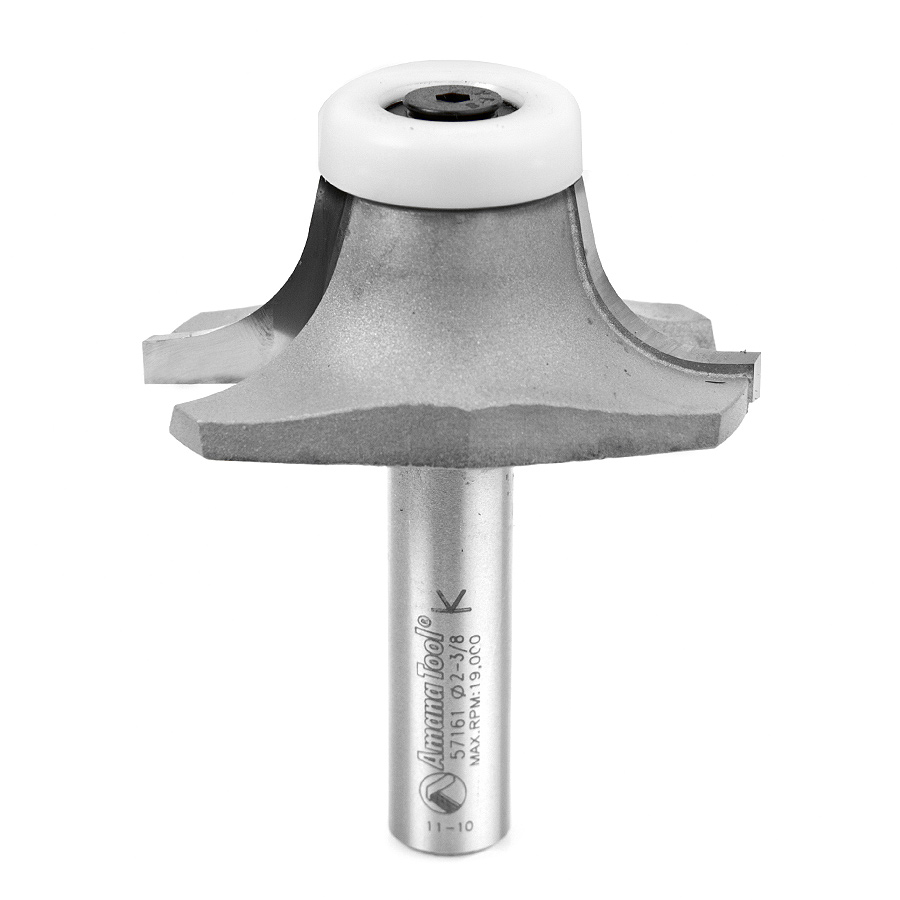

57161 Carbide Tipped Wilsonart® SSV Bowl Solid Surface 2-3/8 Dia x 7/8 x 12 Deg x 1/2 Inch Shank

Amana 57161 Carbide Tipped Wilsonart® SSV Bowl Solid Surface 2-3/8 Dia x 7/8 x 12 Deg x 1/2 Inch Shank

Name: Amana 57161 Carbide Tipped Wilsonart® SSV Bowl Solid Surface 2-3/8 Dia x 7/8 x 12 Deg x 1/2 Inch Shank
SKU: Amana 57161
Availability: InStock

Original price was: $192.15.Current price is: $144.12.

12 DEGREE 9/16″RADIUS BOWL BIT

UPC: 738685571613 SKU: Amana 57161 Categories: Amana Tool, Router Bits, Solid Surface Router Bits, Wilsonart SSV Bowl Router Bits

Item Description

This bit is designed specifically for use with the Wilsonart® bowl. Use with any handheld router; the Ultra-Glide™ bearing guides the cut.

Replacement Parts

Tool No.	Bearing(s)	Screw
57161	47732	67146

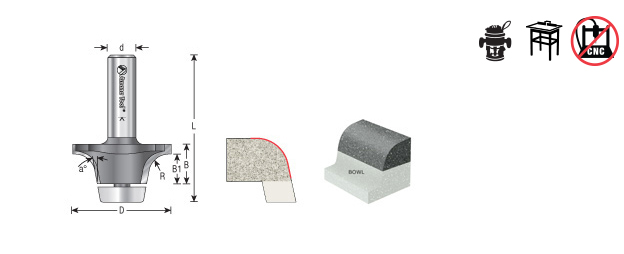

Specifications

Angle (a°)	12°
Diameter (D)	2-3/8
Radius (R)	9/16
Cutting Height (B)	7/8
B1	11/16
Shank (d)	1/2
Overall Length (L)	2-11/16
Type	Roundover
Replacement Bearing	47733
R1	9/16
Flutes	2
Countertop Thickness	1/2 – 3/4

Other Sizes Available

Angle (a°)	Diameter (D)	Radius (R)	Countertop Thickness	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Type	Tool No.
12°	1-1/2	–	1/2 – 1-1/4	1-1/4	–	1/2 (12.70mm)	3-1/16	Bevel	57129

Weight	0.52 lbs
