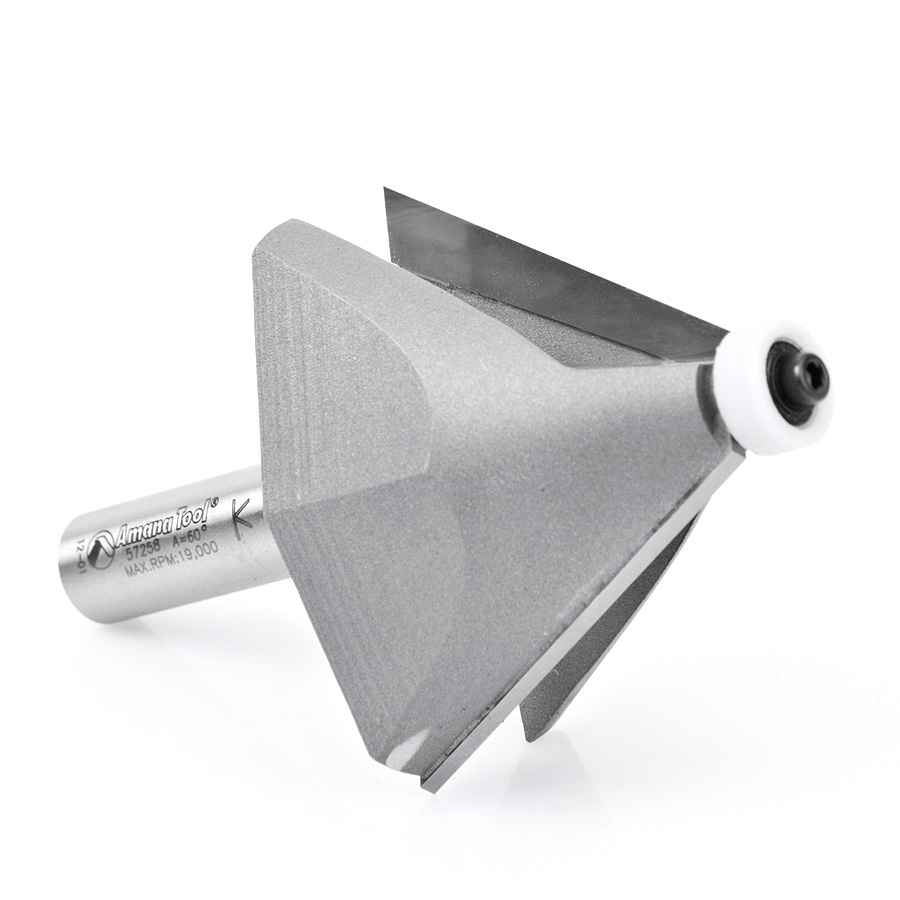

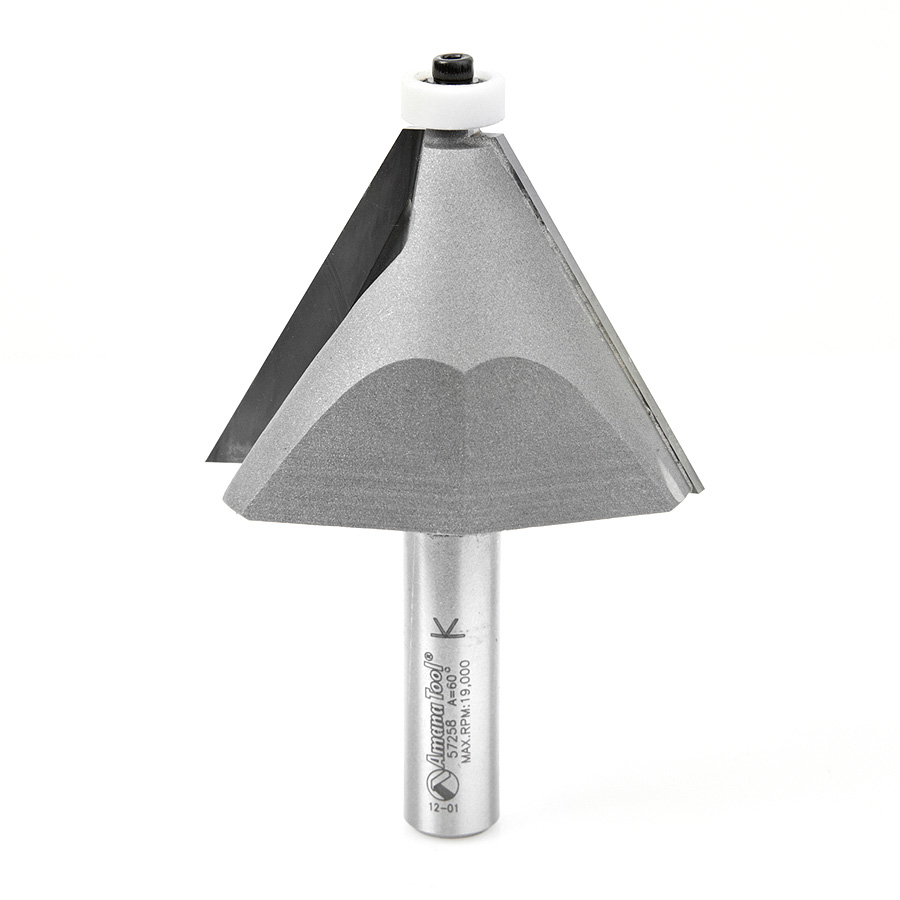

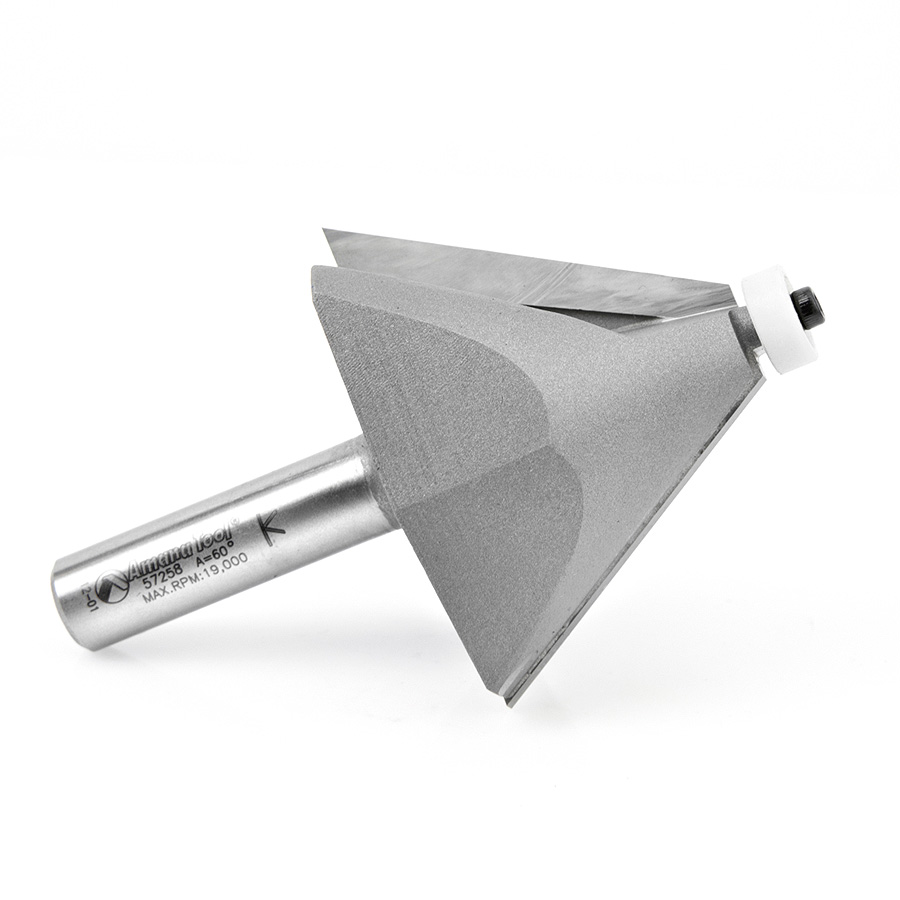

57258 Carbide Tipped Chamfer with Ultra-Glide Ball Bearing Guide Solid Surface 2-17/32 Dia x 1-3/4 x 30 Deg x 1/2 Inch Shank

Amana 57258 Carbide Tipped Chamfer with Ultra-Glide Ball Bearing Guide Solid Surface 2-17/32 Dia x 1-3/4 x 30 Deg x 1/2 Inch Shank

Name: Amana 57258 Carbide Tipped Chamfer with Ultra-Glide Ball Bearing Guide Solid Surface 2-17/32 Dia x 1-3/4 x 30 Deg x 1/2 Inch Shank
SKU: Amana 57258
Availability: InStock

Original price was: $192.15.Current price is: $144.12.

SOLID SURFACE EDGE FORMING BIT

UPC: 738685572580 SKU: Amana 57258 Categories: Amana Tool, Chamfer Router Bits with Ultra-Glide Ball Bearing Guide, Router Bits, Solid Surface Router Bits

Item Description

Chamfer and even bevel solid-surface edges with one of these two bits. These large bits must be run at reduced speed in a high-horsepower router.

Maximum RPM 12,000.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
57258	47707	67096	67082

Specifications

Angle (a°)	30°
Diameter (D)	2-17/32
Cutting Height (B)	1-3/4
Shank (d)	1/2
Overall Length (L)	3-5/8
Replacement Bearing	47707
Flutes	2

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
2 (50.80mm)	45°	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	47707	2	57220

Weight	0.14 lbs

Brand

Amana Tool
