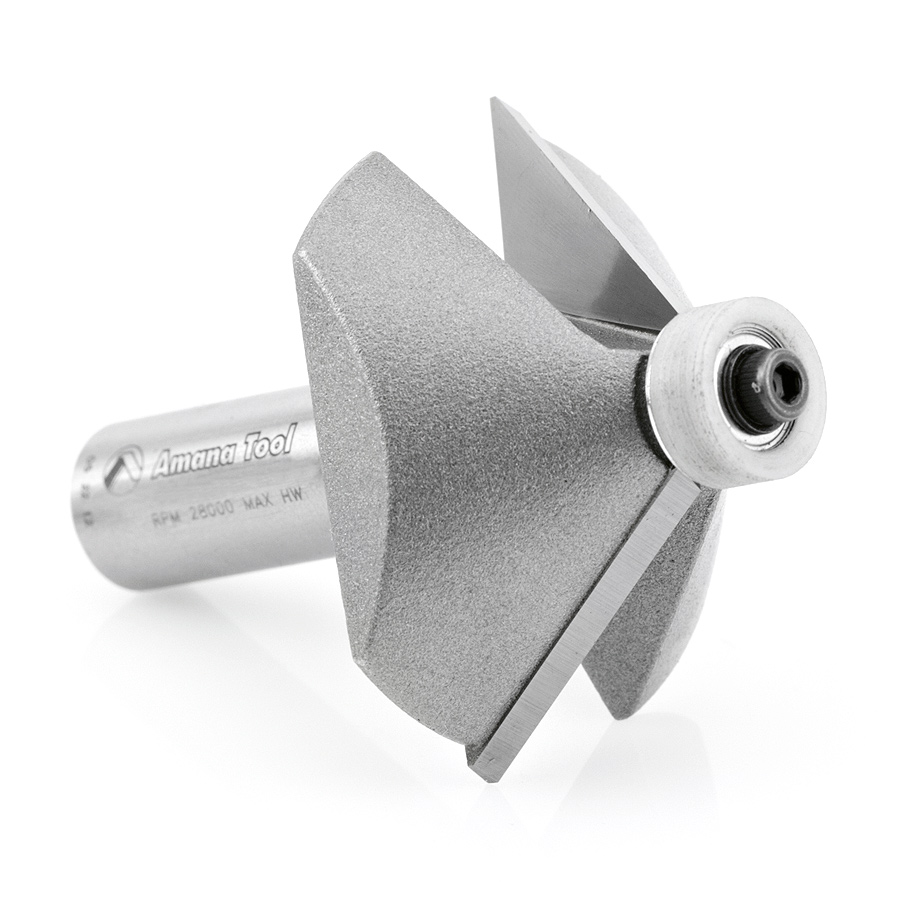

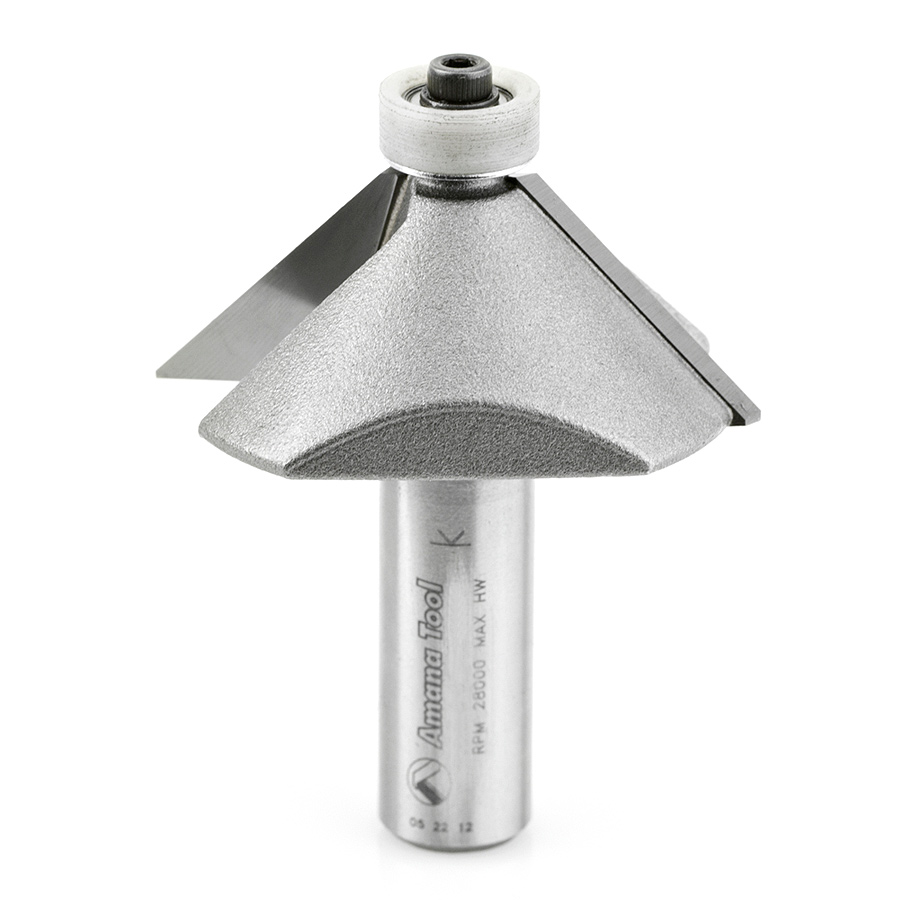

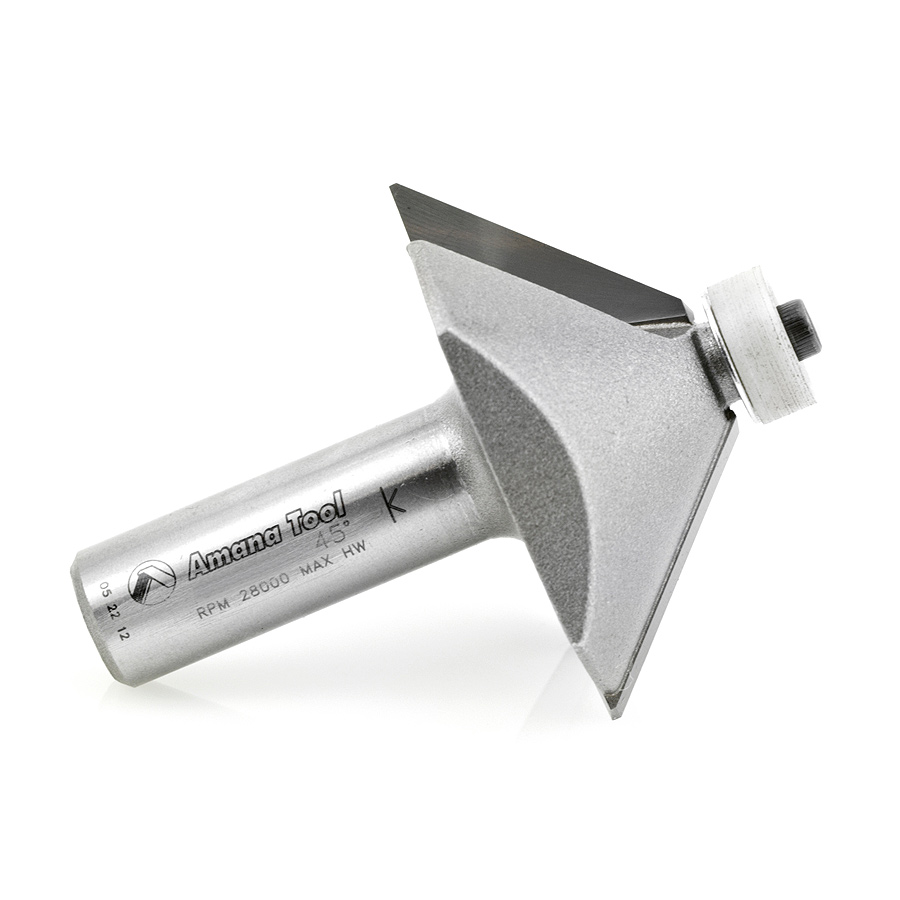

57220 Carbide Tipped Chamfer with Ultra-Glide Ball Bearing Guide Solid Surface 2 Dia x 3/4 x 45 Deg x 1/2 Inch Shank

Amana 57220 Carbide Tipped Chamfer with Ultra-Glide Ball Bearing Guide Solid Surface 2 Dia x 3/4 x 45 Deg x 1/2 Inch Shank

Name: Amana 57220 Carbide Tipped Chamfer with Ultra-Glide Ball Bearing Guide Solid Surface 2 Dia x 3/4 x 45 Deg x 1/2 Inch Shank
SKU: Amana 57220
Availability: InStock

Original price was: $153.75.Current price is: $115.32.

SOLID SURFACE CHAMFER BIT

UPC: 738685572207 SKU: Amana 57220 Categories: Amana Tool, Chamfer Router Bits with Ultra-Glide Ball Bearing Guide, Router Bits, Solid Surface Router Bits

Item Description

Chamfer and even bevel solid-surface edges with one of these two bits. These large bits must be run at reduced speed in a high-horsepower router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
57220	47707	67096	67202

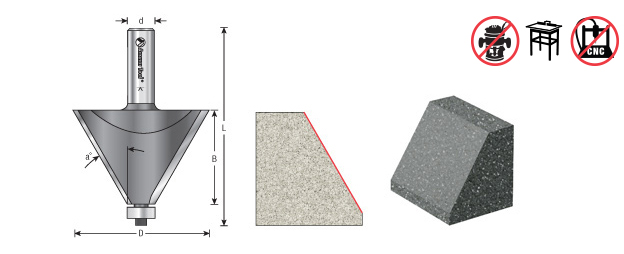

Specifications

Angle (a°)	45°
Diameter (D)	2
Cutting Height (B)	3/4
Shank (d)	1/2
Overall Length (L)	2-5/8
Replacement Bearing	47707
Flutes	2

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
2-17/32	30°	1-3/4	1/2 (12.70mm)	3-5/8	47707	2	57258

Weight	0.14 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
