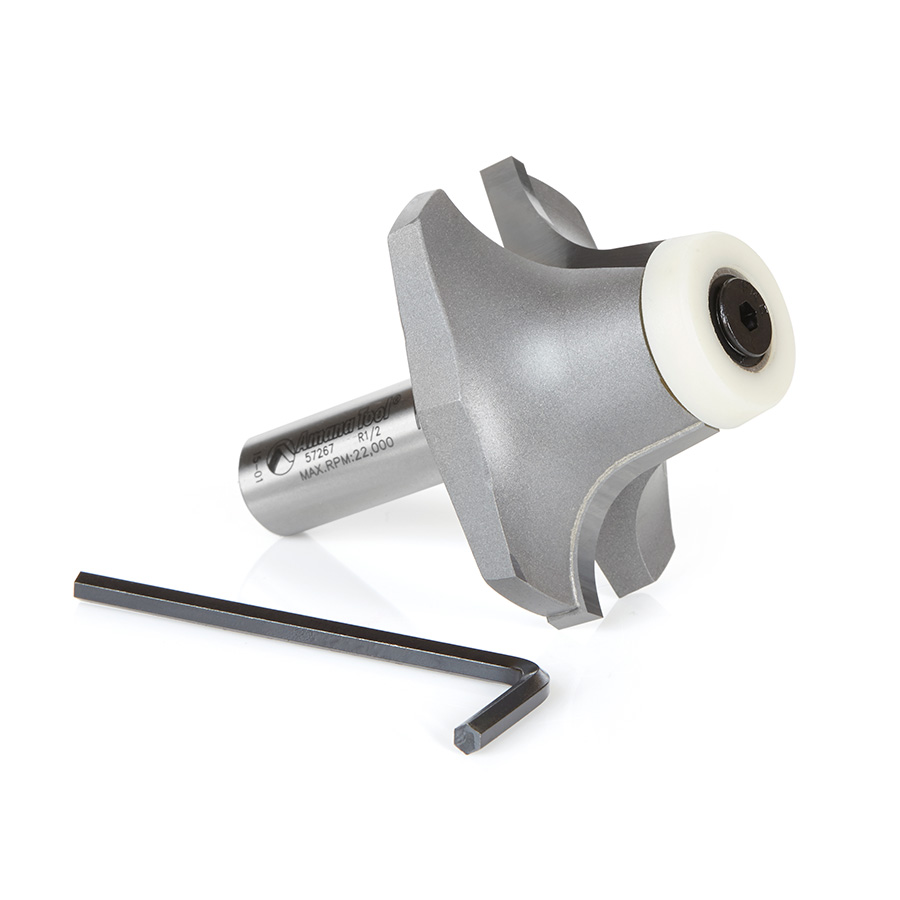

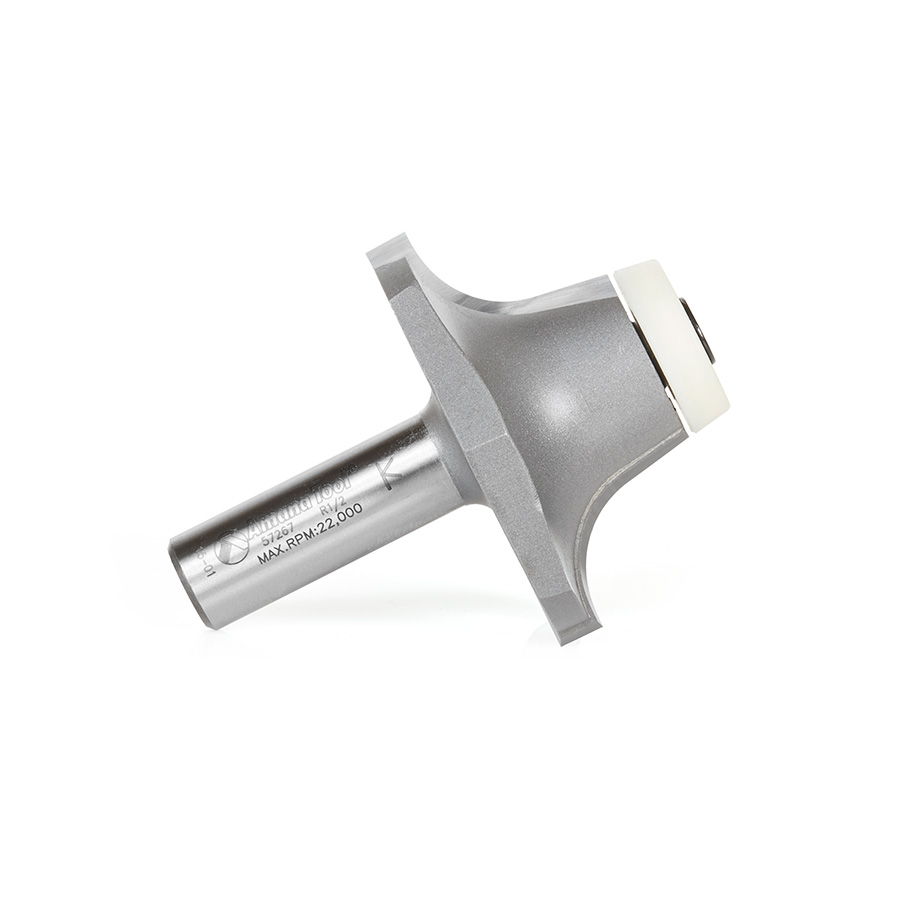

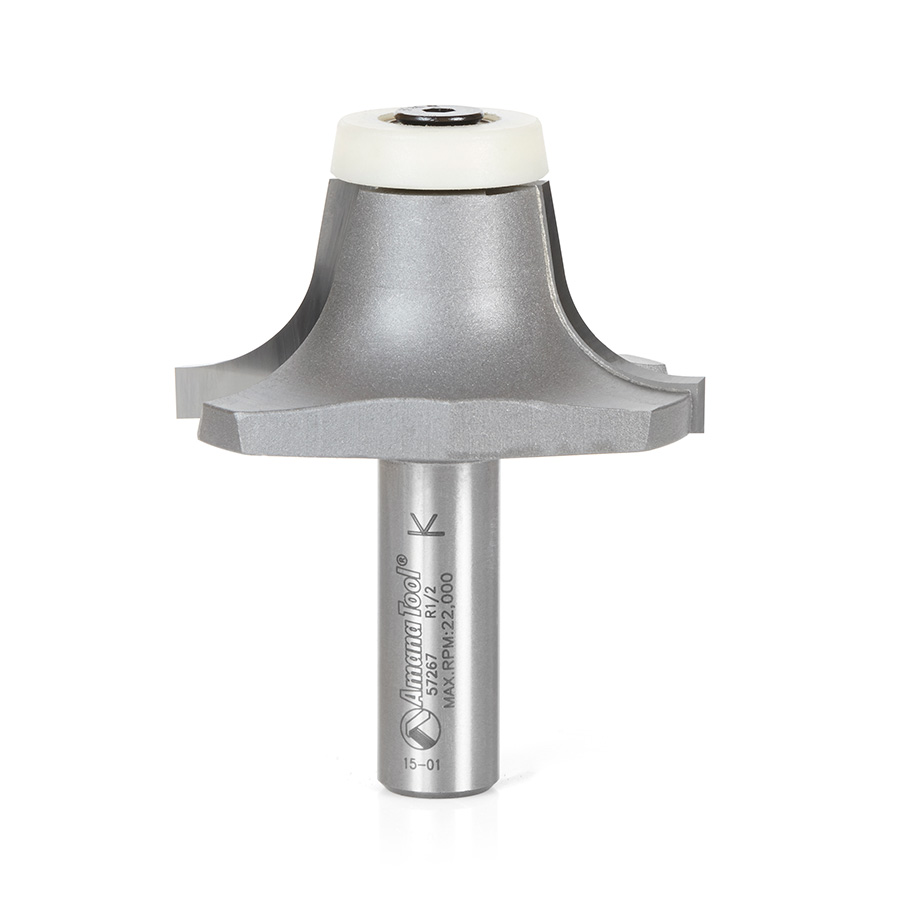

57267 Carbide Tipped Undermount Bowl Solid Surface 2-9/64 Dia x 63/64 x 10 Deg x 1/2 Inch Shank

Amana 57267 Carbide Tipped Undermount Bowl Solid Surface 2-9/64 Dia x 63/64 x 10 Deg x 1/2 Inch Shank

Name: Amana 57267 Carbide Tipped Undermount Bowl Solid Surface 2-9/64 Dia x 63/64 x 10 Deg x 1/2 Inch Shank
SKU: Amana 57267
Availability: InStock

Original price was: $217.80.Current price is: $163.35.

ROUND OVER 1/2″ RADIUS 10D BB

UPC: 738685572672 SKU: Amana 57267 Categories: Amana Tool, Router Bits, Solid Surface Router Bits, Undermount Bowl Router Bits

Item Description

This bit has a 10 degree cutting draft with a bearing that matches, enabling the cutter to do more work so you have to do less and is designed specifically for use in undermount installations of:

Gemstone Vanity #’s 1514-VO, 1812-VO, 1613-VSO, 1814-VO, 1814-EVO, 1313-VO, 1513-VO, 1711-VO

Gemstone Bar & Kitchen Sink #’s 1014-S, 1016-S, 1318-S, 1411-S, 1507-S, 1515-S, 1815-S, 1524-S, 1517-S, 1616-S, N1616-S, 1616-ES, 2116-US, 2015-S, 2318-S, 2416-ES, 2615-S, 2716-US, 2718-S, 2818-S, 2033-S, 2916-UD, 1729-D, 2917-D, 1930-DL, 1630-D, 3016-D, 3118-D, 3218-D

Livingstone Vanity # K-140G

Livingstone Kitchen Sink #’s K130-G, K140G, K160G

DuPont Kitchen Vanity #’s 810P, 8252, 8254, 850P

DuPont Kitchen Sink # 850-P

Wilsonart® Vanity #’s BV1514, BV1812, BV1313, BV1711

Wilsonart® Kitchen Sink #’s BK2015, BK1515, BD1630, BD3016, BK2716US

Formica Vanity # L080

Formica Kitchen Sink #’s K080A, K250A

They trim and profile the counter-top edges after the bowl is mounted.

Replacement Parts

Bearing(s)	Screw	Key
47787	67146	5009

Specifications

Angle (a°)	10°
Diameter (D)	2-9/64
D1	13/16
Radius (R)	33/64
Cutting Height (B)	63/64
B1	25/32
Shank (d)	1/2
Overall Length (L)	2-25/32
Replacement Bearing	47787
Flutes	2

Other Sizes Available

B1	Replacement Bearing	Flutes	Cut Depth (A)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Radius (R)	Tool No.
25/32 (19.84mm)	47785	2	–	14°	63/64 (25.00mm)	1/2 (12.70mm)	2-25/32	33/64 (13.10mm)	57268

Weight	0.48 lbs
