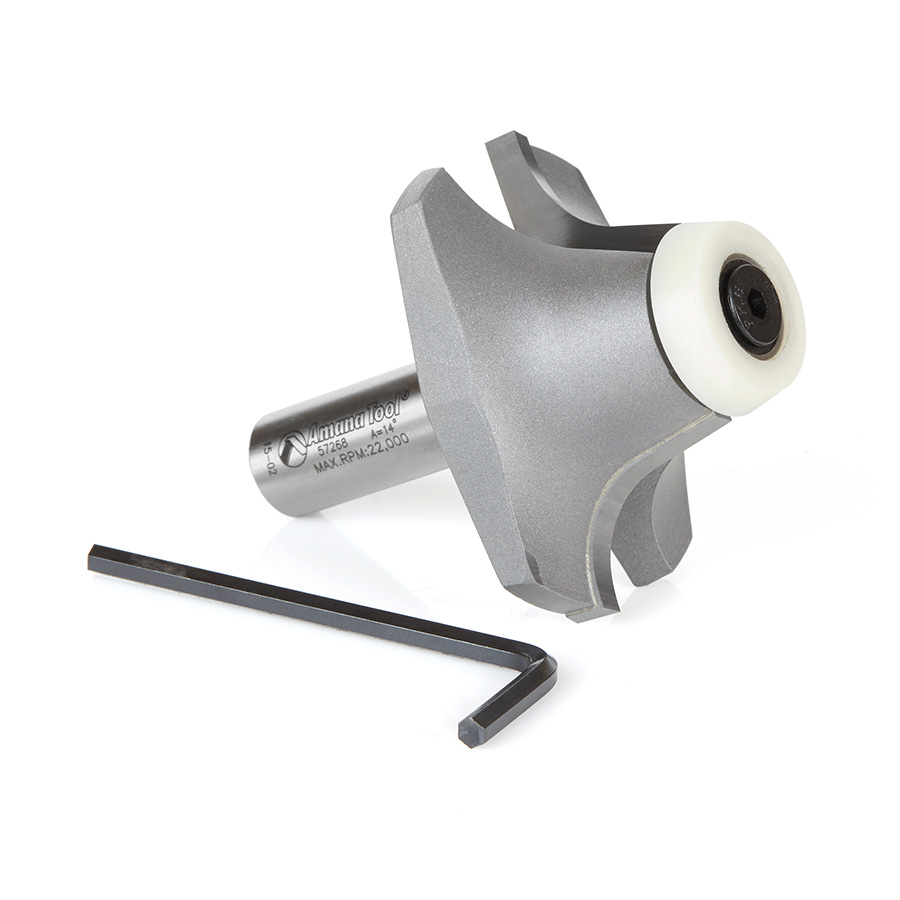

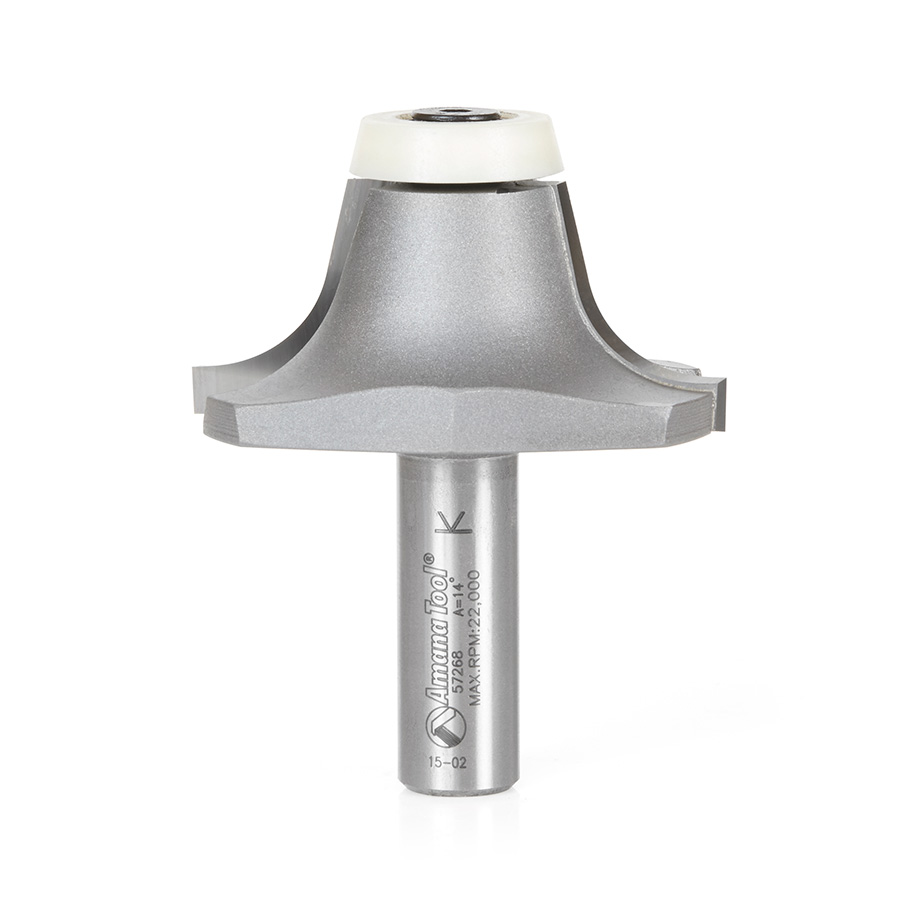

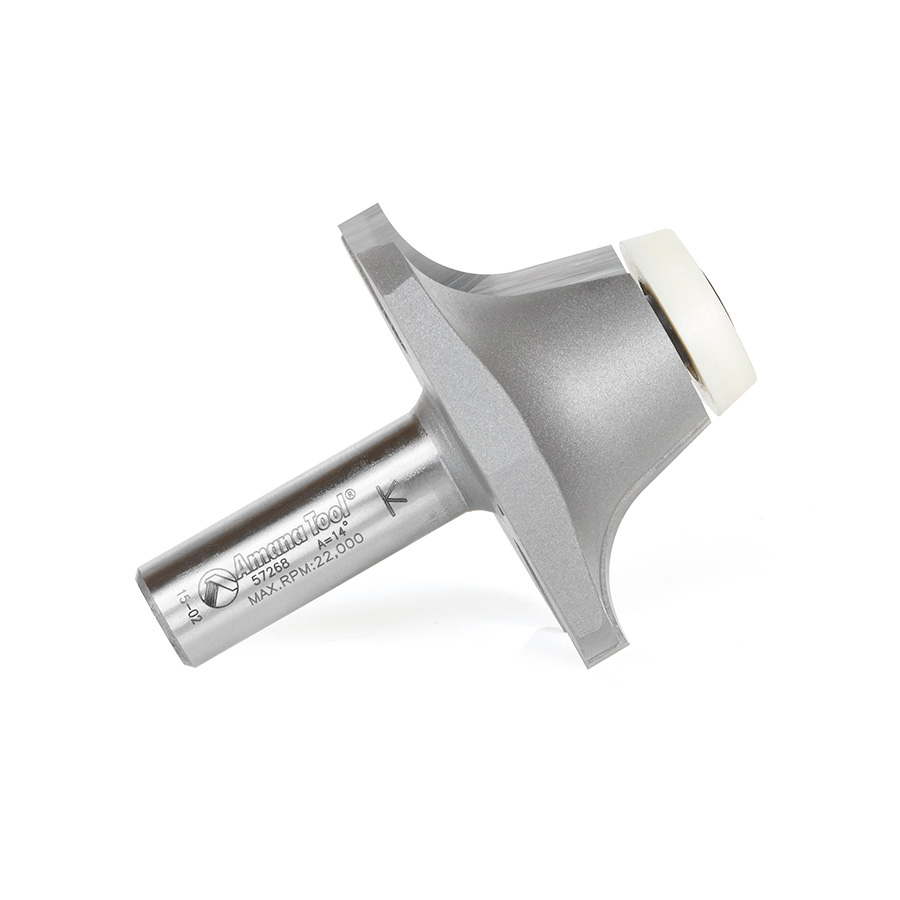

57268 Carbide Tipped Undermount Bowl Solid Surface 2-3/16 Dia x 63/64 x 14 Deg x 1/2 Inch Shank

Amana 57268 Carbide Tipped Undermount Bowl Solid Surface 2-3/16 Dia x 63/64 x 14 Deg x 1/2 Inch Shank

Name: Amana 57268 Carbide Tipped Undermount Bowl Solid Surface 2-3/16 Dia x 63/64 x 14 Deg x 1/2 Inch Shank
SKU: Amana 57268
Availability: InStock

Original price was: $217.80.Current price is: $163.35.

ROUND OVER 1/2″ RADIUS 14D BB

UPC: 738685572689 SKU: Amana 57268 Categories: Amana Tool, Router Bits, Solid Surface Router Bits, Undermount Bowl Router Bits

Item Description

This bit has a 14 degree cutting draft with a bearing that matches, enabling the cutter to do more work so you have to do less and is designed specifically for use in undermount installations of:

Gemstone Vanity #’s 1410-VO, 1613-UVO, 1914-VO, 2114-VO

Livingstone Vanitiy # V130-G

Wilsonart® Vanity #’s BV1410, BV1613

Formica Vanity #’s L075, L100

Avonite Vanity #’s VS-1815, VS2015

They trim and profile the counter-top edges after the bowl is mounted.

Replacement Parts

Bearing(s)	Screw	Key
47785	67146	5009

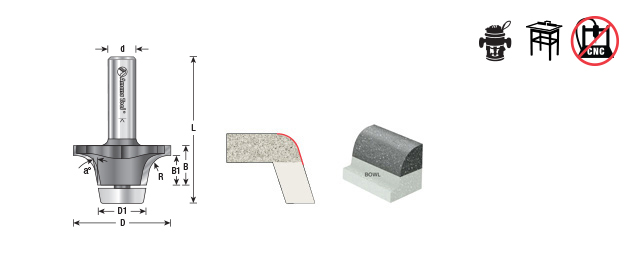

Specifications

Angle (a°)	14°
Diameter (D)	2-3/16
D1	55/64
Radius (R)	33/64
Cutting Height (B)	63/64
B1	25/32
Shank (d)	1/2
Overall Length (L)	2-25/32
Replacement Bearing	47785
Flutes	2

Other Sizes Available

B1	Replacement Bearing	Flutes	Cut Depth (A)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Radius (R)	Tool No.
25/32 (19.84mm)	47787	2	–	10°	63/64 (25.00mm)	1/2 (12.70mm)	2-25/32	33/64 (13.10mm)	57267

Weight	0.5 lbs
