Sale!

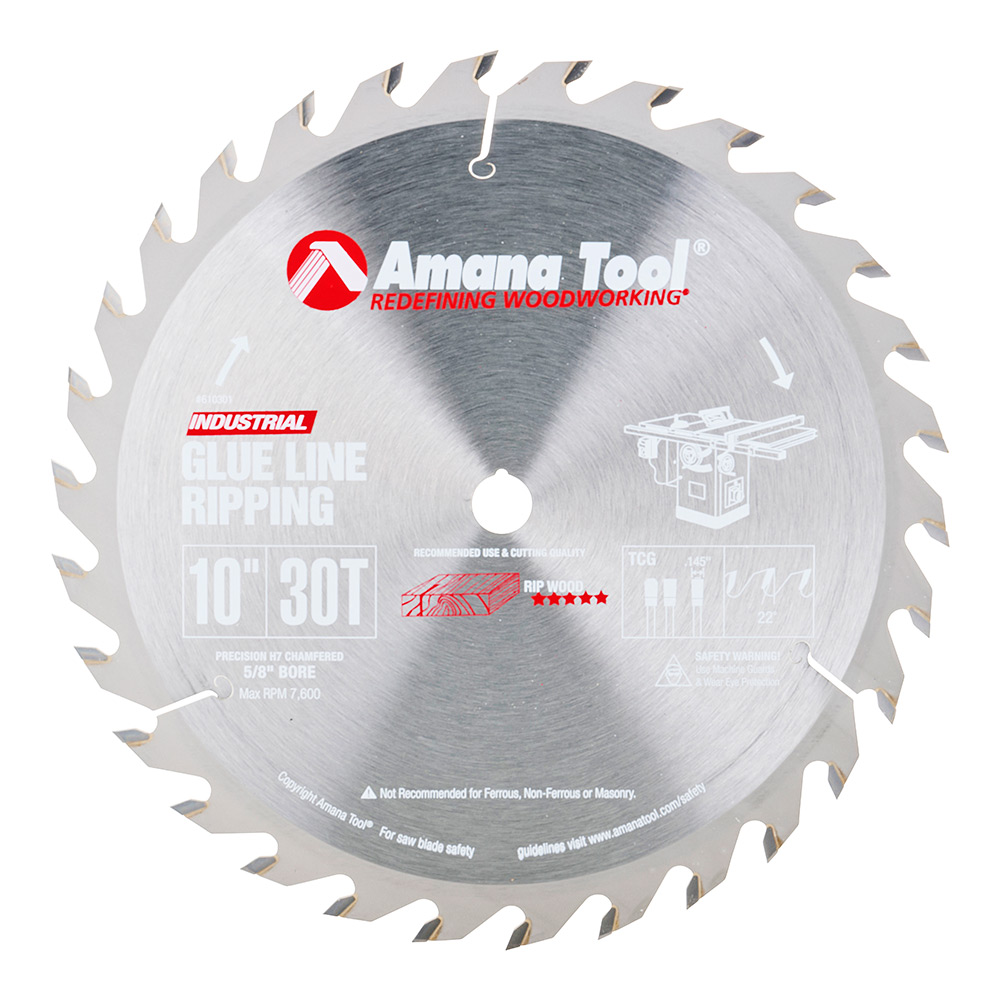

Amana 610301 Carbide Tipped Glue Line Ripping 10 inch Dia x 30T TCG, 22 Deg, 5/8 Bore

Name: Amana 610301 Carbide Tipped Glue Line Ripping 10 inch Dia x 30T TCG, 22 Deg, 5/8 Bore
SKU: Amana 610301
Availability: InStock

Original price was: $166.55.Current price is: $124.92.

10″/30T GLUE JOINT RIP T.C.G.

UPC: 738685136102 SKU: Amana 610301 Categories: Amana Tool, Glue Line Ripping Saw Blades, Ripping Saw Blades, Saw Blades

Item Description

Rip then glue up. With this exceptional blade, there’s no need for sanding or jointing after the cut. The precision triple-chip grind & extra-high hook angle allow aggressive feed rates, yet produces an extra-smooth cut finish. The thick plate minimizes vibration.

Use on table saws, sliding table saw, single and gang-rip operations.

Specifications

(D) Diameter	10 (250mm)
Teeth	30
(d) Bore	5/8
Tooth Grind	TCG
Hook Angle	22°
Kerf (B)	.145 (3.6mm)
Plate (C)	.095 (2.4mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Kerf (B)	Plate (C)	(d) Bore	Tool No.
10	30	TCG	.145	.095	5/8 (15.88mm)	610301C
12	40	TCG	.160	.110	1 (25.40mm)	612401
14	40	TCG	.169	.118	1 (25.40mm)	614401

Weight	2.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
