Sale!

616109 Carbide Tipped Solid Surface 16 Inch Dia x 108T MTC, 0 Deg, 1 Inch Bore

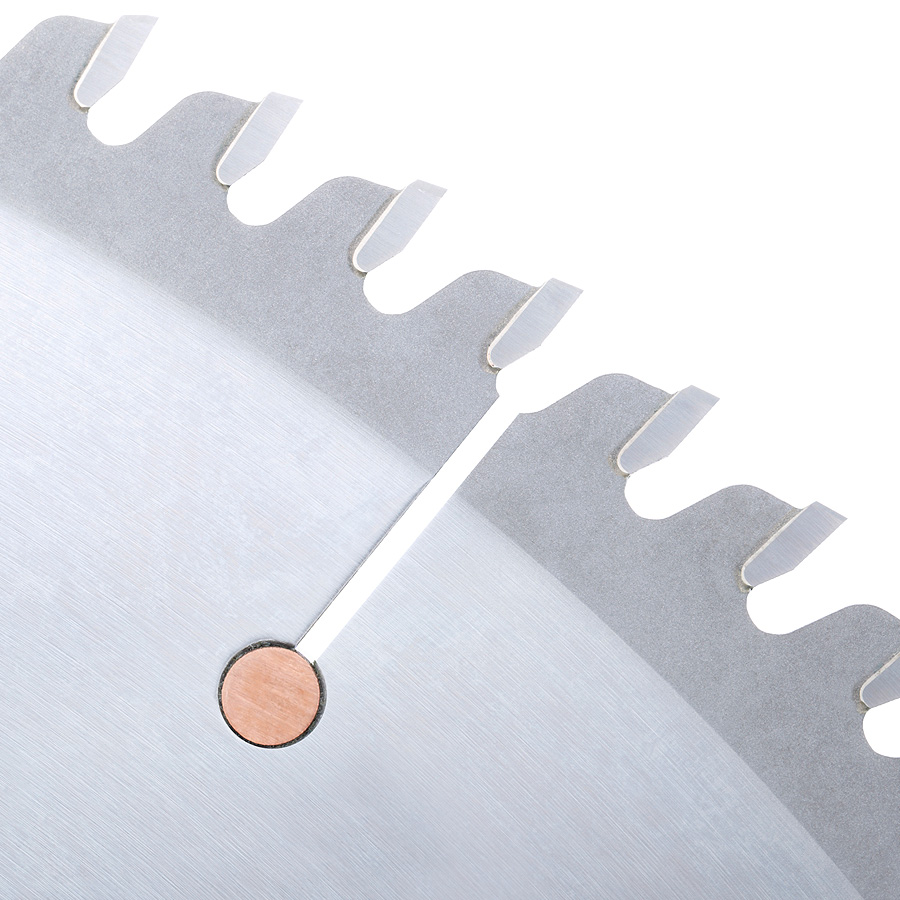

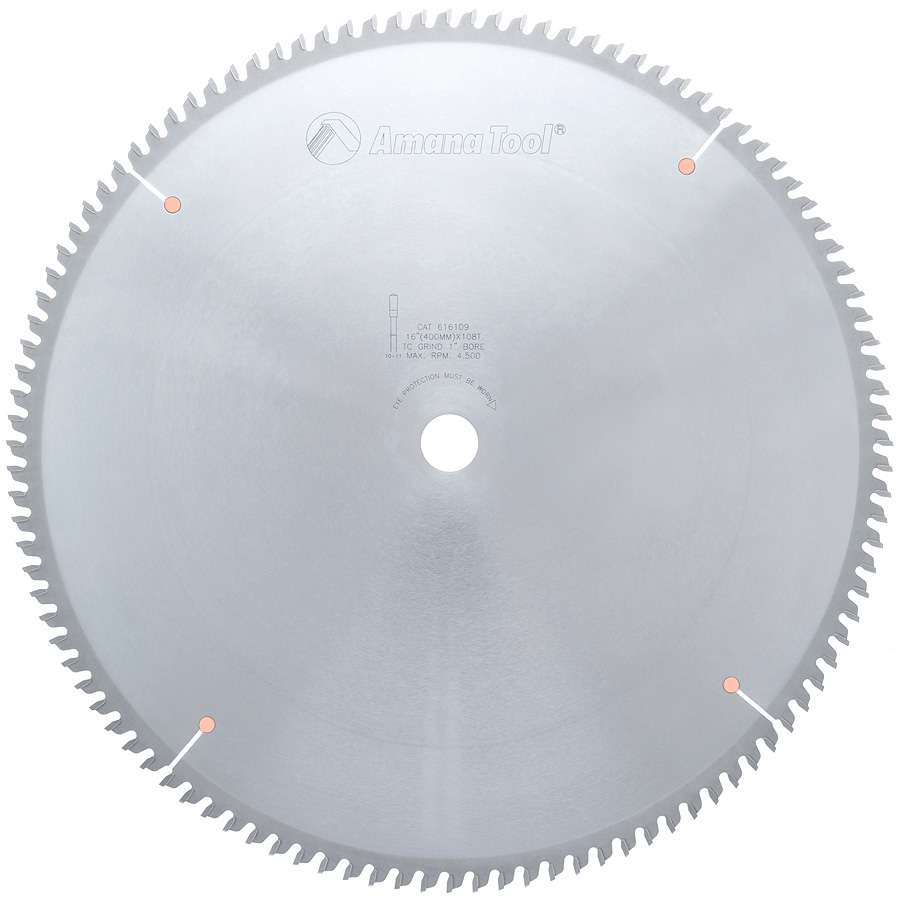

Amana 616109 Carbide Tipped Solid Surface 16 Inch Dia x 108T MTC, 0 Deg, 1 Inch Bore

Name: Amana 616109 Carbide Tipped Solid Surface 16 Inch Dia x 108T MTC, 0 Deg, 1 Inch Bore
SKU: Amana 616109
Availability: InStock

Original price was: $384.35.Current price is: $288.27.

16″/108T M-TCG SOLID SURFACE

UPC: 738685661093 SKU: Amana 616109 Categories: Amana Tool, Saw Blades, Solid Surface Saw Blades

Item Description

This blade is designed for cutting plastic laminate, Plexiglas®, and solid surface materials such as Dupont Corian®, Wilsonart®, Gibraltar® & Fountainhead®. The triple chip grind is especially configured to leave a swirl-free cut in solid surface materials. Thick, stable plate reduces vibration that degrades the cut and shortens tool life. The blade is suitable for a variety of saw configurations. The 0° hook angle virtually eliminates self-feeding when used with a radial arm saw.

Specifications

(D) Diameter	16 (400mm)
Teeth	108
(d) Bore	1
Tooth Grind	MTC
Hook Angle	0°
Kerf (B)	.126 (3.2mm)
Plate (C)	.102 (2.6mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	72	MTC	0°	.126	.095	5/8 (15.88mm)	–	610721
10	72	MTC	0°	.126	.095	30mm	2/7/42, 2/9/46 & 2/10/60	610721-30
10	72	MTC	0°	.126	.095	5/8 (15.88mm)	–	610721C
12	84	MTC	0°	.126	.095	1 (25.40mm)	–	612841
12	84	MTC	0°	.126	.095	30mm	2/7/42, 2/9/46 & 2/10/60	612841-30
14	96	MTC	0°	.126	.102	1 (25.40mm)	–	614961

Weight	6.35 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
