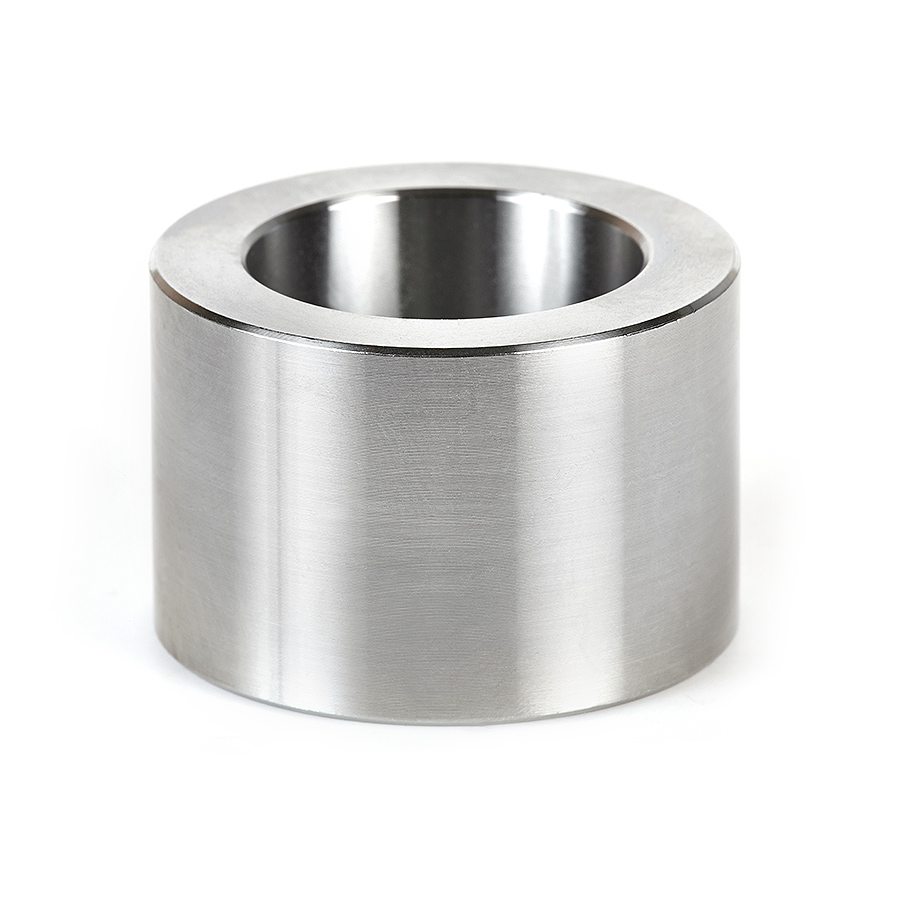

Amana 67235 High Precision Industrial Steel Spacer (Sleeve Bushings) 1-1/2 Dia x 1 Height for 1 Spindles

Name: Amana 67235 High Precision Industrial Steel Spacer (Sleeve Bushings) 1-1/2 Dia x 1 Height for 1 Spindles
SKU: Amana 67235
Availability: InStock

Original price was: $23.65.Current price is: $16.56.

SPACER 1″x1-1/2″x1″

UPC: 738685672358 SKU: Amana 67235 Categories: Amana Tool, High Precision Spacers (Sleeve Bushings) for Shaper Cutters, Shaper Cutter Parts & Accessories, Shaper Cutters

Specifications

(D) Diameter	1-1/2
Description	For 1 Spindles
(d) Inner Diameter	1
B	1

Other Sizes Available

(d) Inner Diameter	(D) Diameter	B	Tool No.
1/2 (12.70mm)	3/4 (19.05mm)	.500	BU-900
1/2 (12.70mm)	3/4 (19.05mm)	.437	BU-902
1/2 (12.70mm)	3/4 (19.05mm)	.750	BU-910
1/2 (12.70mm)	3/4 (19.05mm)	1.062	BU-920
1/2 (12.70mm)	1 (25.40mm)	.250	67220
1/2 (12.70mm)	1 (25.40mm)	.375	67221
1/2 (12.70mm)	1 (25.40mm)	.500	67222
1/2 (12.70mm)	1 (25.40mm)	.750	67223
1/2 (12.70mm)	1 (25.40mm)	1 (25.40mm)	67224
3/4 (19.05mm)	1 (25.40mm)	.250	67230
3/4 (19.05mm)	1 (25.40mm)	.375	67243
3/4 (19.05mm)	1 (25.40mm)	.437	BU-904
3/4 (19.05mm)	1-7/8	.250	919
3/4 (19.05mm)	1-1/4	.250	67225
3/4 (19.05mm)	1-1/4	.375	67226
3/4 (19.05mm)	1-1/4	.500	67227
3/4 (19.05mm)	1-1/4	.750	67228
3/4 (19.05mm)	1-1/4	1 (25.40mm)	67229
30mm	1-1/4	.250	67244
30mm	1-1/4	.375	67245
30mm	1-1/4	.500	67246
30mm	1-1/4	.750	67247
3/4 (19.05mm)	1-1/4	.437	BU-906
1 (25.40mm)	1-1/4	.437	BU-908
1-1/4	1-3/4	.250	67236
1-1/4	1-3/4	.375	67237
1-1/4	1-3/4	.500	67238
1-1/4	1-3/4	.750	67239
1-1/4	1-3/4	1 (25.40mm)	67240
1 (25.40mm)	1-1/2	.250	67231
1 (25.40mm)	1-1/2	.375	67232
1 (25.40mm)	1-1/2	.500	67233
1 (25.40mm)	1-1/2	.750	67234
3/4 (19.05mm)	1-1/2	.250	67241

Weight	0.3 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
