Sale!

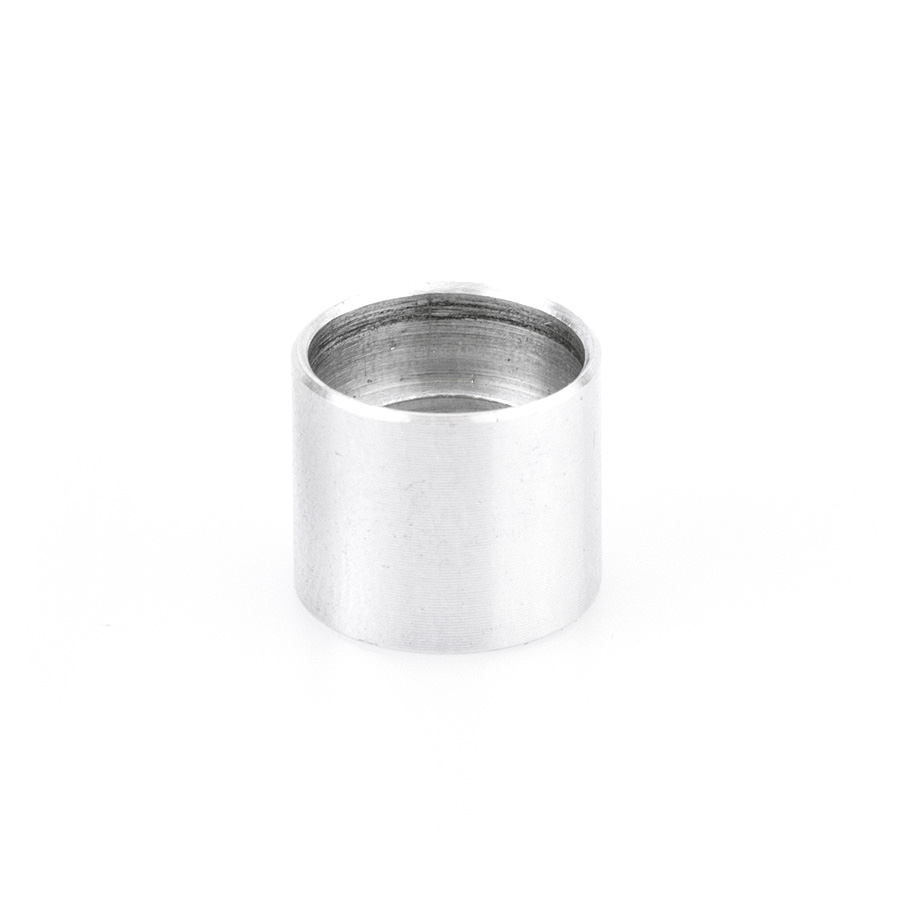

Amana 67430 Superabbet Individual Collars 9/16 Dia x 23/32 – 15/32 Rabbet Depth

Name: Amana 67430 Superabbet Individual Collars 9/16 Dia x 23/32 - 15/32 Rabbet Depth
SKU: Amana 67430
Availability: InStock

Original price was: $16.90.Current price is: $12.68.

9/16″ DIA. COLLAR.

UPC: 738685674307 SKU: Amana 67430 Categories: Amana Tool, Jointing Router Bits, Rabbeting Router Bits Accessories, Router Bits

Specifications

Collar Diameter	9/16
'A' Rabbet Depth 49360/RC-49360	23/32 (18mm)
'A' Rabbet Depth RC-49355	15/32

Other Sizes Available

Collar Diameter	'A' Rabbet Depth 49360/RC-49360	'A' Rabbet Depth RC-49355	Tool No.
1-9	23/64	7/64 (2.78mm)	67412
5/8 0.63 15.88mm 0.63	11/16 (17.46mm)	7/16 (11.11mm)	67428
1-1	15/32	7/32 (5.56mm)	67418
3/4 0.75 19.05mm 0.75	5/8 (15.88mm)	3/8 (9.53mm)	67426
3/4 0.75 19.05mm 0.75	5/8 (15.88mm)	3/8 (9.53mm)	67427
13/16 0.81 20.64mm 0.81	19/32	11/32 (8.73mm)	67424
7/8 0.88 22.23mm 0.88	9/16 (14.29mm)	5/16 (7.94mm)	67422
1 1.00 25.40mm 1.00	1/2 (12.70mm)	1/4 (6.35mm)	67420
1-1	7/16 (11.11mm)	3/16 (4.76mm)	67416
1-3	5/16 (7.94mm)	1/16 (1.59mm)	67410
1-5	3/16 (4.76mm)	–	67404
2 2.00 50.80mm 2.00	Flush	–	67398
1-7	1/16 (1.59mm)	–	67400
1-1	3/8 (9.53mm)	1/8 (3.18mm)	67414
1-3	1/8 (3.18mm)	–	67402
1-17	15/64	–	67406
1-1	1/4 (6.35mm)	Flush	67408

Weight	0.19 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
