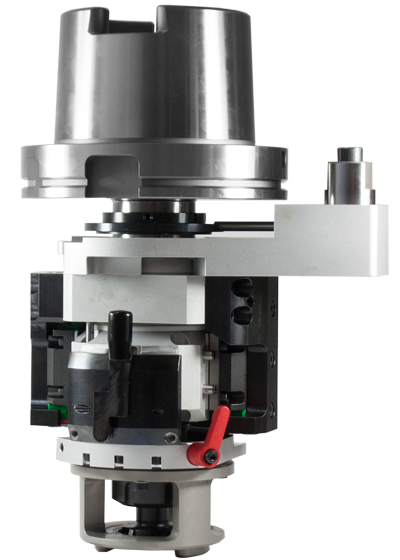

ATEMAG Soft Touch Cube Function Line

Touch aggregate with surface copying function for heavy machining of plastics, composites, and aluminum.

Request a Quote

Technical Data

Machining options:		Drilling	Milling
Max. input speed:	12.000 rpm
Max. output speed:	12.000 rpm
Gear ratio:	1 : 1
Max. torque:	10 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	6 x 60°
Machining angle:	0°
Number of tool outputs:	1 / fix
Lubrication:	Grease / Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE, Special Application

Description
Brand

Product Information

Machining options:

Milling and drilling

Typical applications:

Rail vehicle transport:

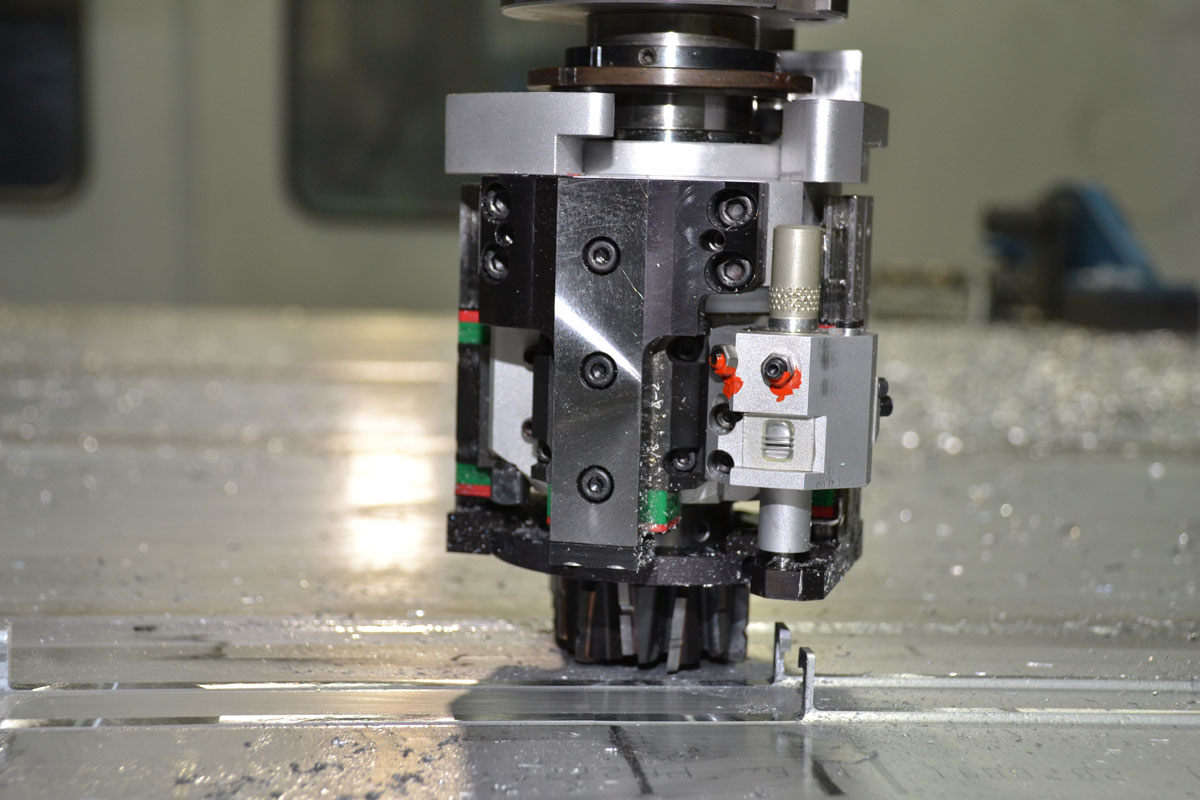

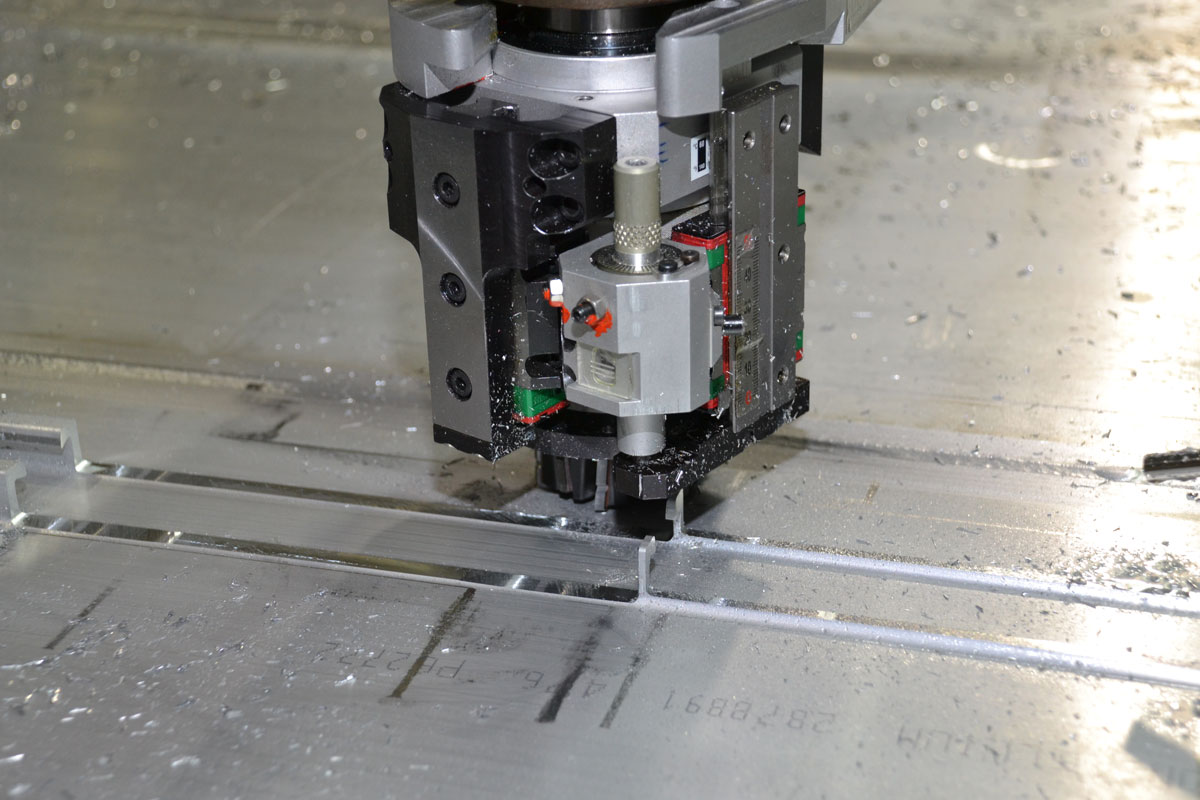

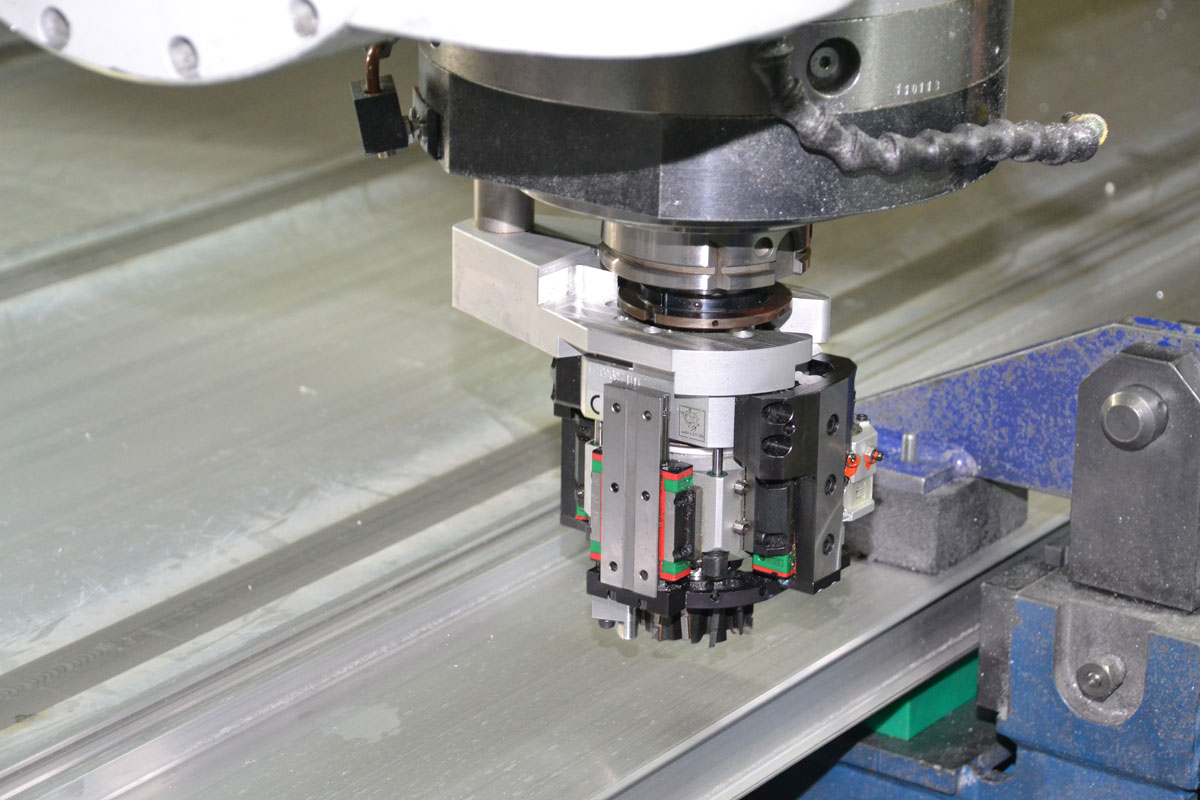

Defined milling of aluminum profiles (train sidewall).
defined milling of weld seams.
Aviation: Keyed milling machining of aircraft turbines.

Machine connection:

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
