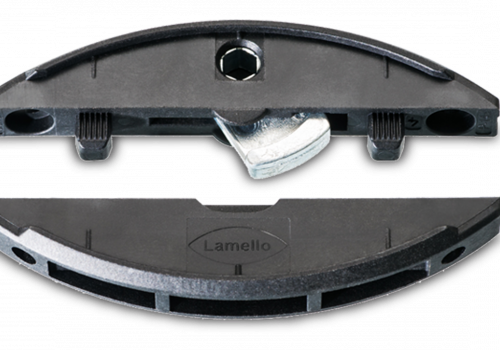

ATEMAG Solutions for Clamex Connectors

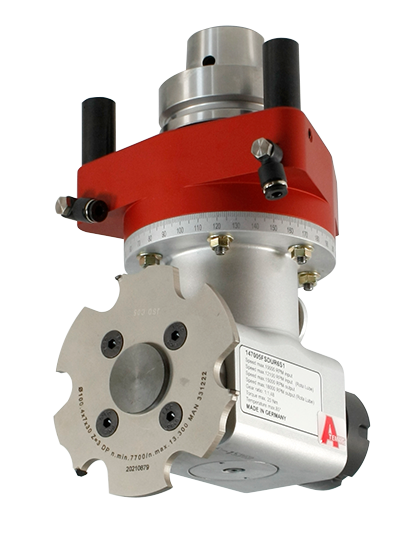

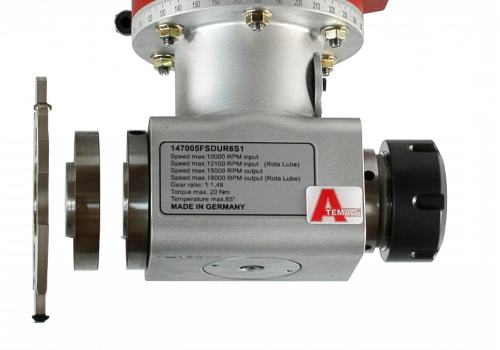

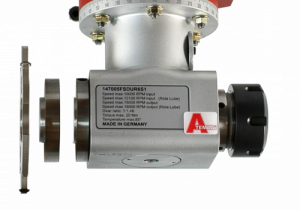

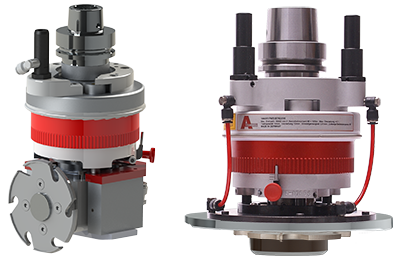

Vertical Clamex groove routing in surfaces with gentle machining using a standard ATEMAG aggregate – all-in-one system solution.

Request a Quote



Technical Data

Machining options:

Drilling

Milling

Max. input speed: max. 10.000 rpm
with Rota Lube: max. 12.100 rpm
Max. output speed: max. 15.000 rpm
with Rota Lube: max. 18.000 rpm
Gear ratio: 1 : 1,48
Max. torque: 20 Nm
Permissible operating temperature: max. 85°C
Positioning of torque arm with respect to tool: 360°
Machining angle: 90°
Number of tool outputs: 2 /fix
Lubrication: Grease / Rota Lube – Lifetime lubrication
