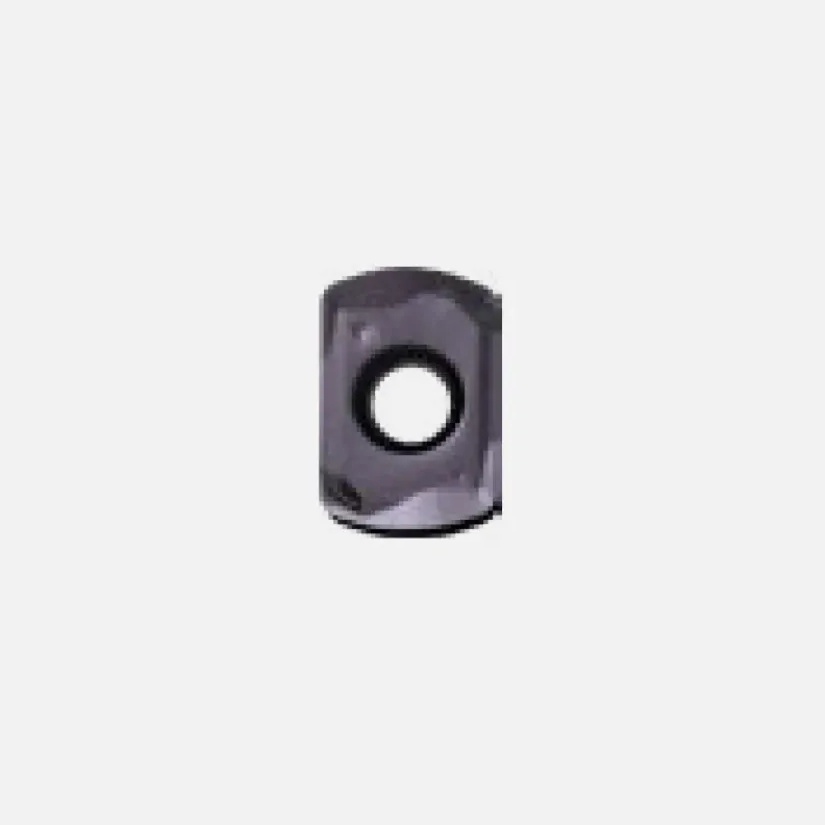

YG1-12000824 – ENMX0905-YG612 – Indexable Milling Insert

Original price was: $29.42.Current price is: $20.15.

ENMX0905-YG612 — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12000824 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12000824
Description	ENMX0905-YG612
Size/Dimension	ENMX0905-YG612
Material	Carbide
Series	ENMX, ENMX0905
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	ENMX
ANSI Code	ENMX0905
ISO Code	ENMX0905
ANSI	ISO
Shape	Oblong
# of Cutting Edges	4
Depth of Cut	1.5
Clearance Angle	0°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.002
Height Tolerance (± mm)	0.05
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on both sides/High Feed Negative (4 Corners)
Insert IC (inch)	0.3543
Insert IC (mm)	8.999
Thickness (in)	0.2126
Thickness (mm)	5.4
Corner Radius (in)	0.0312
Corner Radius (mm)	0.794
Chipbreaker Geometry	General
Chipbreaker Application	General Application
Cutting Edge Angle	high feed
Wiper Edge Clearance	10̊
Feed Direction	Right hand Insert
Grade	YG612
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Steel, Stainless Steel, Super Alloy
System of Measurement	Inch
Application code	P,M,S

Specialized Multi-Nano Coated Grade with high wear resistance and chipping resistance. Special Multi-Nano coating prevent crack and providing predictible tool life. Special universal Grade can acheive stable tool life in any workpiece.
