Sale!

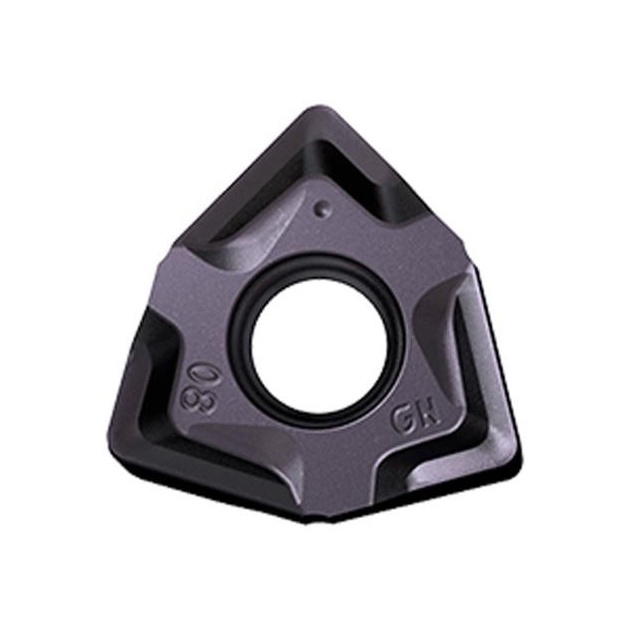

YG1-12001039 – WNEX040308R-GN-YG712/WNEX040308R-GN – Indexable Milling Insert

Original price was: $33.72.Current price is: $23.10.

WNEX040308R-GN-YG712/WNEX040308R-GN — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12001039 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12001039
Description	WNEX040308R-GN-YG712/WNEX040308R-GN
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	WNEX
ANSI Code	WNEX040308R-GN
ISO Code	WNEX040308R-GN
ANSI	ISO
Shape	Trigon
# of Cutting Edges	6
Depth of Cut	7
Clearance Angle	0°
IC Tolerance (± inch)	0.001
IC Tolerance (± mm)	0.025
Height Tolerance (± inch)	0.0031
Height Tolerance (± mm)	0.08
Thickness Tolerance (± inch)	0.001
Thickness Tolerance (± mm)	0.025
Insert Type	With Screw hole, chipbreaker on both sides
Insert IC (inch)	0.276
Insert IC (mm)	7.01
Thickness (in)	0.142
Thickness (mm)	3.607
Corner Radius (in)	0.031
Corner Radius (mm)	0.787
Edge Length (in)	0.065
Edge Length (mm)	1.65
Cutting Edge Lgth (in)	0.157
Cutting Edge Lgth (mm)	3.99
Insert Diam (in)	0.276
Insert Diam (mm)	7.01
Chipbreaker Geometry	GN
Chipbreaker Application	General Application
Cutting Edge Angle	90°
Edge Condition	Round
Feed Direction	Right hand Insert
Wiper Edge Length	0.065
Grade	YG712
Material	Carbide
Coating Process	PVD
Coating	AlTiCrN
Type	MILLING INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Milling Grade for Medium of steel applications. Supieror wear resistance and excellent toughness in high speed machining. Coating layer with high hardness and oxidation resistance.
