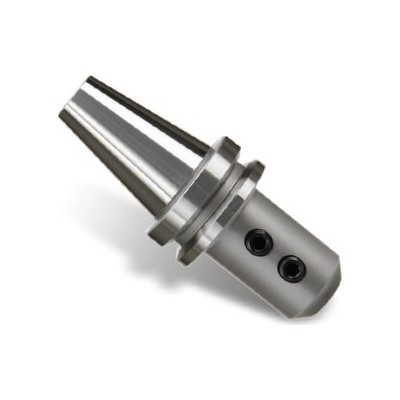

YG1-AD024 – CBT30-SLA3/8-2.36 – Dual Contact Side Lock Arbor

Original price was: $170.21.Current price is: $134.40.

Rotary Tool Holders

UPC: N/A SKU: YG1-AD024 Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	AD024
Description	DUAL CONTACT SIDE LOCK ARBOR
Size	CBT30-SLA3/8-2.36
Available Qty.	Call for availability

Specifications

Taper No.	CBT30
Model No.	CBT30-SLA3/8-2.36
Bore Diameter (Inch)	0.375
Bore Diameter (Metric)	9.525
Body diamter work piece (Inch)	1
Body diamter work piece (Metric)	25.4
Gage Length (Inch)	2.362
Gage Length (	2.362
Gage Length	59.9948
Screw	UNF3/8-24 5/16L
Functional Length (Inch)	1.969
Functional Length (Metric)	50.013
Set Screw EndMill (Inch)	0.63
# of Set Screw	1
G	UNF5/16-24 3/4L
Taper Accuracy	AT3
G Value	2.5
RPM	25000
Coolant System	AD
Length	BT Dual Contact
Connection	CBT (BT Dual Contact)
NOTES:	Set Screws for end mill holders
