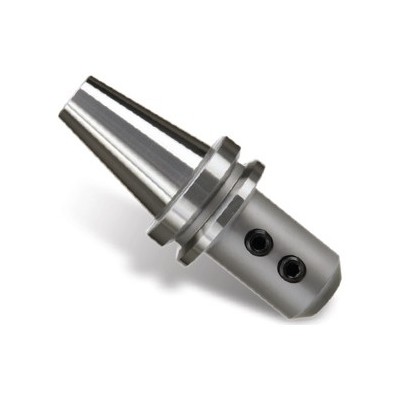

YG1-AE028 – CBT40-SLA5/8-3.54 – Dual Contact Side Lock Arbor

Original price was: $181.36.Current price is: $143.20.

Rotary Tool Holders

UPC: N/A SKU: YG1-AE028 Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	AE028
Description	DUAL CONTACT SIDE LOCK ARBOR
Size	CBT40-SLA5/8-3.54
Available Qty.	Call for availability

Specifications

Taper No.	CBT40
Model No.	CBT40-SLA5/8-3.54
Bore Diameter (Inch)	0.625
Bore Diameter (Metric)	15.875
Body diamter work piece (Inch)	1.5
Body diamter work piece (Metric)	38.1
Gage Length (Inch)	3.543
Gage Length (	3.543
Gage Length	89.9922
Screw	UNF1/2-20 1/2L
Functional Length (Inch)	2.756
Functional Length (Metric)	70.002
Set Screw EndMill (Inch)	0.882
# of Set Screw	1
G	UN9/16-16 1.0L
Taper Accuracy	AT3
G Value	2.5
RPM	25000
Coolant System	AD
Length	BT Dual Contact
Connection	CBT (BT Dual Contact)
NOTES:	Set Screws for end mill holders
