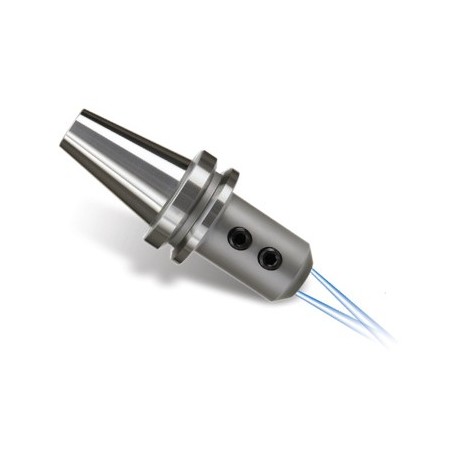

YG1-AH010C – BT40 AD/B-EMH3/4C-2.48 – End Mill Holder (Spray Nozzle Type)

Original price was: $165.48.Current price is: $130.65.

Rotary Tool Holders

UPC: N/A SKU: YG1-AH010C Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	AH010C
Description	END MILL HOLDER (SPRAY NOZZLE TYPE)
Size	BT40 AD/B-EMH3/4C-2.48
Available Qty.	Call for availability

Specifications

Taper No.	BT40
Model No.	BT40AD/B-EMH3/4C-2.48
Bore Diameter (Inch)	0.75
Bore Diameter (Metric)	19.05
Body diamter work piece (Inch)	1.75
Body diamter work piece (Metric)	44.45
Gage Length (Inch)	2.48
Gage Length (	2.48
Gage Length	62.992
Screw	UNF5/8-18 1/2L
Functional Length (Inch)	3.9
Functional Length (Metric)	99.06
Set Screw EndMill (Inch)	0.909
# of Set Screw	1
Taper Accuracy	AT3
G Value	6.3
RPM	15000
Coolant System	AD/B+C
Length	JIS/MAS 403-BT
Connection	JIS B6339/MAS 403-BT
NOTES:	High Balanced End Mill Holders are avilable on request. Set Screws for endmill Holders.

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1
