Sale!

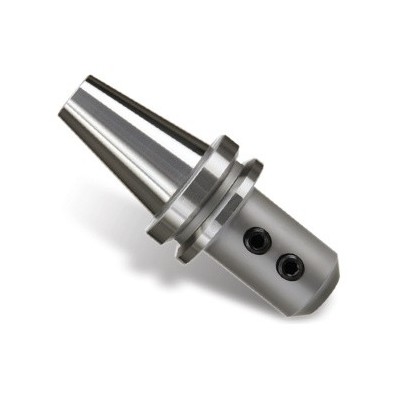

YG1-AH014B25 – 1 – Bt40 Em 1″ G2.5/25000 Rom Balanced Holder

Original price was: $147.67.Current price is: $116.60.

Rotary Tool Holders

UPC: N/A SKU: YG1-AH014B25 Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	AH014B25
Description	BT40 EM 1" G2.5/25000 ROM BALANCED HOLDER
Size	1
Available Qty.	Call for availability

Specifications

Taper No.	BT40
Model No.	BT40-EMH1"-3.75
Bore Diameter (Inch)	1
Bore Diameter (Metric)	25.4
Body diamter work piece (Inch)	2
Body diamter work piece (Metric)	50.8
Gage Length (Inch)	3.75
Gage Length (	3.75
Gage Length	95.25
Screw	UNF3/4-16 1/2L
Functional Length (Inch)	4.4
Functional Length (Metric)	111.76
Set Screw EndMill (Inch)	0.831
Set Screw EndMill (Metric)	22.911
# of Set Screw	2
Taper Accuracy	AT3
G Value	2.5
RPM	25000
Coolant System	AD
Length	Standard
Connection	JIS B6339/MAS 403-BT
NOTES:	Set Screws for end mill holders
