Sale!

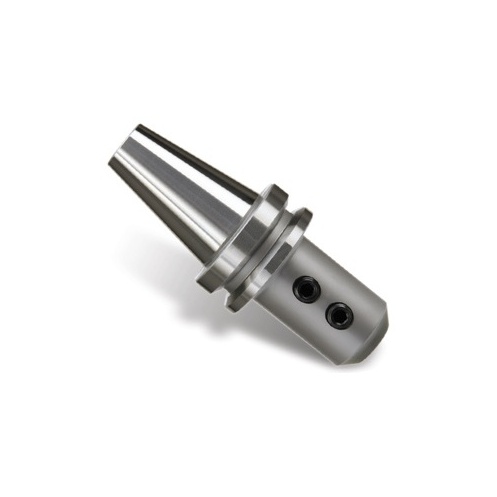

YG1-AH110B25 – 3/4 – Bt40 Em 3/4 Extend G2.5/25000 Rpm Balanced Holder

Original price was: $162.44.Current price is: $128.25.

Rotary Tool Holders

UPC: N/A SKU: YG1-AH110B25 Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	AH110B25
Description	BT40 EM 3/4 EXTEND G2.5/25000 RPM BALANCED HOLDER
Size	3/4
Available Qty.	Call for availability

Specifications

Taper No.	BT40
Model No.	BT40-EMH3/4-4.00
Bore Diameter (Inch)	0.75
Bore Diameter (Metric)	19.05
Body diamter work piece (Inch)	1.75
Body diamter work piece (Metric)	44.45
Gage Length (Inch)	4
Gage Length (	4
Gage Length	101.6
Screw	UNF5/8-18 1/2L
Functional Length (Inch)	3.9
Functional Length (Metric)	99.06
Set Screw EndMill (Inch)	0.909
# of Set Screw	2
Taper Accuracy	AT3
G Value	2.5
RPM	25000
Coolant System	AD
Length	Extended
Connection	JIS B6339/MAS 403-BT
NOTES:	Set Screws for end mill holders
