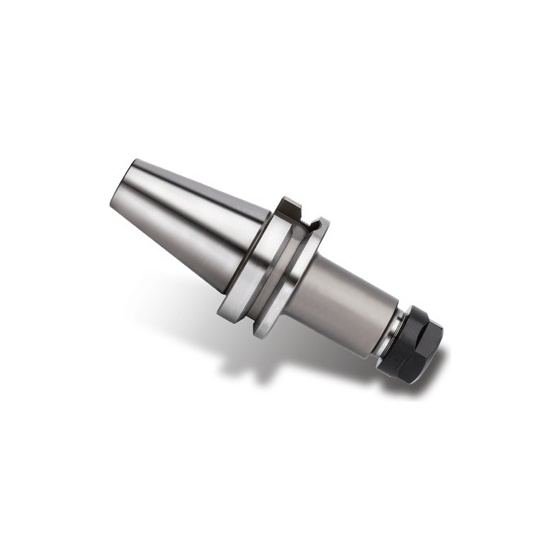

YG1-BI332X – BT50-ER20-6.00 – Ygbasix Er Collet Chuck

Original price was: $201.12.Current price is: $158.80.

YGBasiX Holder

UPC: N/A SKU: YG1-BI332X Categories: Holders, Rotary Tool Holder & Accessories, Rotary YGBasiX Tool Holders, YG-1

EDP No.	BI332X
Description	YGBasiX ER COLLET CHUCK
Size	BT50-ER20-6.00
Available Qty.	Call for availability

Specifications

Taper No.	BT50
Model No.	BT50-ER20-6.00
Clamping range	0.039-0.511
D=OD (Inch)	1.339
D=OD (Metric)	34.011
L=Gage Length (Inch)	6
L= Gage Length (Metric)	152.4
H=Min Tool depth (Inch)	1.22
H=Min Tool depth (Metric)	30.988
H=Max Tool depth (Inch)	3.102
H= Max Tool Depth (Metric)	78.791
G=Stop Screw	UN9/16-16 1/2L
Collet Series	ER20
Style	Extended
CAT,BT,HSK,NC	JIS B6339/MAS 403-BT
Taper Accuracy	AT3
G Value	6.3
RPM	15000
Coolant System	AD
Notes:	High balanced ER Collet Chucks are availanle on request. Supplied without wrench,ER
