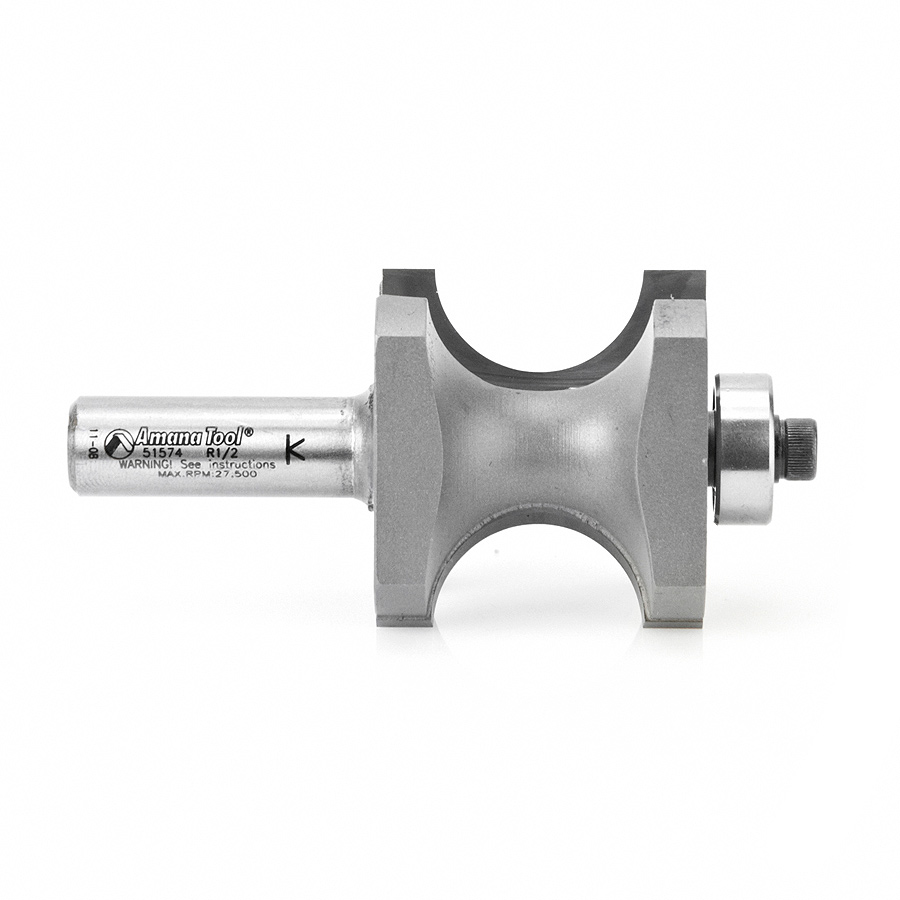

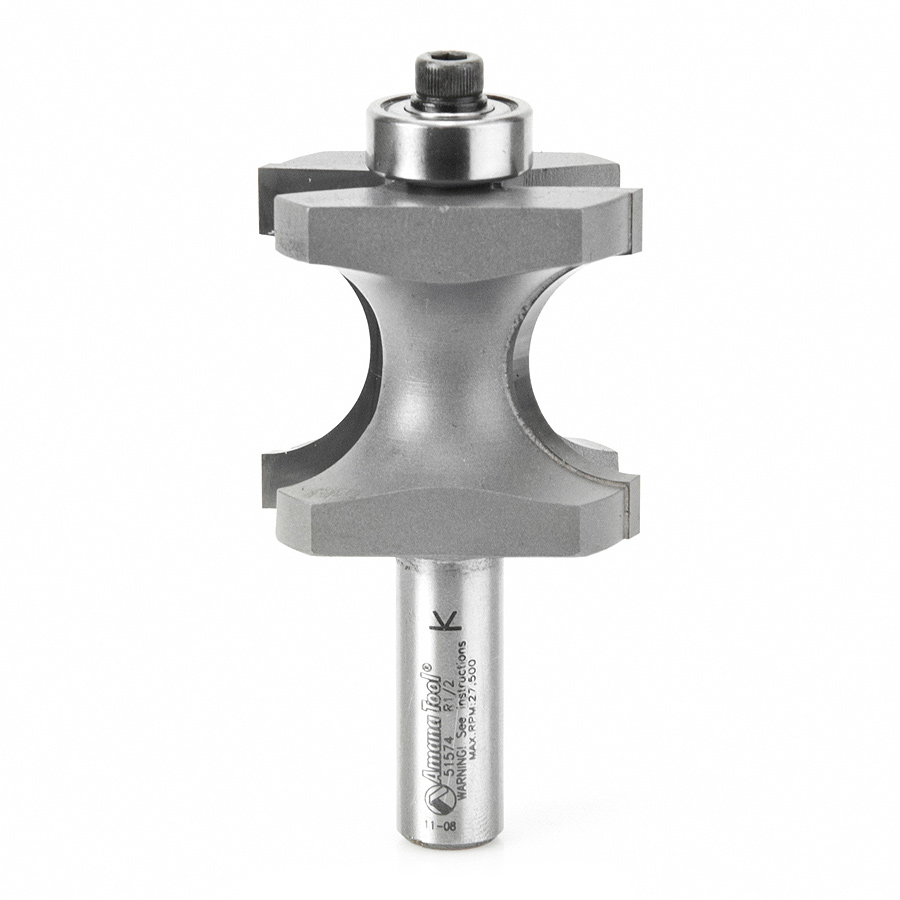

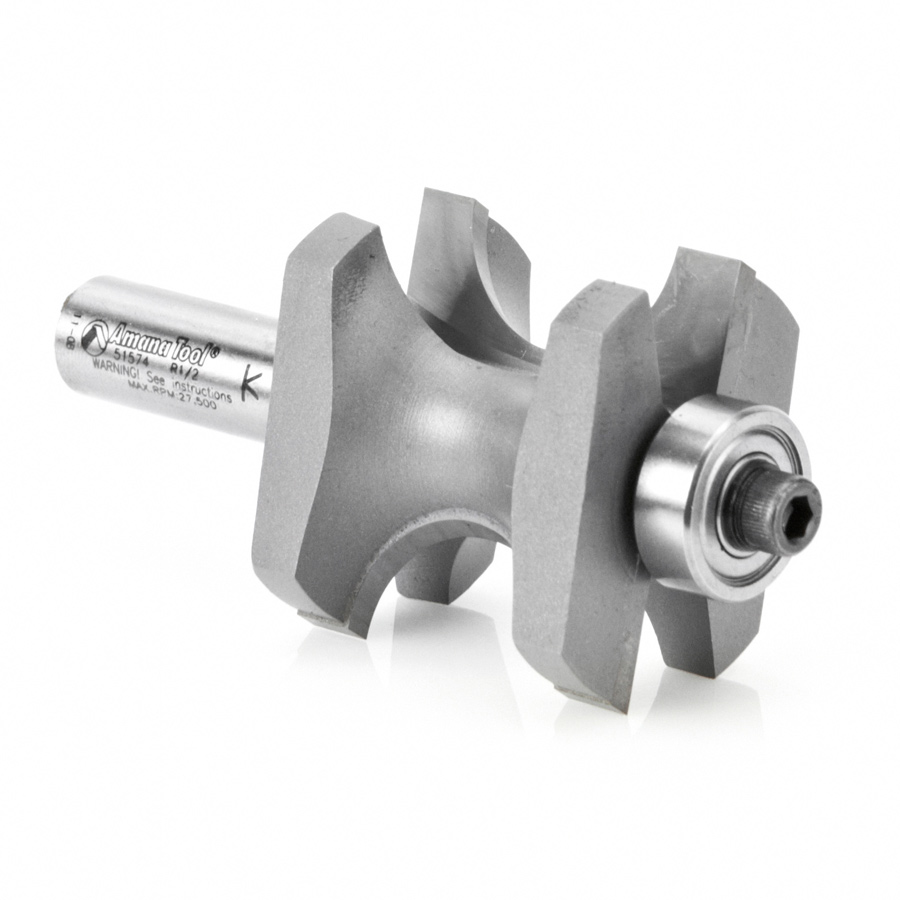

Amana 51574 Carbide Tipped Bullnose 1/2 Radius x 1-13/16 Dia x 1-9/32 x 1/2 Inch Shank
Original price was: $183.35.$137.52Current price is: $137.52.
BULL NOSE WITH B.B. 1/2 SHANK
Item Description
Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The “nose diameter” (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. ‘M’ denotes thickness of material on which a full 180° roundover can be accomplished.
Maximum RPM 18,000.
Replacement Parts
| Tool No. | Bearing(s) | Screw | Dust Shield |
|---|---|---|---|
| 51574 | 47714 | 67093 | 67126 |
Specifications
| Diameter (D) | 1-13/16 |
|---|---|
| Radius (R) | 1/2 |
| Cutting Height (B) | 1-19/32 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/2 |
| Replacement Bearing | 47714 |
| M | 1 |
| Flutes | 2 |
Other Sizes Available
| Radius (R) | M | Cutting Height (B) | Diameter (D) | Shank (d) | Overall Length (L) | Flutes | Replacement Bearing | Tool No. |
|---|---|---|---|---|---|---|---|---|
| 17/64 (6.75mm) | 35/64 (13.89mm) | 1 (25.40mm) | 1-1/32 | 1/2 (12.70mm) | 2-1/2 | 2 | – | 51558 |
| 5/64 (1.98mm) | 5/32 (3.97mm) | 1/2 (12.70mm) | 17/32 (13.49mm) | 1/4 (6.35mm) | 1-3/4 | 2 | – | 51540 |
| 5/64 (1.98mm) | 5/32 (3.97mm) | 1/2 (12.70mm) | 17/32 (13.49mm) | 1/2 (12.70mm) | 2 (50.80mm) | 2 | – | 51550 |
| 1/16 (1.59mm) | 1/8 (3.18mm) | 1/2 (12.70mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/8 | 2 | 47706 | 51565 |
| 9/64 (3.57mm) | 9/32 (7.14mm) | 3/4 (19.05mm) | 21/32 (16.67mm) | 1/4 (6.35mm) | 1-7/8 | 2 | – | 51544 |
| 3/32 (2.38mm) | 3/16 (4.76mm) | 21/32 (16.67mm) | 21/32 (16.67mm) | 1/2 (12.70mm) | 2 (50.80mm) | 2 | – | 51551 |
| 9/64 (3.57mm) | 9/32 (7.14mm) | 3/4 (19.05mm) | 21/32 (16.67mm) | 1/2 (12.70mm) | 2-1/4 | 2 | – | 51554 |
| 3/32 (2.38mm) | 3/16 (4.76mm) | 1/2 (12.70mm) | 11/16 (17.46mm) | 1/4 (6.35mm) | 2-1/8 | 2 | 47706 | 51567 |
| 1/8 (3.18mm) | 1/4 (6.35mm) | 9/16 (14.29mm) | 23/32 (18.26mm) | 1/4 (6.35mm) | 1-11/16 | 2 | – | 51543 |
| 1/8 (3.18mm) | 1/4 (6.35mm) | 9/16 (14.29mm) | 23/32 (18.26mm) | 1/2 (12.70mm) | 2-1/16 | 2 | – | 51553 |
| 1/8 (3.18mm) | 1/4 (6.35mm) | 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-3/8 | 2 | 47706 | 51568 |
| 7/64 (2.78mm) | 15/64 (5.95mm) | 3/4 (19.05mm) | 55/64 (21.83mm) | 1/2 (12.70mm) | 2-23/64 | 2 | – | 51552 |
| 3/16 (4.76mm) | 3/8 (9.53mm) | 7/8 (22.23mm) | 7/8 (22.23mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 51545 |
| 3/16 (4.76mm) | 3/8 (9.53mm) | 7/8 (22.23mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 2-3/8 | 2 | – | 51555 |
| 13/64 (5.16mm) | 27/64 (10.72mm) | 3/4 (19.05mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 2-1/4 | 2 | – | 51556 |
| 13/64 (5.16mm) | 3/8 (9.53mm) | 3/4 (19.05mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 47706 | 51569 |
| 1/4 (6.35mm) | 1/2 (12.70mm) | 1 (25.40mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 51557 |
| 1/4 (6.35mm) | 1/2 (12.70mm) | 1 (25.40mm) | 1-1/8 | 1/4 (6.35mm) | 2-17/64 | 2 | – | 51547 |
| 5/16 (7.94mm) | 5/8 (15.88mm) | 1 (25.40mm) | 1-1/8 | 1/2 (12.70mm) | 2-1/2 | 2 | – | 51559 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 1-27/64 | 1-3/8 | 1/2 (12.70mm) | 2-63/64 | 2 | – | 51560 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 1-5/16 | 1-3/8 | 1/2 (12.70mm) | 3-1/4 | 2 | 47716 | 51572 |
| 5/8 (15.88mm) | 1-1/4 | 2 (50.80mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-1/2 | 2 | – | 51564 |
| 3/4 (19.05mm) | 1-1/2 | 2 (50.80mm) | 2-3/8 | 1/2 (12.70mm) | 3-7/8 | 3 | – | 51566 |
| 7/16 (11.11mm) | 7/8 (22.23mm) | 1-1/2 | 1-1/2 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 51549 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1-9/16 | 1-11/16 | 1/2 (12.70mm) | 3-1/16 | 2 | – | 51562 |
| 9/16 (14.29mm) | 1-1/8 | 1-1/2 | 1-13/16 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 51563 |
| Weight | 0.54 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
