614540 Carbide Tipped General Purpose 14 Inch Dia x 54T ATB, 15

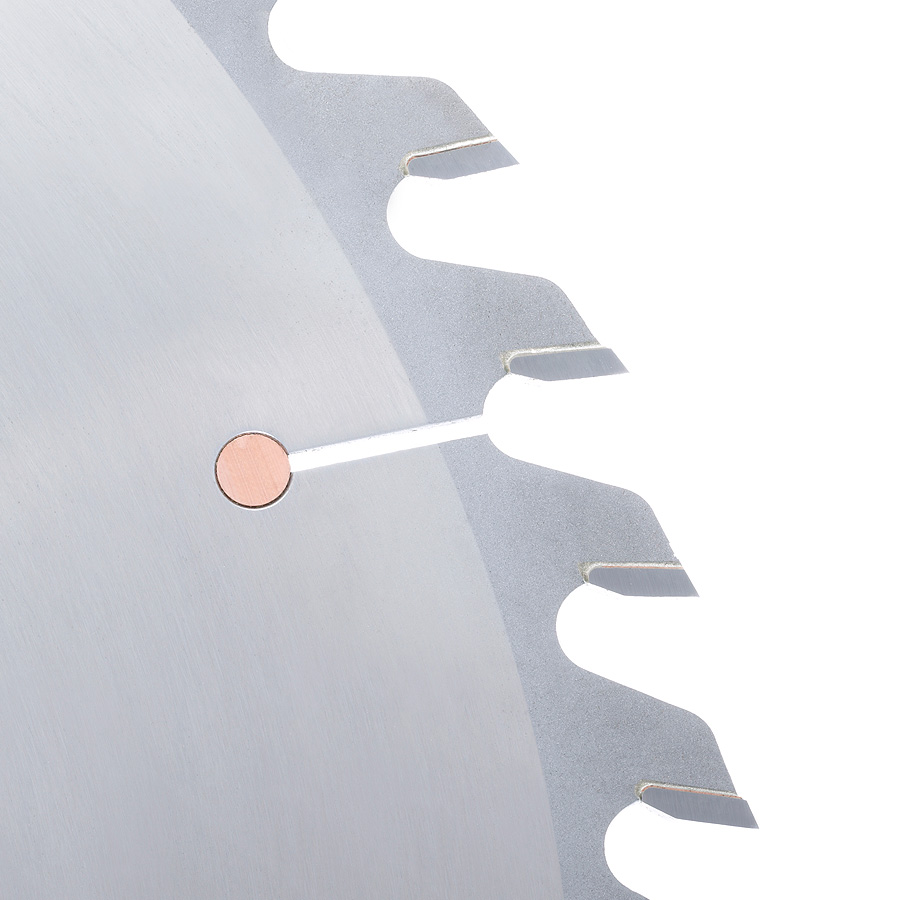

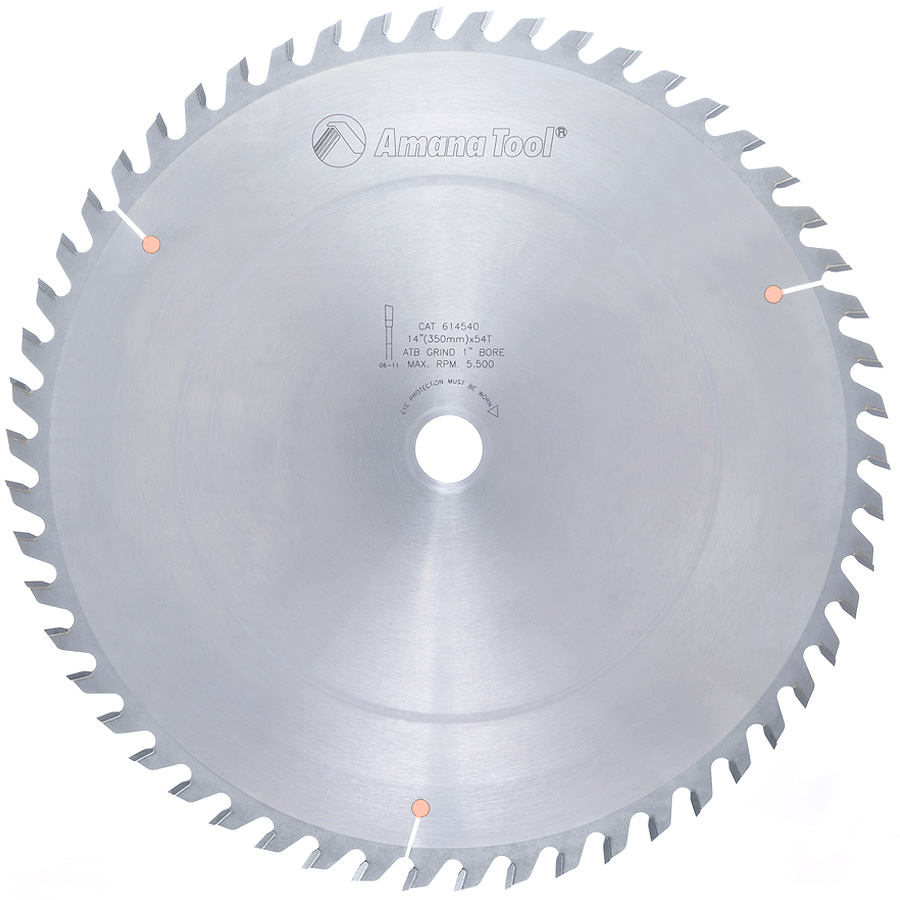

Amana 614540 Carbide Tipped General Purpose 14 Inch Dia x 54T ATB, 15

Name: Amana 614540 Carbide Tipped General Purpose 14 Inch Dia x 54T ATB, 15
SKU: Amana 614540
Availability: InStock

Original price was: $251.15.Current price is: $188.37.

14″/54T GENERAL PURPOSE A.T.B

UPC: 738685614549 SKU: Amana 614540 Categories: Amana Tool, General Purpose Cut-Off ATB Grind Saw Blades, General Purpose Saw Blades, Saw Blades

Item Description

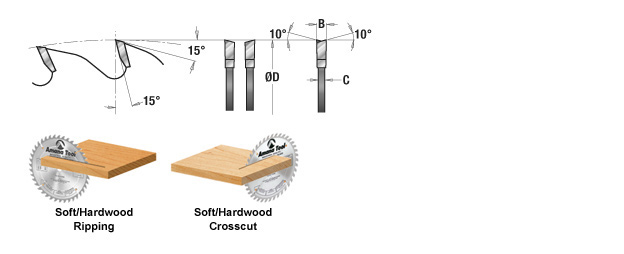

This blade has a 15° hook angle that improves the surface quality of the cut but increases the feed pressure required. This blade is a good choice for general purpose ripping and crosscutting of hardwoods and softwoods in a range of thicknesses, with occasional cutting of plywood and other man-made materials mixed in.

Specifications

(D) Diameter	14 (350mm)
Teeth	54
(d) Bore	1
Tooth Grind	ATB
Hook Angle	15°
Kerf (B)	.137 (3.5mm)
Plate (C)	.098 (2.5mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
8	34	ATB	15°	.118	.079	5/8 (15.88mm)	–	683400
10	40	ATB	15°	.126	.087	5/8 (15.88mm)	–	610400
12	48	ATB	15°	.126	.087	1 (25.40mm)	–	612480
12	48	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612480-30
14	54	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614540-30
16	60	ATB	15°	.137	.098	1 (25.40mm)	–	616600
16	60	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616600-30

Weight	4.9 lbs
