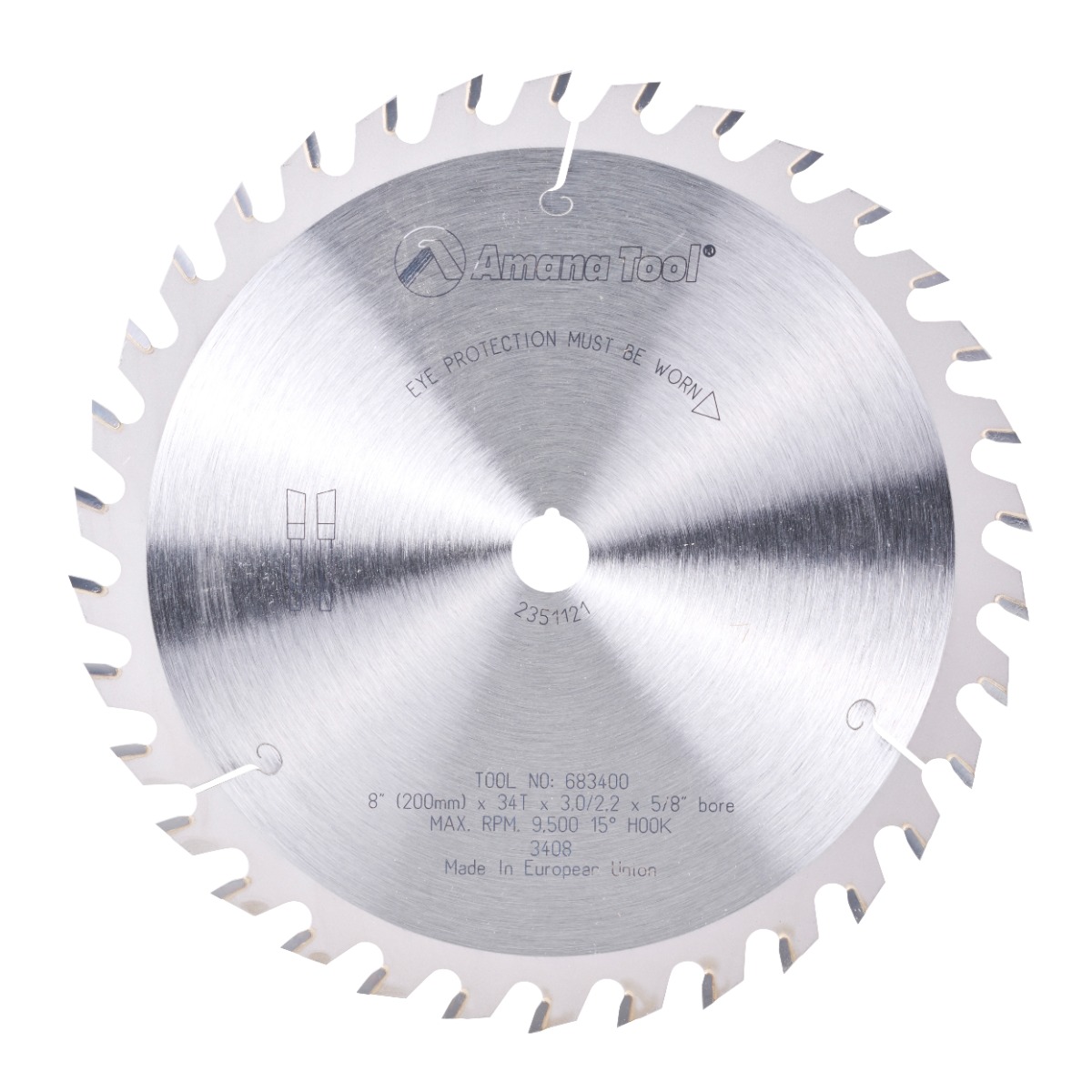

Amana 683400 Carbide Tipped General Purpose 8 Inch Dia x 34T ATB, 15 Deg, 5/8 Bore

Name: Amana 683400 Carbide Tipped General Purpose 8 Inch Dia x 34T ATB, 15 Deg, 5/8 Bore
SKU: Amana 683400
Availability: InStock

Original price was: $153.25.Current price is: $114.94.

8″/34T GENERAL PURPOSE A.T.B

UPC: 738685683408 SKU: Amana 683400 Categories: Amana Tool, General Purpose Cut-Off ATB Grind Saw Blades, General Purpose Saw Blades, Saw Blades

Item Description

This blade has a 15° hook angle that improves the surface quality of the cut but increases the feed pressure required. This blade is a good choice for general purpose ripping and crosscutting of hardwoods and softwoods in a range of thicknesses, with occasional cutting of plywood and other man-made materials mixed in.

Specifications

(D) Diameter	8 (200mm)
Teeth	34
(d) Bore	5/8
Tooth Grind	ATB
Hook Angle	15°
Kerf (B)	.118 (3.0mm)
Plate (C)	.079 (2.0mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
220mm	34	ATB	10°	.118	.079	30mm	2/7/42	220T340
10	40	ATB	15°	.126	.087	5/8 (15.88mm)	–	610400
12	48	ATB	15°	.126	.087	1 (25.40mm)	–	612480
12	48	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612480-30
14	54	ATB	15°	.137	.098	1 (25.40mm)	–	614540
14	54	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614540-30
16	60	ATB	15°	.137	.098	1 (25.40mm)	–	616600
16	60	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616600-30

Weight	1.24 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
