Sale!

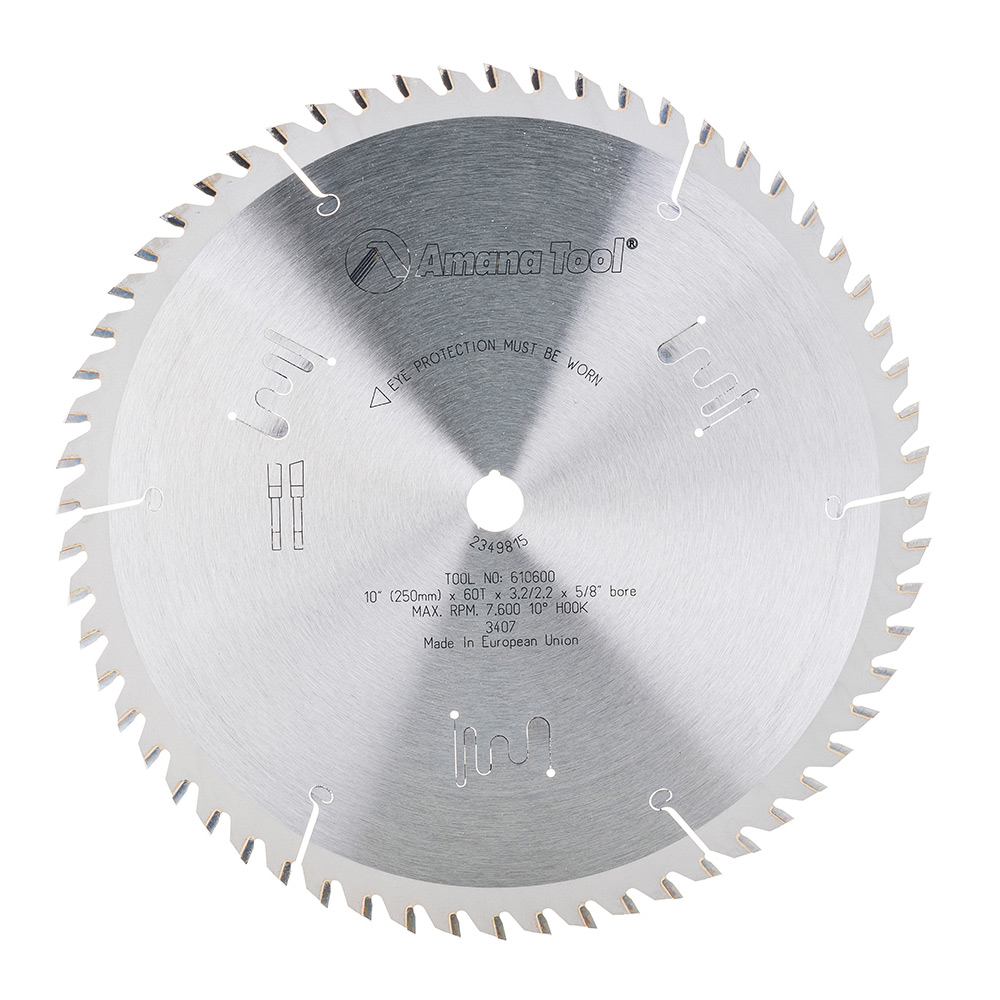

Amana 610600 Carbide Tipped Cut-Off and Crosscut 10 Inch Dia x 60T ATB, 10 Deg, 5/8 Bore

Name: Amana 610600 Carbide Tipped Cut-Off and Crosscut 10 Inch Dia x 60T ATB, 10 Deg, 5/8 Bore
SKU: Amana 610600
Availability: InStock

Original price was: $122.60.Current price is: $91.95.

10″/60T CUT-OFF SAW ATB GRIND

UPC: 738685610602 SKU: Amana 610600 Categories: Amana Tool, Cut-Off & Crosscut Saw Blades, Saw Blades

Item Description

As our standard cut-off and crosscut blade, this is ideal for table saws and sliding table saws. Its combination of 10° hook and the alternate top bevel tooth grind provide good-quality cuts and a long cutting life.

Suitable for hardwood, softwood, even plywood and chipboard. Good choice for heavy production in any cabinet-making shop.

Specifications

(D) Diameter	10 (250mm)
Teeth	60
(d) Bore	5/8
Tooth Grind	ATB
Hook Angle	10°
Kerf (B)	.126 (3.2mm)
Plate (C)	.087 (2.2mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	60	ATB	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610600-30
10	60	ATB	.126	.087	5/8 (15.88mm)	–	610600C
12	60	ATB	.126	.087	1 (25.40mm)	–	612600
12	60	ATB	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612600-30
12	72	ATB	.126	.087	1 (25.40mm)	–	612720
12	72	ATB	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612720-30
14	72	ATB	.137	.098	1 (25.40mm)	–	614720
14	72	ATB	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614720-30
14	84	ATB	.137	.098	1 (25.40mm)	–	614840
16	96	ATB	.137	.098	1 (25.40mm)	–	616960
18	108	ATB	.158	.110	1 (25.40mm)	–	618108

Weight	2.4 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
